Product Overview

Description

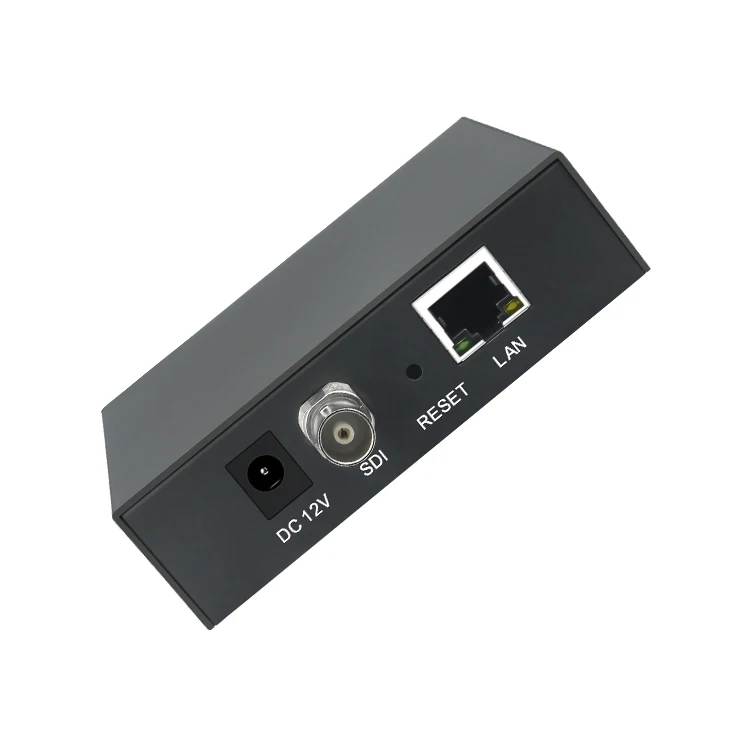

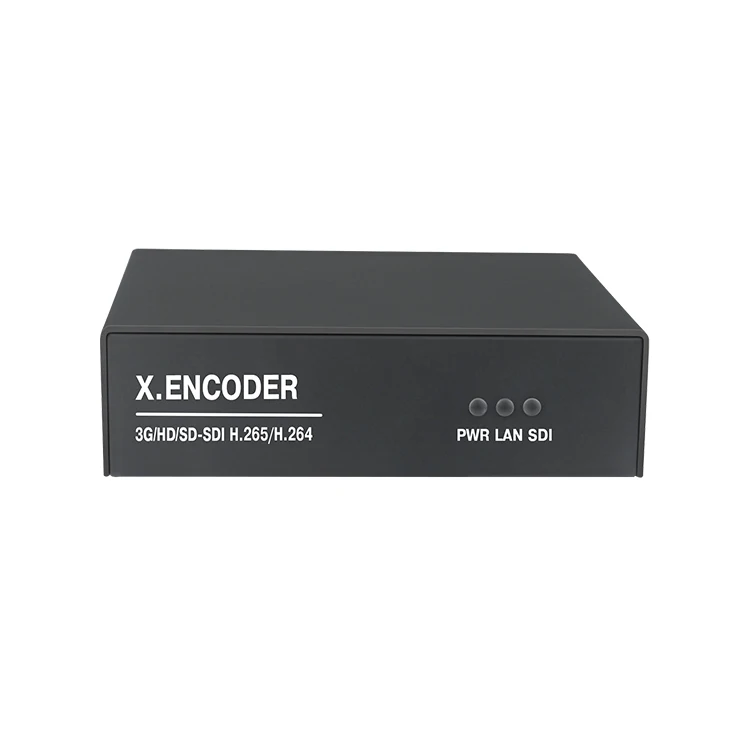

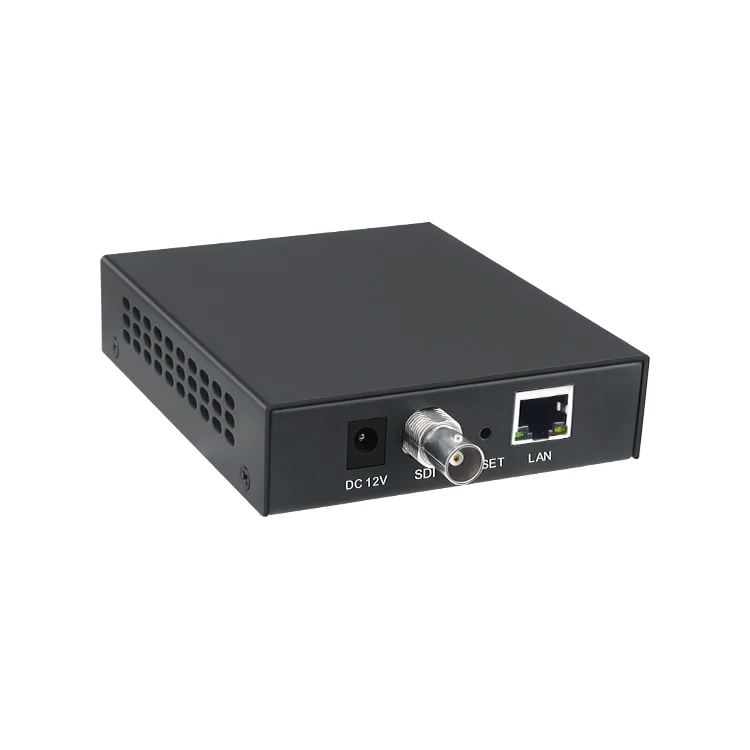

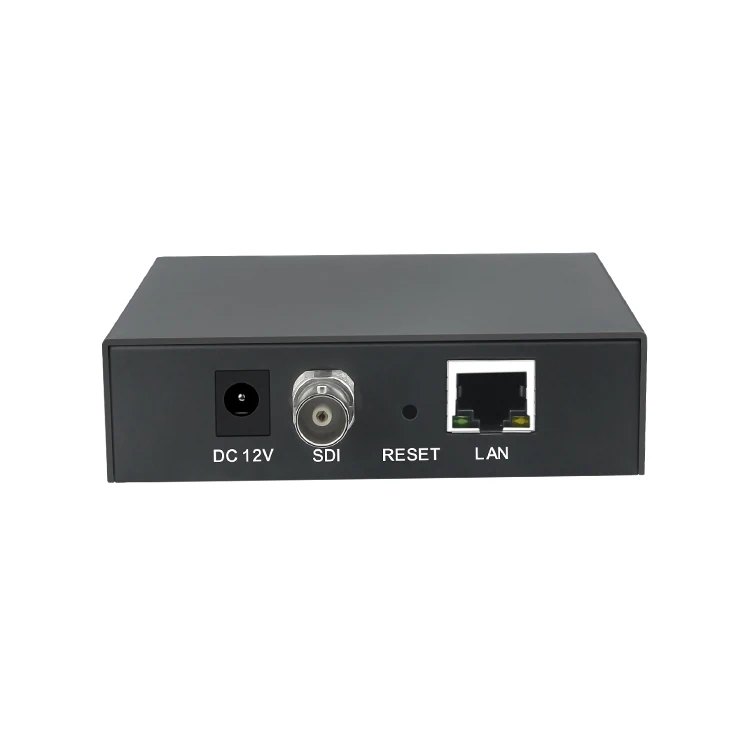

H.265 full hd resolution 1080p encoding SDI over IP Video Encoder Steamer Device

C 5.jpg



Product Overviews



 We also offer IP encoders support one-channel, four/eight channels HDMI/SDI/VGA optional, output dual stream H.264/H.265 format, audio ACC format. Users can adjust in the web control panel. The product is highly integrated, with low latency,low rate, low delay.It supports RTSP, RTP, HTTP, RTMP, UDP protocols.
Five service butlers:
1.IP Matrix on Monitoring system
2.Hotel IPTV system live solution
3.Video conferencing system
4.Educational Recording System Solution
5.Digital Signage HD stream server



SDI (5).jpg

Product feature:

-Supports 720P/1080P input. Supports Blue ray HD.

-Supports 1-channel SDI input

-Supports WINDOWS and LINUX systems.

-Multiple devices can be displayed on one computer.

-Supports RTSP, RTP, HTTP, RTMP, UDP protocols, unicast or multicast. RTMP supports adding user and password. Supports DHCP, Onvif,

-Supports dual main and second streams.

- Supports Wowza/FMS/RED5/Vstream/Youtube Live, works with media server, can realize live streaming.

- Encoder status display.

-Encoding format: H.264/H.265, MP3 and AAC audio. Sampling rate: 32000, 44100 etc. Audio bit rate after encoding: 48K, 64K, 96K, 128K, 160K, 192K, 256K.

-Code rate: CBR/VBR 32KBIT/S-32MBIT/S

-Video packet mode: FFMPEG and VLC.

-Transmission protocol:  TCP, UDP, 100M (RJ45 internet port)

-WEB control interface, supports WAN remote control.

-Supports English OSD, supports OSD rolling, picture overlay. Supports adding company logo, character and symbol can be displayed at any place of the screen; coordinate range: 1920x1080; font size range: 8-72.

-Supports DHCP IP, supports one-key reset, version upgrade and remote maintenance.

-Image setting: contrast, luminance, hue and saturation.

-Supports embedded audio.

-Supports encoding without video signal.

-Power: 5W, low power consumption

Parameters:

Input

1-channel SDI input

Output

1-channel IP output

Video

Input resolution

1920x1080/1680x1050/1280x720/1600x1200/960x540/720x576/704x576, etc.

Encoding standard

H.264/H.265

Size after encoding

640x360-1920x1080 (adjustable)

Code rate

CBR/VBR control 32KBIT/S~32MBIT/S

Frame rate

30/60 frame

Audio

Input

1-channel HDMI embedded audio

Audio encoding

AAC/MP3/MP2

Audio rate

64Kb/s-384Kb/s

Sampling rate

32000, 44100 etc

OSD

Text, picture

IP output

1 RJ 100M/1000M adaptive Ethernet port, TS standard stream, four code streams, Onvif protocol

System

Network protocol

Supports RTSP, HTTP, RTMP, UDP, multicast and unicast

Configuration management

Support IE configuration, remote upgrade

Common

Power supply

220/110V-2A

Power consumption

5W

Size

100mm x 70mm x 32mm (LxWxH)

Working temperature

-20℃-+ 60℃

Working humidity

<90%, non-condensation

Weight

0.2KG

Our company have the right to adjust the parameter without notice, if has any question, please contact us for update.

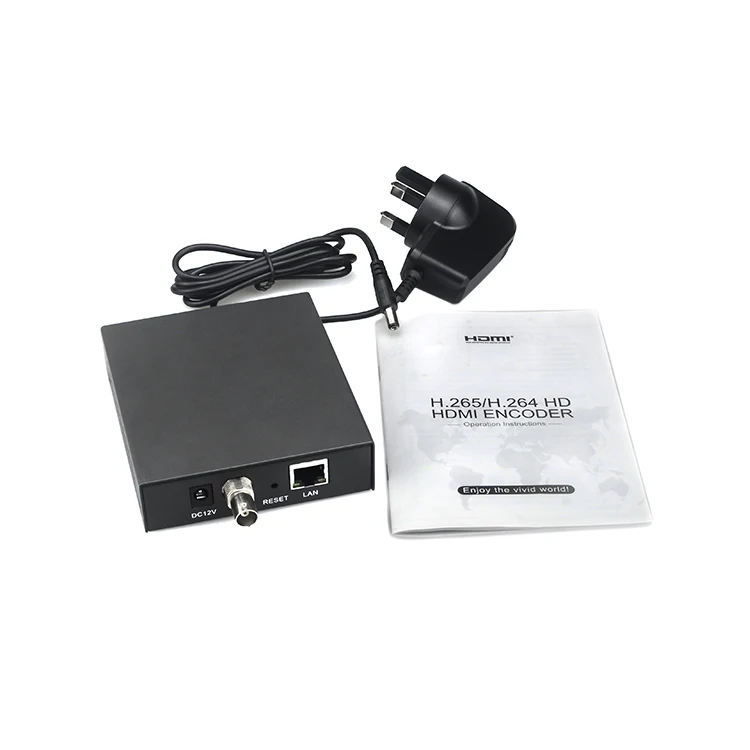

Package Contents:



1). Main Unit. H.265 SDI Encoder

2). 1x Power adapter DC 12V

3). Operating Instruction manual

paste-pic-dp_uuid_4d0fg



Product Description

H.264 1080P _13H.264 1080P _14H.264 1080P _08H.264 1080P _09H.264 1080P _05

H.264 1080P _06

H.264 1080P _07

H.264 1080P _10

H.264 1080P _15



Company Information



_01(1)_02(1)







Related Products

FAQ

1.Can this support HLS protoclo?
Yes, it can support with HL S(Any iOS browsers are able to have streams from IPTV Streaming Encoder in Any-time, Anywhere without install any software players),HTTP/UDP/RTSP, RTMP(Best choice for the Facebook,YouTube Live) ONVIF protocols.



2. Can this device stream to the Facebook, YouTube and so on?
Our Streaming encoder series products have been working closely with the world-renowned StreamingMedia Platform for many years. With perfect compatibility,It could be pushing stream to the Facebook, YouTube,Ustream, Wowza server



3. How and where can I set up the device? Is by software?
The Streaming encoder is set up by Web-management. lt's very easy for operation.
An User Manual which has detailed t-utorial will be shipped with encoder. Also our professionaltechnical are willing to be of help



4.How is the delay?
Over the years, our R&D department keeps working on decrease the delay. Now the delay of our encoder is lessthan 100 msec(teseted by LAN, except the HLS protocol).If the result turns out the delay is more than that, could becaused by the internet or decoder.
