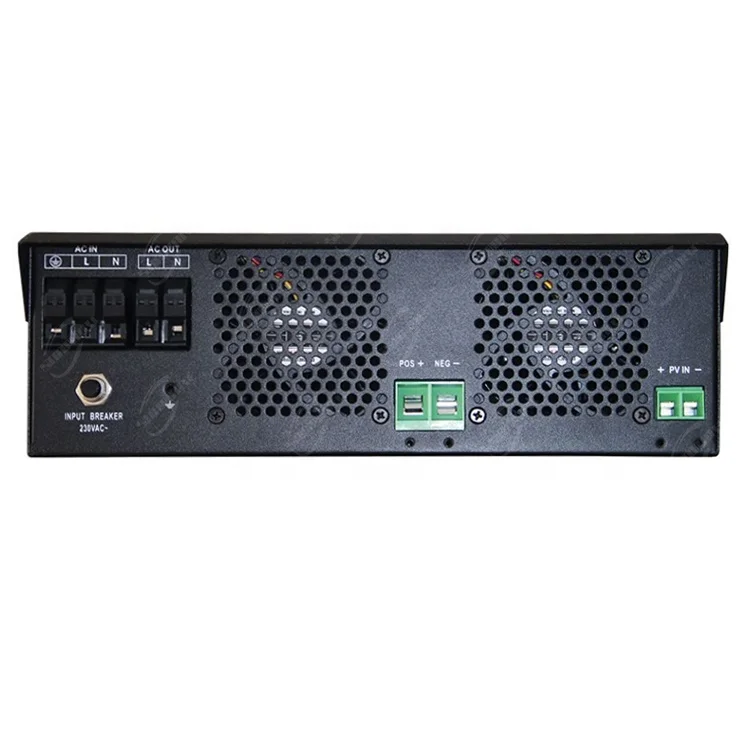

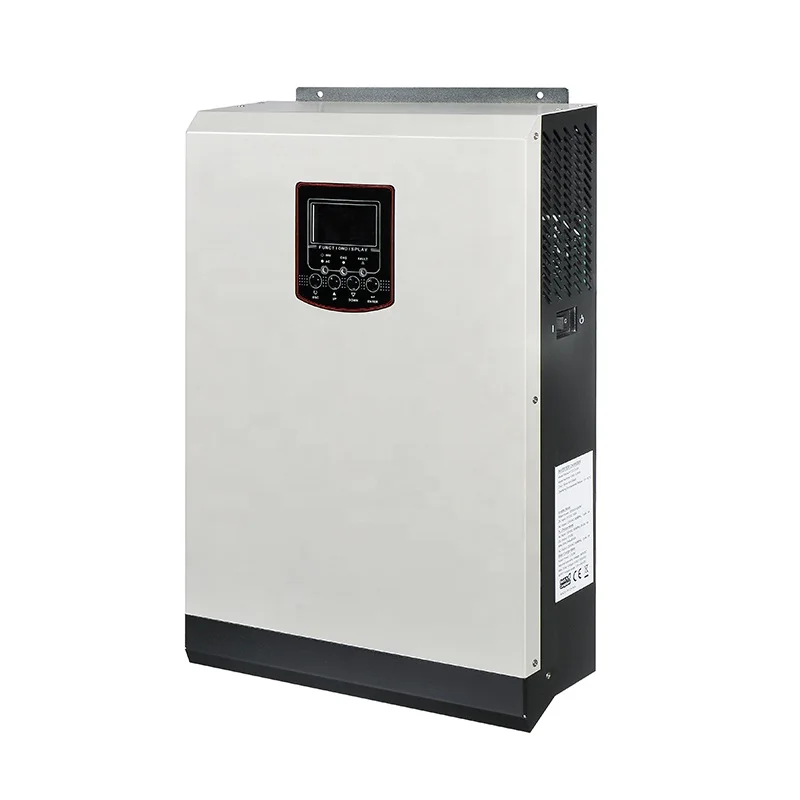

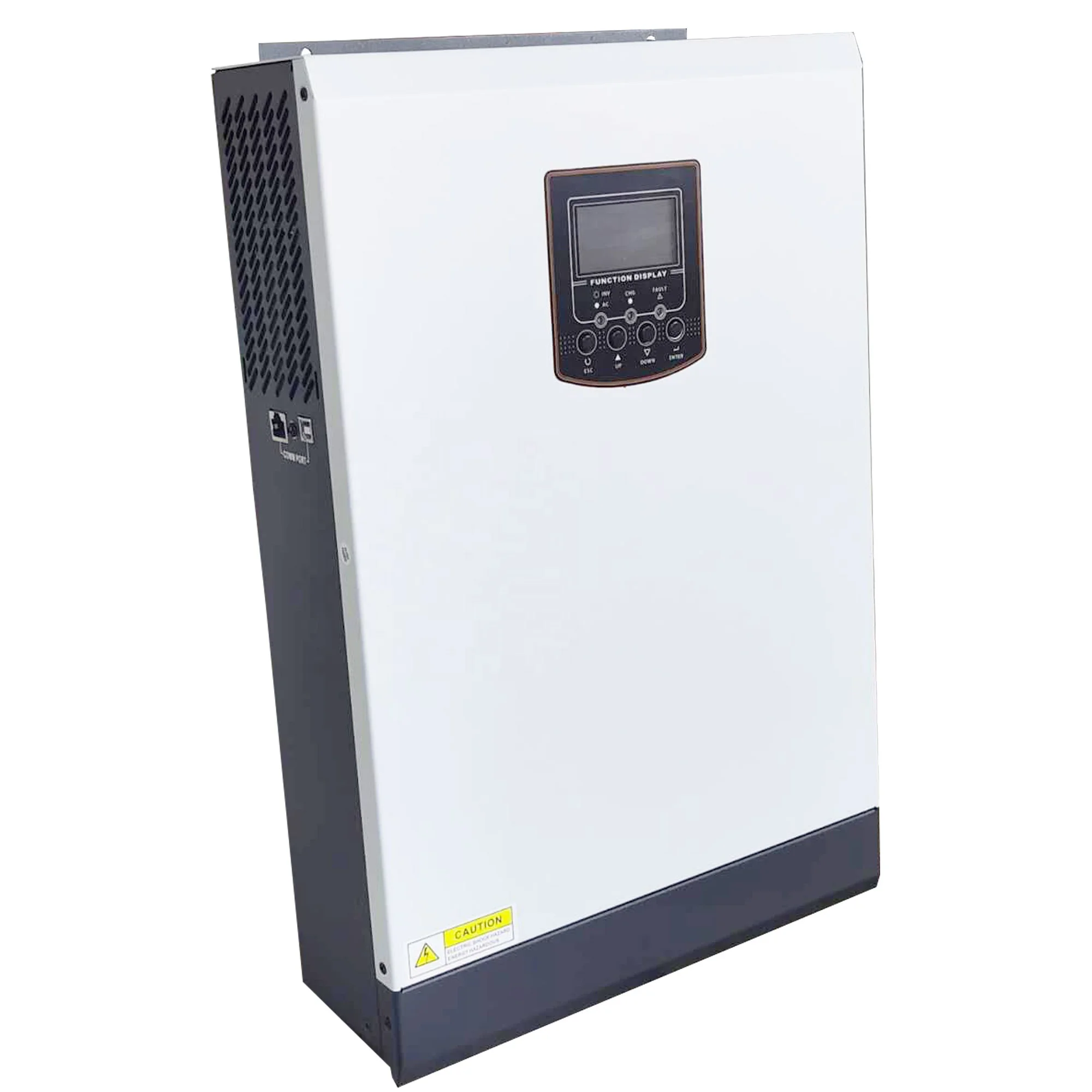

5kW Off Grid Solar Hybrid Inverter With 80A Built In MPPT Controller

Product Overview

Description

5kW Off Grid Solar Hybrid Inverter With 80A Built In MPPT Controller













Technical Datas

Model	VM II 5000-48
RATED POWER	5000VA / 5000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	10000VA
Efficiency (Peak)	90%~93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	4000 W
MPP Range @operating Voltage	120~450VDC
Max. Solar Charge Current	80 A
Max. AC Charge Current	80 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight (kgs)	10
Communication Interface	USB/RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C









Product Details













Working Diagram (available to work without battery)























































Payment Term	T/T	EXW	T/T 30% deposit, T/T the balance before shipment
		FOB
		CFR(C&F)
		CIF
Delivery Time	15 days after receiving payment for one container







FAQ

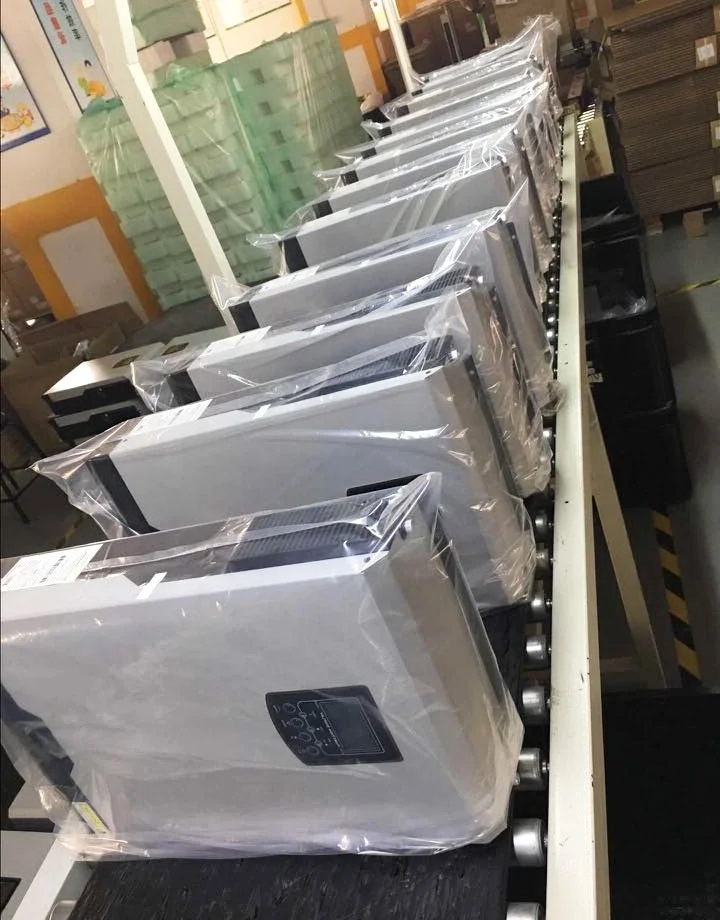

Q1. Are you a factory?

A. Yes, welcome to visit our factory.

Q2. How long is the delivery time?

A. Usually it will take about 5-10 days to produce 50pcs.

Q3. Could you offer Form A or C/O?

A. No problem, we can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q5. Would you accept to use our logo?

A. Yes, But MOQ should be more than 100pcs

Q6. We want to know about your month capacity.

A. It depends on which model. For example for relay type small capacity, month capacity can reach about 2000pcs and big capacity about 3000pcs.

Q7. Where is your market?

A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q8. Does the inverter connect with solar system?

A. Yes. Because of the unique feature which combine invert, charge and AC auto-transfer switch into one complete system, made inverter not only connect with solar system, but also could be used in officer equipments, household items, power tools ans etc..

Q9. What kind of certificate you have?

A. Our company already achieved ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending).
