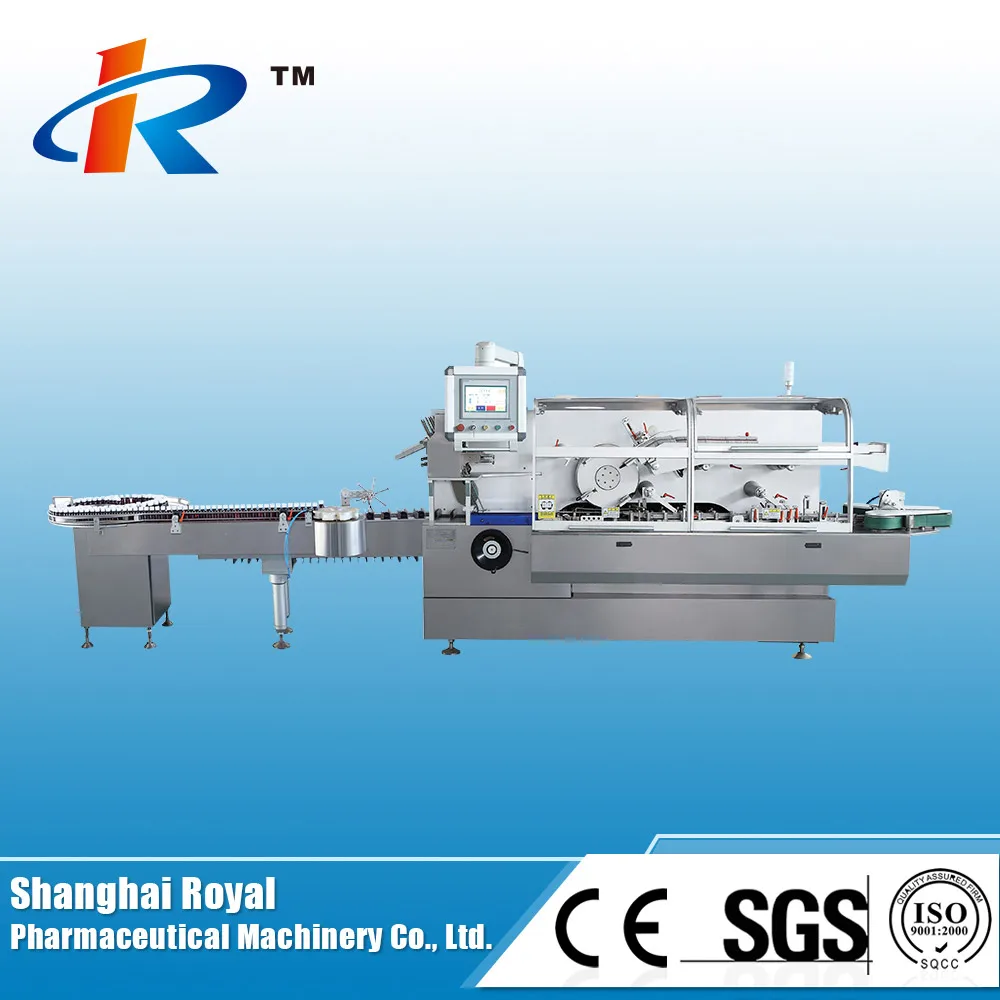

High Speed Automatic Continuous Medical Bottle Cartoning Machine Price
Application:
This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
It is suitable for packing medicine bottle (round bottle, flat bottle), eyedropper bottle, Syrup bottle, blister board, Sachet, cookies, biscuits, soap, facial mask and other similar product.
Main features: This machine is suitable for bottle package product, adjust automatic feeding structure conveniently, and setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold (1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

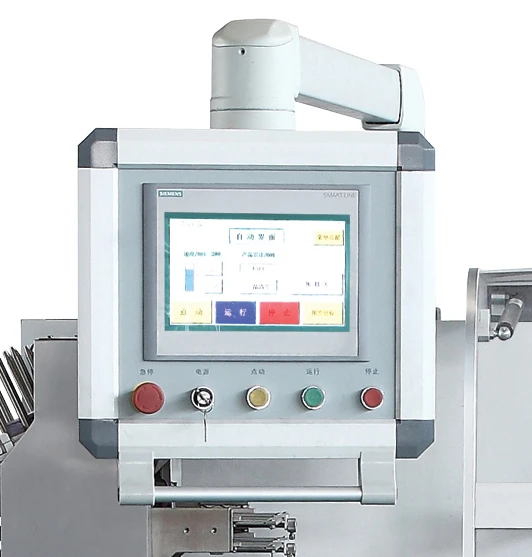

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc. 2. Adopt human-machine operation system. 3. Automatically stop when machine is overload. 4. Automatically reject lacking of package product and leaflet. 5. Automatically display trouble, Alarm and count finished products. 6. Stable performance, operation is easy.
Main technical parameters:
Item
Technical parameters
Encasing speed
260 boxes/min
Box
Quality requirement
250-350g/m2
Dimension range (L*W*H)
(70-180)mm*(35-80)mm*(14-50)mm
Quality requirement
60-70g/m2
Leaflet
Unfolded leaflet specification (L*W)
(80-250)mm*(90-170)mm
Fold range
(1-4) fold
Compressed air
Working pressure
≥0.6mpa
Air consumption
160-200L/min
Power
220V/380V
Motor power
5kw
Machine dimension(L*W*H)
4800mm*1600mm*1860mm
Machine weight
3000kg

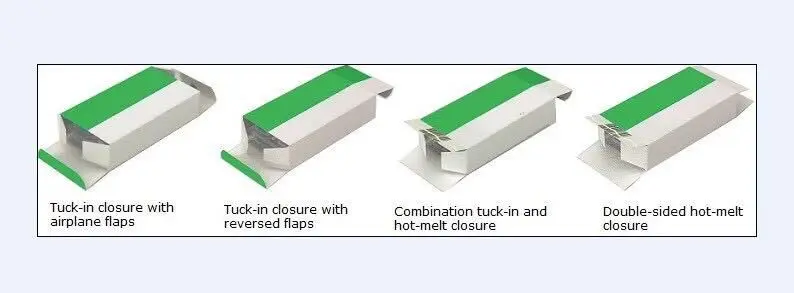

Sample carton picture:
Please kindly confirm the carton size and carton style will you take for your goods:
Remark: Except for high speed countinously cartoning machine, we also can supply small volume vertical type cartoning machine, just specify your demand, we will recommend one model of cartoning machine mostable suitable for you.
Quality Testing
Quality Testing
Certificate Show
Certificate Show
Cooperative Client
Cooperative Client
Our Service
Our Service
Package And Shipping
Package Transportation
FAQ
1.Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
2.Q: What payment terms you take?
A: We prefer T/T, but other terms also workable for us.
3.Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100day.
4.Q: How can I visit and check your company?
A:Our factory is located in Shanghai and Zhejiang Province. Headoffice lay in shanghai, Minhang District. From Pudong International Airport to our office need only 45 minutes. U can take the metro line 5 come to our office directly!
Any other doubts about our machine, please feel easy to contact with us.
