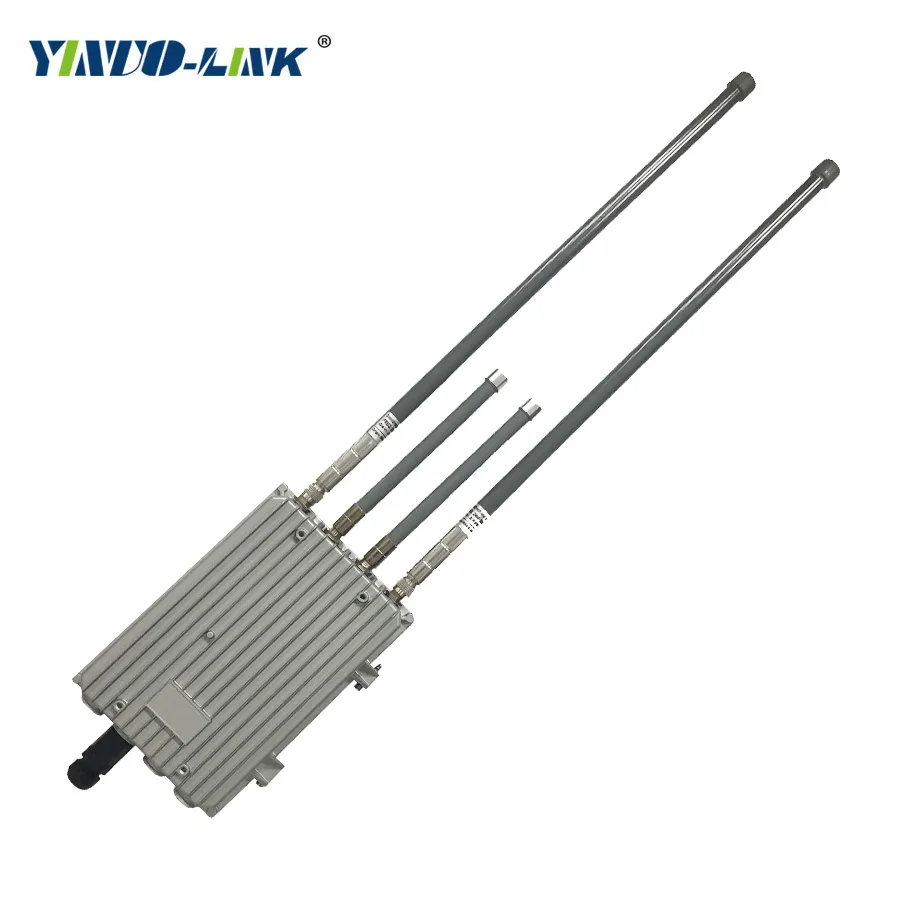

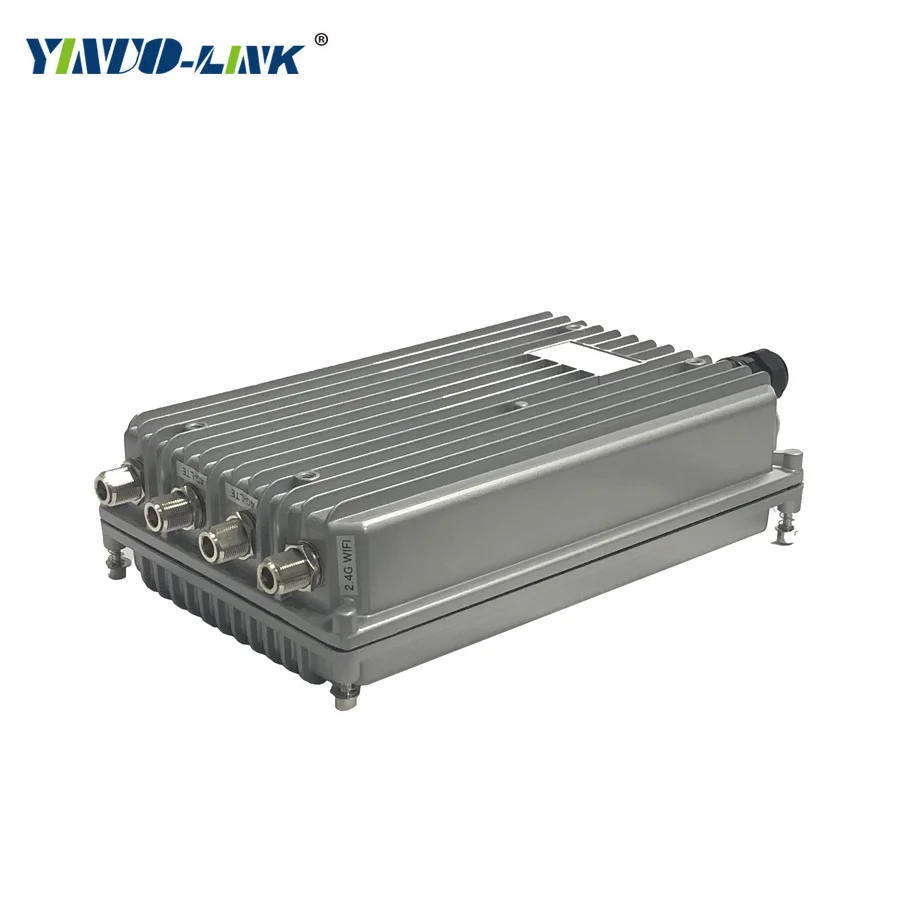

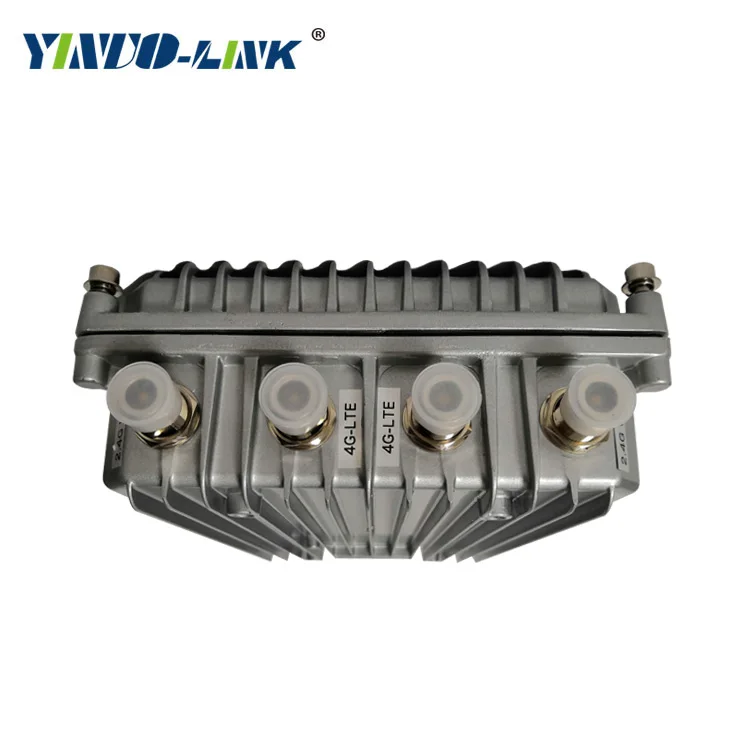

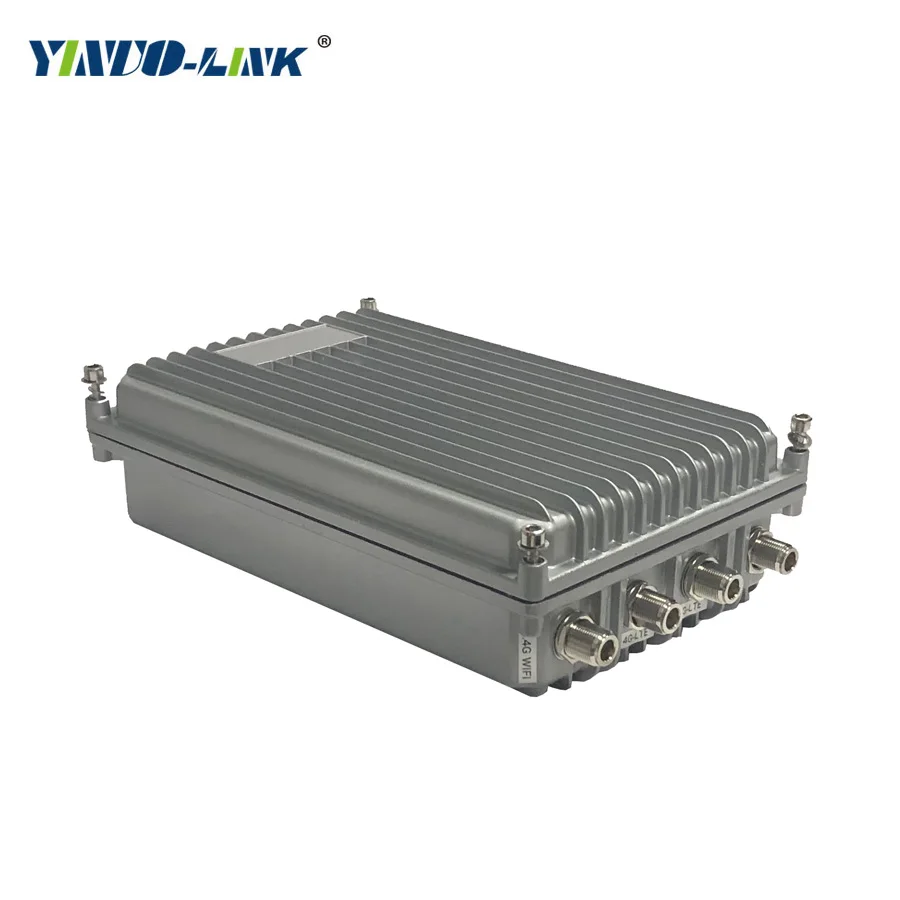

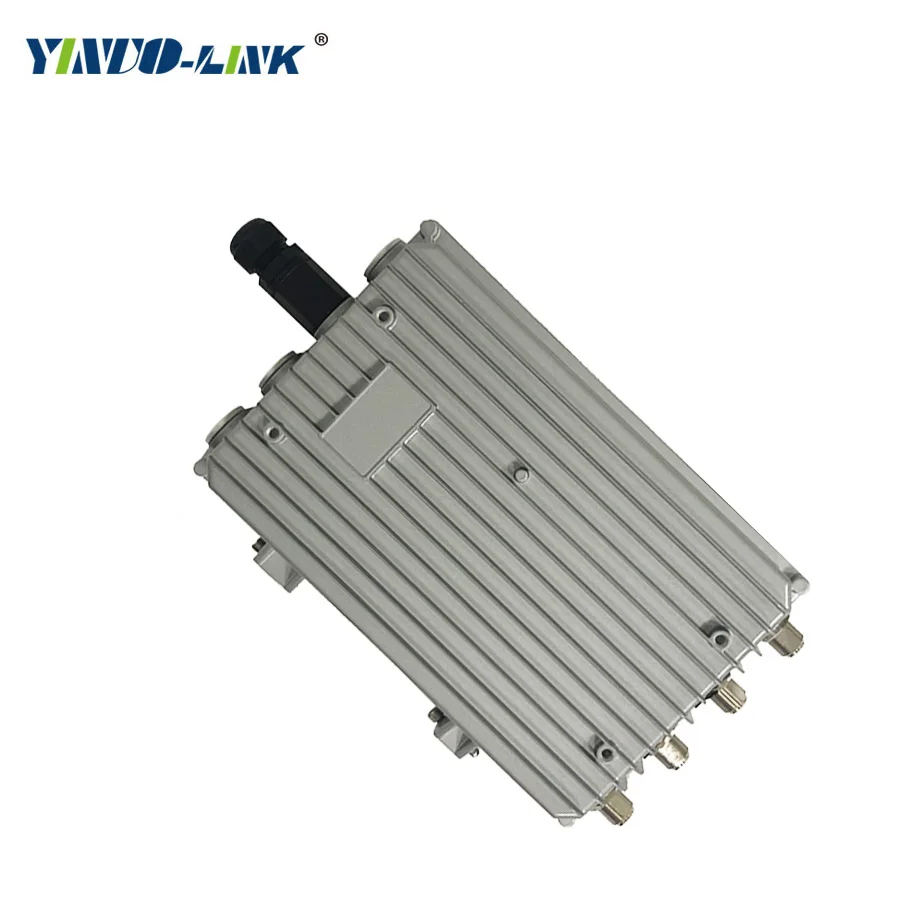

2km Wifi Range Wireless 4G LTE Outdoor CPE AR9341 Wireless Ap With Poe
- Category: Ethernet & Communication Modules >>>
- Supplier: Shenzhen YINUO-Link Co. Ltd.
Share on (62116210219):
Product Overview
Description
2km Wifi Range Wireless 4G LTE Outdoor CPE AR9341 Wireless Ap With Poe
| 4G Module Technical Parameters | |
| 4G Module Model | SLM370 |
| Platform | Qualcomm |
| Packaging Features | 52-pin Mini-PICe |
| Dimension(mm) | 51.0x30.0x4.8 |
| SLM370C7B | LTE-FDD:B1/B3/B5 LTE-TDD:B38/B39/B40/B41 TD-SCDMA:B34/B39 WCDMA:B1 EVDO&CDMA:BC0 GSM:900/1800 |
| Weight | <11.5g |
| Operating Temperature | —40°C—+85°C |
| 4G Antenna | Fiberglass Antenna 9DBi*2 |
| LTE Speed Rate(Mbps) | LTE CAT 1: 10(DL)/5(UL) LTE FDD: 150(DL)/50(UL) LTE-TDD: 130(DL)35(UL) |
| DC-HSPA+Speed Rate(Mbps) | 42(DL)5.76(UL) |
| WCDMA Speed Rate(Kbps) | 384(DL)384(UL) |
| TD-SCDMA Speed Rate(Mbps) | 4.2(DL)2.2(UL) |
| EVDO RevB Speed Rate(Mbps) | 14.7(DL)5.4(UL) |
| EVDO RevA Speed Rate(Mbps) | 3.1(DL)1.8(UL) |
| CDMA 1x Speed Rate(Mbps) | 153.6(DL)153.6(UL) |
| EDGE Speed Rate(Kbps) | 236.8(DL)236.8(UL) |
| GPRS Speed Rate(Kbps) | 85.6(DL)85.6(UL) |
| Interface | SIM (1.8V/3V)UART USB 2.0 HS I2C Analog Voice (Optional) PCM Voice ADC GPIO Antenna ( ANT_PRI/ANT_DIV/GPS_ANT ) |
| Special Function | DTMF TTS TCP/IP FTP HTTP RIL Driver (Android 4.2/4.4/5.0/5.1/6.0/7.1) NDIS(Windows X P/Vista/7/8/10) Gobinet(Linux 2.6 or later) GNSS(Optional) Firmware Update(USB/*FOTA) |
| Supply Voltage | 3.3-4.2V,typ.3.8V |
| Hibernate Mode | <2mA |
| Shutdown Leakage Current | 100uA |
| WiFi Technical Parameters | |
| Model | YN-CPE02 |
| CPU | Atheros AR9341(550MHz) |
| Working Frequency | 2.400-2483MHz |
| Standard | Support IEEE802.b / g / n standard |
| Operating Mode | AP mode, client mode, routing mode |
| Transmit Power | Highest 27dbm (500mW), Max power can be adjusted by software |
| Wireless Speed | 2x2 maximum power 300Mbps |
| Modulation Technology | 802.11n 2x2 MIMO,802.11a:OPDM,6Mbps:-95dmb 802.11n,MCS0:-88dbm,MCS7:-73dbm |
| RAM | 64MB |
| Flash | 16MB |
| WiFi Antenna | Directional Antenna 15Dbi, Fan Antenna 120 ° Omnidirectional Antenna 8Dbi * 2 or 12Dbi * 2 , Fiberglass Antenna 360 ° |
| Wireless Function | Peripheral site detection / channel scan Priority AP Connection Setting Binding (BSSID) Automatic channel selection |
| Security Strategy | Encryption: -WEP, TKIP, AES Wireless Security: Open Systems, Shared Secret, WPA / WPA-PSK, WPA2 / APA2-PSK, 802.1x (PESP, TLS, TTLS), WAPI |
| System Service | Support Virtual DMZ, Port Forwarding |
| Support UPNP automatic port mapping | |
| Configuration Management | WEB based management tools, built-in WEB server |
| Support telnet connection, syslog records system operation log, SSH service function | |
| Troubleshooting | Automatic detection of network status, network connection can be automatically after disconnected Support Watchdog and Pingdog function |
| Power Supply | POE supports wide voltage input 12-48V |
| Power Consumption | >=8W |
| Operating Temperature | -40°C~+65°C |
| Storage Temperature | -40°C~+80°C |
| Working Humidity | 0-100% |
| Application Areas | Can be widely used in mobile broadband, industrial routing, automotive and transportation,wireless payment, green energy, smart meter, smart industry, medical guardianship, car DVR, personal tracking, industry plate, charging pile, video surveillance and other fields |
