ultra slim display screens smd 10ft x 12ft led screen wall fixed seamless led video wall1.5 pixel 2k 4k 16:9 video panel led
- Category: >>>
- Supplier: Shenzhen Mds Display Limited
Share on (62116248586):
Product Overview
Description
ultra slim display screens smd 10ft x 12ft led screen wall fixed seamless led video wall1.5 pixel 2k 4k 16:9 video panel led
Product Description
| Main Technical Parameters | |
| pixel structure | SMD1010 |
| pixel density | 640,000 |
| module resolution(W*H) | 120*135 |
| module size(mm) | 150*168.75mm |
| cabinet size(mm) | 600(W)*337.5(H)*63(D) |
| cabinet area(m2) | 0.2025 |
| cabinet weight(KG) | 9.8 |
| cabinet flatness(mm) | <=0.01 |
| maintain style | front maintenance |
| cabinet material | die-casting aluminum |
| viewing angle(H/V) | 160/160Deg |
| contrast ratio | 10000:1 |
| frame frequency(HZ) | 50&60 |
| driving mode | 1/45scan |
| greyscale | 65536 |
| refresh rate | 3840HZ |
| color processing level | 16bit |
| video effect | 2KHD,4K/8K ultra picture |
| max power consumption(W/m2) | 800 |
Features:
1. Fully front service, fix it to the wall directly which saves space and installation time.
2. Wide color gamut, uniform color; 3840Hz high refresh rate, no tailing, ghosting phenomenon;
3. Natural heat dissipation, ultra-quiet and fanless design;
4. Die-cast aluminum design, CNC finishing, the cabinet flatness is very good;
5. NovaStar control system.

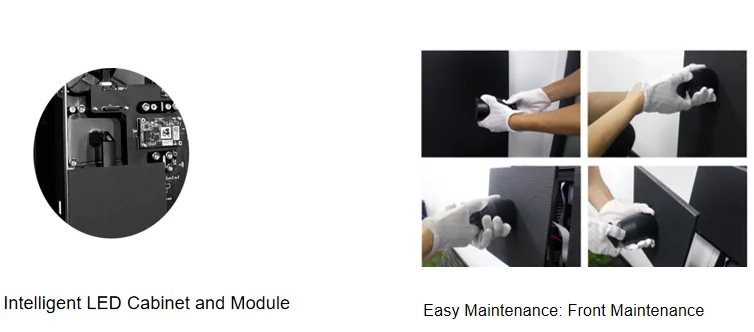

Fully front maintenance design:
There is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.
Fixed installation:
Wide viewing angle.
160 Degree/ 160Degree(Horizontal/ Vertical). Wide viewing angle make sure viewer can watch it in any direction.
Fine display effect.
Seamless installation and good color consistency.
Good color quality.
High gray scale, 16bits which let the picture minute.
Ultra fast response speed, no Ghosting & Twisting or Smear.
Aging test:

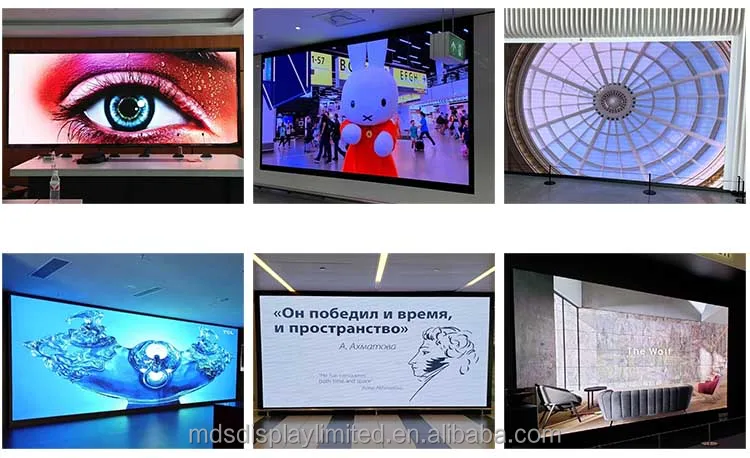

Application:
