Stainless Steel products PVD Vacuum Coating Machine Multi arc ion coating equipment
- Category: >>>
- Supplier: Qingdao Ubu Vacuum Equipments Corp. Ltd.
Share on (62116289189):
Product Overview
Description

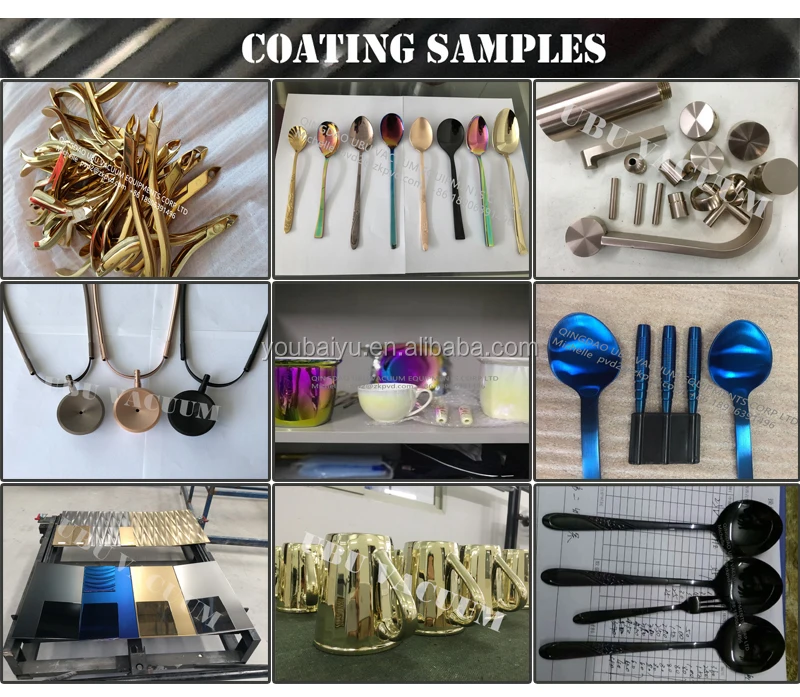

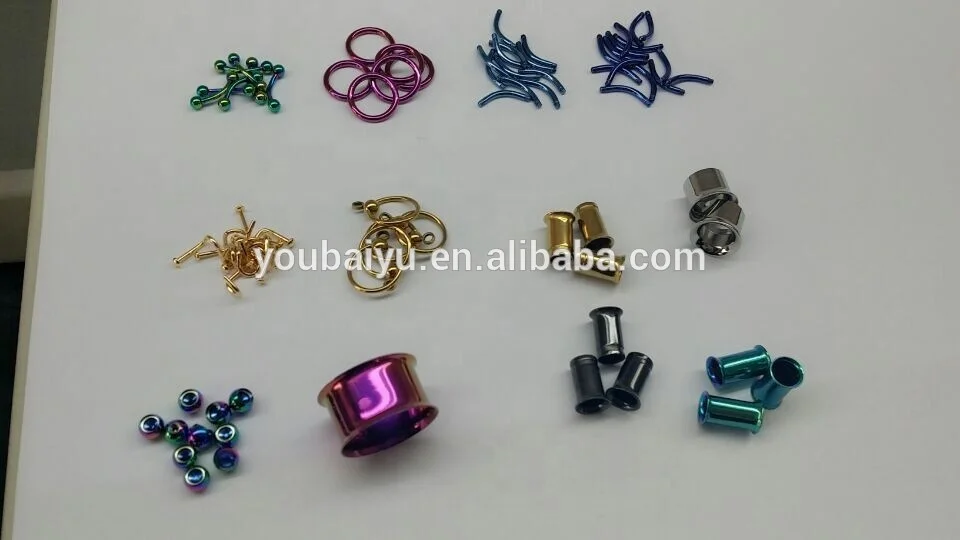

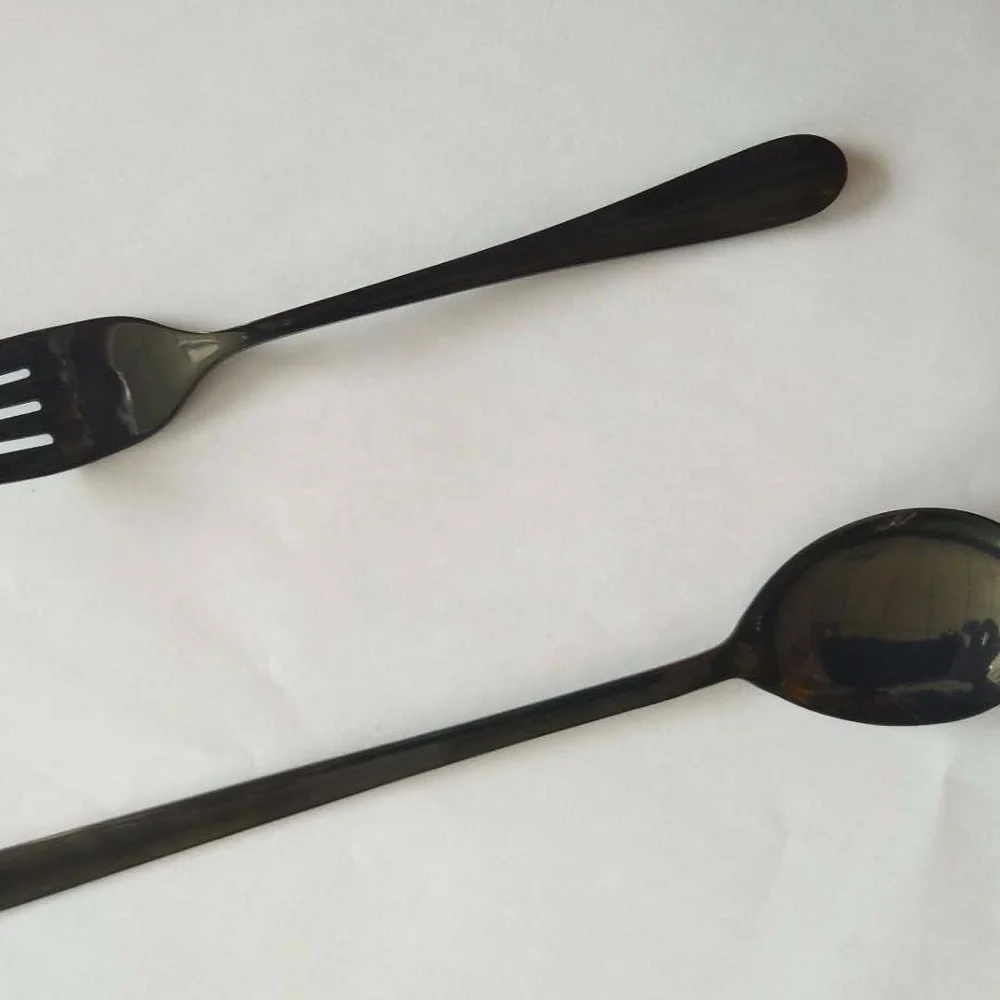

Stainless steel products vacuum PVD coating machine, which is mainly for stainless steel or alloys materials, watch, jewelries, mobile phone shells coating.
Applied industry:
Watch industry (watchband, watch case, watch dial),
Glass and ceramic industry (glass tableware, ceramic crafts),

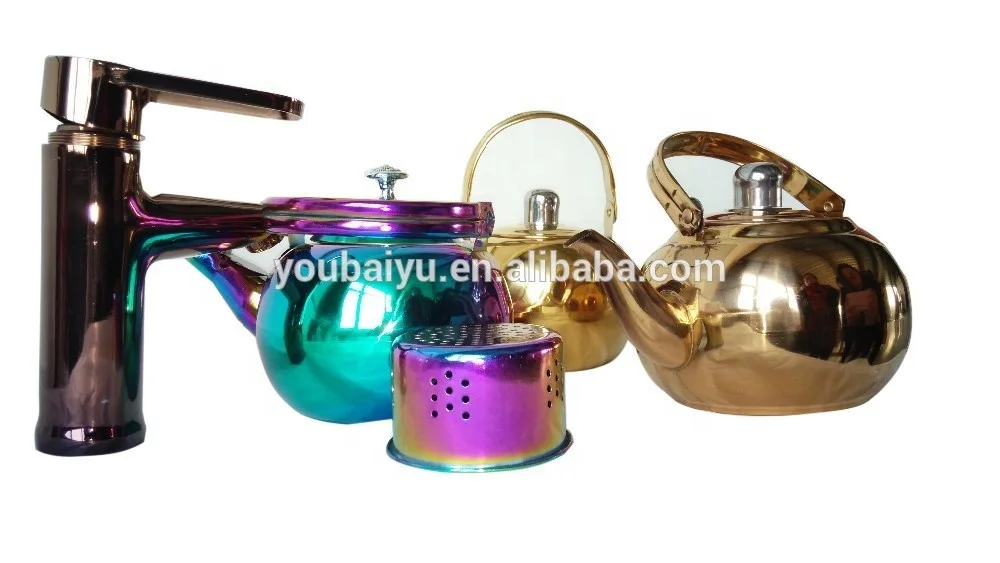

Hardware industry ( sanitary ware, doorknob, locks),
Architecture industry (stainless steel plate, stair railings, stand column),
Tools industry (drill bits, carbide cutters, broaches, shaving heads),
Automotive industry (piston, piston rings, alloy wheels)
LZ-1000 | LZ-1200 | LZ-1300 | LZ-1600 | LZ-2100 | LZ-2300 | |||
Dimension | Φ1000* H1000mm | Φ1200* H1300mm | Φ1300* H1300mm | Φ1600* H1800mm | Φ2100* H3600mm | Φ2300* H4500mm | ||
Machine size | H3*L3.5m | H3.5*L5m | H3.5*L5m | H4.5*L5.5m | H4.5*L11m | H5*L12m | ||
Number of mulit-arc | 4 | 8 | 8 | 16 | 36 | 45 | ||
Power Source | Electric-arc power, Pulsed bias power, (Can be configured according to customer requirements) | |||||||
Process gas control | Quality flowmeter, manual or automatic air system | |||||||
Vacuum chamber structure | Vertical double door, vertical front door, pump system postposition | |||||||
Vacuum system | Diffusion pump+ Roots pump+ Mechanical pump+ Holding pump (Can be configured according to customer requirements) | |||||||
Workpiece motion mode | Planetary rotation, frequency control, upper and base rotation shelves, number of axes equipped by requested | |||||||
Control mode | Manual or PLC+ touch screen | |||||||
Cooling system | Water-cooling system, water cooling tower, cooling water machine or deep water cooling system is needed to purchase separately. | |||||||
Alarm and protection system | Water presure protect, air presure protect, over current protect, electrical interlock function. | |||||||
8×10-4Pa | 8×10-4Pa | 8×10-4Pa | 8×10-4Pa | 8×10-4Pa | 8×10-4Pa | |||
Pumping speed | From 1 atmos to 6.7×10-3 Pa takes 8--15minute. | |||||||
Other parameters | Water pressure≥0.2MPa, water temprature≤25℃, air pressure 0.5--0.8MPa | |||||||
Remarks | Specific size can be designed according to customerrequirements, In addition, DC magnetron power supply and MF power supply can be added for the deffrent coating process. Customizable vacuun chamber size: φ500-3000, H500-7000mm. | |||||||
Packaging & Shipping
Company Information
Qingdao UBU Vacuum Equipments Corp.,Ltd., established in 2009,is a high-tech enterprise who is professional in R&D, manufacture and marketing of the vacuum coating equipments.Our headquarters is located in the international city —— Qingdao, but we also have offices and agents in Shenzhen, Shanghai and some foreign cities.
We supply 9 main coating equipments, including Multiple arc plasma vacuum coating machine, Magnetic sputtering vacuum coating machine, Multifunctional intermediate frequency vacuum coating machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coating machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering vacuum coating line. In addition, we also provide professional PVD coating services, supply related accessories and machine updating service, solve customer’s problems and make customers satisfied.
Dear customers
FAQ
Q: Are you a factory or trading company?
A: We are a factory. We are one of the professional PVD vacuum coating equipment for ten years in china.
Q: How do you ship the products?
A: Sea Freight- Shipping port is Qingdao. You can appoint your own freight forwarder to collect the goods from our factory.
Q: Lead time?
A: It will take around 60 working days after payment.
Q: Is it safe to buy from Alibaba?
A: Buying from Alibaba is very safe, secure and simple. Alibaba offers you secure payment, guaranteed quality and guaranteed delivery.
Q: OEM & ODM service
A: Coating equipments can be specially tailored by customer’s requests.
Q: How to assemble the equipment?
A: We off 24 hours technical support. we can fly to your factory and one to one training.
Q: Can I copy your website text and pictures for my re-selling business?
A: You are welcome to copy the authorized product pictures and product descriptions, for use re-selling these products.
Q: Can we test the machine before shipment?
A: Yes, of course! We are warmly welcome your visiting.
