10KV LED street light module surge protection devices
- Category: Other Lighting Accessories >>>
- Supplier: Zhejiang Boshang Optoelectronic Co. Ltd.
Share on (62116315511):
Share on (62116315511):
| Model No. | BS05KA-230V | BS-LED-S10 |
| Rate supply Voltage/Un(VAC) | 100~240VAC | 100~277VAC |
| Rated load current | 8A | 3A |
| Max. continuous operating voltage: Uc | 300V | 320V |
| Max. discharge current: Imax (8/20μs) | 10kA | 10kA |
| Nominal discharge current: In (8/20μs) | 5kA | 5kA |
| Surge tolerance: Uoc | 10kV | 10kV |
| Voltage protection level: (In)Up | L~N: ≤1.2kV L/N~PE: ≤1.5kV | L~N: ≤1.0kV L/N~PE: ≤1.2kV |

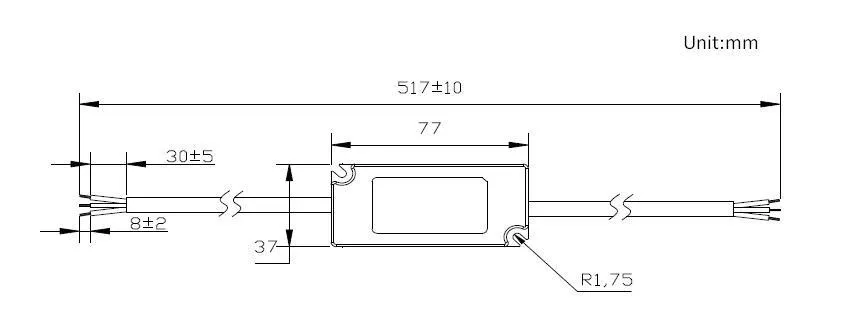

| Dimension | 77x37x28mm | 77x37x28mm |
| Connecting wire | 3*1.0mm2 | 3*1.0mm2 |
| Shell material | Flame retardant plastics | Flame retardant plastics |
| Shell color | white or black | white or black |
| Working environment | -40℃ to + 85 ℃ | -40℃ to + 85 ℃ |
| Shell protection grade | IP67 | IP67 |
| Weight | 0.16kg | 0.16kg |
General lighting for all area and site lighting for parking lot, playground ,highway,village road,seaside road and etc. Available to replace traditional MH or HPS luminaires up to 400W.
1. Higher brightness for led chips, upgraded lens, higher efficient drivers etc.
2. Professional service from well-trained and experienced staffs is clients'best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM & ODM is available for BOPIN all products.
4. Relative certification is provided for the European and American market.All street lights are made with high standard.
5. Trial order & Sample is available; LM80-10,000H testing is perfectly approved on Bopin street lights.
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand and etc.
A: MOQ: 1 sample for checking& testing, we accept the small trial order.
5 working days for sample,15 working days for mass production.
Q: Application light is?
A: Suitable for different type lights:LED street light,LED module,LED high mast light,LED tunnel light and so on.
Q: What wattage of the light the surge protector can use?
A: .1w to 600w
Q: What's the warranty time of your products?
A: 3 years (from goods received), It depends on the different product. during the warranty time, we are responsible for the quality issues.We will help to find the problem and solve it.Or send you new products.
Q: Would you please send me sample to Chinese warehouse?
A: Yes, please kindly let me know the warehouse address& zipcode.
Q: Could you add my LOGO to your lamp?
A: Yes, surely, please kindly send us LOGO file by JPG/PDF.
