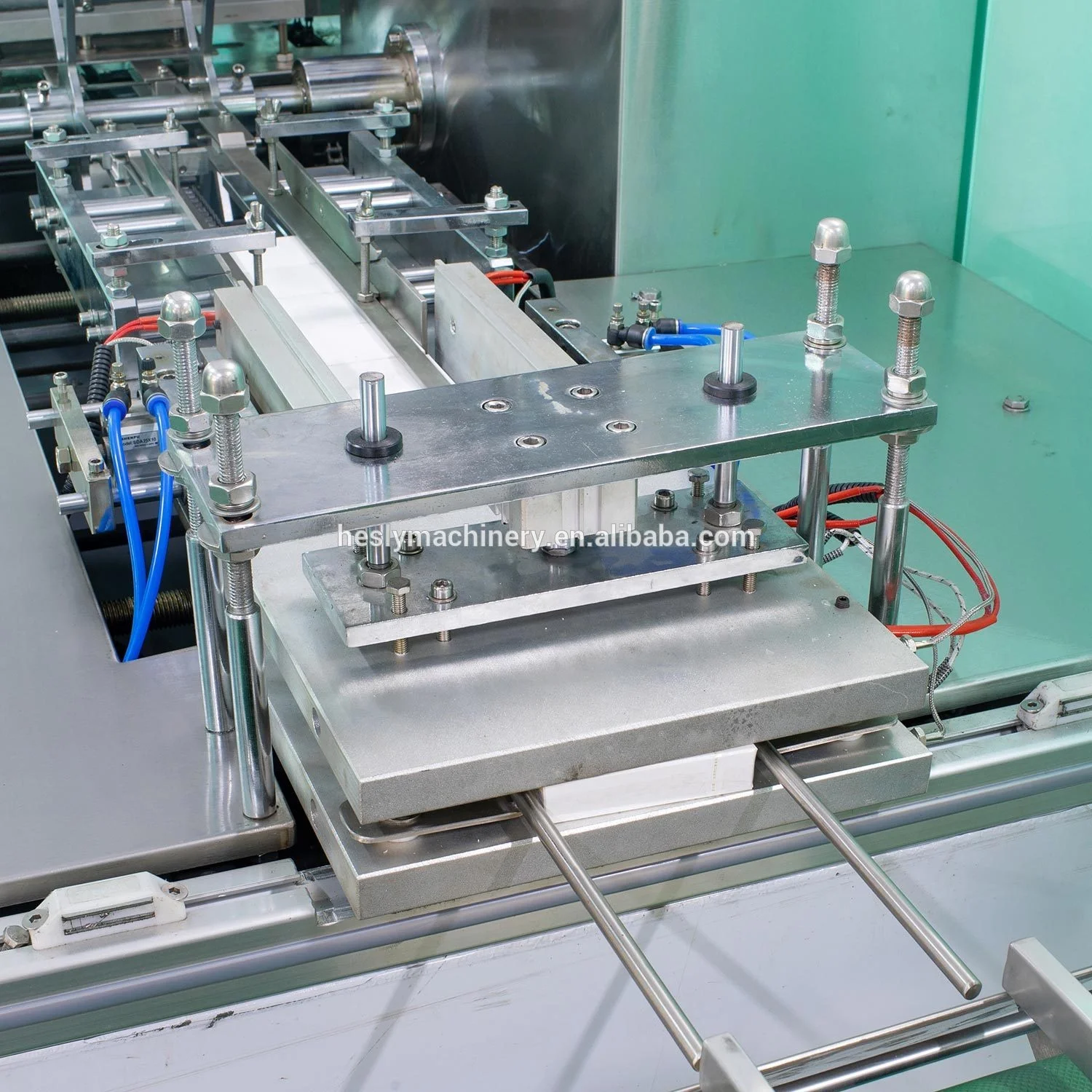

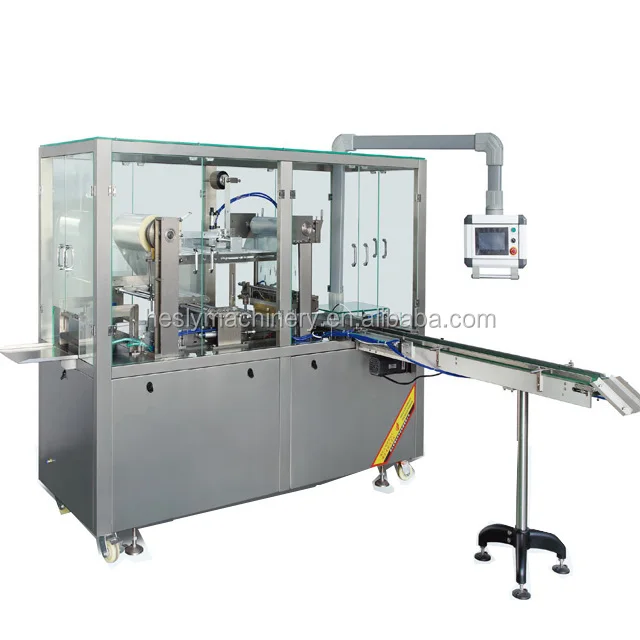

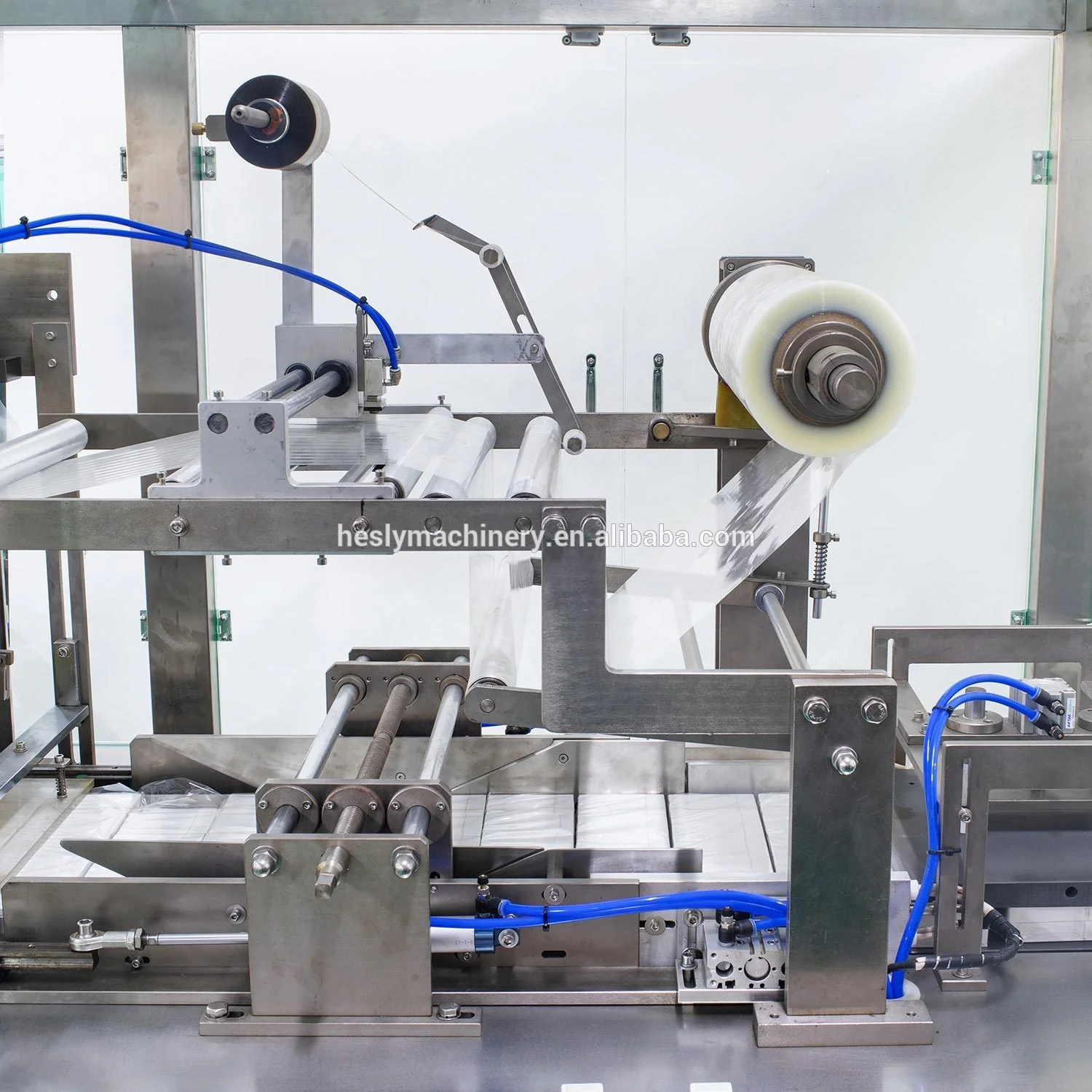

BT 400C II Cellophane overwrapping machine with golden line.

Product Overview

Description

BT400C-II overwrapping machine is suitable for the automatic packing of box-shape single objects or box-shape many objections such as pharmacy,food,health products,tea,cosmetic present stationary,audiovisual products etc. Using the machine to pack can defend take proof moisture and proof dust , and etc. It improve the productions level, increase the productions additions value. The machine can be linked to with medium high speed cartoning machine to compose packing production line.



Feature

Adopt full servo driven system

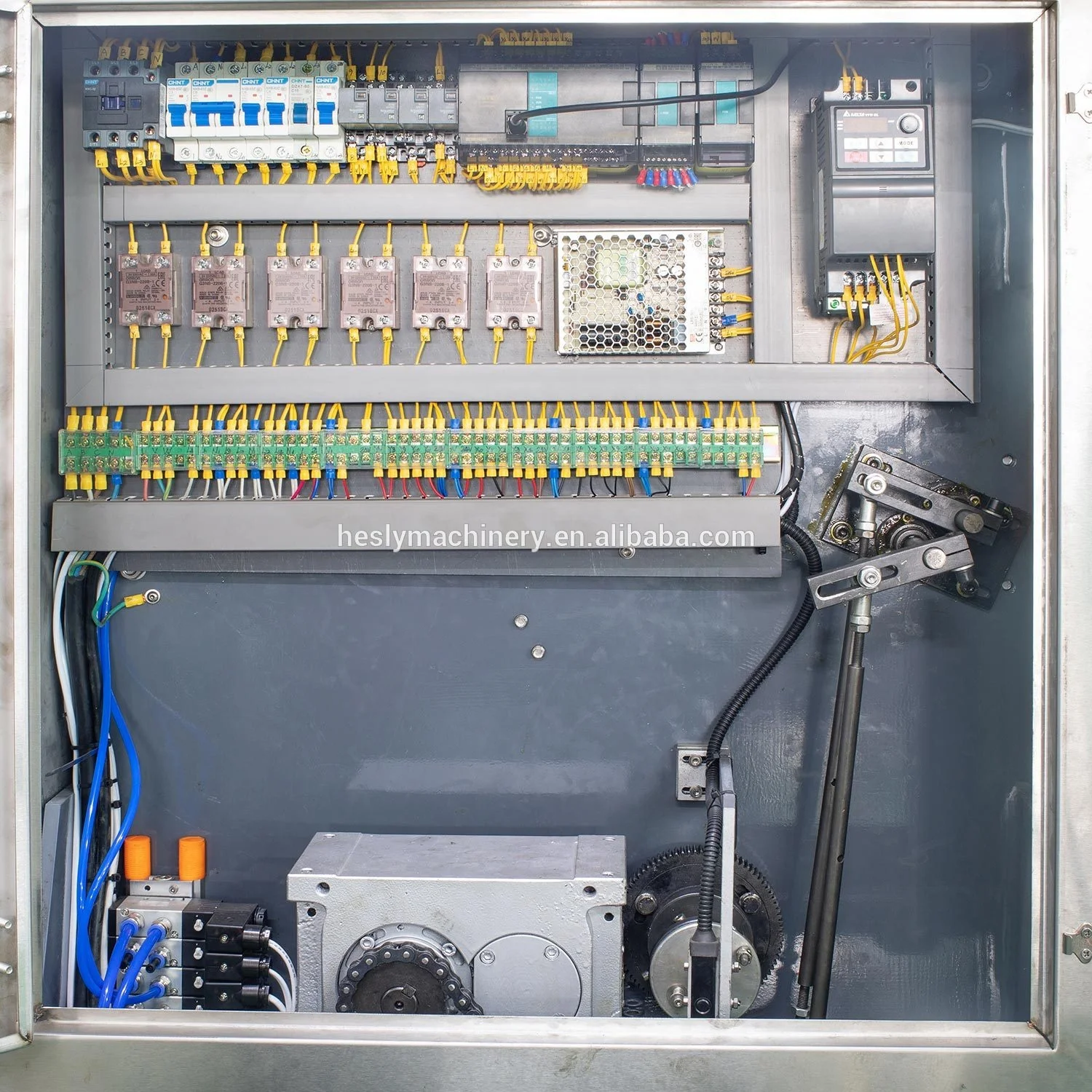

Automatic PLC controller and touch screen operation system

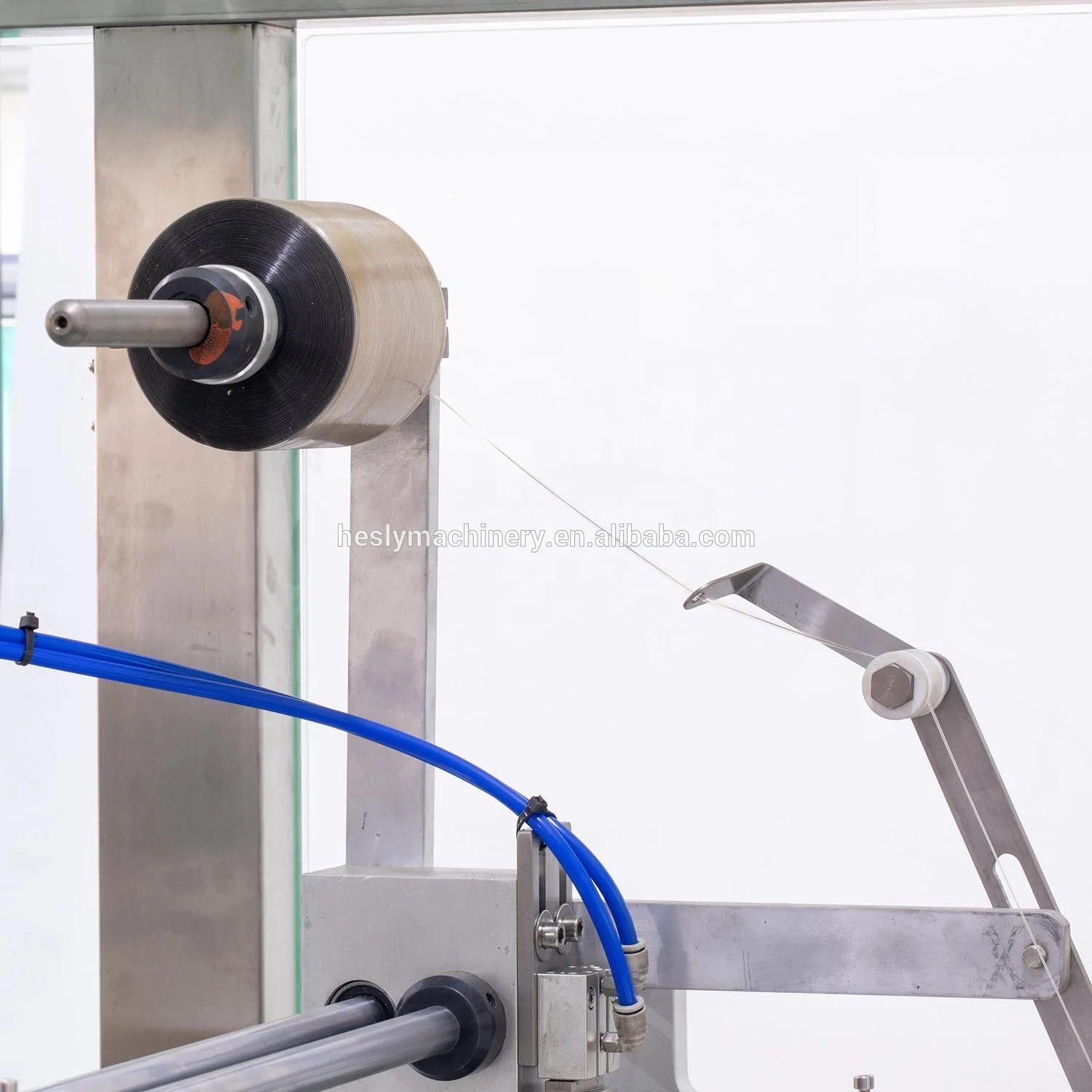

Tear tape function
Adjustable for packing range
Can be linked to with medium high speed cartoning machine to compose packing production line




Main Technical parameter

Speed	15-40packs/min
Specification of bopp film	BOPP: 300*(80-400)*0.022
Packing range	L(60-330)*W(40-200)*H(20-80)mm
Air pressure	>0.5 Mpa
Volume of air consumption	>0.22m3/min
Power	380v 50hz 1.5kw
Overrall dimension	2300*1200*1500mm
Weight	1000kg
