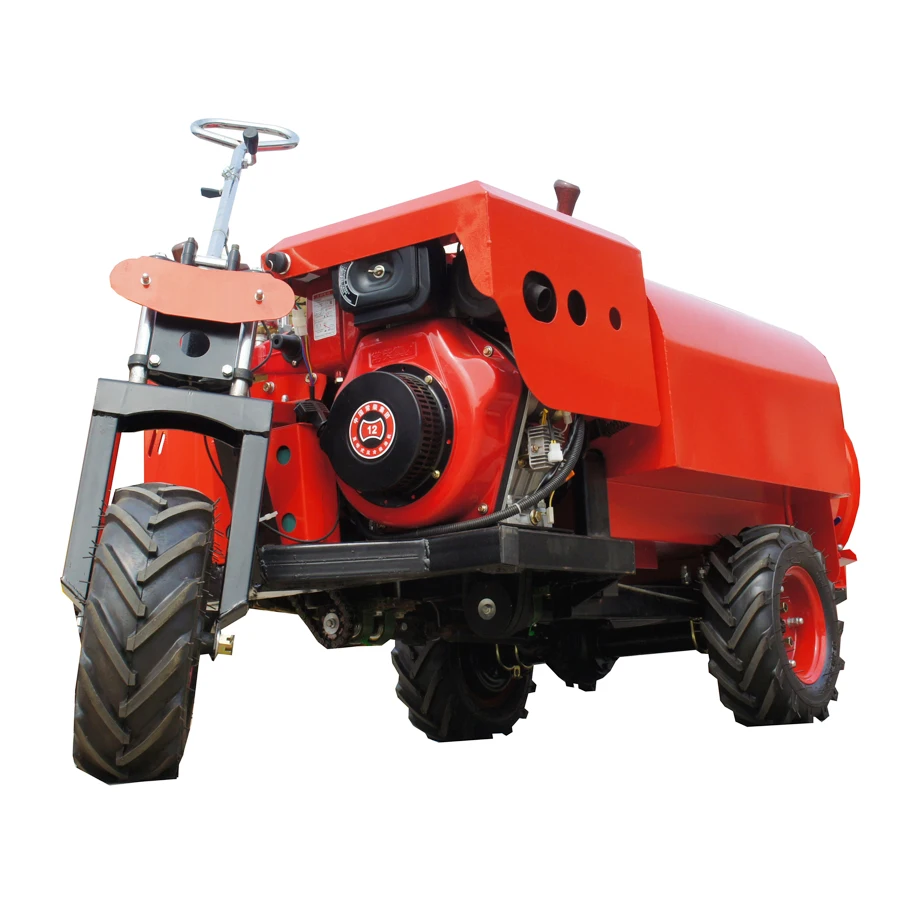

Small Scale Power orchard air blast Sprayer For Vineyard
- Category: >>>
- Supplier: Linyi Wali Machinery Co. Ltd.
Share on (62116455041):
Product Overview
Description
Product Description
Product Application

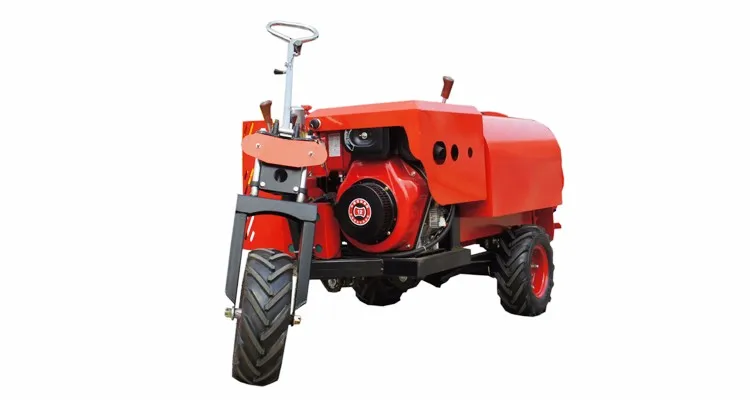

three wheel type self propelled diesel engine orchard air blast sprayer configuration Changchai diesel engine with 12HP , have the high quality and Low failure rate, choose the 304 stainless steel as the tank material , add whole machine work life, Distinctive fan design can Maximum atomizing effect.
Model\t3WZ-250A Self propelled type
Engine\t12HPAir cooled four stroke diesel engine
Mini Ground clearance\t20 cm Increased adoption
Sprayer pump\t60 Three cylinder plunger pump
Sprayer pump flow\t15-20L/min Adjustable flow
Work pressure\t2-4Mpa
Tank capacity\t250L Stainless steel material
Fan diameter\t570mm ventilation duct and aluminium alloy fan blade
Sprayer nozzle quantity\t10 pcs Stainless steel nozzle and copper switch
Sprayer nozzle type\t180 degree sectornozzle body can switch and adjust the spray angle individually
Work height\tMax 5.5m
Work width\tMax 15 m
Net weight\t300KG
Tyre size\t16/6.50-8
Drive type\tRear wheel drive
Steering mode\tDouble drive differential bend
Gear box\t1 -0-2-Reverse gear
Overall size\t2.55mX0.9mX0.9m
Drive speed\t1forward 2000m/h
\t2forward 3000m/h
Main Features
1) Engine: changchai diesel engine 12HP.
2) Tyre: Ultra low pressure pneumatic tire , can fit to different road work.
3) Tank material: 304 stailess Stainless steel ,Corrosion resistance, long life.
4) Fan sprayer system: Special air duct design to achieve maximum atomization effect.

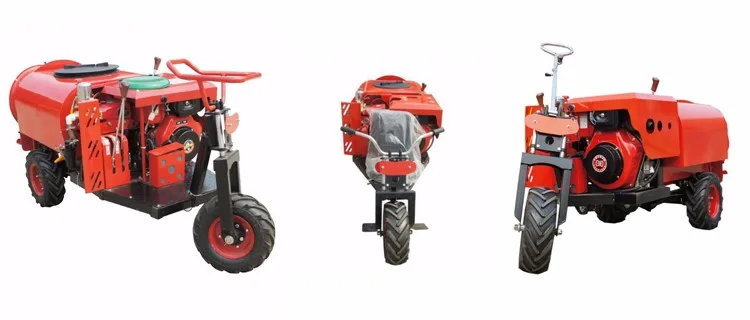

Angle whole machine
Detailed Images
Machine Parts

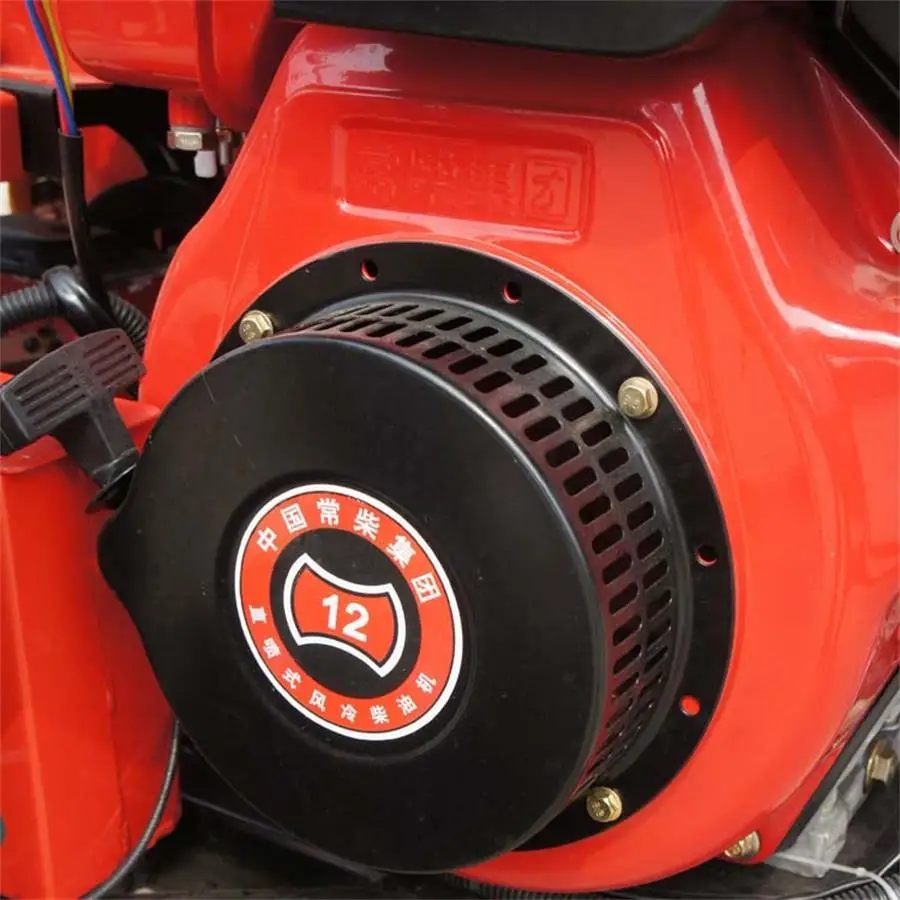

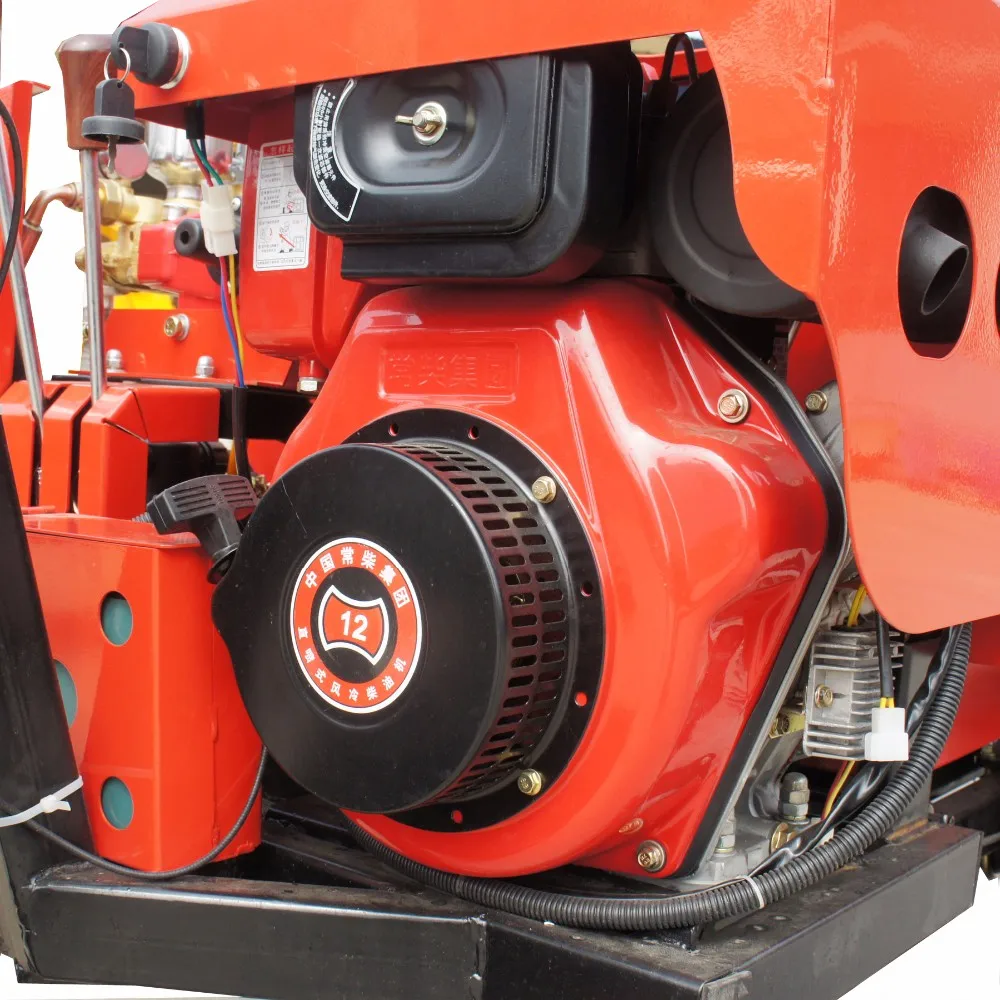

Name: Engine
Brand: Changchai
Original: China
changchai diesel engine 12HP., high quality and lower Maintenance cost.
Main Features

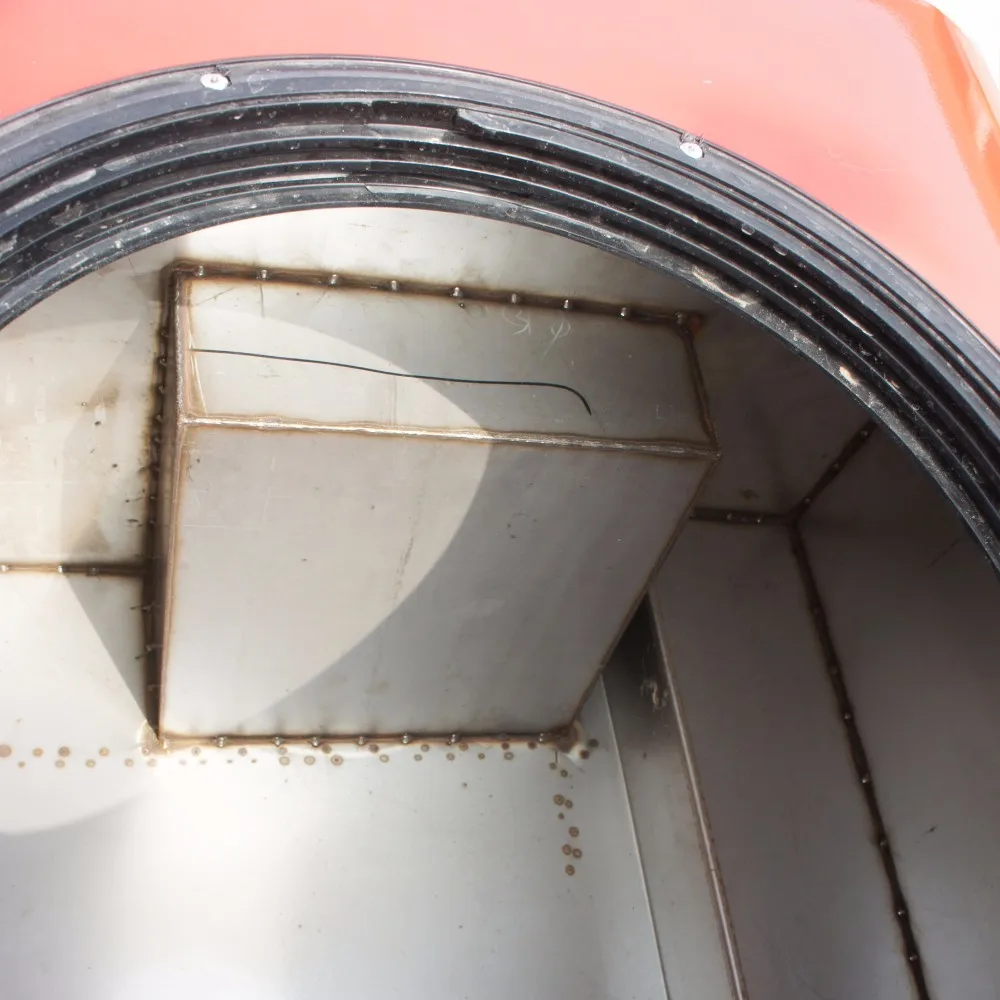

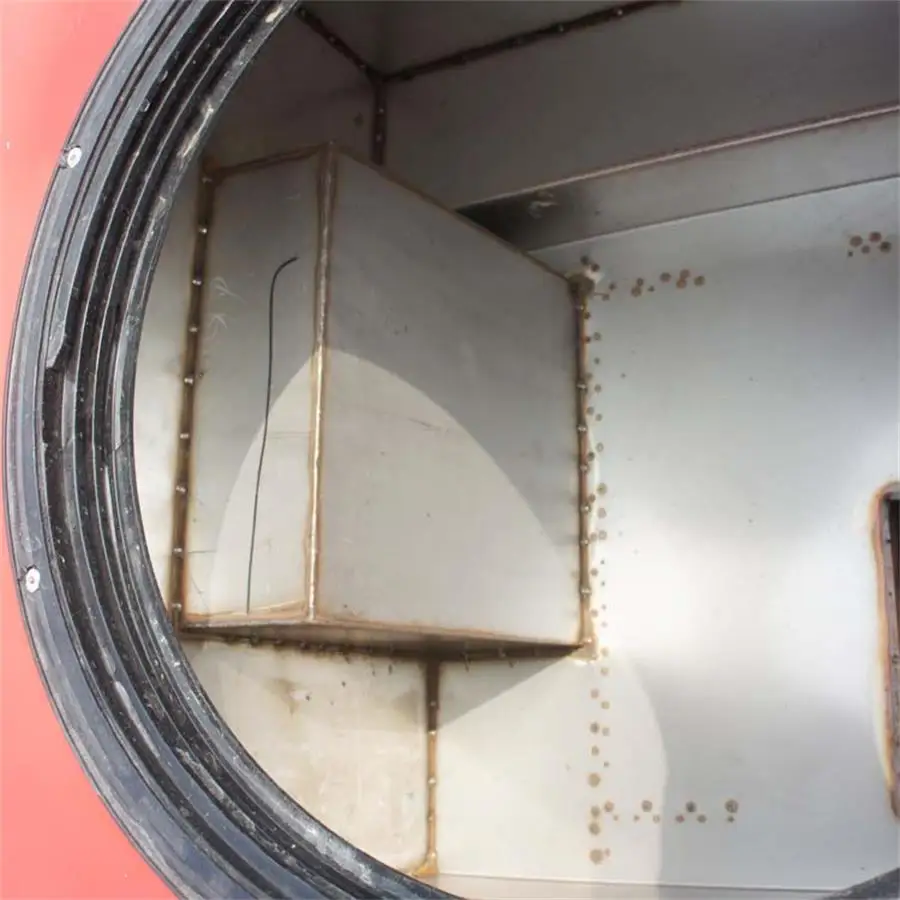

Name: Tank capacity and material
Brand: WALI
Original: China
this machine configuration the 304 stainless steel have the long life and More resistant to corrosion.
Machine Parts

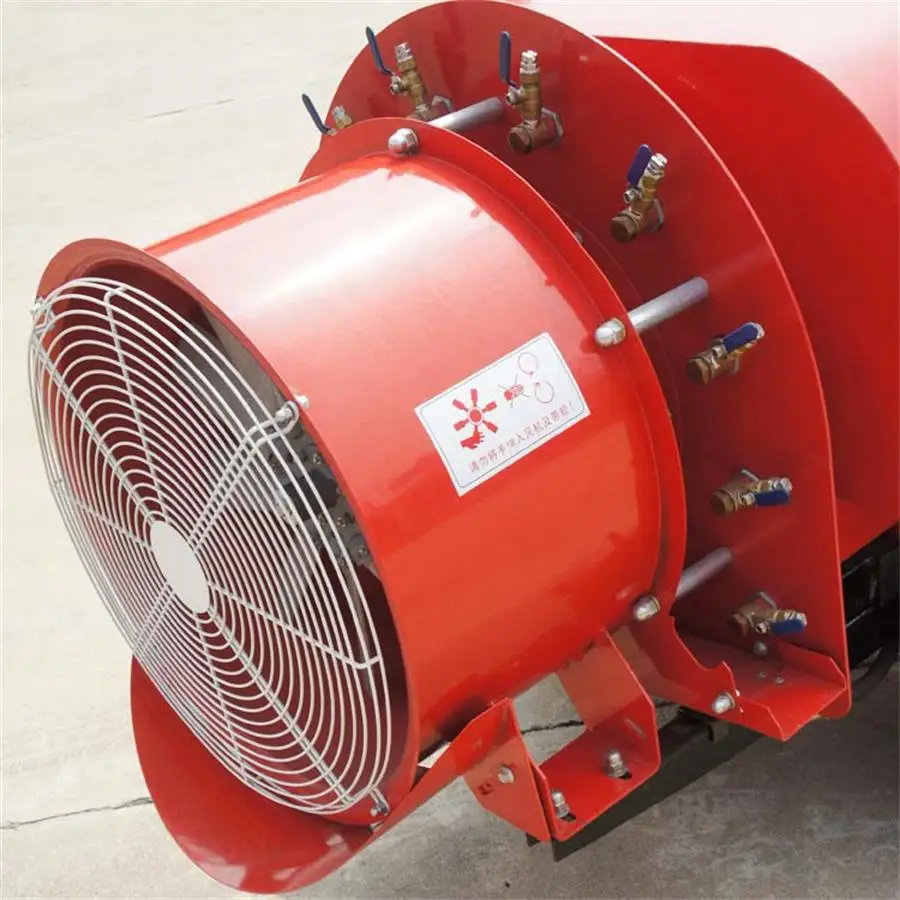

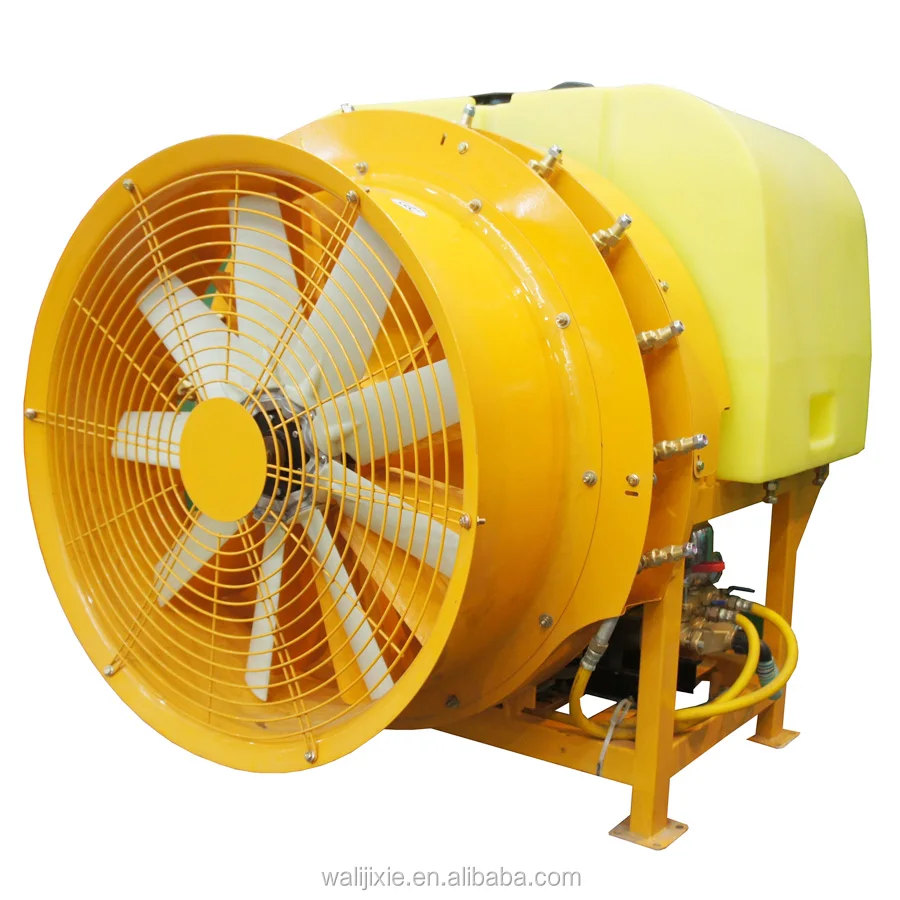

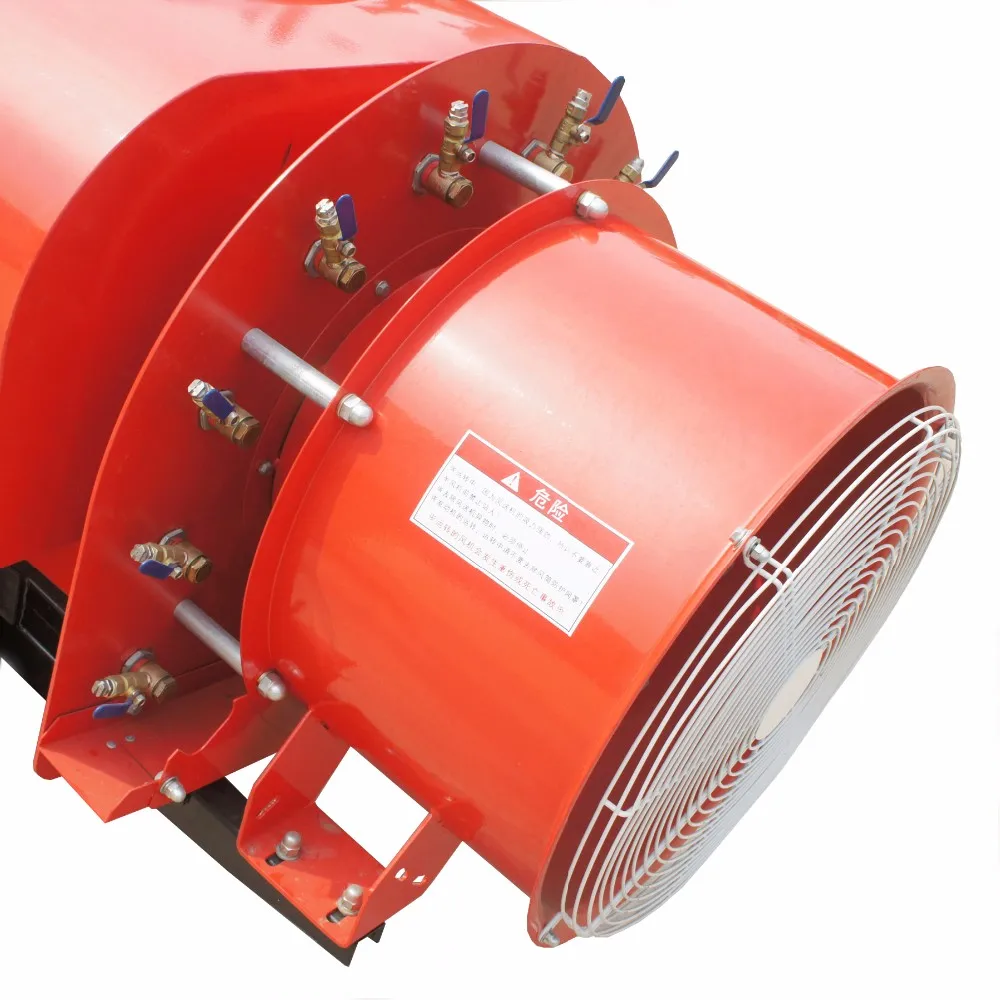

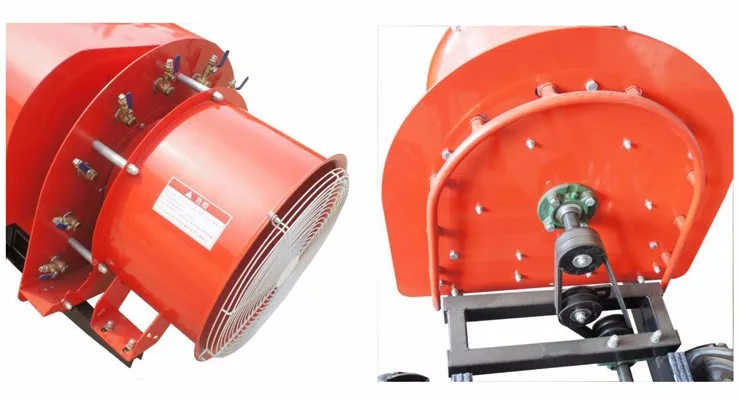

Name: Fan sprayer system
Brand: WALI
Original: China
Special air duct design to achieve maximum atomization effect.
Main Features

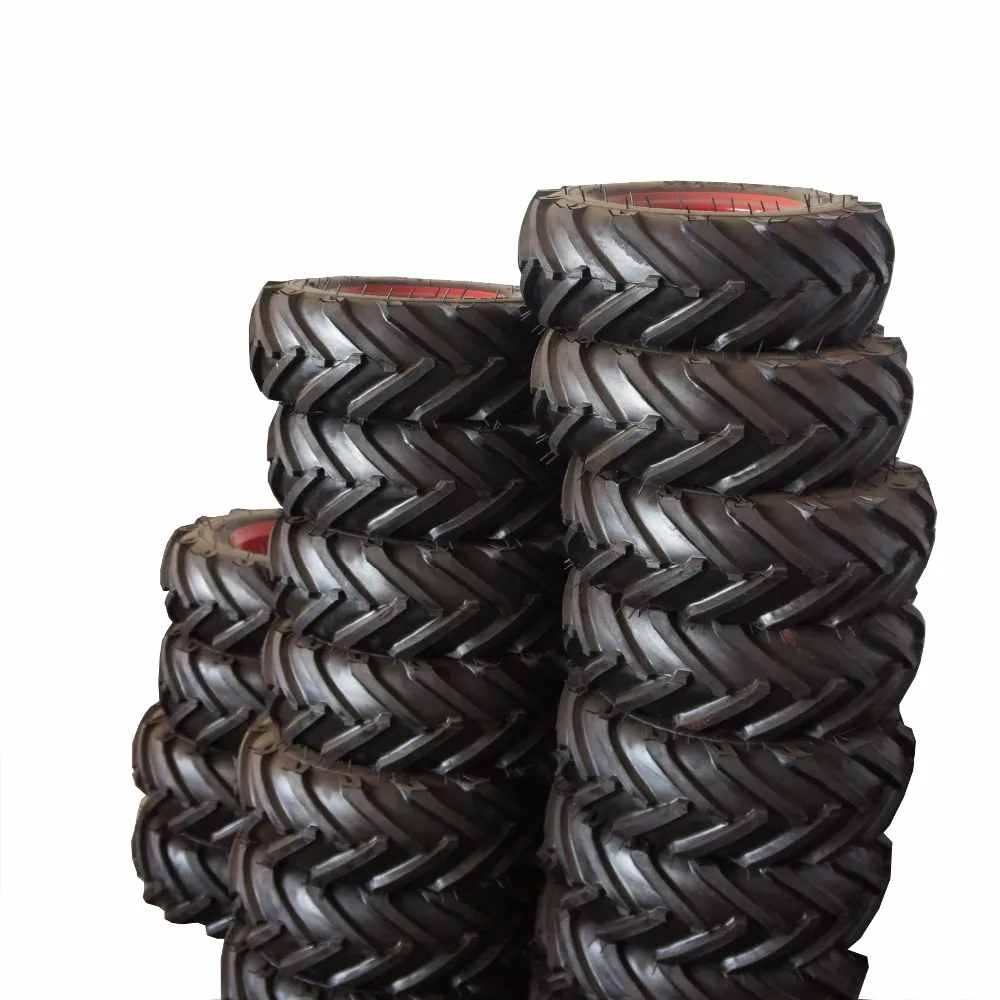

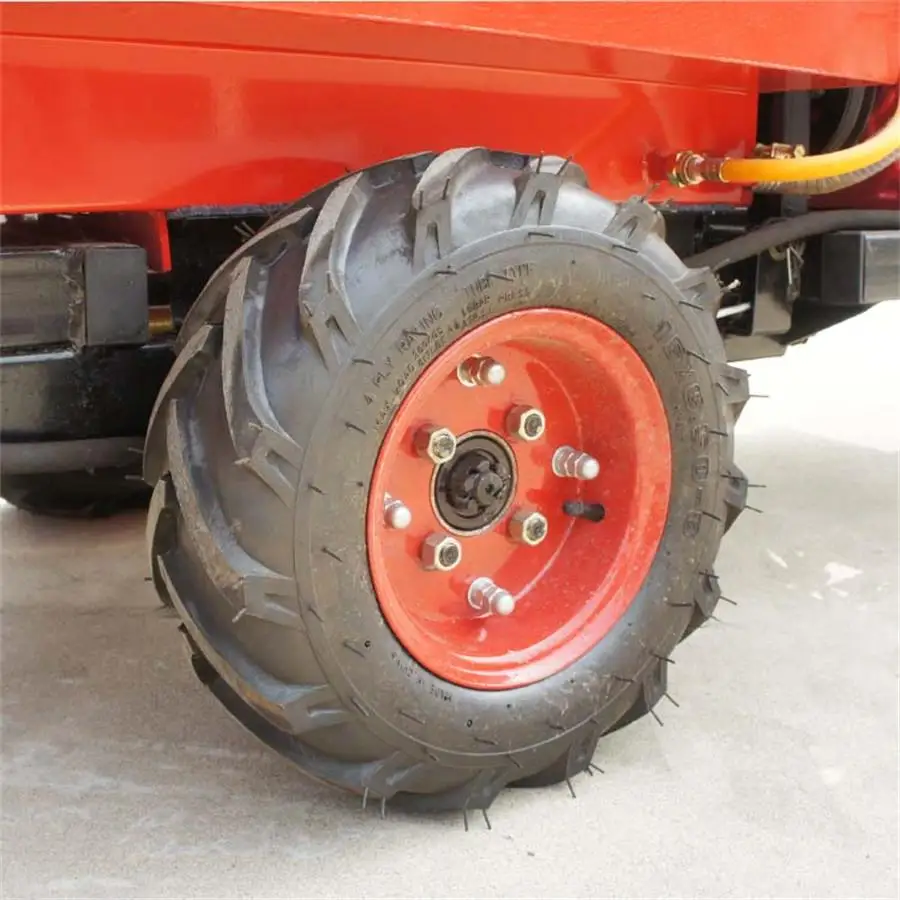

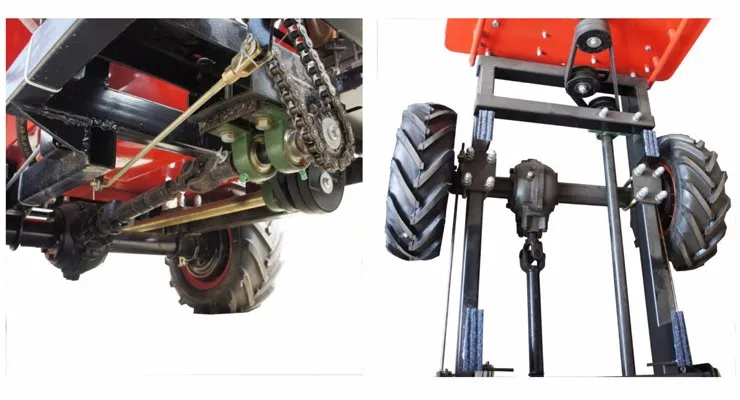

Name: Tyre
Brand: WALI
Original: China
Ultra low pressure pneumatic tire , can fit to different road work.
Our Service
Ride on type 3WZ-320C
* Engine: changchai diesel engine 12HP
* Tank material: Stainless steel
* Operation way: ride on type
Ride on type 3WZ-320C
* Engine: changchai diesel engine 12HP
* Tank material: Stainless steel
* Tank material: Stainless steel
* Operation way: ride on type.
Packing & Delivery
Packaging | ||
Size | 2.75 X1 X1 m | |
Weight | 350 KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2.75 X1 X1 m | |
Weight | 350 KG | |
Packaging Details | The normal package is wooden box(Size: 2.75 X1 X1 m). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
