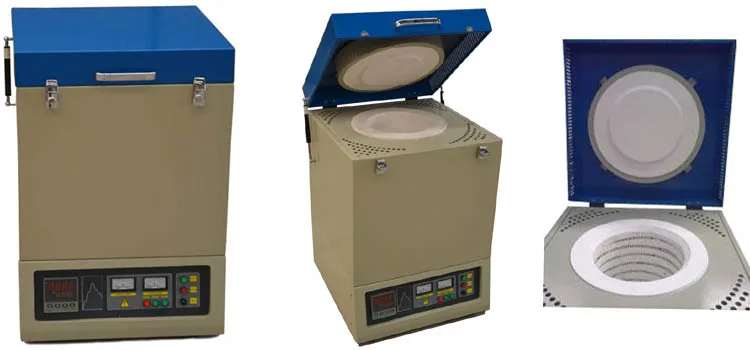

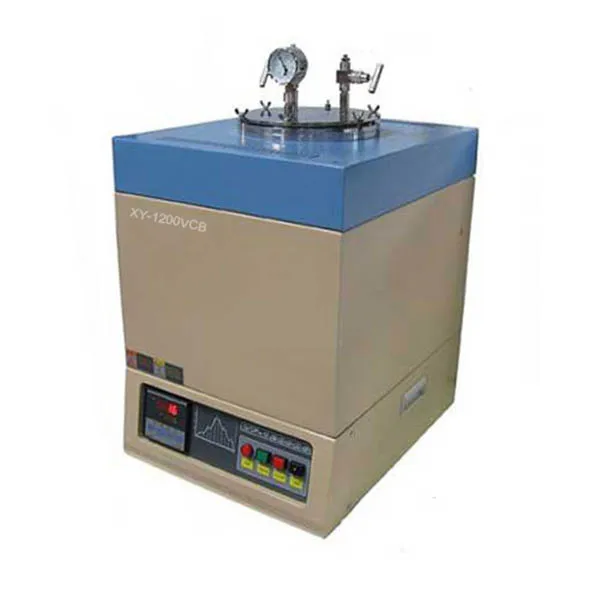

1100c Glass Electric Melting Crucible Furnace for sale

Name

ceramic frit furnace

Detail Introduction

1.The Crucible Furnace has larger chamber ( 9.5"d x 8.6"H ) and it is designed

for sintering ceramic parts and component in Lab and Hobby Shop.

2.The crucible furnace has a unique ceramic fiber insulation around the chamber

to provide excellent uniformity and energy efficiency.

3.The heating element is embedded in the insulation for maximum heat transfer to

the chamber.  Max. temperature can reach 1200 oC

4.Built in precision digital temperature controller is 30 segments programmable to

control heating rate, cooling rate and dwell time

5.All accessories are included for immediate use

 1)One pcs refractory disk, which can be put on bottom of furnace to protect

furnace liner from wearing

 2)Three pcs refractory supports , which may be put on top of disk and bottom crucible

for adjusting crucible height

 3)One high temperature gloves using can be used < 900 oC

Technical  Data

Inside chamber Size

Dia240 x 220mm

Working Temperature

100-1200°C

Temperature Control

30 segments programmable and PID auto control

Heating rate

<60 minutes to 1000°C

Temperature accuracy

± 2°C

Heating Element

NiCr wire

Working Voltage

AC 220V  50HZ

Max. Power

1.5KW

Net Weight

30kg

Standard package included with the furnace

Part description

Quantity

Thermal couple

1 pc

Stainless steel hook

1 pc

Thermal gloves

1 pair

Operation manual

1 pc

Warranty: Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase.

Within this period, Across International will, at its sole options, replace any components that fail in normal use.

Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.

This warranty does not cover consumables and failures due to abuse, misuse, accident

or unauthorized alteration or repairs.

Replacement will be shipped to you after photo or other evidence are provided and investigated.
