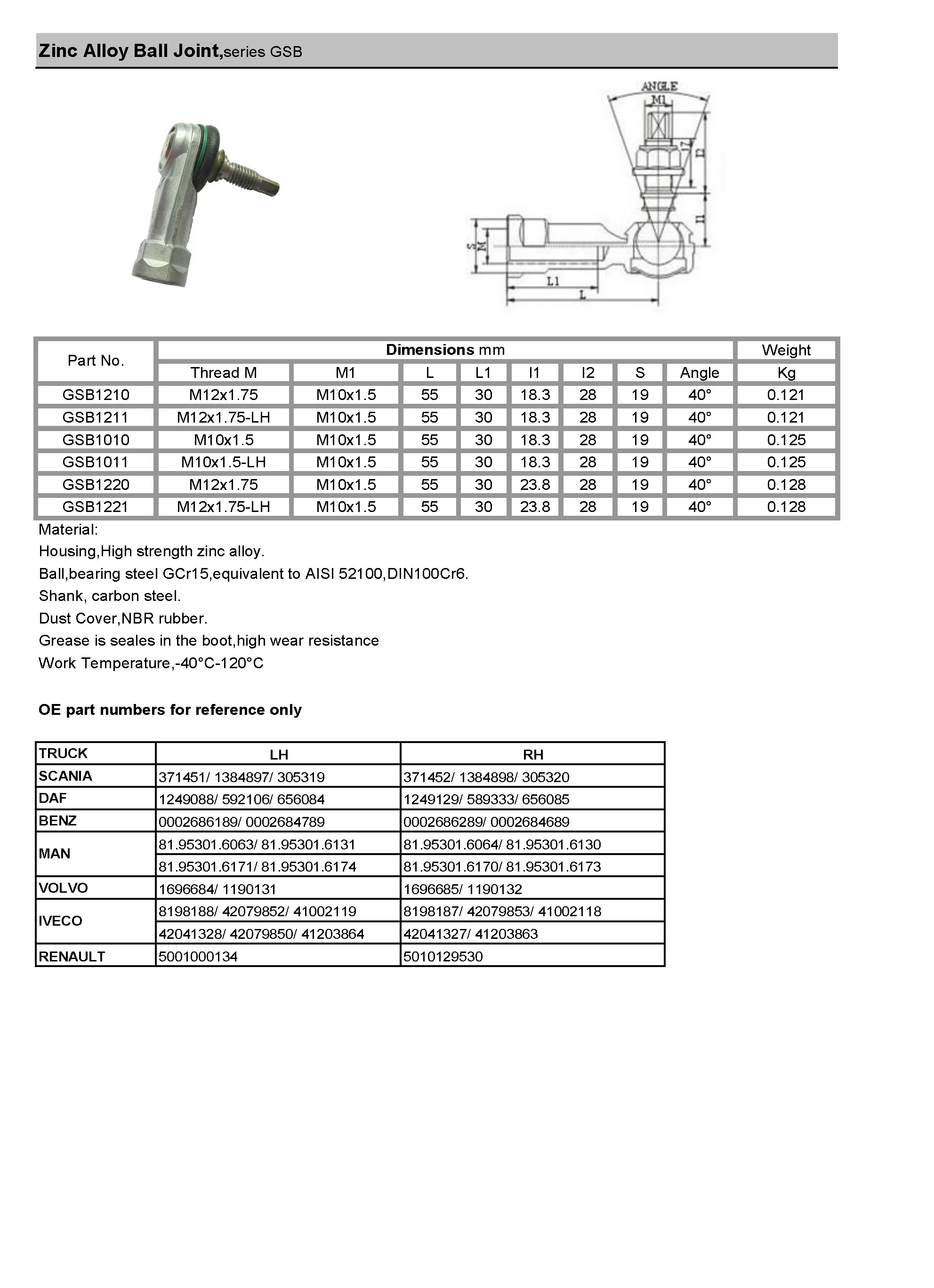

Material: Housing,High strength zinc alloy. Ball,bearing steel GCr15,equivalent to AISI 52100,DIN100Cr6. Shank, carbon steel. Dust Cover,NBR rubber. Grease is seales in the boot,high wear resistance Work Temperature,-40°C-120°C
Part No.
Dimensions mm
Weight
M
M1
L
L1
I1
I2
S
Angle
Kg
GSB1210
M12x1.75
M10x1.5
55
30
18.3
28
19
40°
0.121
GSB1211
M12x1.75-LH
M10x1.5
55
30
18.3
28
19
40°
0.121
GSB1010
M10x1.5
M10x1.5
55
30
18.3
28
19
40°
0.125
GSB1011
M10x1.5-LH
M10x1.5
55
30
18.3
28
19
40°
0.125
GSB1220
M12x1.75
M10x1.5
55
30
23.8
28
19
40°
0.128
GSB1221
M12x1.75-LH
M10x1.5
55
30
23.8
28
19
40°
0.128
Company Information
Other products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
