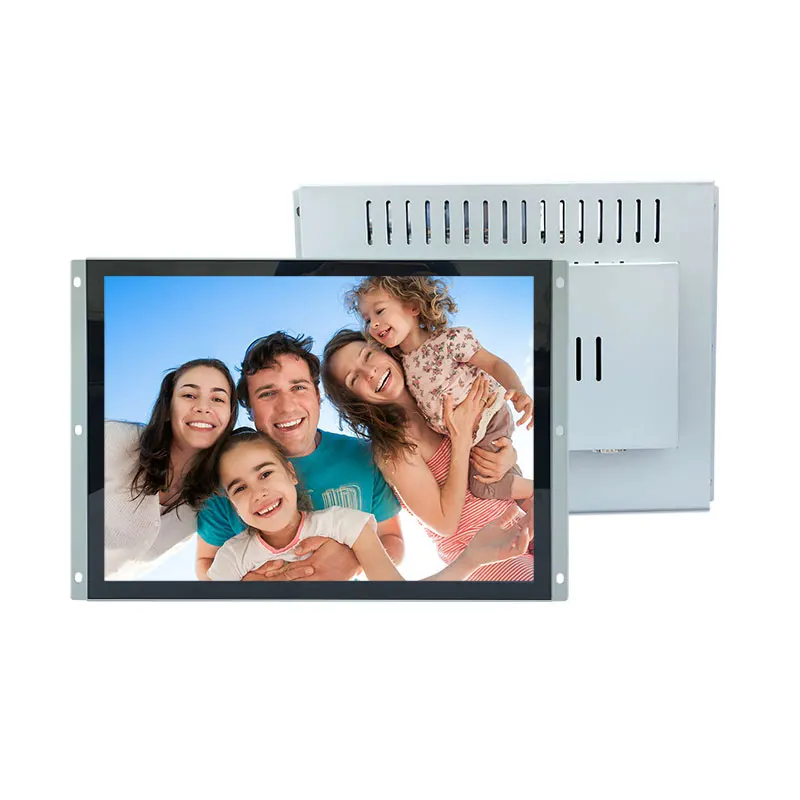

Gaming Machine Touch Screen 17 Inches IGT LCD Monitor
- Category: >>>
- Supplier: Shenzhen Bvsion Technology Co. Ltd.
Share on (62116574725):
Product Overview
Description
OEM Service
Gaming Machine Touch Screen 17 Inches IGT LCD Monitor
Click Here to Contact Me!
Product Description
Parameter List
| 17 Inch BVS-17M1T | |
| Panel | Sharp |
| Panel Model | LQ170E1LW22 |
| Resolution | 1280(RGB)*1024(SXGA) |
| Display Size | 337.92×270.336 mm (H×V) |
| Visible Size | - |
| Brightness(cd/m2) | 400cd/m2(Typ.) |
| The Best Angle | IPS |
| Visible Angle | 88/88/88/88(Typ.)(CR≥10) |
| Color Threshold | 16.7m,90%[CIE1931] |
| Weight | TBD |
| Refresh Rate | - |
| Signal | LVDS(2 ch,8-bits), Terminals,30 Pins |
| Supply voltage | 5.0V(Typ.) |
| Maximum Rated Temperature | Storage:-30 ~ 80°C; Working:0 ~ 80°C |
| Screen | LCD module,a-Si TFT-LCD |
| Pixel Arrangement | RGB Vertical Strip |
| Overall Size | 385.5×296.5×13.4 mm(H×V×D) |
| Surface | Fog face,Hard-coating(3H) |
| Contrast | 1000:1(Typ.)[Transmission] |
| Display Mode | ASV,Normally Black,Transmission-type |
| Response Time | 30(Typ.)(Tr+Td) ms |
| Backlight Type | WLED, 70K Hours, LED Driver |

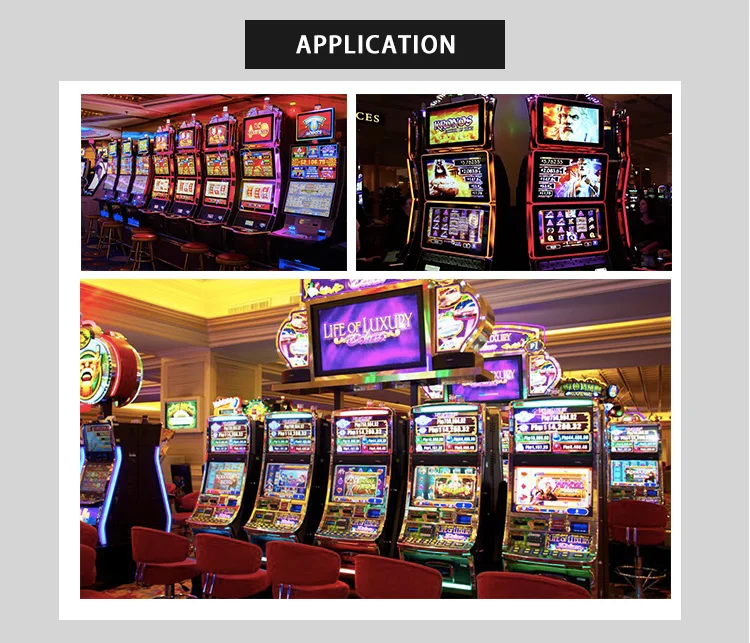

| Application | Gaming Machine/Slots/Arcade |

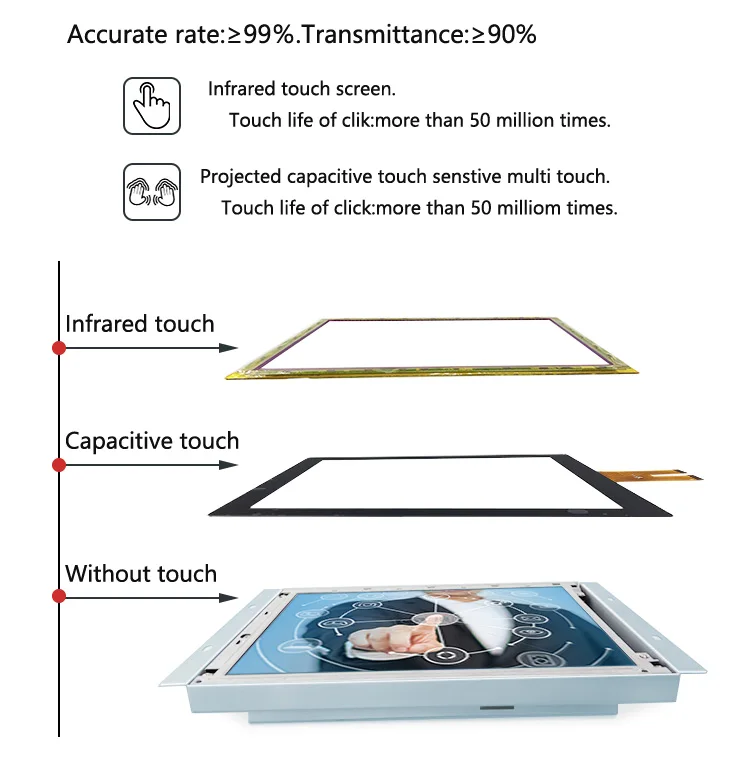

| Touch | 3M RS232(Standard), RS232/USB(Optional) |
Company Information
FAQ
FAQ:
1. Q: Do you accept Alibaba Trade Assurance?
A: Yes, we accept.
2. Q: Are you a factory?
A: Yes, we are factory.we produce tablet pc from 2011.
3. Q: How much extra cost for your OEM order?
A: No extra cost for our OEM service if order qty over 50pcs.
4. Q: How long is the leading time?
A: 3-5days for sample orders. 5-7days for mass production orders
5. Q: How will you ship the goods for me?
