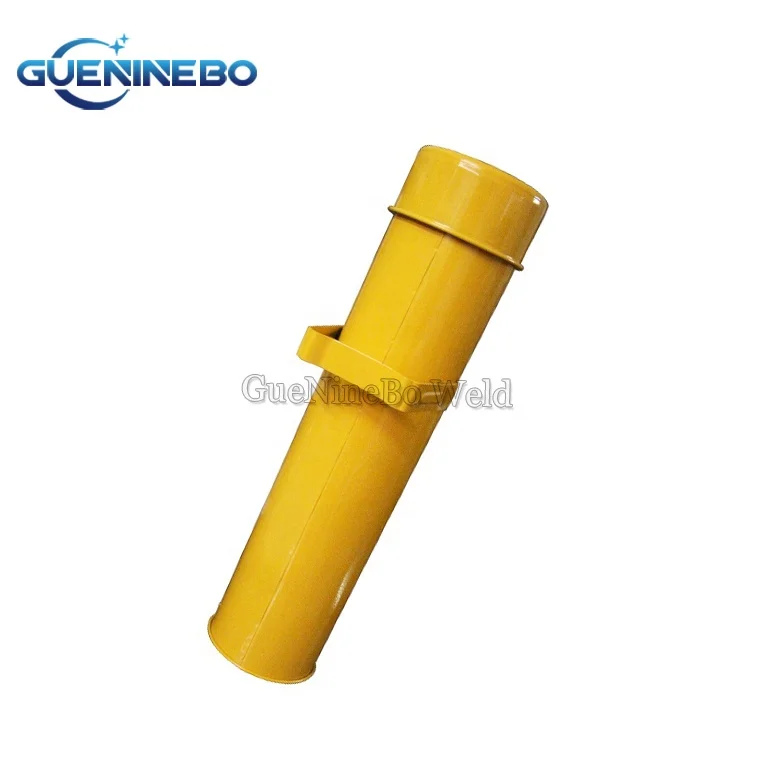

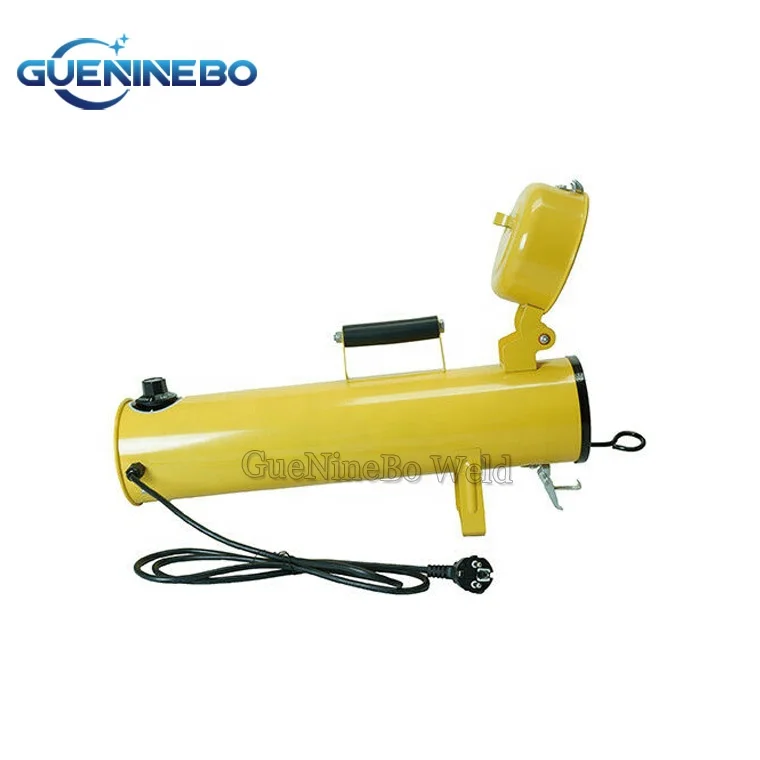

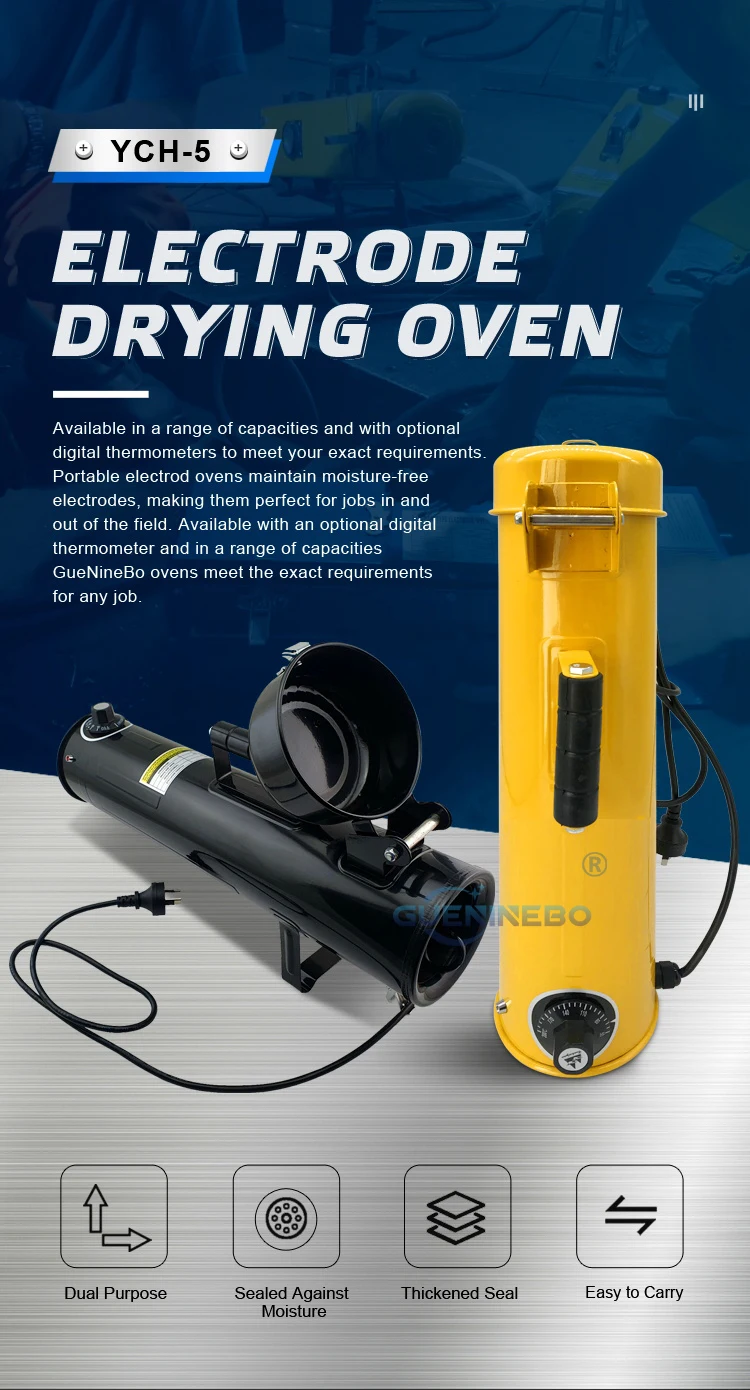

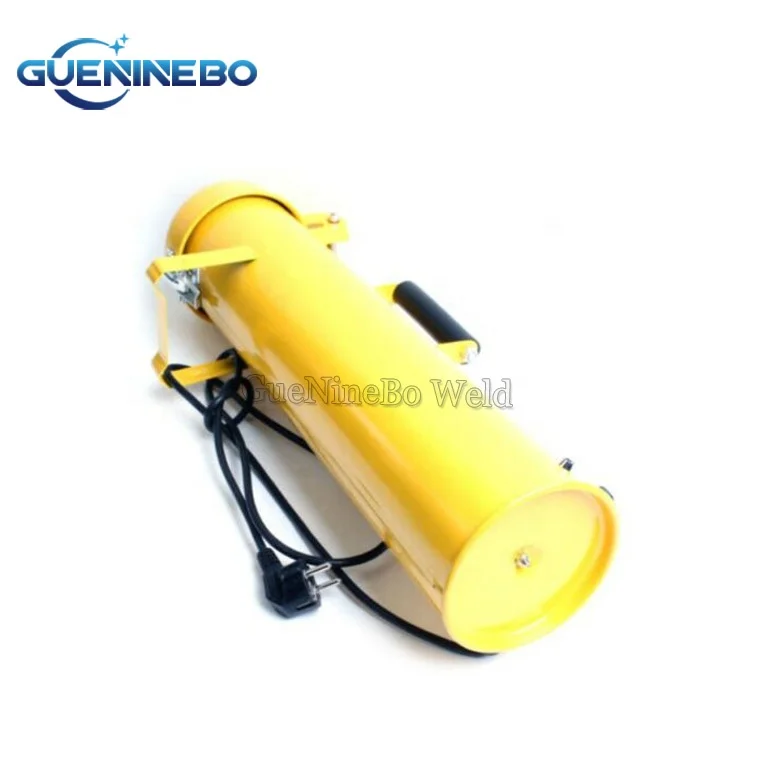

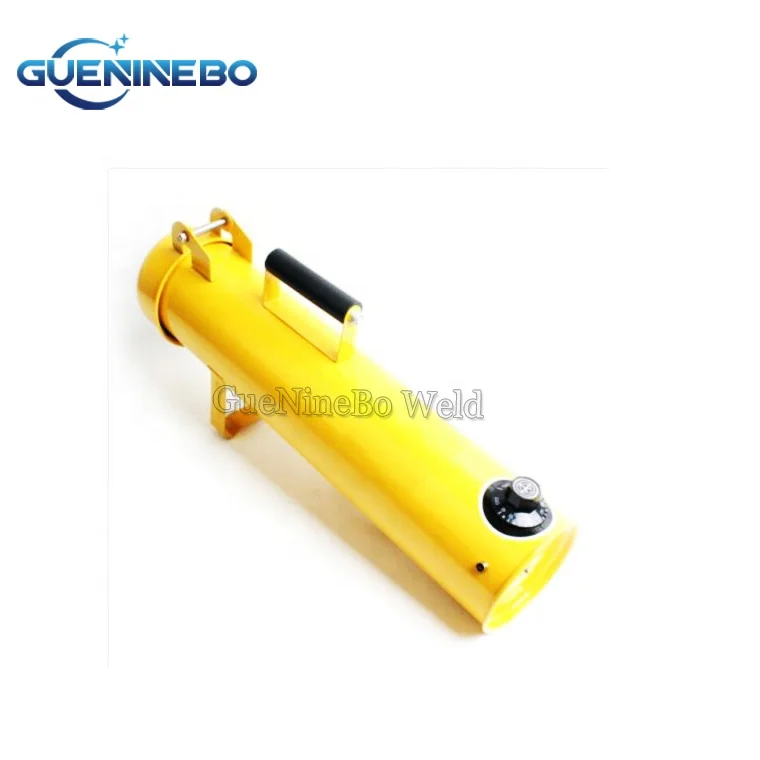

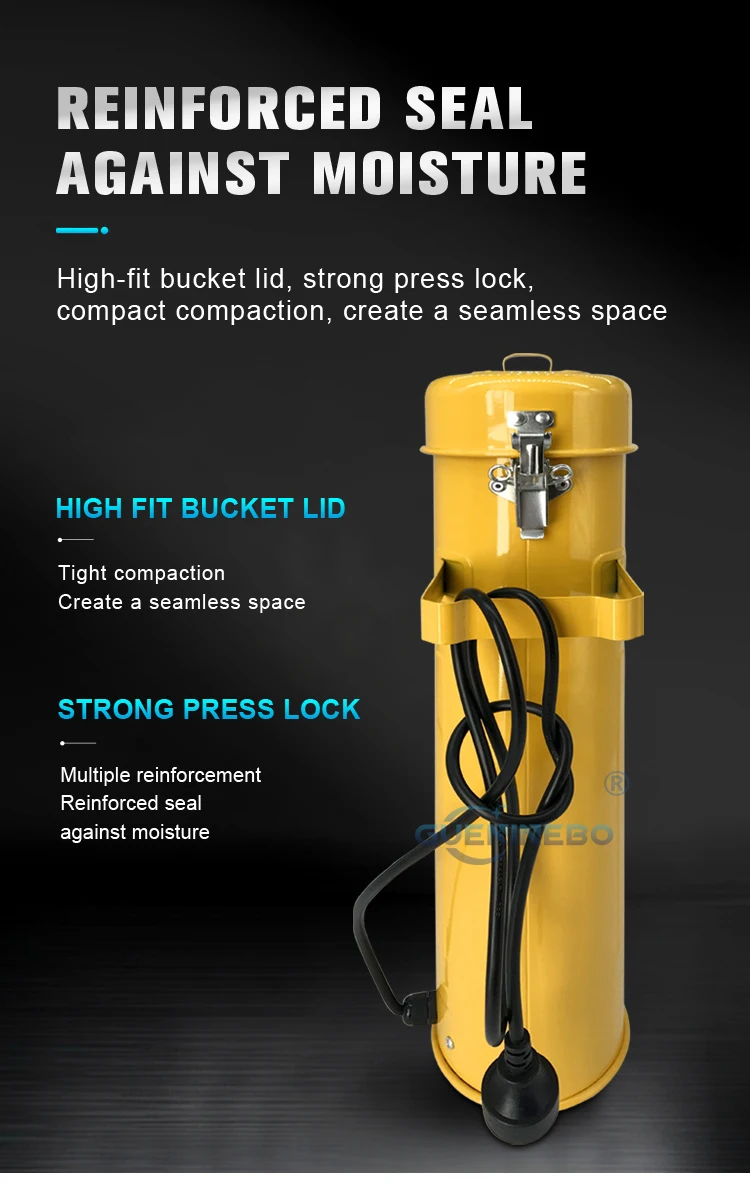

YCH 5 Korean Type Portable Welding Rod Drying Oven/Cylinder

Korean Type YCH-5 Portable Welding Rod Drying Oven/Cylinder

Description:

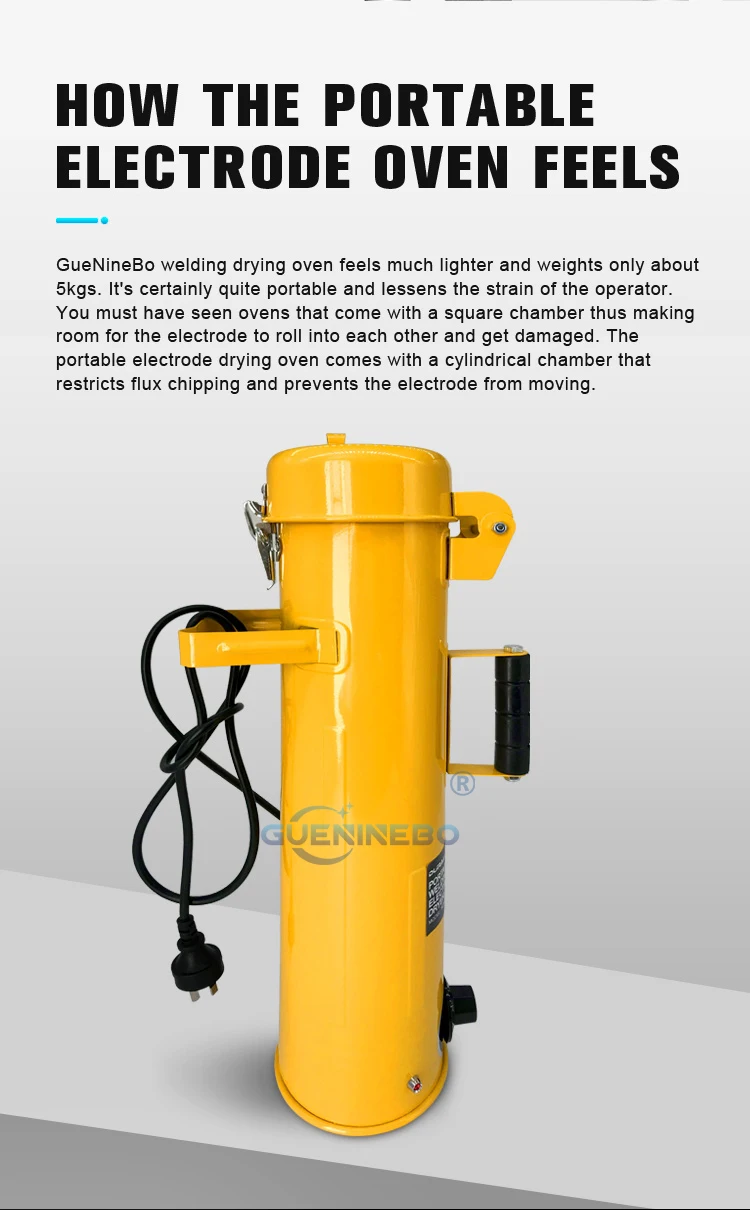

1. The YCH Series is a lightweight portable electrode drying oven that prevents electrodes from absorbing moisture that can negatively affect the welding job.

2. When stick electrodes absorb moisture from the air, they must be dried to restore their ability to deposit quality welds.

3. Electrodes with too much humidity may results in welds with cracking or porosity. Operational characteristics may be affected as well.

Details:

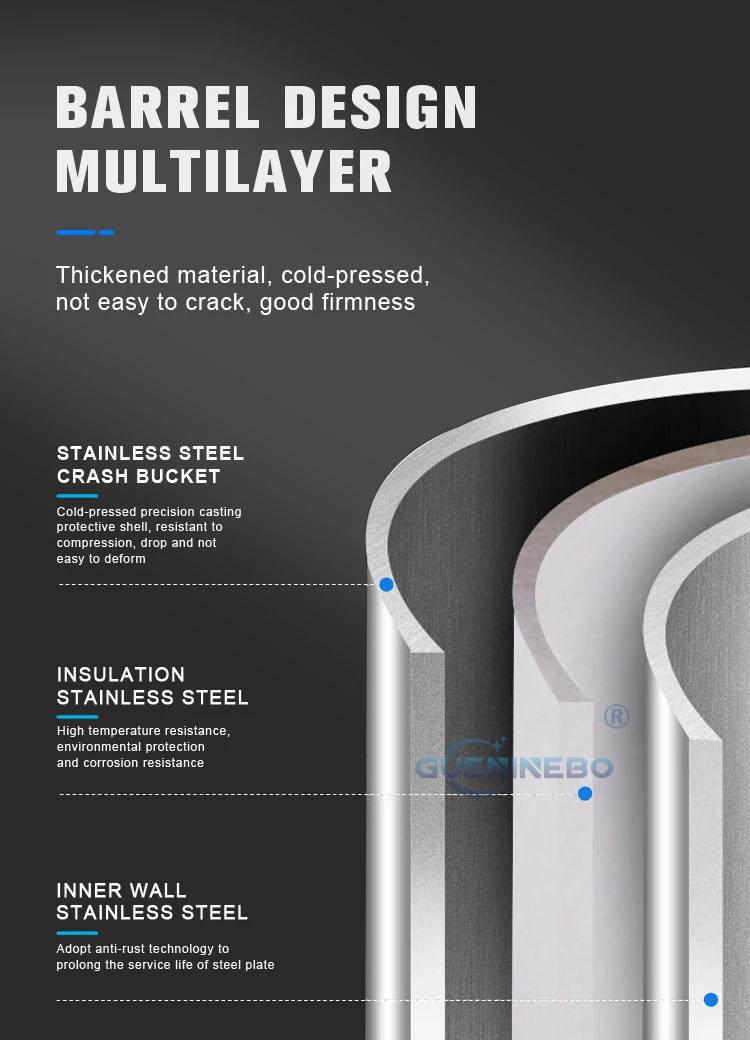

- Internal bladder and heating tube is made of stainless steel;

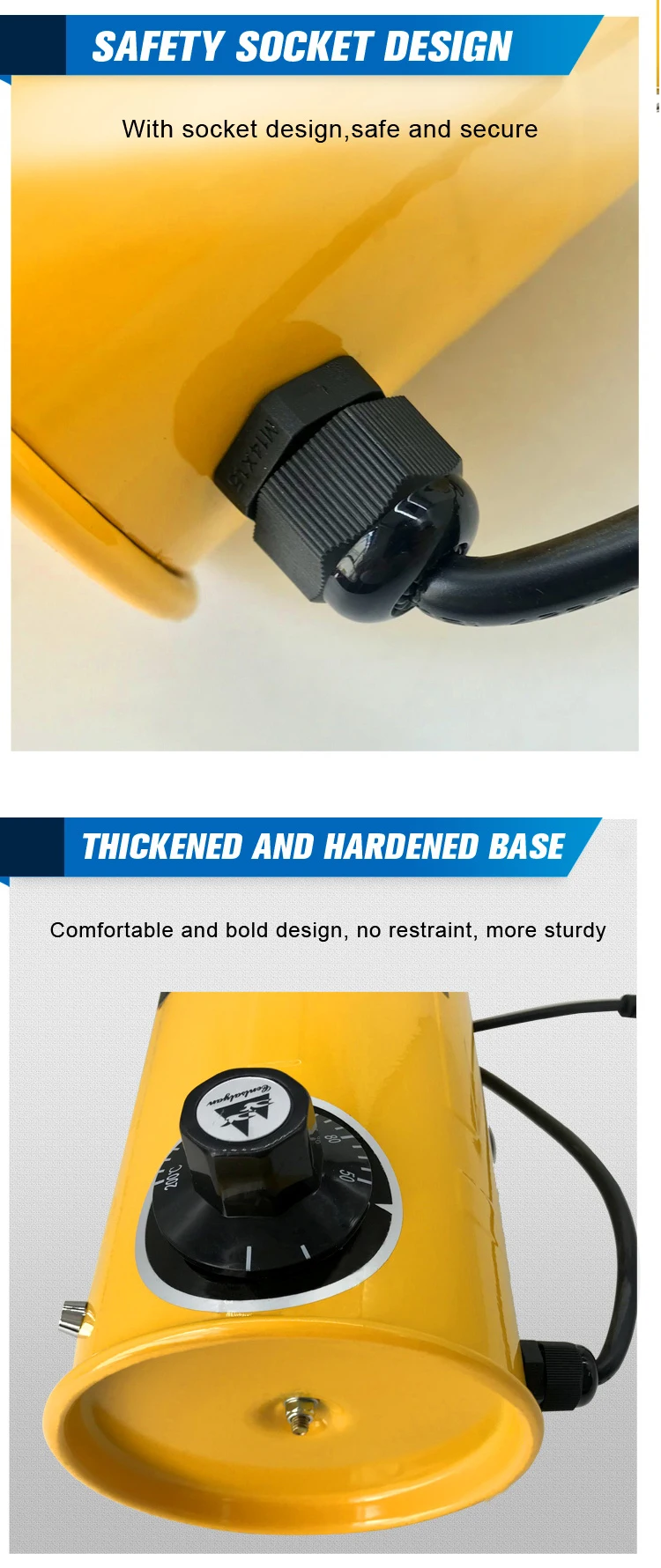

- Both power supplies can be used. With 220V. AV. DC60-110V two types of power wires. slaver and cleaner.

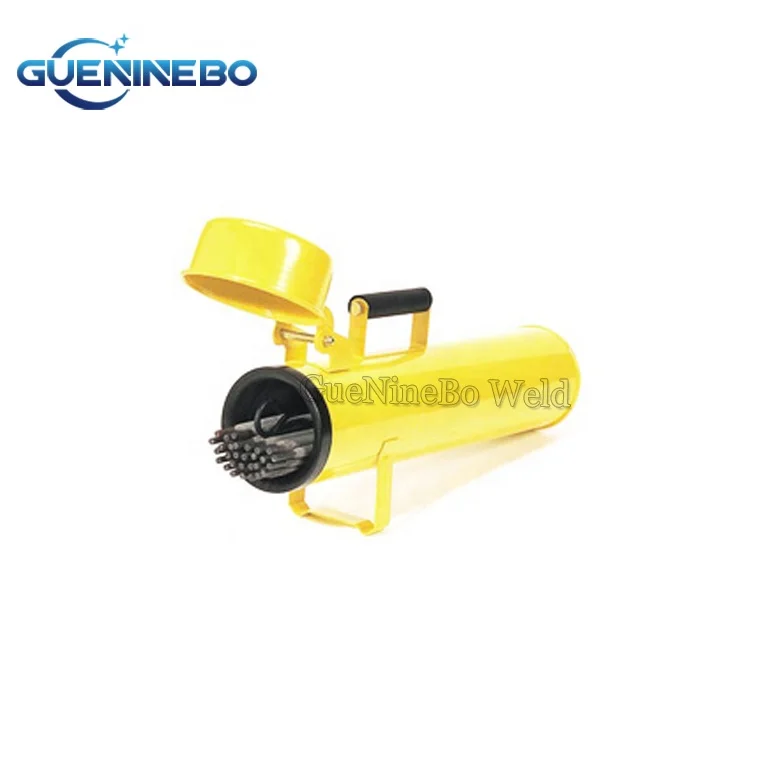

- 5 kg storage capacity for 18" (450mm) electrodes.

- The chamber material: galvanized plate, stainless steel material is optional.

- Heating wire wraps around the inner tube.

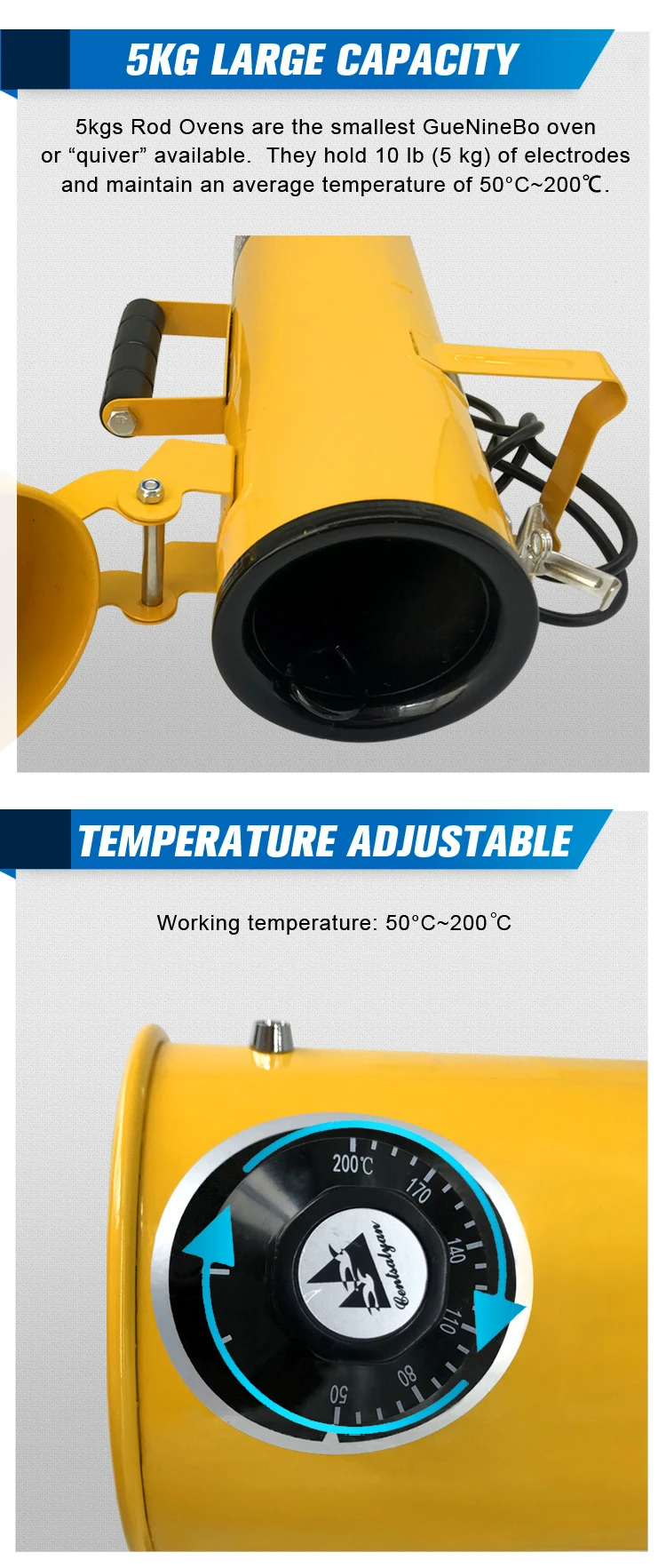

- Operating Temperature:  50~ 200 deg Celcius.

- Capacity:  5kg or 11lbs

- Temperature Control Knob operated.

If there is smoke after it is plugged in, open the lid and let it out first before usage. Please check that the input voltage is compatible. Ground connection is needed to make it work properly.

Functions:

Welding rod dryer is a tool to provide an order temperature and transport welding rod to welder before use .It can separates the welding rod from moisture air,and prevents air holes and crevices in the weld lines it is the necessary tool to pledge the welding in a high quality .

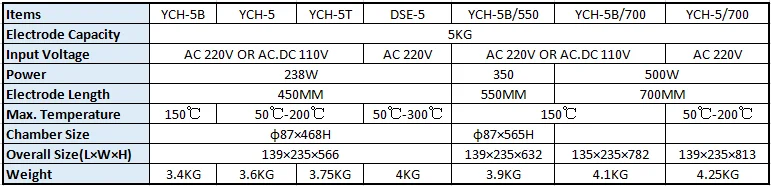

Parameters:

YCH-5
