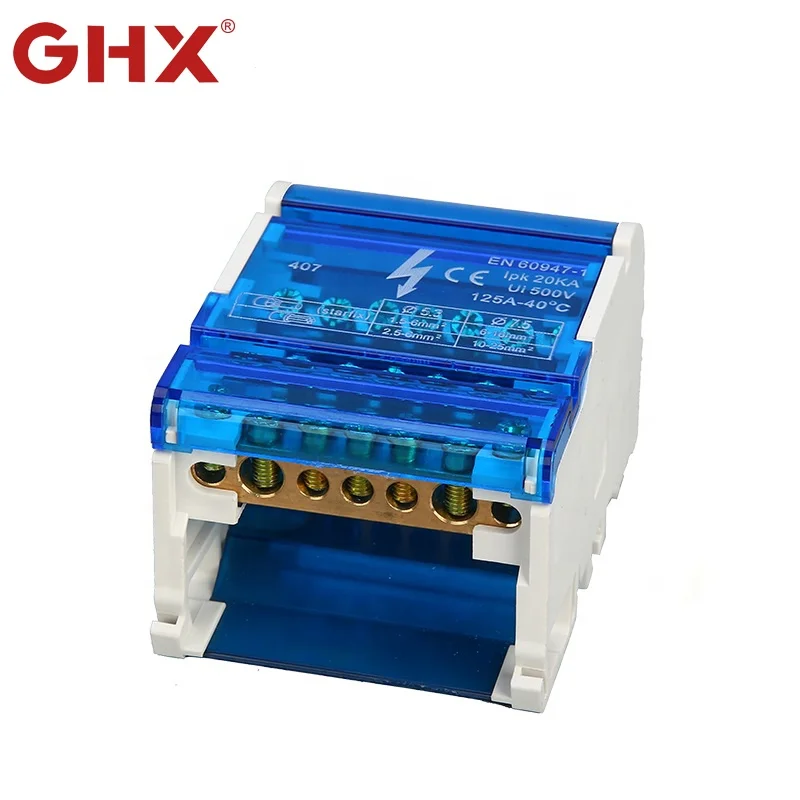

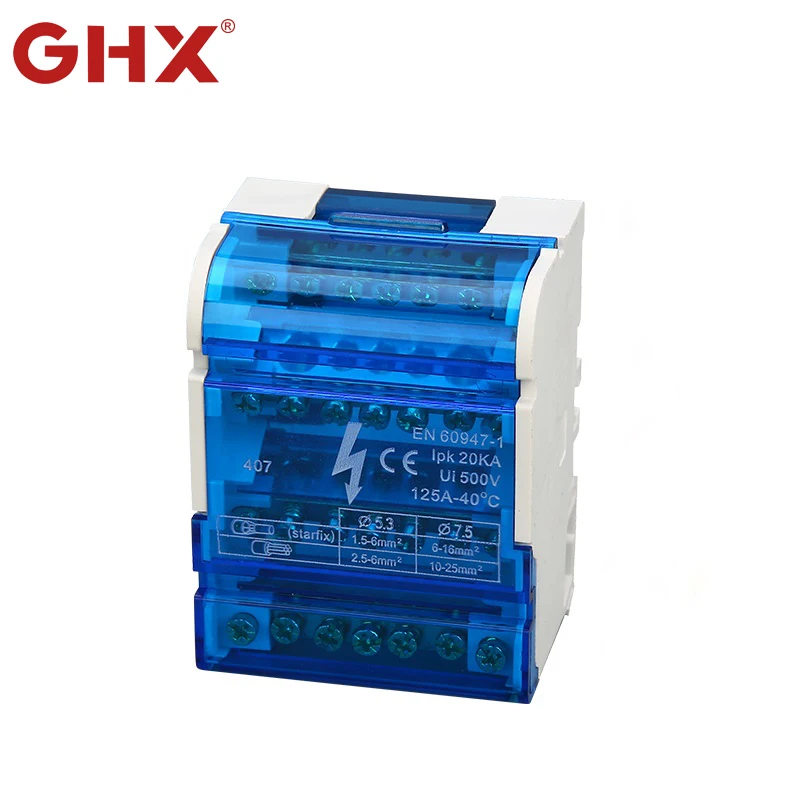

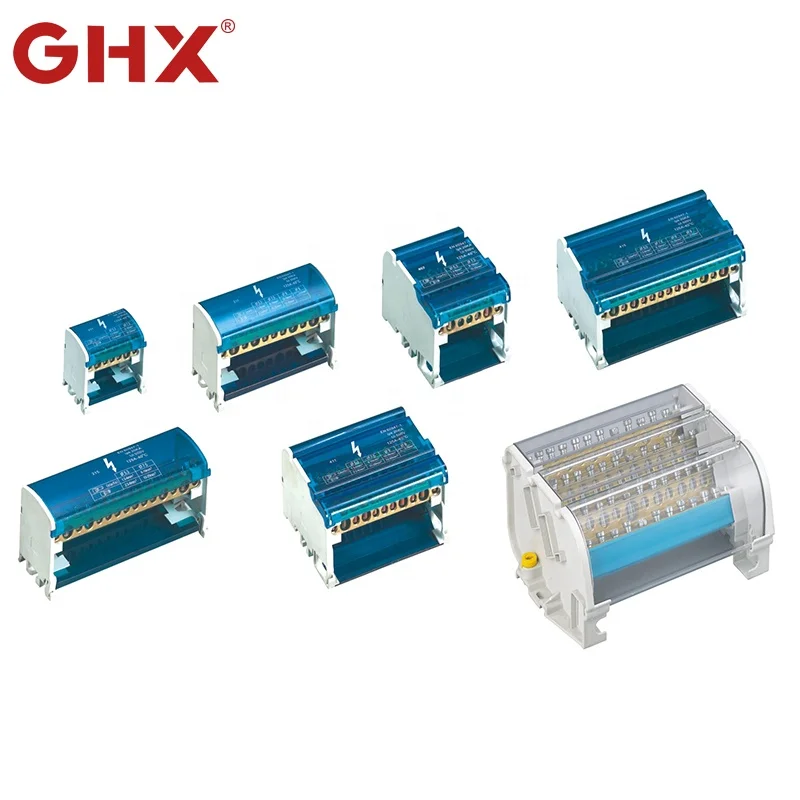

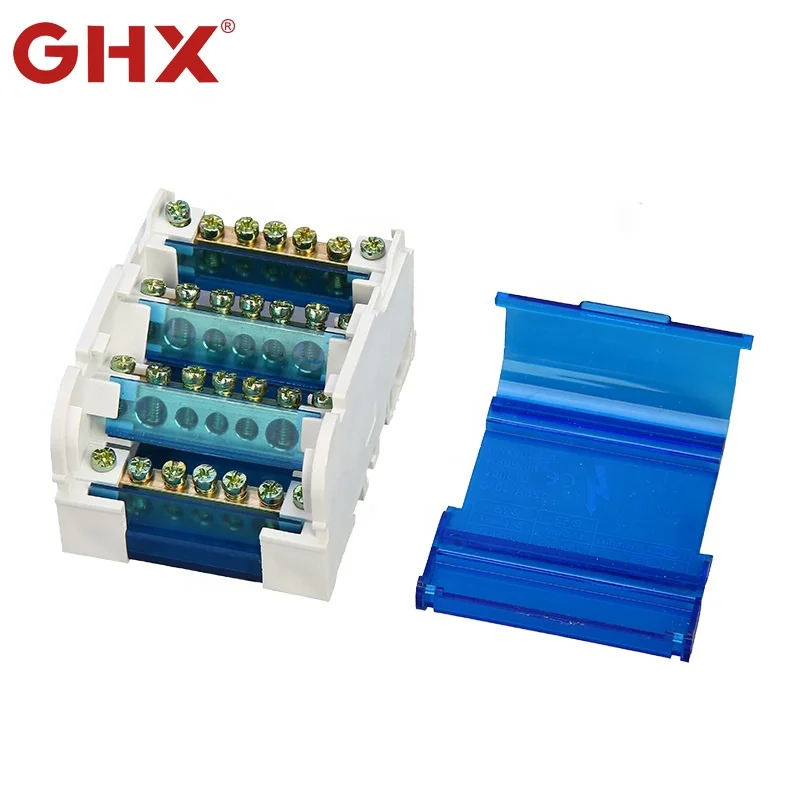

YLC 407 125A 500V Brass busbar Distribution Terminal blocks connector box with removable cover
- Category: >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (62116805357):
Product Overview
Description
Product Detail
Drawing---
Dimension---
| MODEL | Spec. | Rate Current (A) | Rate Voltage (V) | L1 | L2 | H | W | Max. Section | Hole Qty | Plastic Material |
| W*H | MM | |||||||||
| 207 | 6.5*12 | 125A | 500V | 67 | 48 | 50 | 45 | 35MM | 2*7 | PA |
| 211 | 6.5*12 | 125A | 500V | 100 | 86 | 50 | 45 | 35MM | 2*11 | PA |
| 215 | 6.5*12 | 125A | 500V | 134 | 118 | 50 | 45 | 35MM | 2*15 | PA |
| 407 | 6.5*12 | 125A | 500V | 67 | 48 | 50 | 90 | 35MM | 4*7 | PA |
| 411 | 6.5*12 | 125A | 500V | 100 | 86 | 50 | 90 | 35MM | 4*11 | PA |
| 415 | 6.5*12 | 125A | 500V | 134 | 118 | 50 | 90 | 35MM | 4*15 | PA |
| 413 | 8*17 | 160A | 500V | 180 | 168 | 73 | 138 | 50MM | 4*13 | PA |
