Product Description
Features:
1. High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%;
2. Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;
3. Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;
4. Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;
5. Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;
6. RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
7. CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.
8. 2 years warranty.And 3~10 years extended warranty service also can be provided.
2. Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;
3. Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;
4. Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;
5. Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;
6. RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.
7. CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.
8. 2 years warranty.And 3~10 years extended warranty service also can be provided.
Parameters:
eSmart3-12V/24V/36V/48V-series | 40A | |
Charge Mode | MPPT(Maximum Power Point Tracking) | |
MPPT efficiency | ≥99.5% | |
System Type | DC12V/24V/36V/48V | Automatic recognition |
Input Characteristic | ||
PV Max. Input voltage (VOC) | 12V/24V/36V/48V system | DC130V |
Start charging voltage point | 12V/24V/36V/48V system | Higher than battery voltage 3V |
Low input voltage protection point | 12V/24V/36V/48V system | Higher than current battery voltage 1V |
Over voltage protection point | 12V/24V/36V/48V system | DC120V |
Rated PV input power | 12V system | 520W |
24V system | 1040W | |
36V system | 1560W | |
48V system | 2080W | |
Charge Characteristic | ||
Charge mode | MPPT(Maximum Power Point Tracking) | |
Charge method | 3-Stage: constant current(fast charging), constant voltage, floating charge | |
Selectable Battery Types | Flooded, Sealed lead acid, Gel battery | |
(Other types of the batteries also can be defined) | ||
Rated charge current | 40A | |
Load Discharge Characteristic | ||
Load voltage | Based on battery voltage | |
Load rated current | 40A | |
Load control mode | Time control mode, PV&Time control mode, | |
On mode, Off mode, PV voltage control mode | ||
Display/Communication | ||

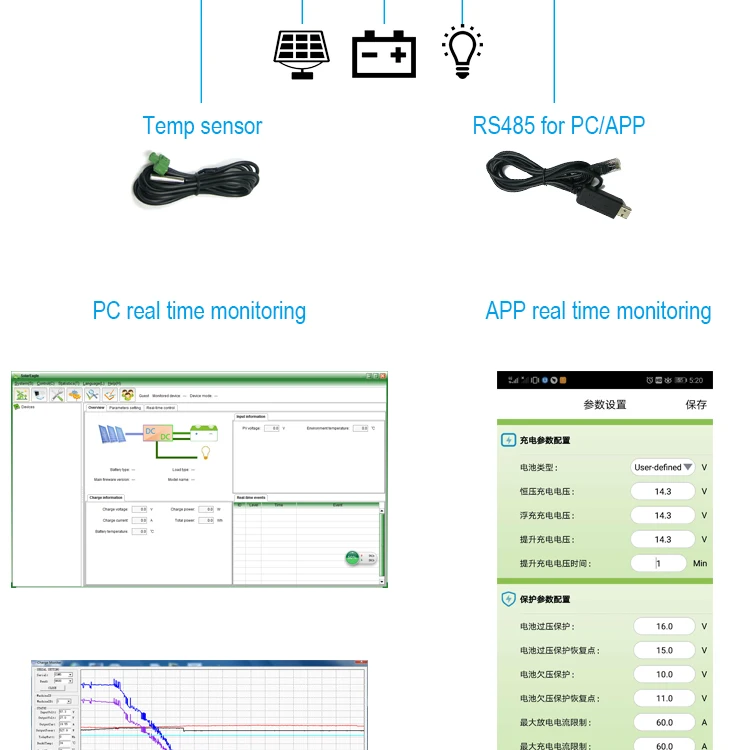

LCD display/ RS485 to USB(PC software optional), Meter, WiFi modular(APP) | System type, PV type, PV voltage, Charge voltage, charge current, charge power, temperature etc. | |
Other Parameters | ||
Protection | Input-output over/under voltage protection, | |
reverse protection,battery shedding protection. | ||

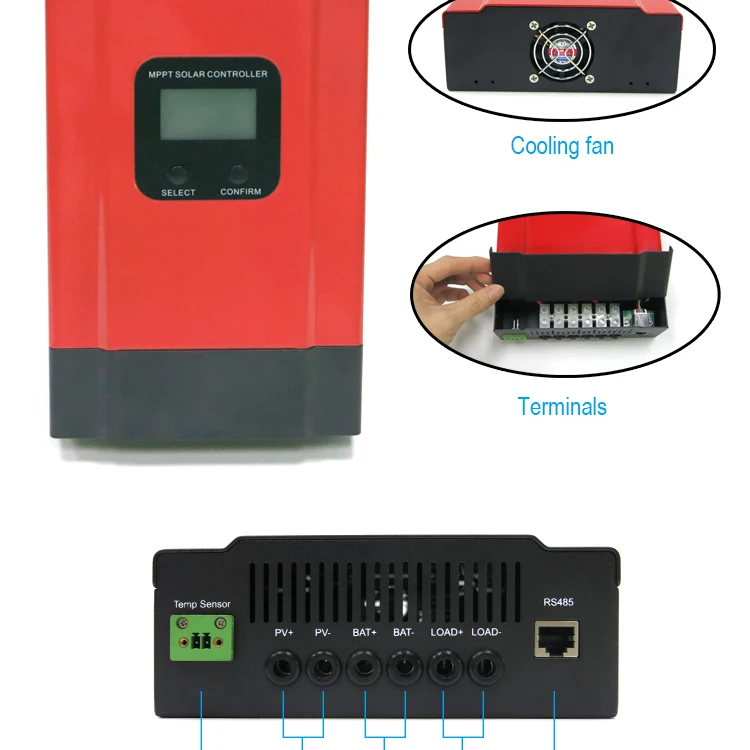

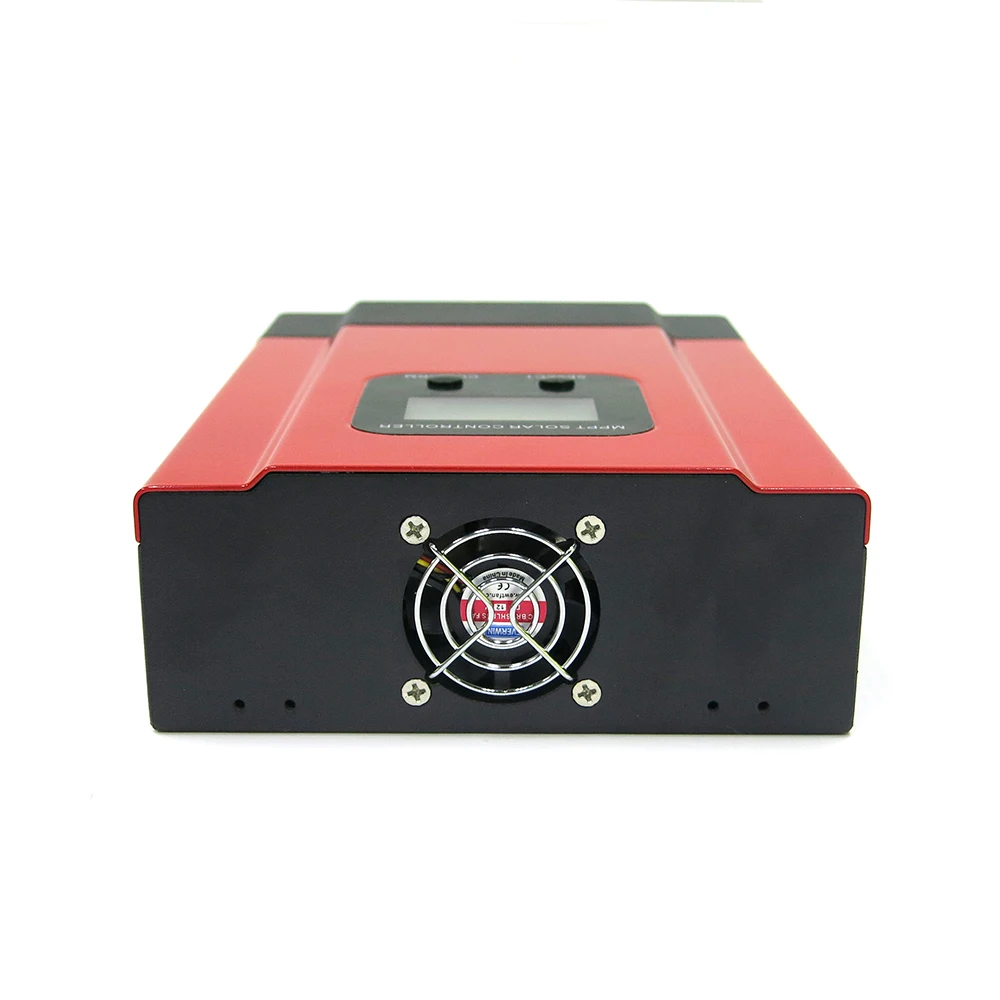

Thermal methods | fan cooling | |
Products Size DxWxH(mm) | 240*168*66 mm | |
Packing Size DxWxH(mm) | 289*204*101 mm | |
Net Weight (kg) | 2.3 kg | |
Gross Weight (kg) | 3 kg | |
Type of Mechanical Protection | IP25 | |
