SHENPENG GK35 2C bag closing sewing machine

Product Overview

Description

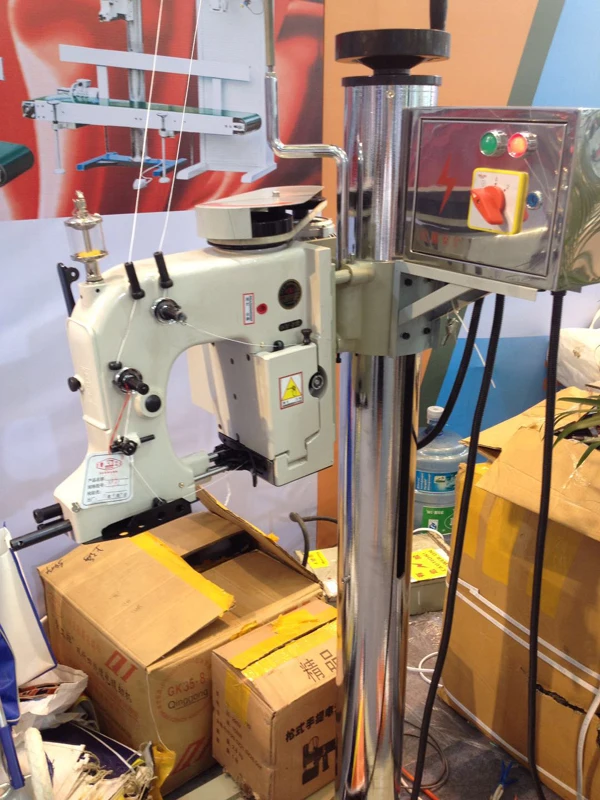

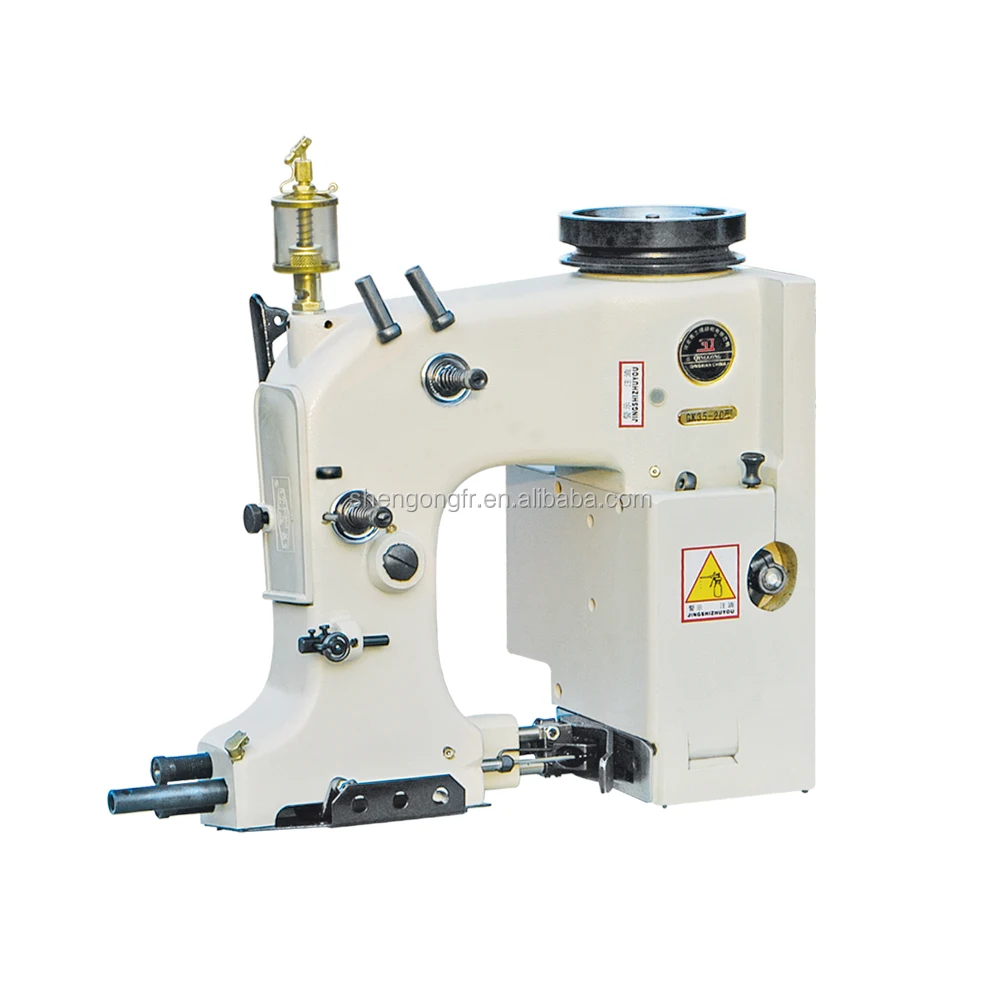

SHENPENG GK35-2C bag closing sewing machine





SHENPENG GK35-2C bag closing sewing machine could closing of all sorts of filled bags, e.g. burlap, jute, woven poly, cotton, plastic and paper with double threads chain stitch 401.In grain, feed, chemical and other industries are widely used. The machine can be combined with automatic metering and filling machine for production line.

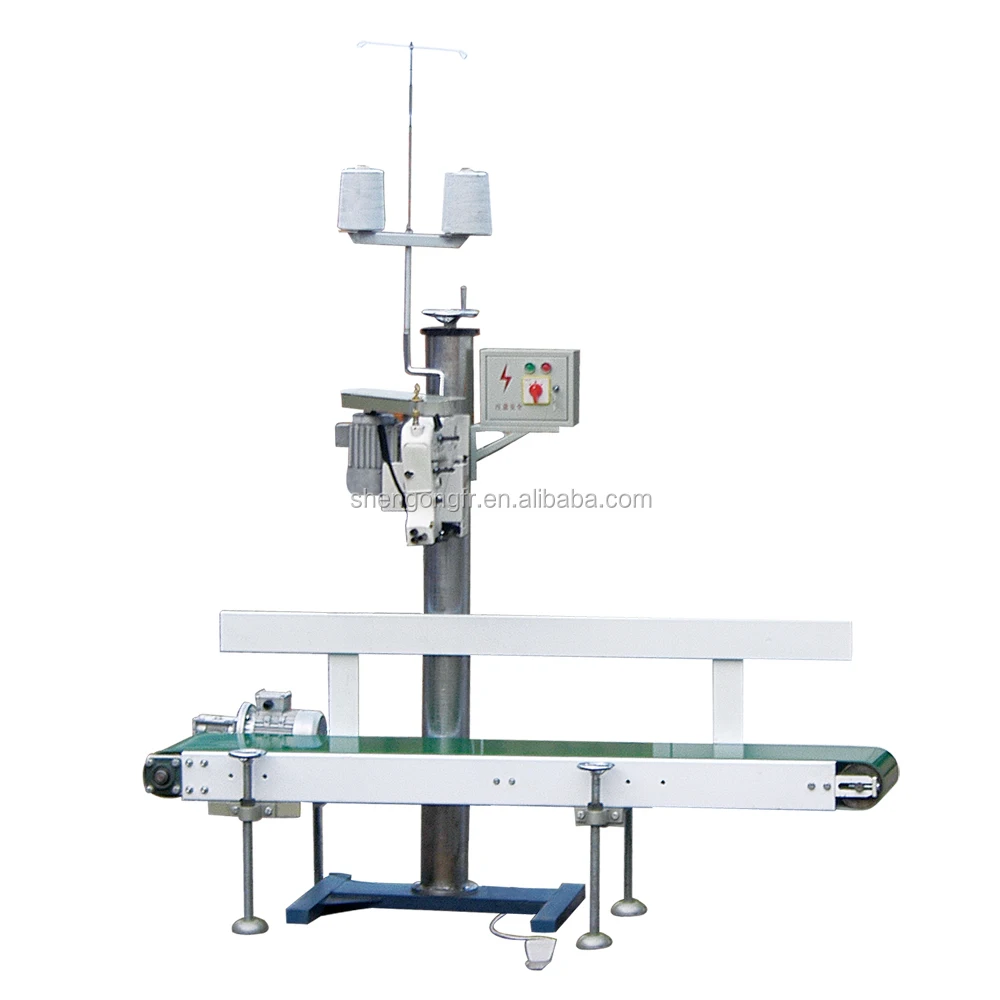

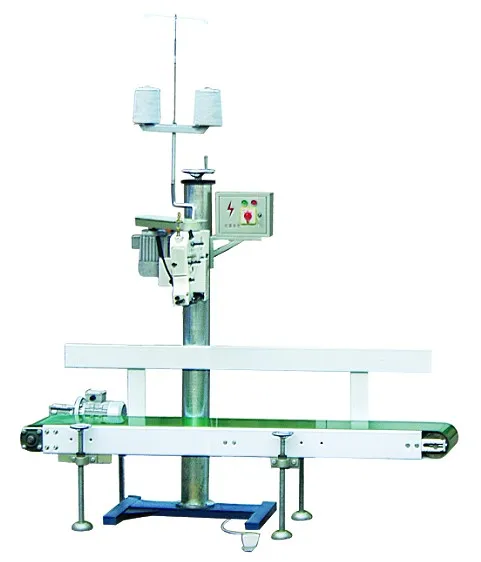

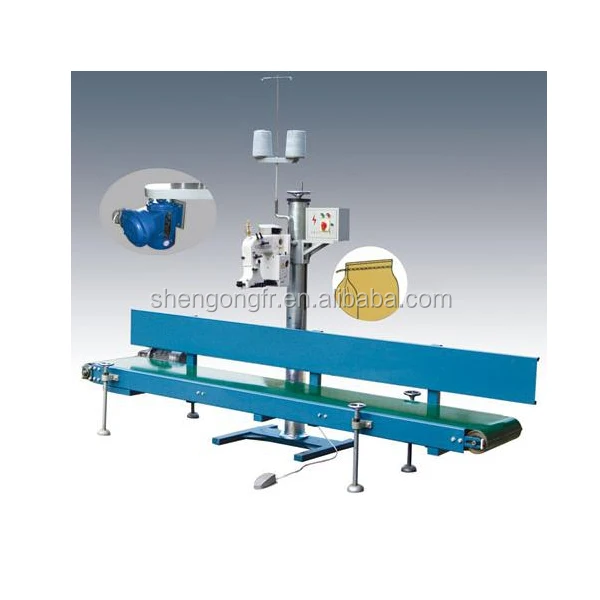

• Can match with SHENPENG pedestal ,CP4900 bag folding ,LFS conveyor to be automatic bag closing system .


• Main spare parts are made of copper alloy and high duty alloy.


• Well assembly quality ,ensure the stable running.


• Easy maintenance semi closed structure.


• Mechanical thread chain cutter.

SHENPENG GK35-2C could replace Newlong DS-2 and Union Special 80800C.



Specifications



Model	GK35-2C
Max. Sewing Speed	2,000 r.p.m
Max. Sewing Capacity	11mm (7/16 in.), 32 plies of paper
Stitch Length	6.5~11mm
Stitch Type	Single needle double thread chain stitch 401
Presser Foot Lift	16mm (5/8 in.)
Feed Type	Drop feed
Thread Chain Cutter	Mechanical
Lubrication	Sight feed oiler and manual
Needle	UY9848G, UY9856T
Thread	Polyester 20/6, 20/9 (2×3, 3×3)
Dimension	350×215×440mm

1.Professional technical consulting;

2.Machine operating analysis;

3.Stitch sample making;

4. Provide sewing machine working video ;

5.Maintenance and spare parts services.





1. Q: Do you have your own export right ?

   A: Yes, we are able to export the sewing machine to any country or region



2. Q: What service you can supply?

   A: Model recommendation, sample making, technical consulting, after-service support



3. Q: Could i visit your factory ?

A: Yes, at the same time you can enjoy more favorable price if buy sewing machine



4. Q: Is your machine could replace Union Special or Newlong sewing machine function?

   A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.



5. Q: Do you supply spare parts?

   A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.



6. Q: What gurantee you supply?

   A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
