Hot sale thermoplastic road line remover/Vertical shaft road marking machine
Product Display

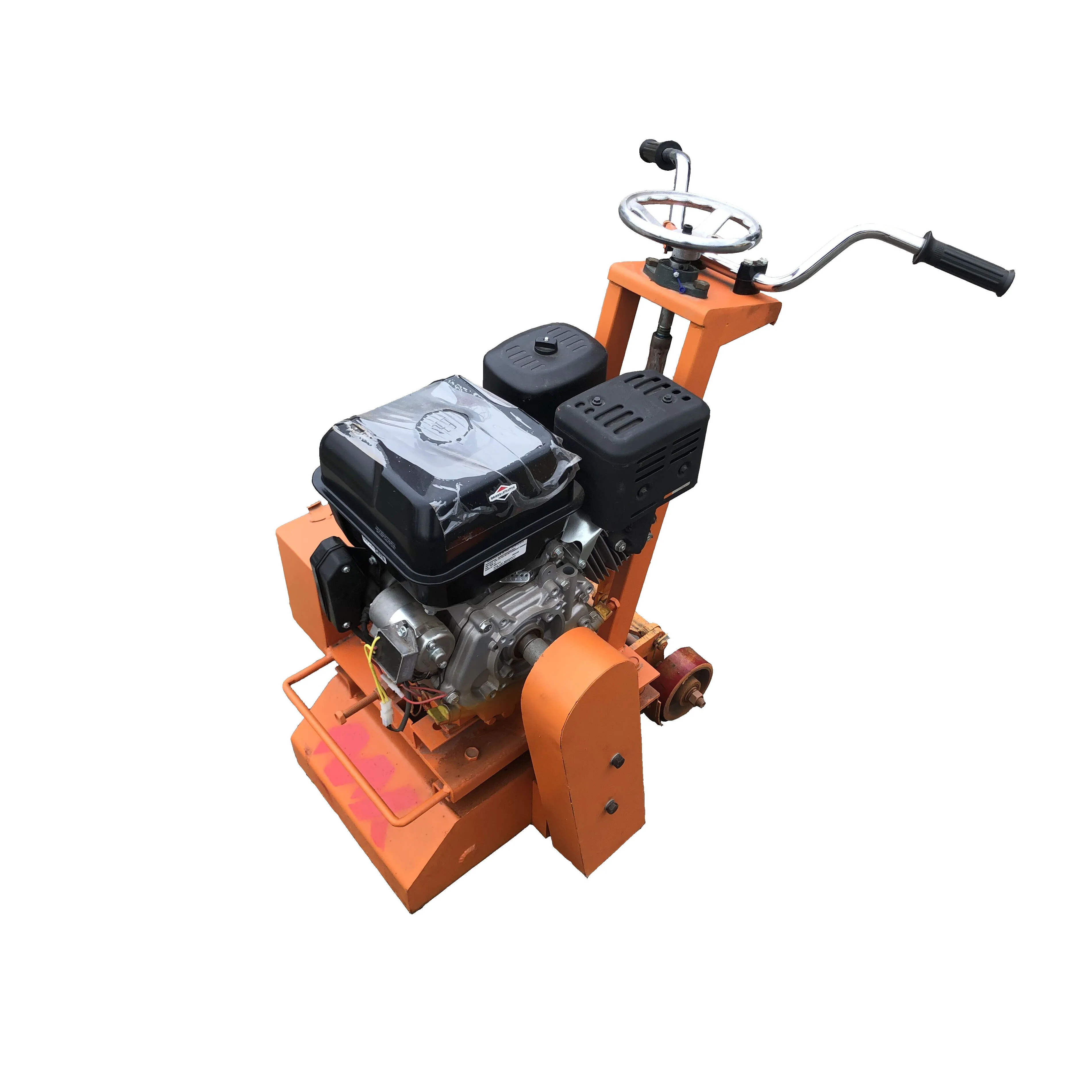

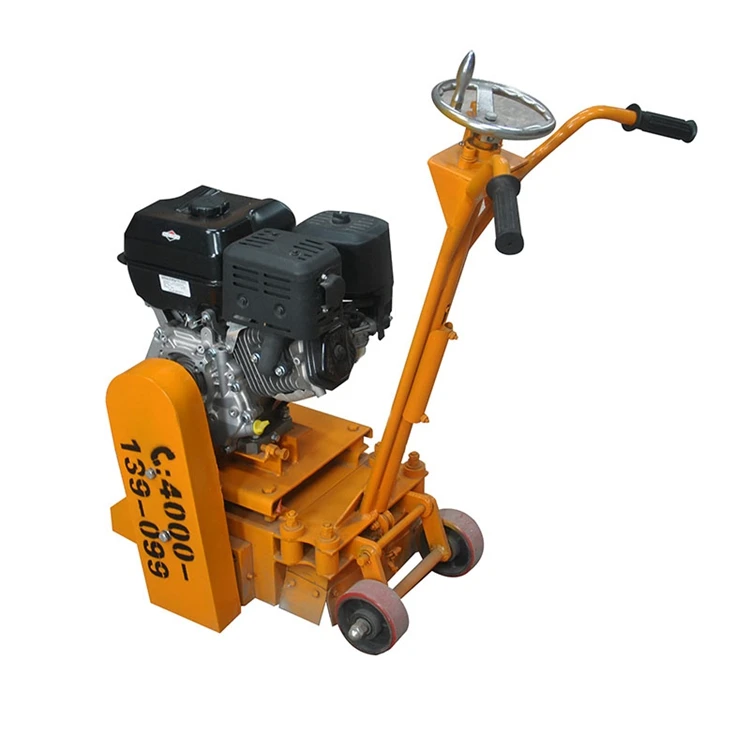

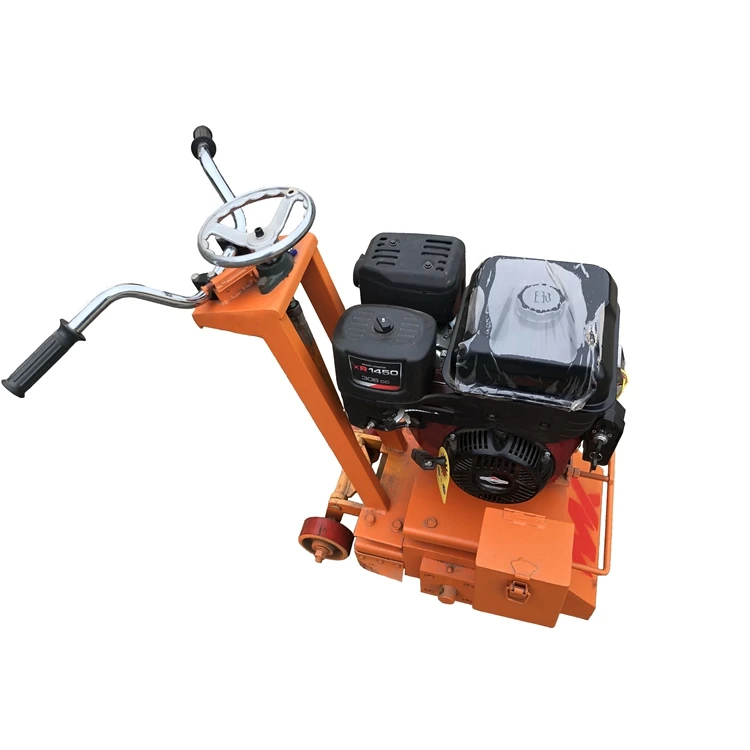

Wire remover (wdc-220)
Technical features:
1. The whole machine adopts the structure design of independent and high-efficiency engine, high-elastic walking wheel, shock absorption transmission, wide wheel base (with scraper) and small wheelbase. The structure is compact and light, the work is smooth and efficient, and the material is not sticky to the wheel.
2. The milling and planing removal device is designed as a volute fan structure, and has a special exhaust and slag discharge channel, which solves the problem of line dust flying everywhere caused by the cavity pressure generated during high-speed rotation of the milling drum.
3. The milling planer blade adopts ventilated structure, the working face is welded with multi-point high-strength and wear-resisting alloy cutter head, and the overall dynamic balance is adjusted, etc. The milling drum device works with high efficiency, long life and little vibration.
Technical parameters:
milling plane width
200mm, 220mm
clearance speed
1-3km/h
wire removal form
horizontal milling drum, special slag discharge channel
supporting power
5.5kw
rated speed of spindle
3200r/min
cutter life
4000 ~ 5000 Square meter
walking mode
hand-assisted self-walking
noise near operator's ear
88dB(A)
weight
91 ~ 105kg
overall dimension (length * width * height)
820 * 560 * 1060 (mm)

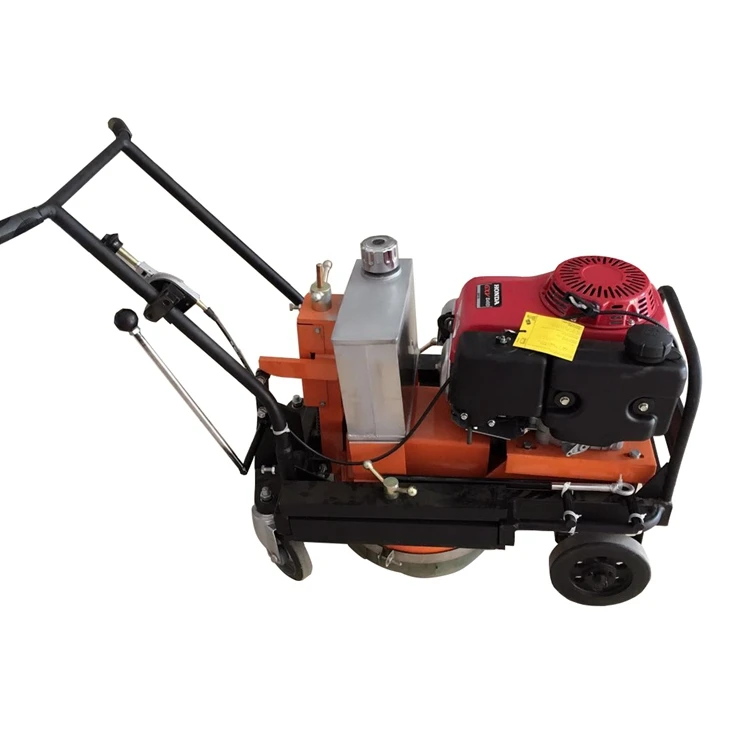

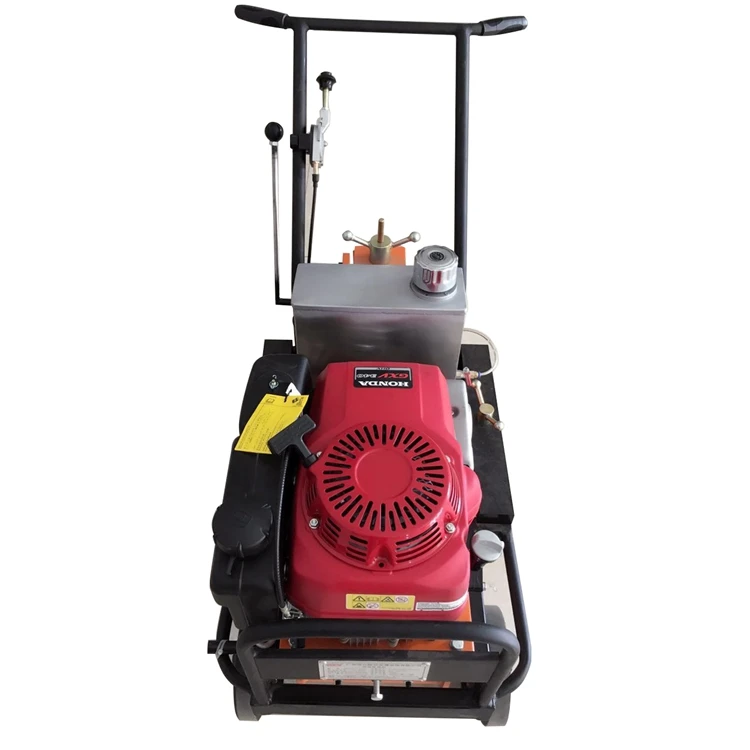

Vertical shaft stripper (bpm-c01)
The machine adopts GXV340 engine and the grinding head adopts cemented carbide Mosaic structure.The grinding head runs in with the raised part of the road surface under the action of rotating centrifugal force to remove the old line.Grinding depth and speed can be adjusted.Polishing head screws adopts national standard level 12.9.Can clear 8000-10000 square mark.
