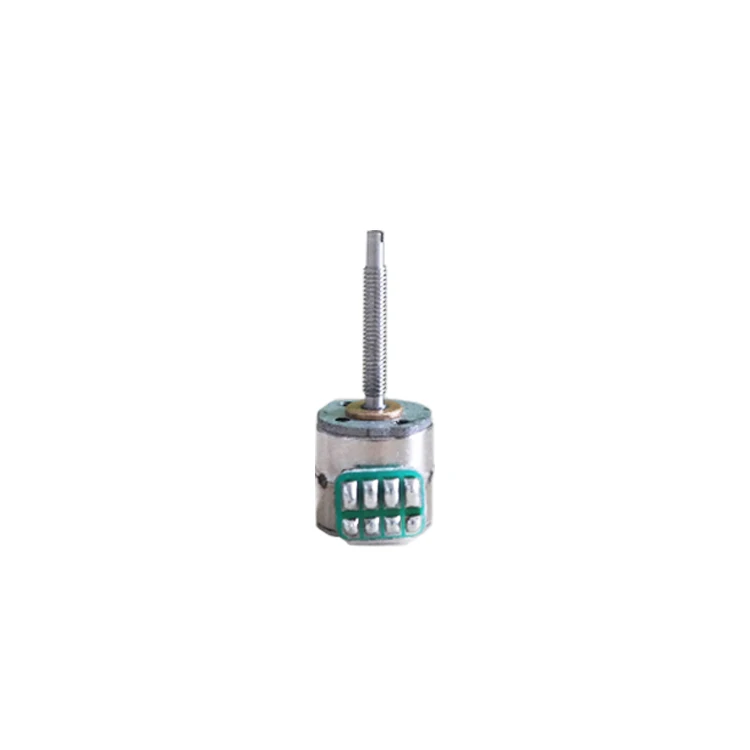

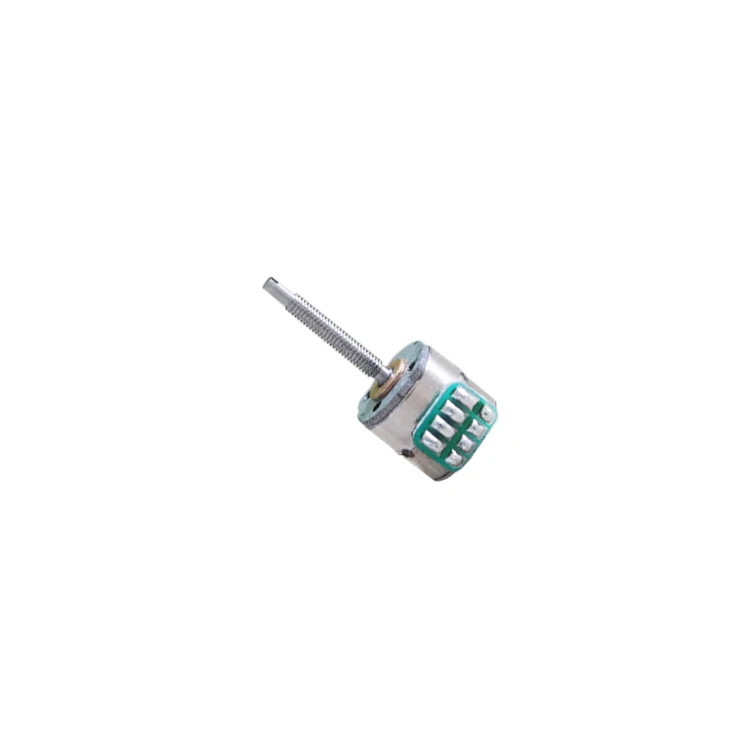

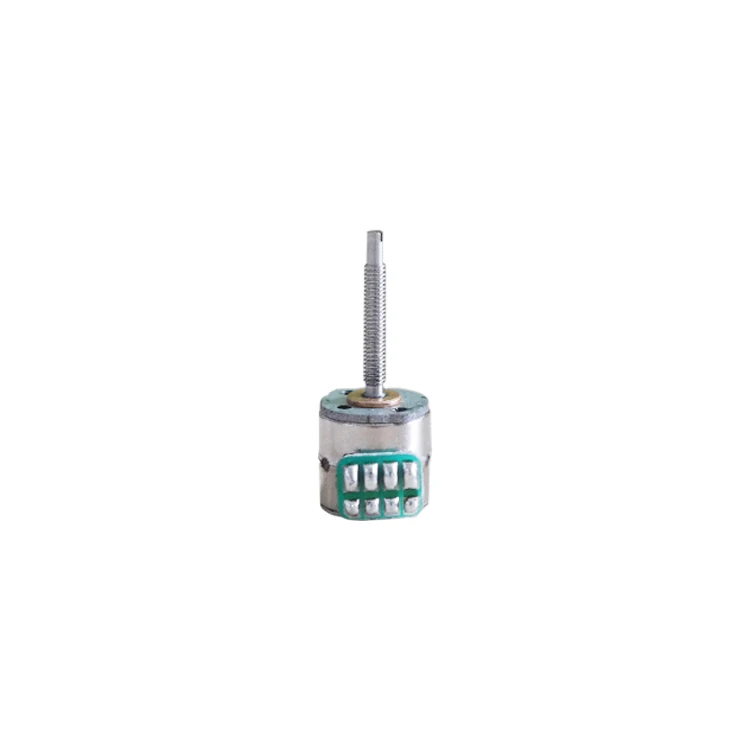

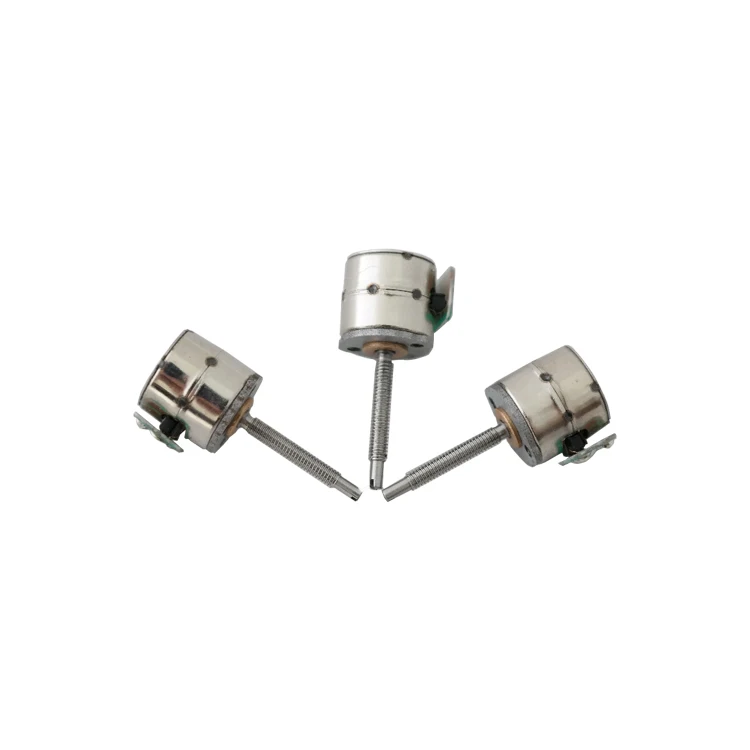

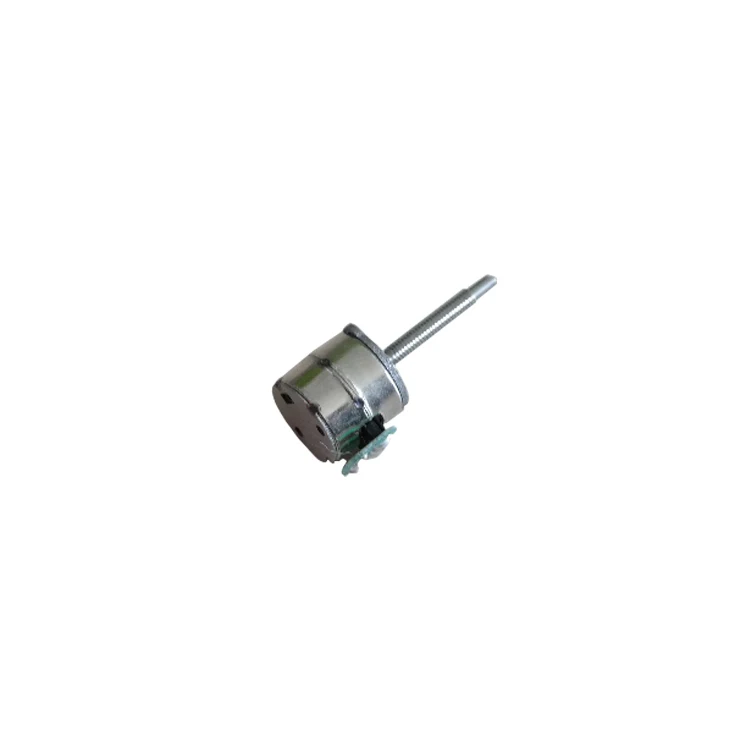

VSM08284 8mm Micro Stepper Motor Slider Linear Stepping Motor Screw Motor

Product Overview

Description



8mm Micro Linear Stepping Motor

VSM08284 is a special precious micro stepper motor (or say linear stepper motor),the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number.



PRODUCT NAME	8 M LINEAR STEPPER MOTOR
MODEL	VSM08284
MAX. STARTING FREQUENCY	800 PPS min. (AT 5.0 V DC)
MAX. SLEWING FREQUENCY	2000 PPS min. (AT 5.0 V DC)
PULL IN TORQUE	2.8gf-cm min. (AT 500 PPS , 5.0 V DC)
PULL OUT TORQUE	3.8gf-cm min. (AT 500 PPS , 5.0 V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	100 V AC FOR ONE SECOND
INSULATION RESISTANCE	1.0 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE	-30 ~+70 ℃
OEM & ODM SERVICE	AVAILABLE









Basic Drawing:



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
