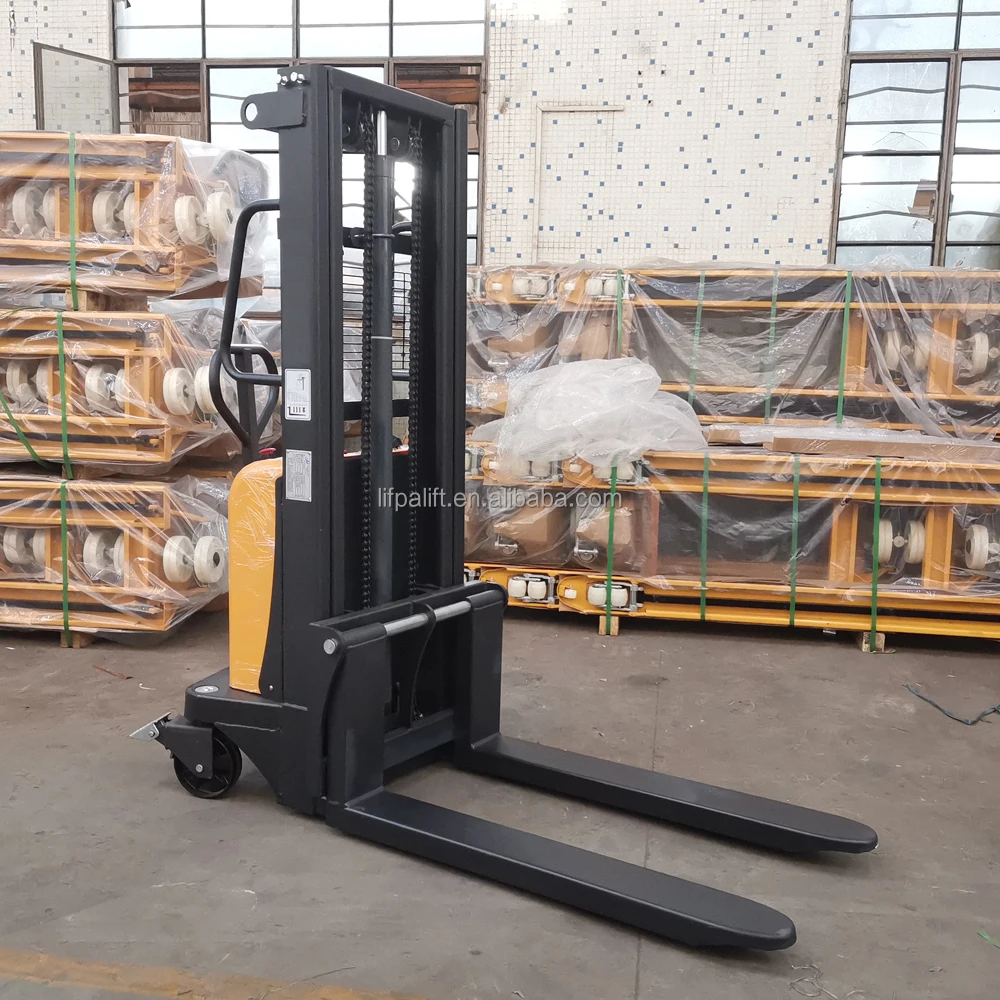

2000kg Hydraulic Battery Semi Electric Pallet Stacker

Product Overview

Description

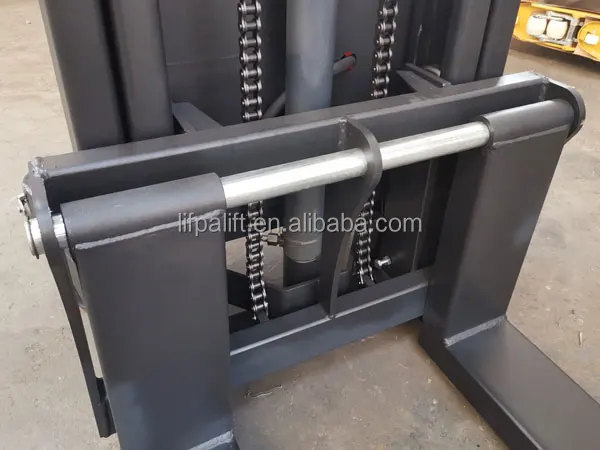

Real Pictures













Product Highlights

• Raise and lower using batter power (included)

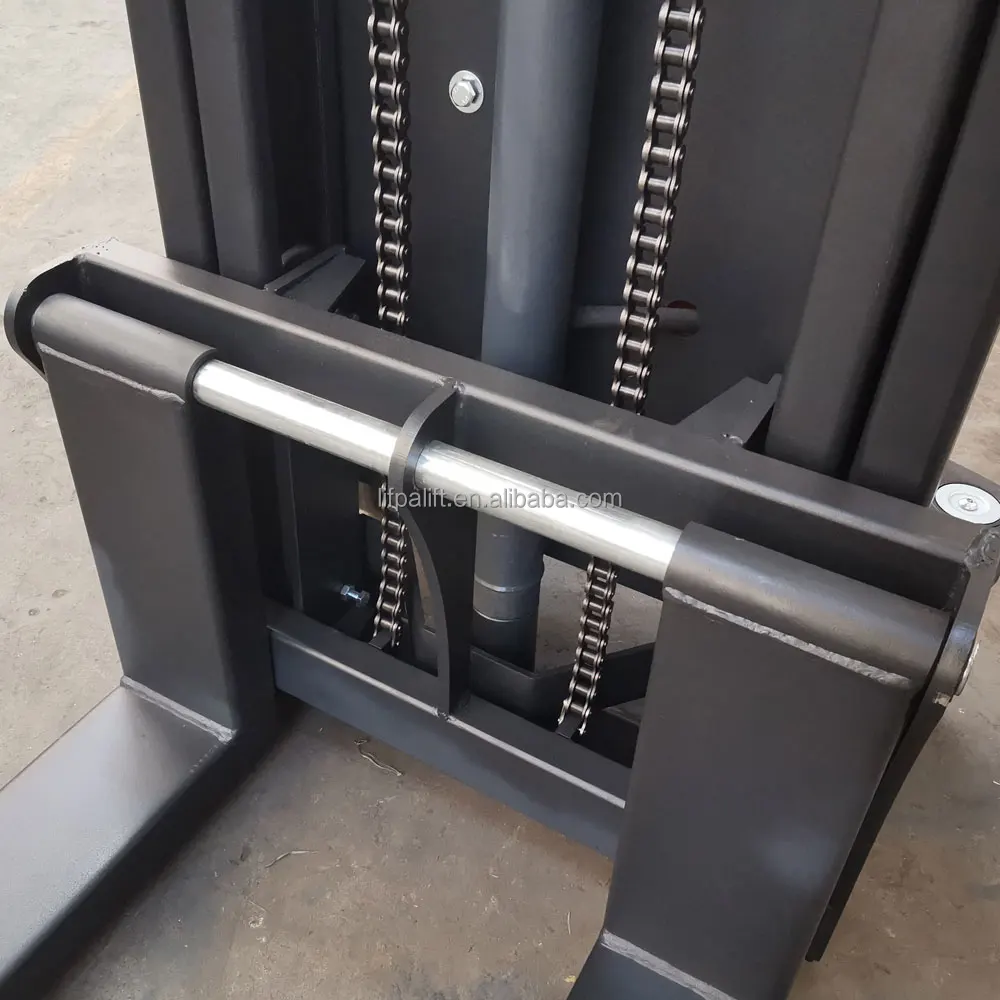

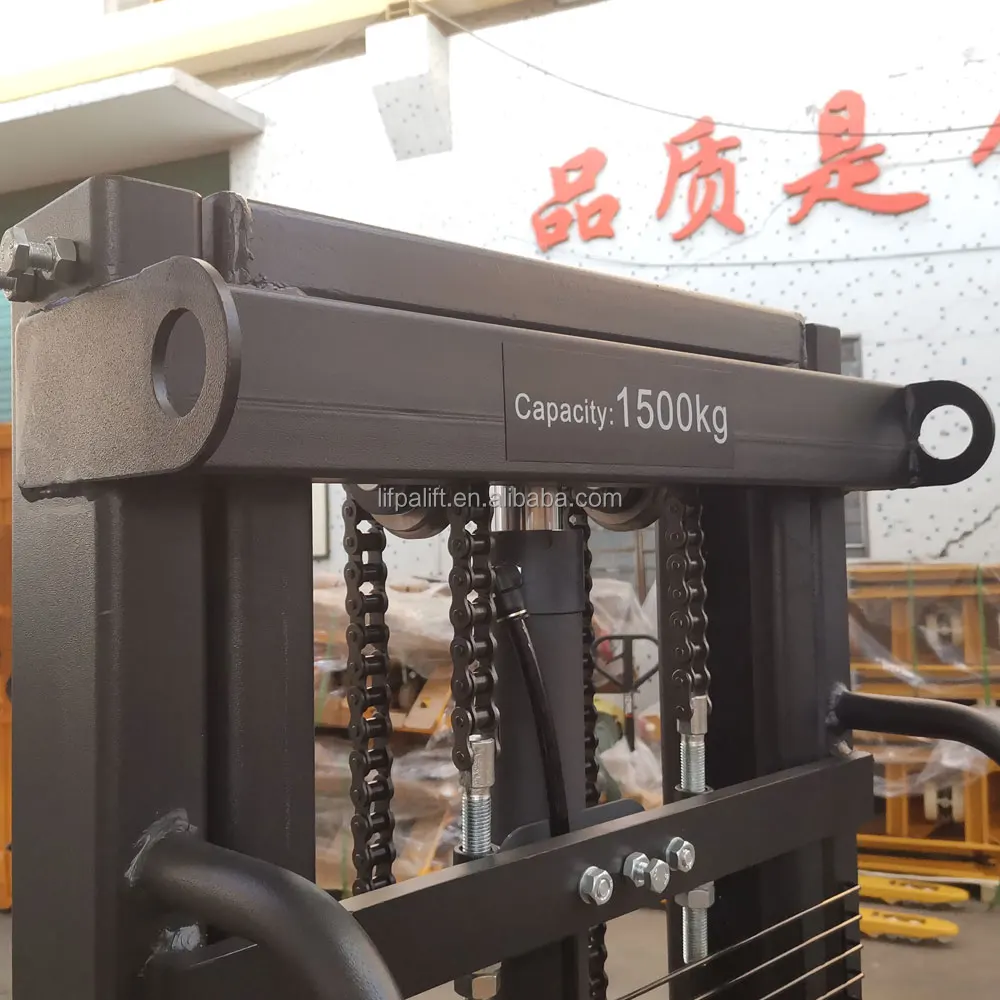

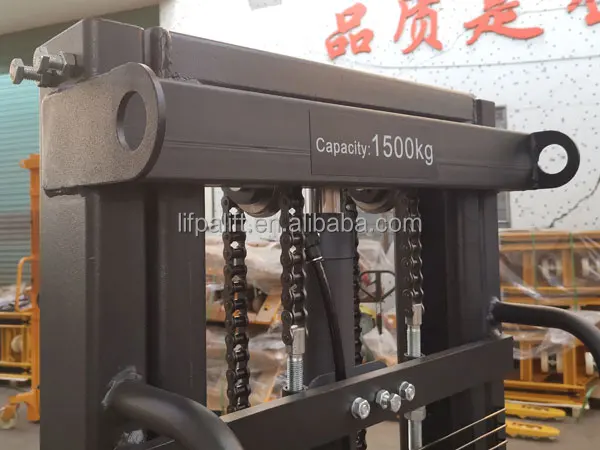

• Heavy duty C section mast frame for extra strength
• Ergonomic safety control handle for one-hand operation

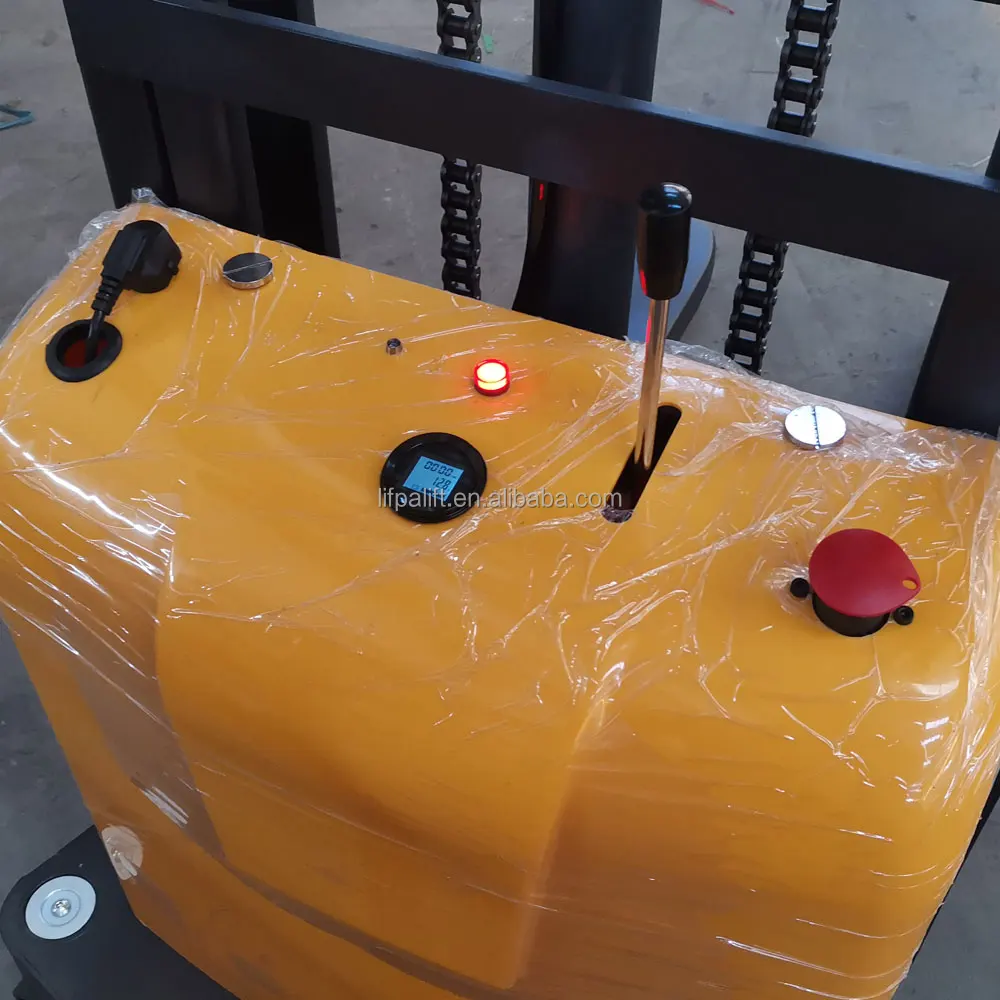

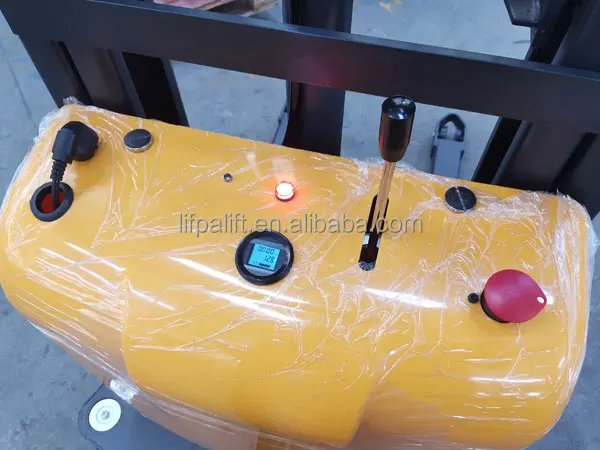

• Built-in digital battery level gauge
• Key-operated On/Off control for safety and security
• Manual handle for steering
• Straddle-leg model for double-face pallets available

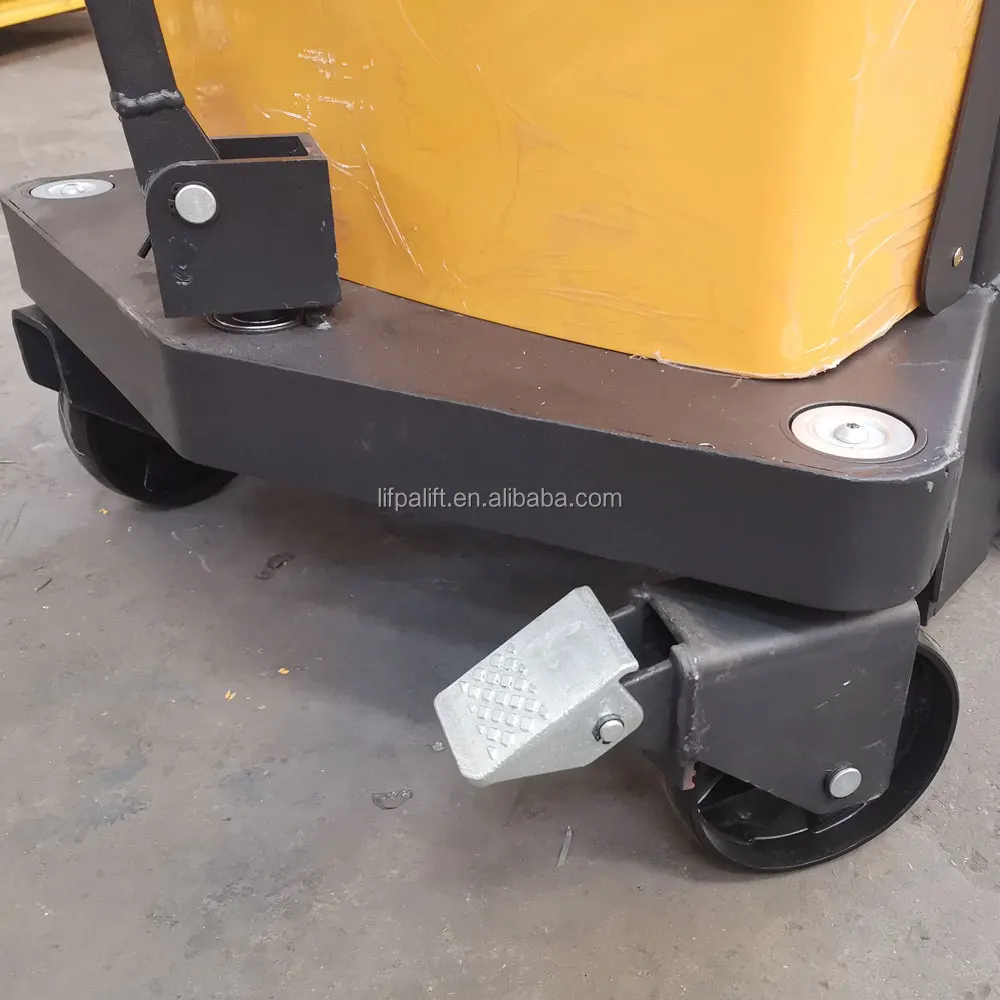

• Parking brake for safe raising and lowering

• Adjustable forks can handle most standard pallets





Main Parameters

Model		EA-2016-A	EA-2020-A
power		semi-electric	semi-electric
operator type		pedestrian	pedestrian
load capacity	kg	2000	2000
load center	mm	500	500
lift height	mm	1600	2000
lowered height	mm	90	90
fork size - th/w/l	mm	50 / 150 / 1000	50 / 150 / 1000
overall fork width	mm	320 - 780	320 - 780
mast collapsed height	mm	2080	1580
mast extended height	mm	2080	2560
overall length	mm	1660	1660
overall width	mm	860	920
battery	V/Ah	12 / 120	12 / 120
lift motor	kW	1.60	1.60
battery charger		AC 110 - 230V	AC 110 -230V
weight	kg	410	470

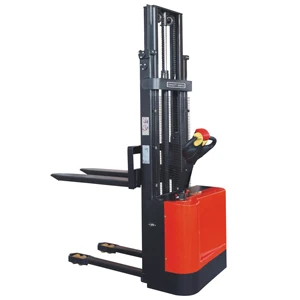

	Economy pedestrian electric pallet  stacker, light duty model with load  of 1000kg.  Model: EW-B

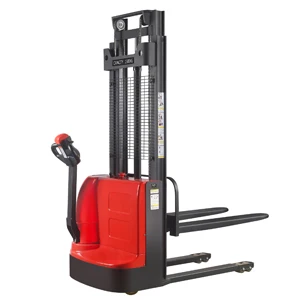

	Standard pedestrian electric  pallet stacker, Model: EW-A

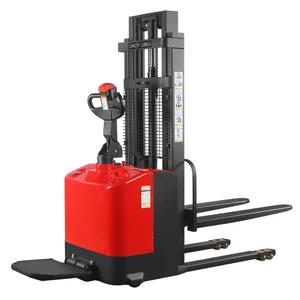

	Economy Rider type Stacker  Model: ES-B

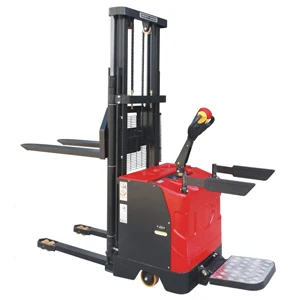

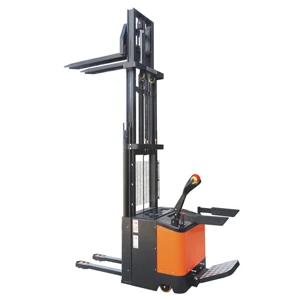

	Standard Rider Electric Stacker  Model: ES-A
