GPS and Beidou positioning terminals for vessels

Product Overview

Description

GPS and Beidou positioning terminals for vessels





BD positioning terminal of VRI3 vessel is an integrated user terminal which is developed to adapt to the position monitoring and navigation of marine vessels. Integrated Beidou positioning, communication, alarm and other functions, Integrating the design of internal core unit of mainframe, Using special materials to packaging the equipment , Applying to bad working time, like high salt mist, high damp and humid environment and so on. Meanwhile, The power consumption of standby can be further reduced,in order to meet the needs of long time work.



The ship-borne supervision terminal receives global navigation satellite system (GNSS) signals and forms the ship position information, and periodically sends such information to the system supervision platform by means of wireless communication; through data receiving, processing and integration, the system supervision system can form the information about ship position, trajectory, port arrival and departure visa records, send an alarm of exception, and display it on the system supervision platform and manager’s cell phone, so as to provide the basis of law enforcement for scientific and efficient management.



Positioning and Communication unit
BD RDSS Transmitter	1615.68MHz,10W Nominal frequency 1615.68MHz;typical power 10W
BD RDSS Receiver	Nominal frequency 2491.75MHz, typical sensitivity -127.6dbm
GPRS communication	Nominal frequency 850/900/1800/1900mhz, maximum power 2w@850/900mhz,1w@1800/1900mhz
ISM communication	Frequency 433.05~434.79mhz, typical power 0.1W
GPS frequency	1575.42MHz
Battery Type	Polymer lithium Battery (3.7v/16ah), Photovoltaic cell 2.5W
Waterproof grade	10m water depth 5 min
Minimum working time	15 days (full power, No light
Operating temperature	-25℃~+70℃

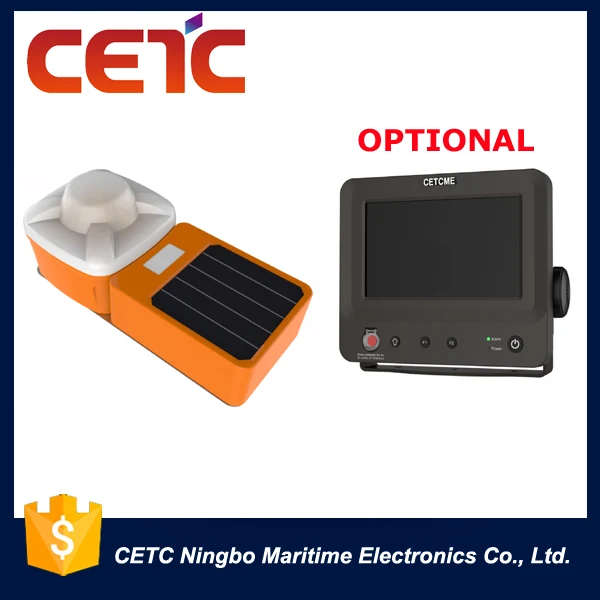

Display Control Unit(option)
Screen	7 inch LCD, Resistive touch screen
ISM communication	Frequency 433.05mhz~434.79mhz, typical power 0.1W
Power supply	10VDC~36VDC,≤6W
Communication interface:	WIFI,RS232
Waterpro of  Grade	IP54
Operating temperature	-10℃~+55℃
