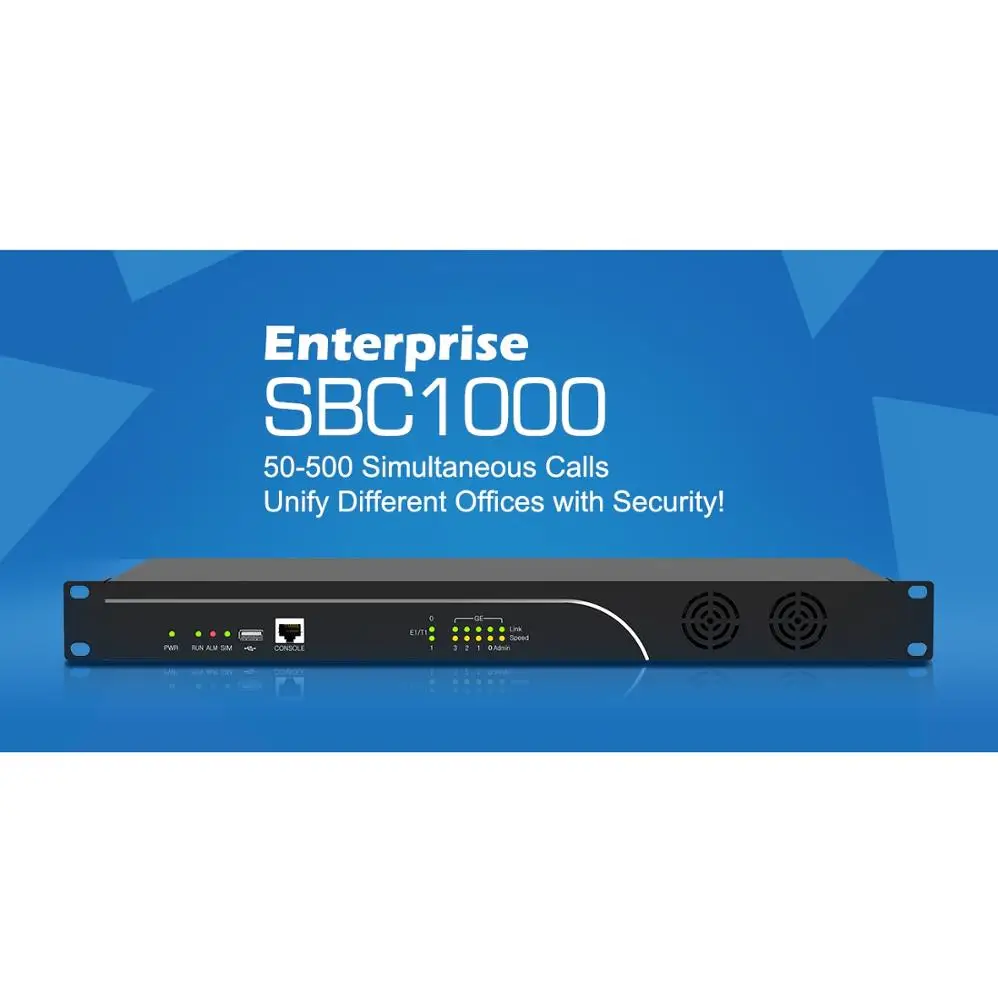

VoIP Security Service Provider Session Border Controller SBC1000

 Dinstar SBC1000 provides rich SIP-based services such as safe network access, robust security,
system interworking, flexible session routing & policy management, QoS, media transcoding and
media processing for small-and-medium telecommunication operators.

It supports 500 concurrent SIP sessions and transcodes up to 200 concurrent calls, and allows encrypted sessions
via TLS and SRTP. The session border controller supports transcoding of G.729, G.723, G.711, G.726, iLBC, AMR and OPUS.

Key Features

• Supports up to 500 SIP sessions and 200 transcoding sessions
• SIP trunks & flexible routing rules for accessing IMS
• Embedded VoIP firewall, prevention of DoS and DDos attacks
• Bandwidth limitation and dynamic white list & black list
• QoS, static route, NAT traversal
• Import & export of remote upgrade and configuration data
• Encrypted sessions
• User-friendly web interface, multiple management ways

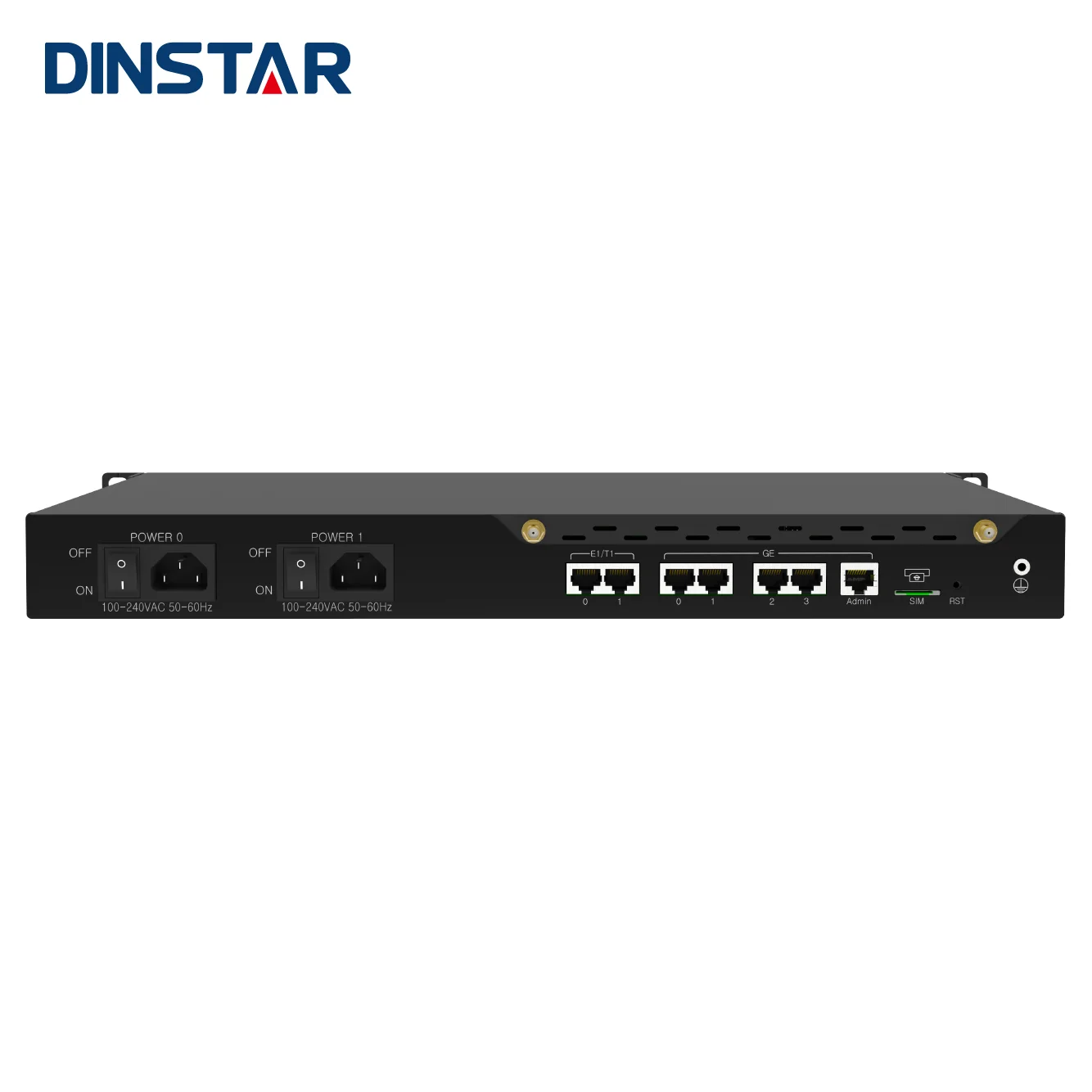

Physical Interfaces

• Ethernet Ports:
4* 10/100/1000M Base-T Ethernet ports
1* 10/100/100M Base-T (Admin)
• E1/T1 Ports: (Optional,TBD)
2* E1/T1, RJ48C
• 1* USB 2.0
• Serial Console
1* RS232, 115200bps, RJ45

Capabilities

• Concurrent Calls
Supports up to 500 SIP sessions
• Transcoding
Supports up to 200 transcoding calls
• CPS for Call
25 calls per second at maximum
• Registrations
Maximum SIP registrations: 5000
• CPS for Registration
25 Registration per second
• SIP Trunks
Unlimited SIP Trunks

Environmental

• Power Supply: 1+1,100-240VAC, 50-60 Hz
• Power Consumption: 15W
• Operating Temperature.  0 ℃ ~ 45 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity: 10%-90% Non-Condensing
• Dimensions (W/D/H): 437*300*44mm
• Unit Weight: 4.5 kg
