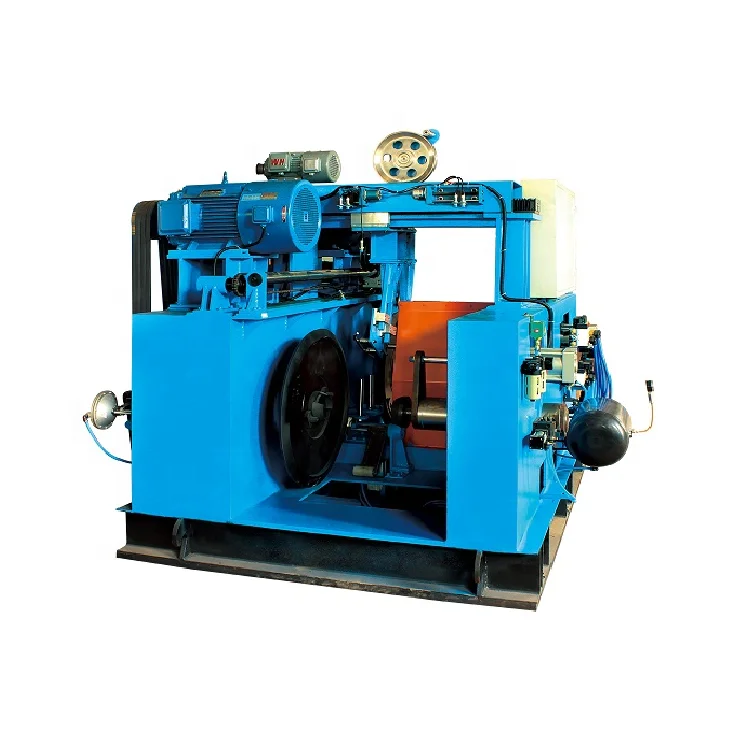

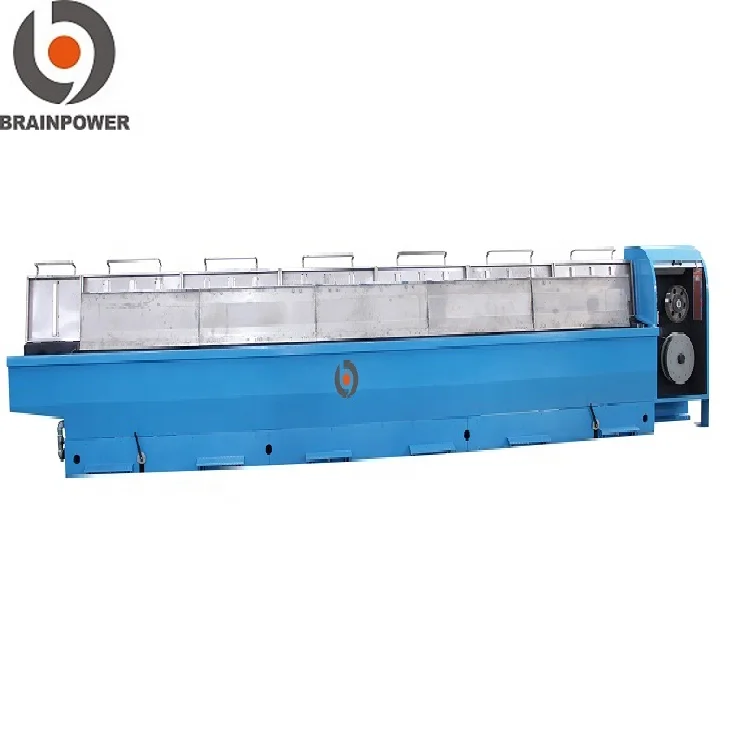

BRN-LHD450 Copper Rod Breakdown Machine with Annealer
Aplication
Copper rod breakdown machine with annealer is used for drawing and annealing copper rod from 8.0mm to 1.5-4.0mm.Outlet wire can be collected by dual take up device or coiler.
Feature
1)Ironed cast
2)Rapid die change system
3)Capstan Diamter: 450mm
4)Max.Dies Quantity: 11
5) Speed Range: 20-25m/s
Main Specification
Machine Type
LHT450/11
Max.Die No
11
Inlet wire dia
Φ8mm
Outlet wire dia
Φ1.5-Φ3.5mm
Max.Speed
22m/s
Capstan dia
450mm
Main motor
280kw (DC)
Fix speed capstan motor
75kw(DC)
Take up motor
30/18.5kw
Annealing part (optional)
Horizontal type
Max.annealing voltage
60V(DC)
Max.annealing current
6000A(DC)

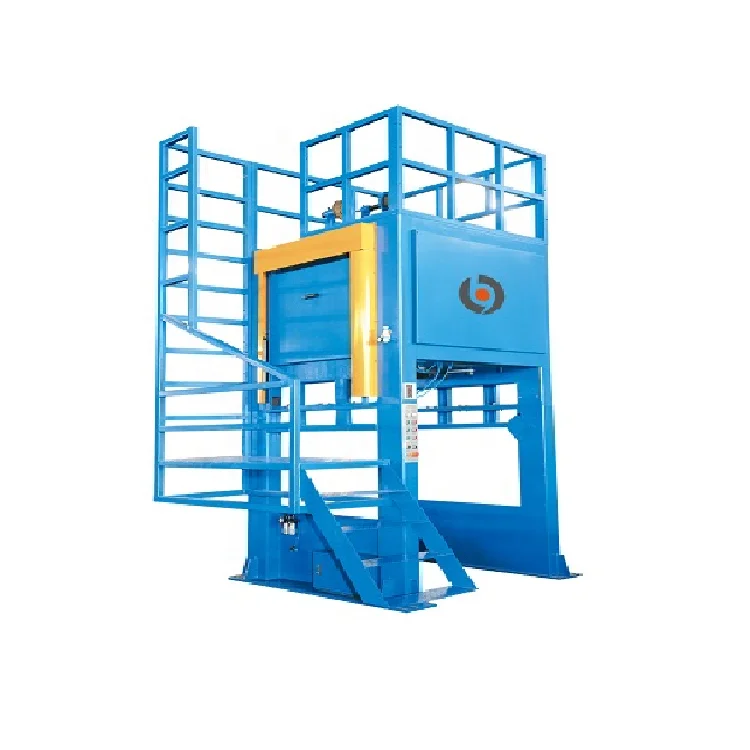

Take-up type (optional)
1.Double bobbin take-up
2.Single bobbin take-up
3.Coiler

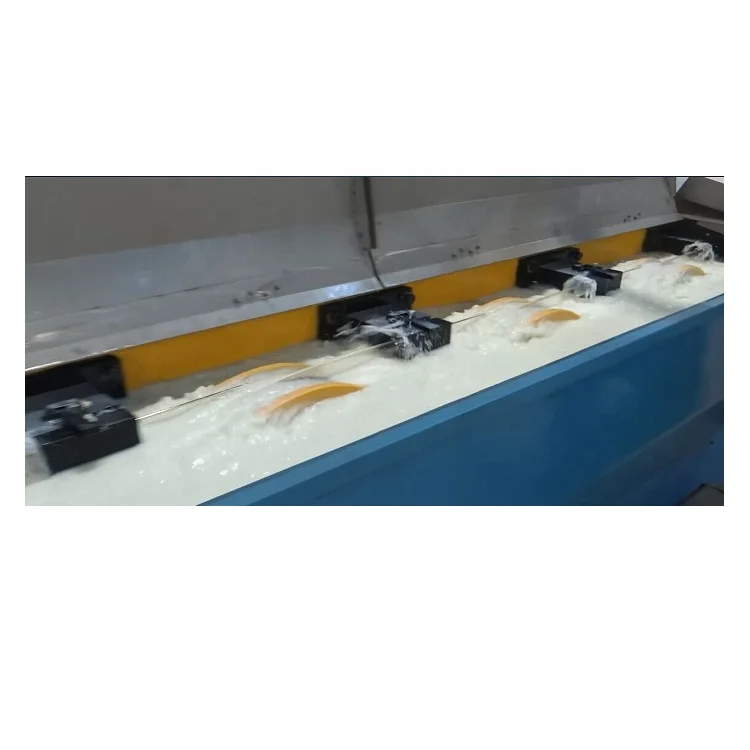

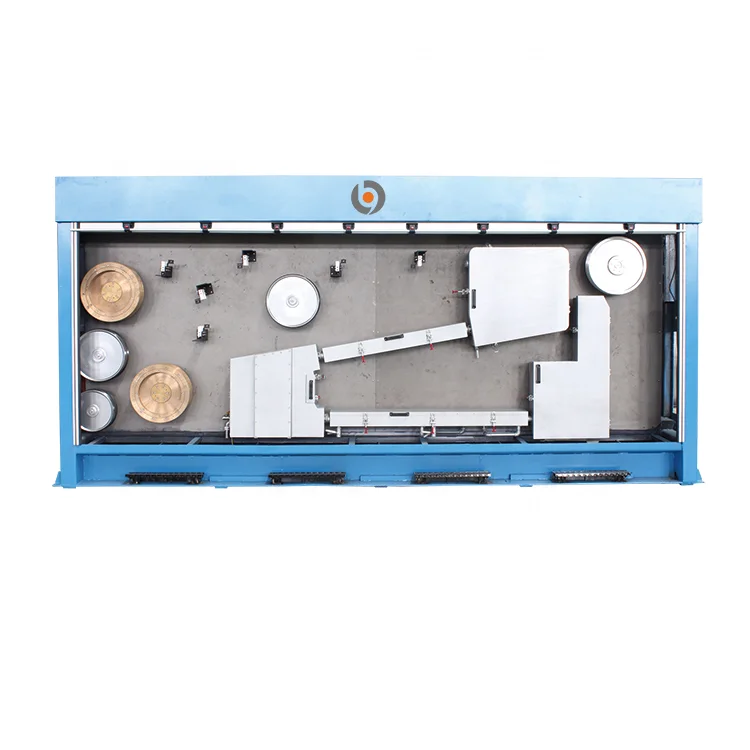

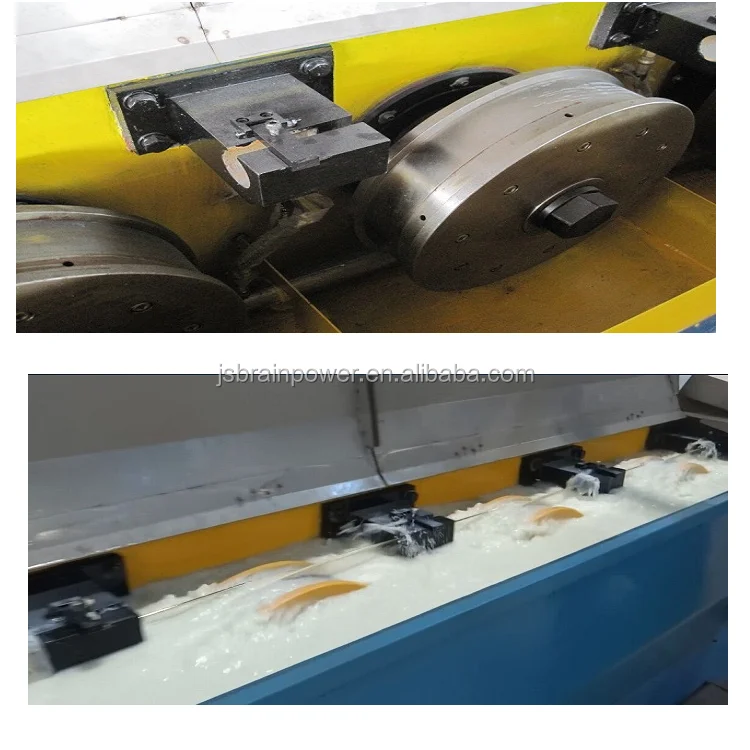

Photos show
Advantages
1)Iron cast gear box body ensure long life with low noise
2)Horizontal structure, operate easily.
3 )Fast die change system keep high efficiency when produce different diameter.
And dies quantity decrease a lot at the same time.
4)The capstan is coated with tungsten carbide power can support long life
5)High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
6)PLC and touch screen controlled type, parameters can be set and display easily.
Finished Products
Trade Shows
FAQ
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
