Rough cut white brown tea coffee sugar press machinery cube sugar making machine line lump sugar making machines with good price

Rough cut white brown tea coffee sugar press machinery cube sugar making machine line lump sugar making machines with good price

INTRODUCTION

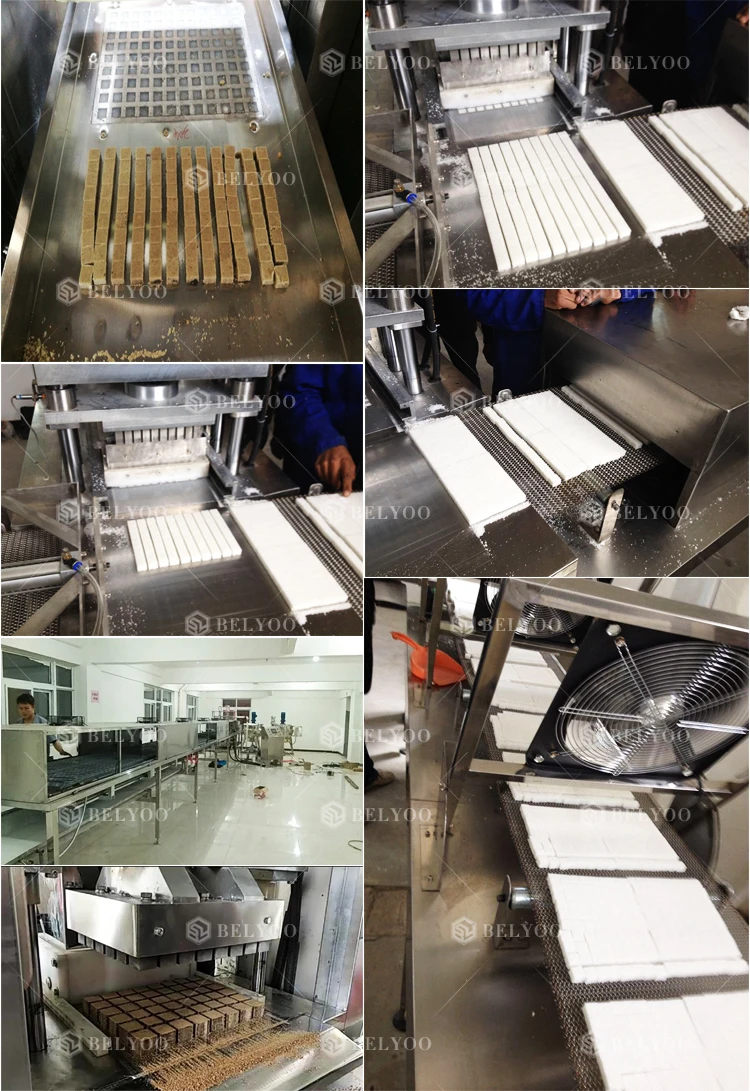

1.The Sugar Cube Production Line is a kind of cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting, and is mainly applied in the briquetting of sugar with cube shapes.
2.The most common size are 16*16*13mm,16*16*15mm,18*18*12mm.Can be customized.
3.The Sugar Cube Production Line is applied in the briquetting of sugar particles with less than 19% water and 100% sugar.

REMARK
The cube sugar can also be customized according to customer requirements of different shapes.Such as rectangular, square, plum-shaped, heart-shaped and columnar. It only need to change the mold can be.

CHARACTERISTICS
The cube sugar are pure white and shiny, candy angular complete proper firm, difficult to break, but dissolve rapidly in water, the solution was clear mission and transparent. Its physical and chemical composition and substantially the same as refined sugar, a density of 0.95 to 1.04, a porosity of 0.40 to 0.35.

TECHNICAL PARAMETERS

Full Automatic Cube Sugar Production Line Capacity:100/200/250/500/1000Kg/h
White Sugar Crushing Machine
Capacity:150--200kg
Power:4Kw  380V 50Hz
Crushing fineness:50-150mesh
Weight:250kg
Dimension:550*600*1250mm

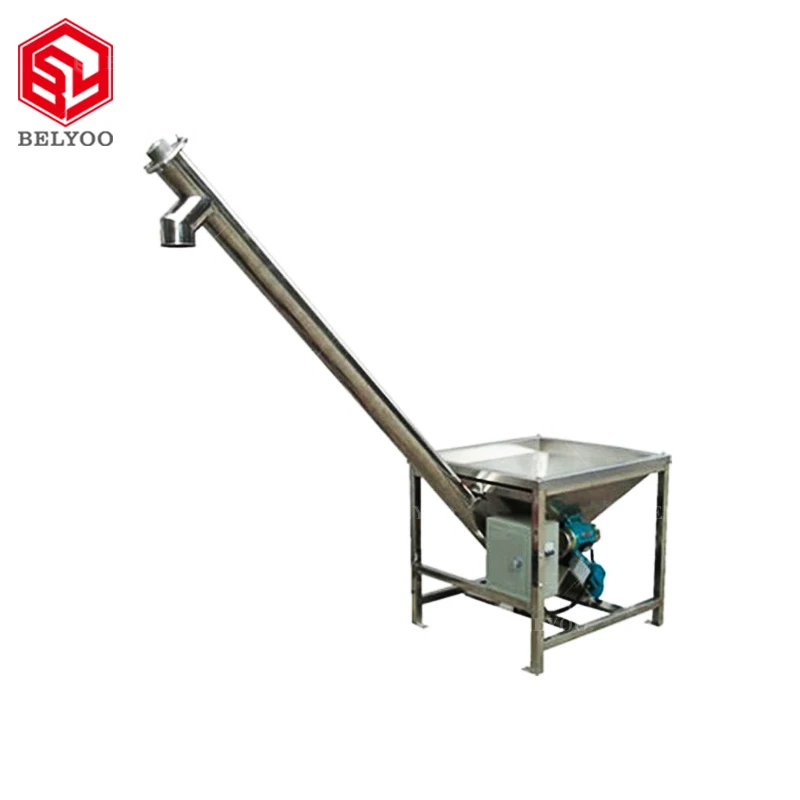

	Sprial Mixing Lifting Machine
	Functions:mixing,automatic lifting and feeding
	Total Power:3.85Kw
	Drop Height:1700mm
	Weight:240Kg
	Dimension:550*500*1650mm
	Material:SS304 for touching food parts

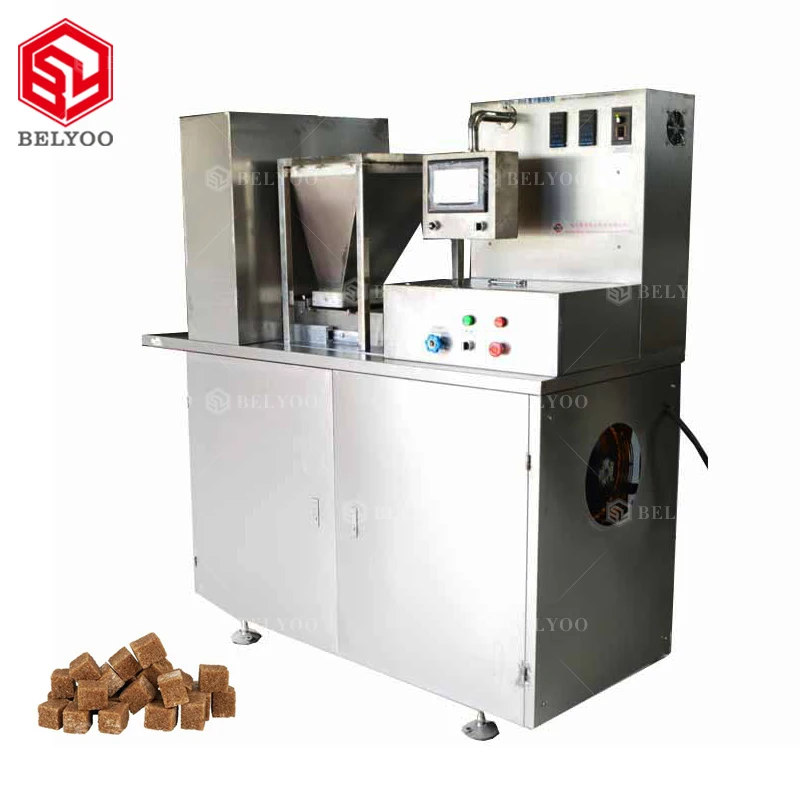

Cube Sugar Molding Machine
Capacity:150-200Kg/h
Candy size:25*25mm
Power:0.3Kw 380V 50Hz 3phase
Air pressure:0.3 Mpa-0.8 Mpa
Dimension:1200*600*1400mm
Weight:350Kg
Automatic PLC control

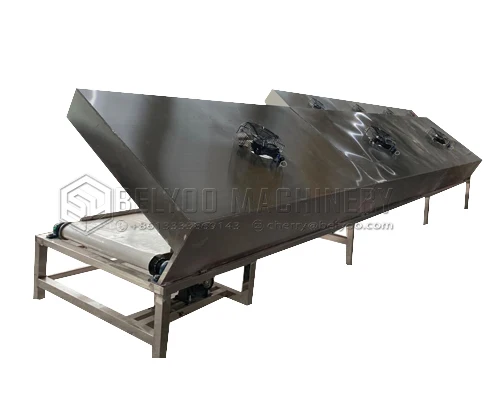

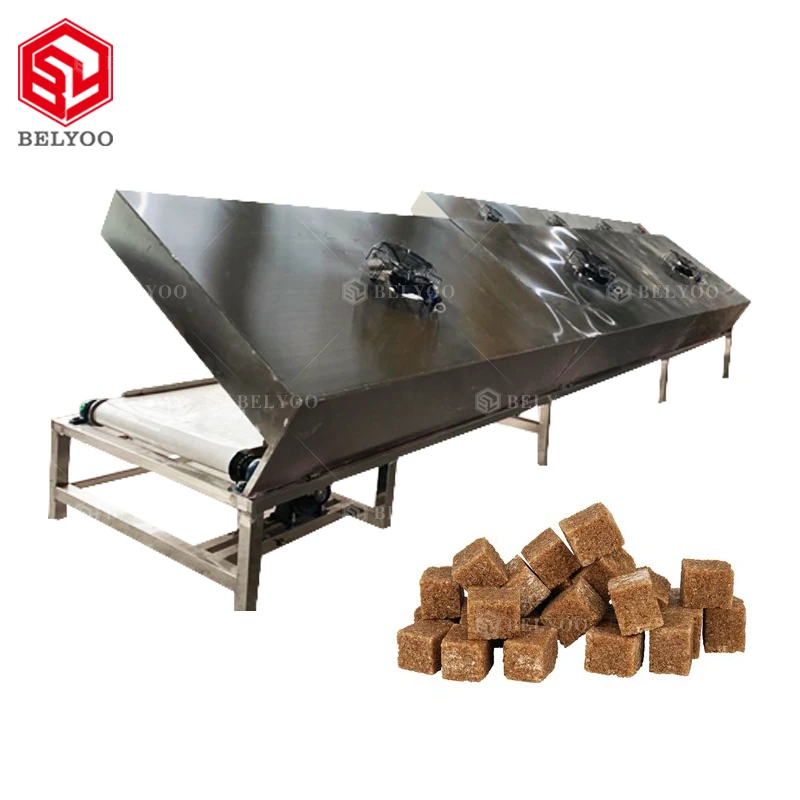

	Infrared Drying Oven
	Power:AC380V50HZ 2KW *6
	Conveying speed:0-10m/min
	Quantity:6sets
	Weight:90Kg*6
	Dimension:1900*700*1150mm
Cube Sugar Packing Machine
Functions:infinite speed variation
Power:2.2Kw 380V 50Hz 3phase
Max pressure:36(43)Kpa
The maximum degree of vacuum:26(31)KPA
Chuck: 2 handles
Dimensions:650*600*950mm
Weight:75Kg
