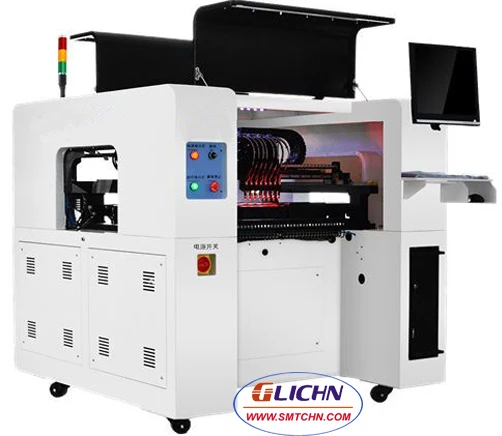

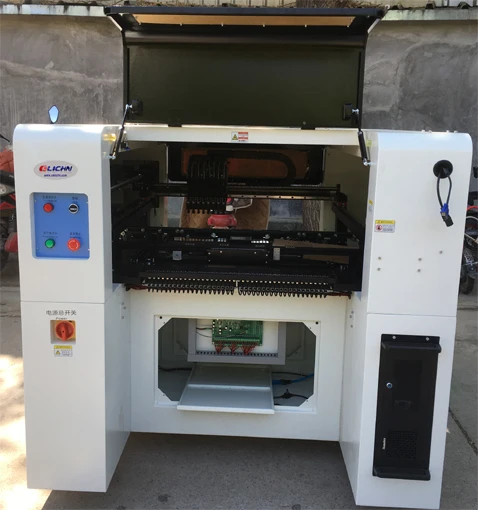

Pick and place machine GP800

Computer control system

The SMT placement machine is generally equipped with computer monitor and mouse. It supports XP and Windows 7. It enables visual programming and PCB file import because of the humanized operating system.





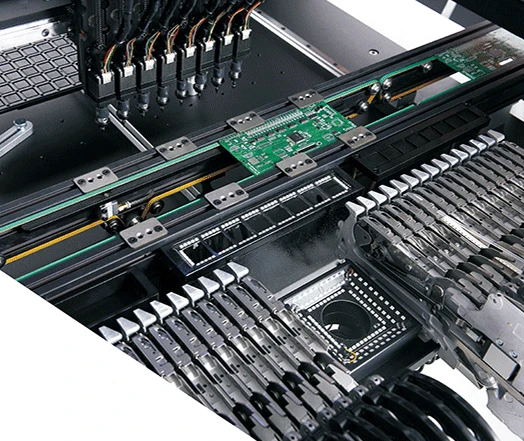

Automatic PCB loader
The SMT placement machine can directly put the printing finished PCB board onto the track to realize automatic board loading, aiming and placing and mounting. It supports multi-feeders: maximum 64 feeders. The size of standard IC tray, tube feeder, stick feeder can be adjustable.





Synchronous identification by eight sets of cameras

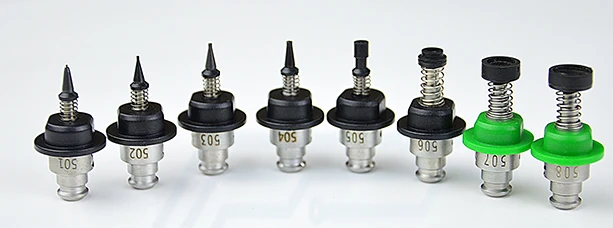

The SMT placement machine is equipped with 10 cameras: one MARK, one high precision camera and 8 high-speed cameras. It can realize 8-head synchronous identification to ensure the speed and precision of mounting. The standard configuration is 16 JUKI high precision suction nozzles.





Servo system
The SMT placement machine is equipped with servo system imported from Panasonic, Japan with high precision and stability to ensure 24-hour stable mounting.





Chain
It adopts high pressure resistant and wear-proof drag chain which is the same type as the one of imported machines. The drag chain can bear thousands of times of proof pressure.





Track
It adopts high precision track from TBI Taiwan which has low noise and high precision to ensure the accuracy rate of BGA chips.





Conveyor
This SMT placement machine can be automatically connected to conveyor which can transport the PCB board to the SMT reflow soldering machine without manual assistant, thus saving labor cost.


Technical Parameter
















































































































































Specification



Number of feeders



64  or  80



XYZ Drive Guide Rail



TBI High-precision heavy-duty straight-line guide rail



Number of cameras



10



Number of heads



8



Average power



700W



Automatic board



Three-stage track



Guide



Screw guide



Maximum mounting speed



15000 Pcs/h



Average mounting speed of actual mounting resistance



12000 Pcs/h



Maximum travel scope in Z axis



20mm



Maximum circuit board area



500×450mm



Positioning precision



0.01mm



The buffer range of suction nozzle



4.5mm



Weight



750KG



Dimension



1420*1370*1350mm



Power supply



110V/220V, 50/60Hz



Compressed air



0.5-0.6Mpa



Drive motor



Panasonic servo motor



Motion drive system



Panasonic high-speed DSP drive



Recognition mode



Simultaneous recognition of eight heads



Vacuum source of suction nozzle



High-speed on-off vacuum generator with vacuum breaker



Operating system



Full-automatic chip mounter operating system  operating system.



Independently developed by us based on Windows operating system



Supports windows xp, win7



Element angle



0-360°synchronous rotation during movement



X/Y operation mode



Intelligent curve of the linear acceleration and deceleration linkage



MARK point positioning



Full-automatic (the MARK point can be adjust at will)



Intelligent alarm



Automatic correction, automatic filling, feeding shortage alarm



Plate entering mode



Automatic connection from left to right in single sections



Automatic PCB transfer positioning/plunger positioning, manual plate feeding



Visual display



17-inch industrial control display, 4:3, resolution: 1280 x1024



Number of recognition cameras



One Mark recognition camera, four quick-recognition cameras



One precise-recognition camera.



Adaptive mounting scope



Adaptive to 0201 0402, 0603, 0805, 1206, diode, audion, SOT, QFP



Within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA
