40 870MHz GaAs OpticalReceivers/catv amplifier
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (62117728867):
Product Overview
Description
Products Description

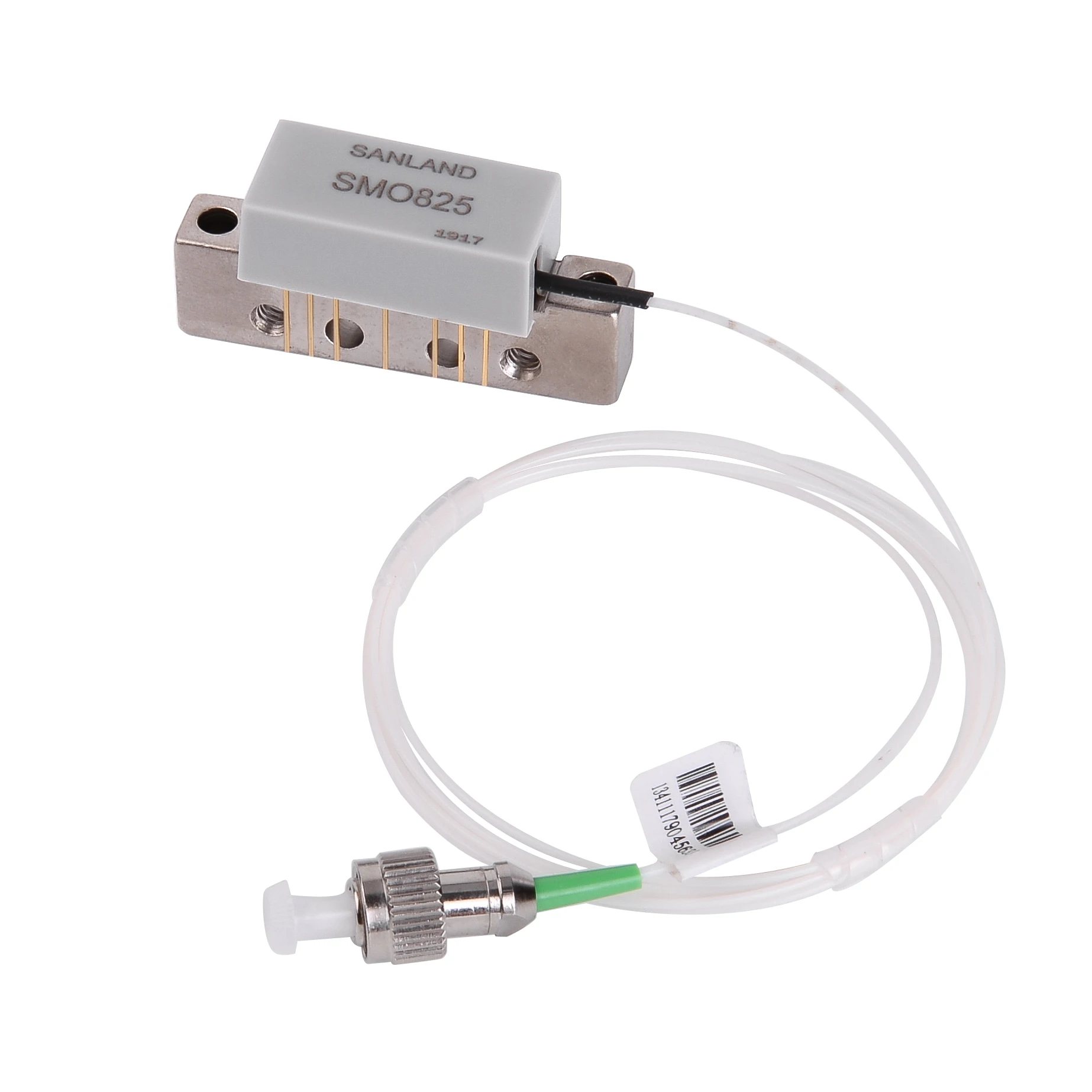

The SMO825 has an FC/APC or SC/APC connector. The amplifier supply voltage pin is connected to 24V(DC) . The modules have a mono mode optical input suitable for 1290 to 1600nm wavelengths a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75Ω.
● Excellent Linearity
● High Optical Input Power Range
● Excellent Flatness
● Optimal Reliability
● Low Noise
● Outline Standarding
● GaAs MMIC
● High reliability
● FC/APC SC/APC
Specification
PARAMETER | VALUE | CONDITIONS |
Optical Range(dBm0 | / | 60 channels flat，Optical power receiving at -5dBm, measured at 543.25MHz for CTB, 544.5MHz for CSO. |
Bandwidth（MHz） | 40-870 | |
Flatness(dB) | ±0.75 | |
Output Level(dBμV) | 88 | |
S22(dB) | -11 | |
CTB(dB) | -65 | |
CSO(dB) | -63 | |
CNR(dB) | 51 | |
Voltage(V） | 24 | |
Current(mA) | 240-290 |
Any more details, pls contact us anytime.
