X86 Low price industrial Mini pc computer Mini ITX fanless J3160 processor laptop Motherboard for desktop
- Category: >>>
- Supplier: Shenzhen Sharevdi Technology Co. Limited
Share on (62117815764):
Product Overview
Description

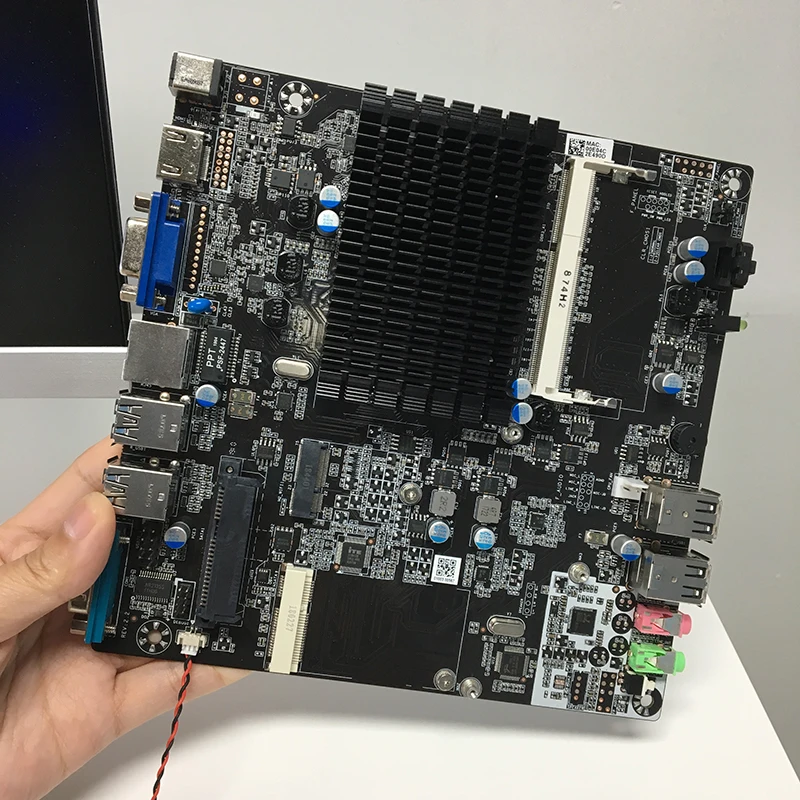

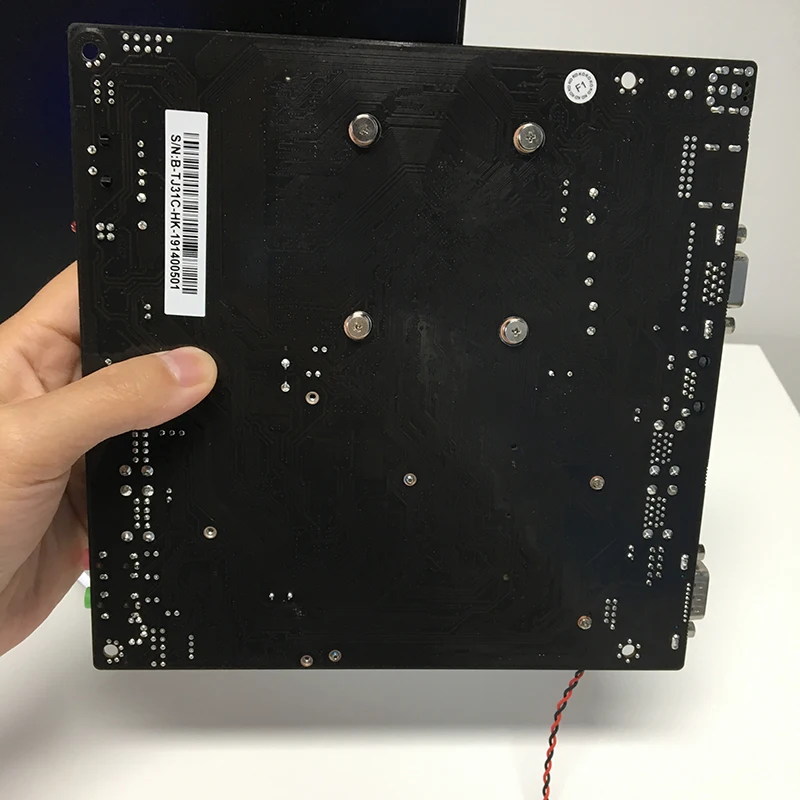

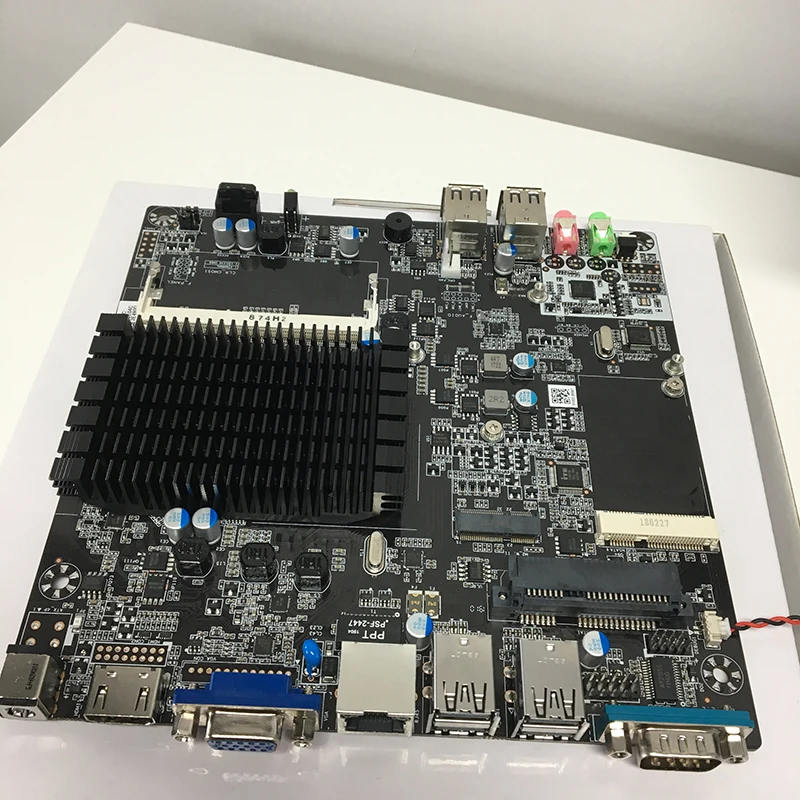

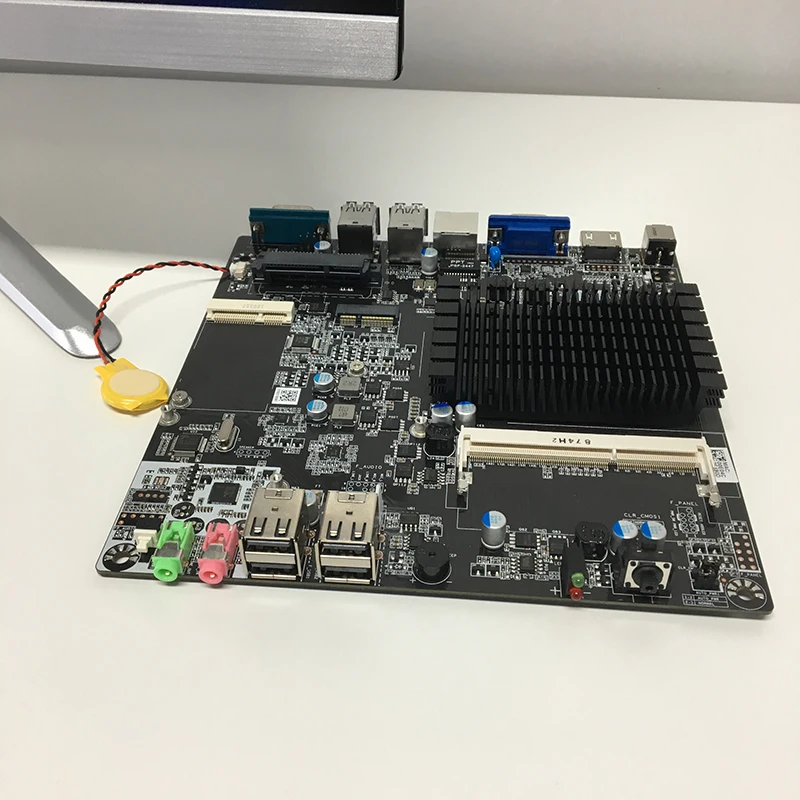

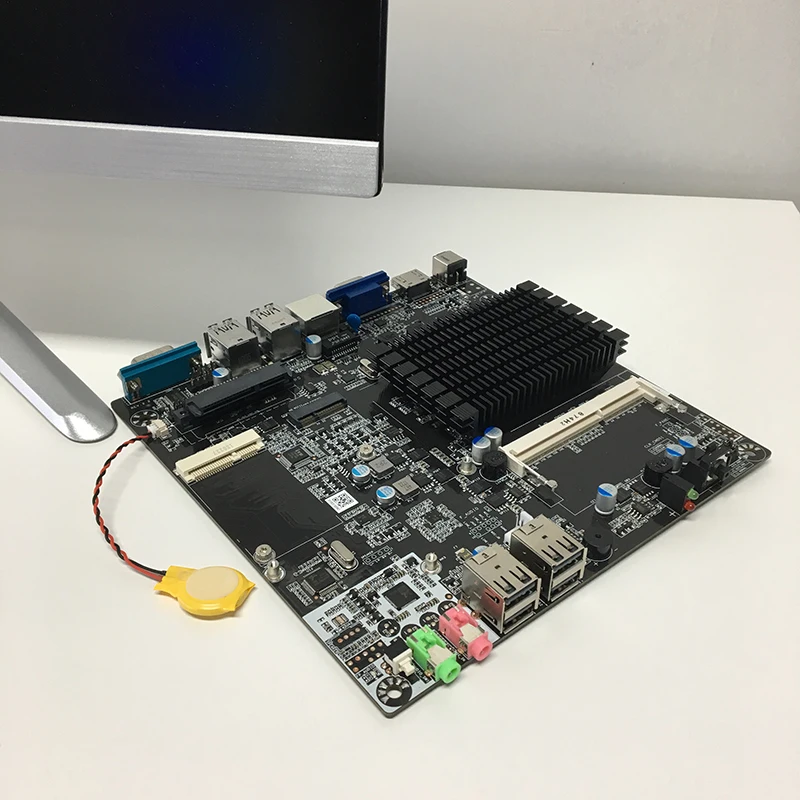

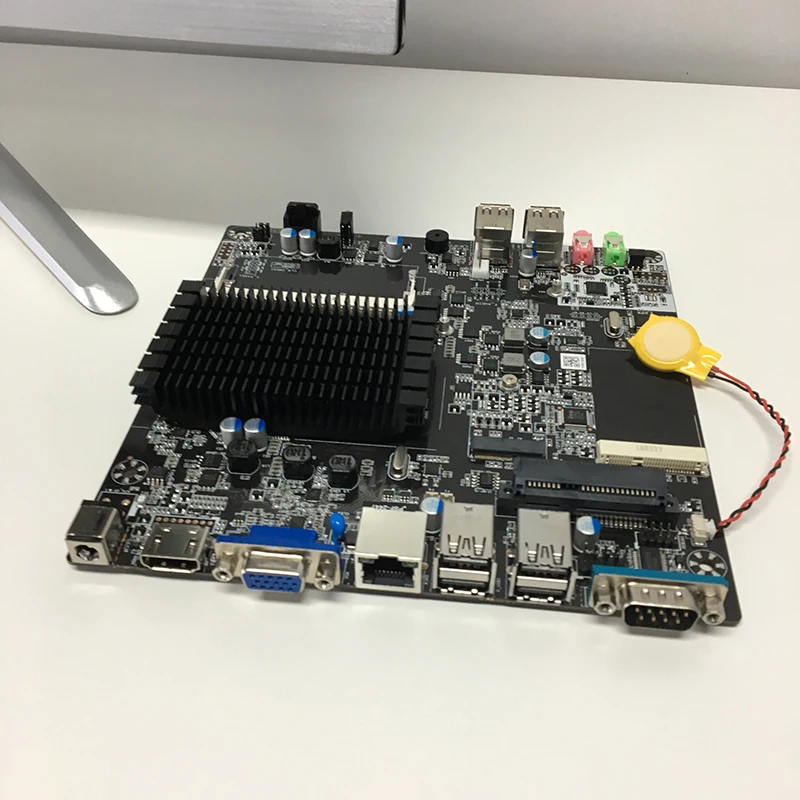

X86 Low price industrial Mini pc computer Mini ITX fanless J3160 processor laptop Motherboard for desktop
Mechanical standard | NANO ITX Industrial Motherboard |
170mm x 170mm | |
Chipset | NM70 |
Processor | Processor j3160 2M Cache, up to 2.24 GHz |
With up to 6W TDP | |
BIOS | AMI BIOS |
16MBit SPI BIOS | |
Memory | 1* RAM Slot |
Support DDR3 1333 MHz and DDR3 1600 MHz SO-DIMM | |
Support 8GB MAX | |
Graphics | HD Graphics |
Display: VGA / HD Dual Display | |
1x HD Video (port), 1x VGA (port), | |
LAN | 1 x Realtek RTL8111E 1000M |
Audio | Realtek ALC1220 HD Audio Decoding controller |
6 Channel Audio output | |
Line out + MIC IN Port | |
COM | 1x COM(RS232 port) |
USB | 4x On-board USB 2.0 |
Storage | 1x SATA 3.0 (6Gb/s) |
1x Mini PCIE port | |
Front Panel | 1x Push button ( With LED) for Power ON/OFF |
4x USB 2.0 ports | |
1x Serial port | |
1x HDD LED | |
1x Mic in port | |
Black Panel | 1x DC in connector |
1x HD port | |
4*USB 2.0 Port | |
1x VGA port | |
1x RJ45 1000M port | |
1x COM port | |
Power Supply | DC 12-5V |
Working condition | Operation Temperature-10º-50ºC |
Operation Humidity 10%-90% Relative Humidity, | |
Non-Condensing | |
Accessories | Cable for SATA HDD |

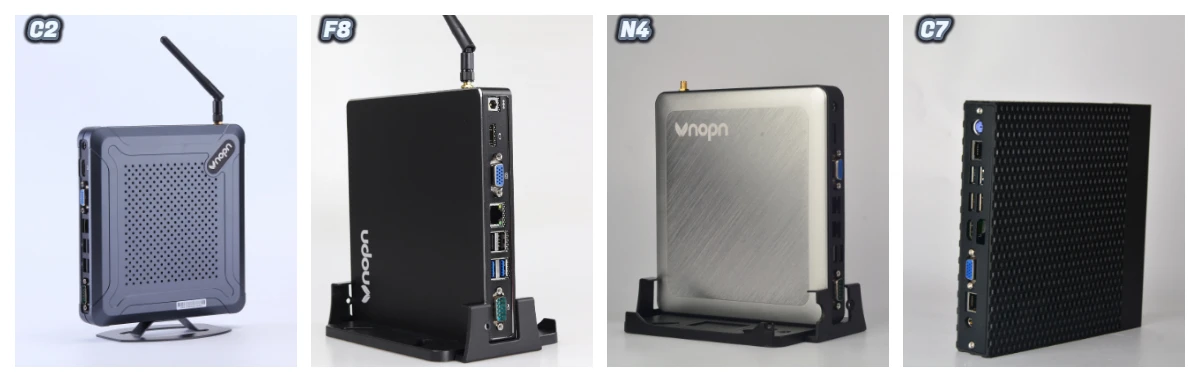

Optional case:
If you need a shell, the following shell is available for your reference
Company Profile:
SHAREVDI is a Top-ranking Enterprise which own a strong ability of hardware design and software development for more than 10 years.
That make us gain a lot experience on developing embedded PC products and manufacturing industrial pc, thin client, zero client.
OEM service can be provided for ARM kernel, Remote Desktop Protocol and X86 mini pc as well.
We own the best SMT production line with experienced employees. Strictly QC team and large warehouse allow us to offer you products timely.
FAQ
Q: What is the sharevdi's advantage?
A:1.Professional embedded motherboard manufacturer for years with great experience.
2.Own factory and independent research, you can share directly with factory price.
3.Provide OEM/ODM service.
4. CE,FCC,ISO9001/14001 RoHs etc certificated,quality guaranteed.
Q:What is the time of delivery?
A: It depends on your quantity and production schedule.
Usually,1-3 working days for sample order,
10-20 working days for mass production after receiving payment.
Q:What kind of payment do you accept?
A:T/T,West union,Paypal,Visa,E-checking etc.
Q:How is your warranty policy for goods?
A:We focus on after-services,and all our products share 1 years warranty.second year and third year, we provide free repair, but it wl be charge for parts change.
