SINCR 0.75 75KW solar pump inverter for water pump for agriculture irrigation system
- Category: >>>
- Supplier: Shenzhen Sincrea Electrical Technology Co. Ltd.
Share on (62118089314):
Product Overview
Description

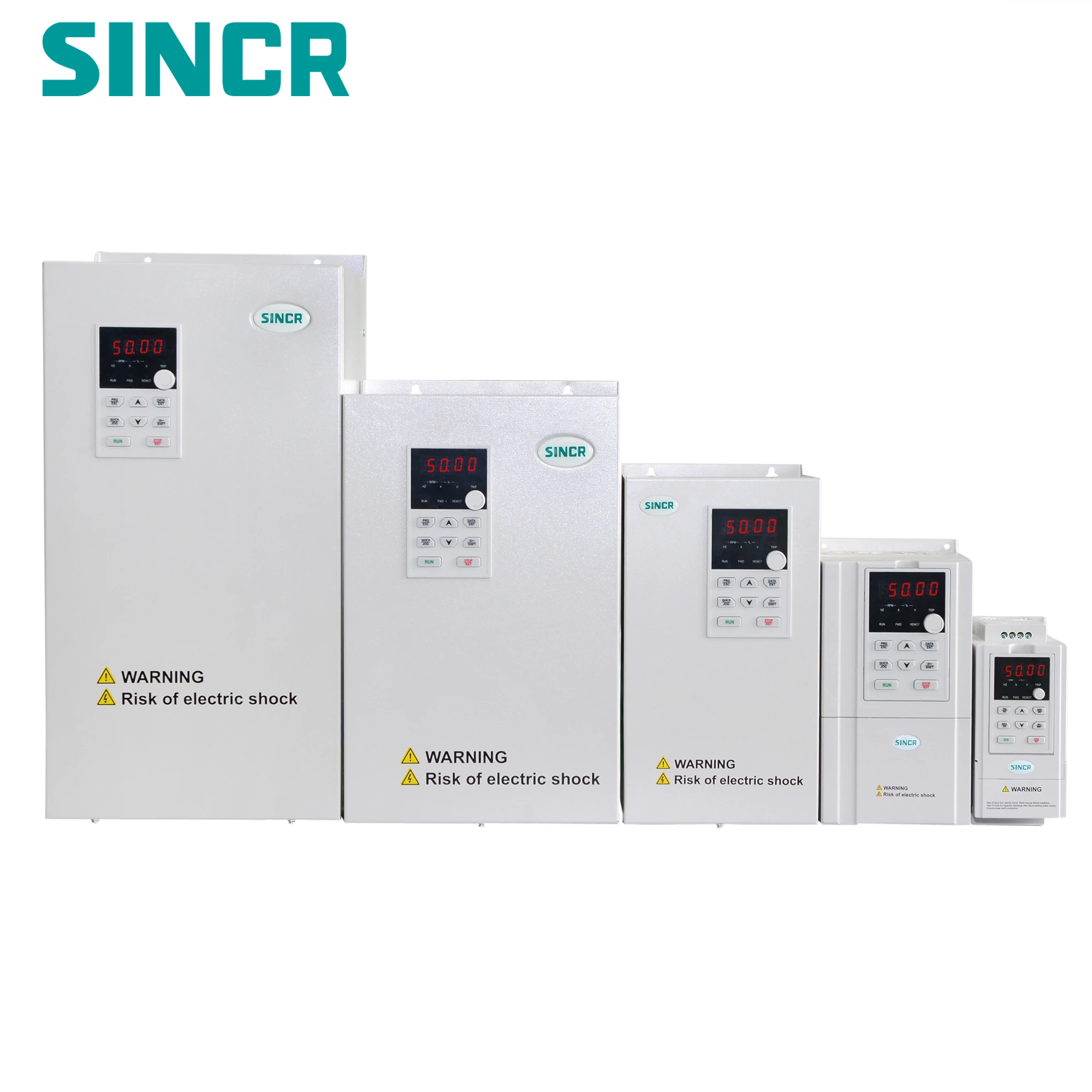

SINCR SV100 Series Mini Economic Type 1.5KW solar pump inverter
LORENTZ HITACHI WEIKONG solar pump inverter for water pump
Product Description

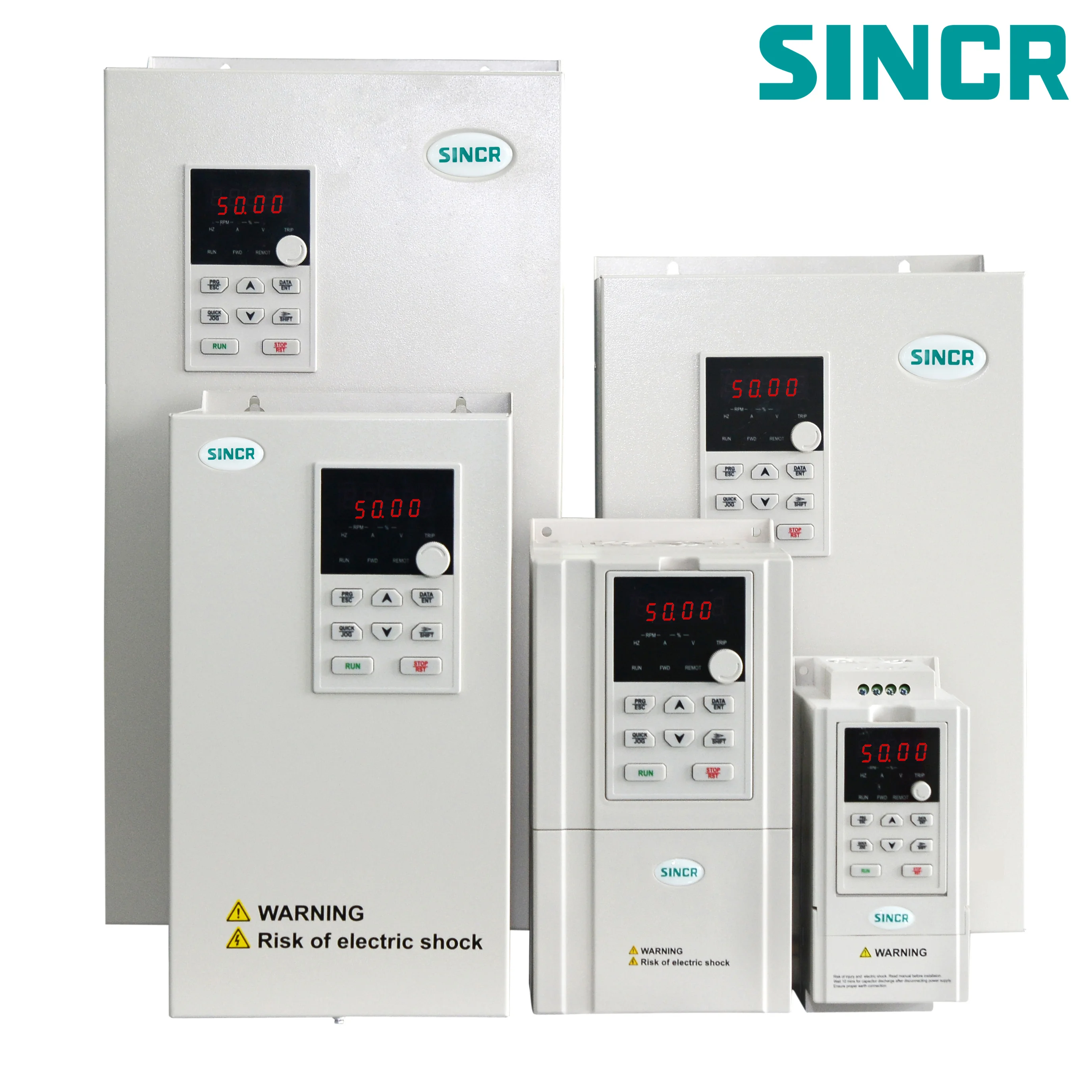

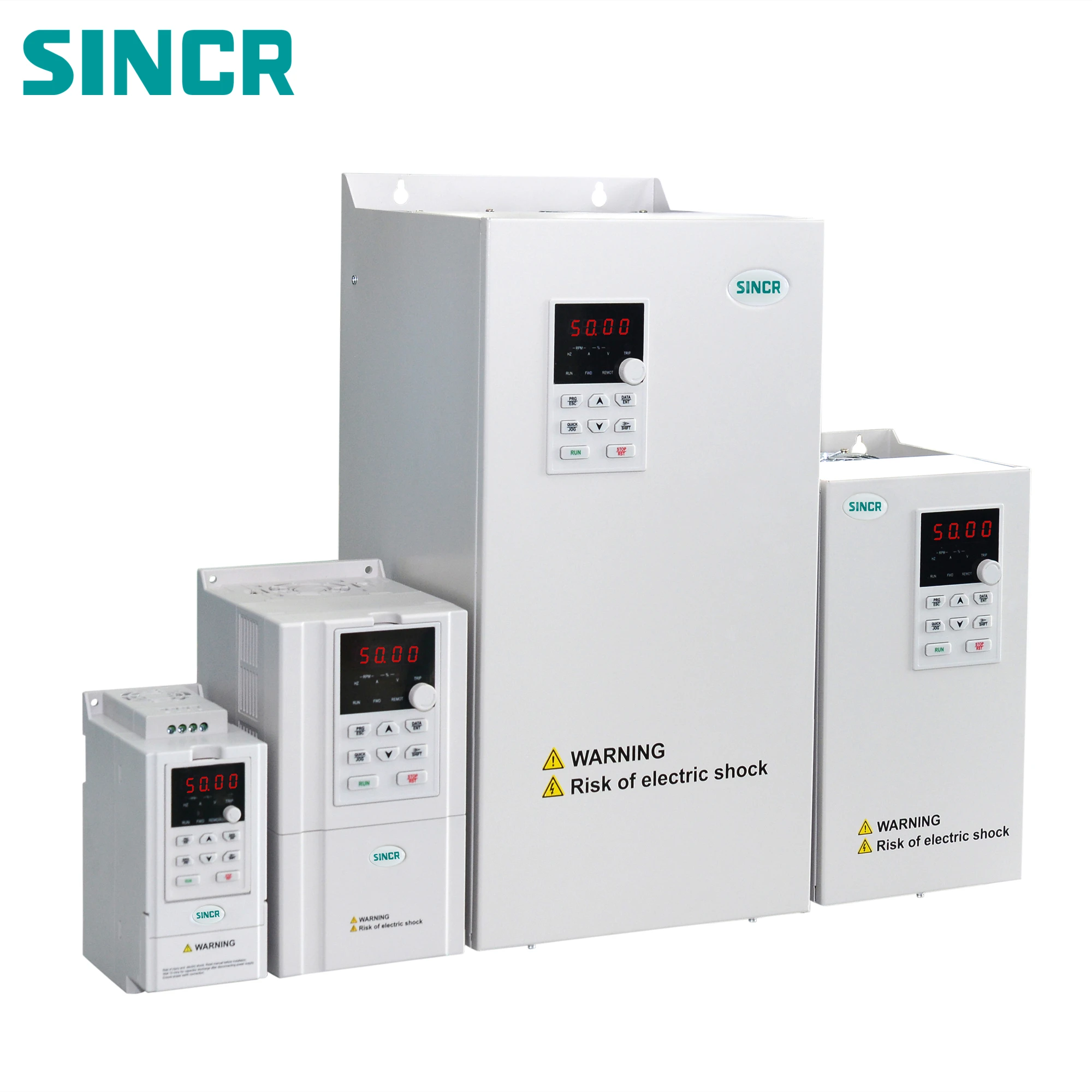

LORENTZ WEIKONG solar pump inverter for water pump
This product is specially designed solar pump inverters. Solar pump inverter transfer solar DC current to be AC to drive the water pump to work. With maximum power tracking (MPPT), light weak sleep, light intensity wake-up, protection for well lack of water,protection for tank full of water, underload protection, photovoltaic and grid automatic switching, unattended automatic operation and other control and protection functions. LORENTZ WEIKONG solar pump inverter for water pump
No need for batteries, water storage instead of battery, easy installation, low cost and low maintenance, economical and environmental protection, zero carbon emissions, widely used in solar agricultural irrigation, irrigation station renovation, domestic water supply, desert greening, etc.area.
Company Introduction
- National & Shenzhen High-Tech Enterprises.
- Certification: ISO9001:2015 quality system certification,ISO4001:2015,CE certification.
- 13 software patents and invention patents, including 2 national invention patents.
- Product Series:Variable frequency inverter(VFD),AC drive, Special purpose frequency inverter, Solar pump inverter,Servo drive.ect industry control products. 10 years of experience in R&D and production of electric drives.
- 8 years experience in solar pump system design & installation.
- Power range: 0.2KW-630KW.
Models
- Model Definition
- SV100 Series Solar Pump Inverter
| Model No. | AC input voltage (V) | MPPT voltage range (Vmp) | Output power (KW) | Input current (A) | Output current (A) |
| SV100-0R7-2SB | Single phase 220~240V AC | 250~350V DC | 0.75 | 8.2 | 4.5 |
| SV100-1R5-2SB | 1.5 | 14.2 | 7 | ||
| SV100-2R2-2SB | 2.2 | 23 | 10 | ||
| SV100-0R7-2TB | 3 phase 220~240V AC | 250~350V DC | 0.75 | 5 | 4.5 |
| SV100-1R5-2TB | 1.5 | 7.7 | 7 | ||
| SV100-2R2-2TB | 2.2 | 11 | 10 | ||
| SV100-0R7-4TB | 3 phase 380~480V AC | 500~700V DC | 0.75 | 3.4 | 2.5 |
| SV100-1R5-4TB | 1.5 | 5 | 3.7 | ||
| SV100-2R2-4TB | 2.2 | 5.8 | 5 | ||
| SV100-004-4TB | 4 | 10 | 9 |
LORENTZ WEIKONG solar pump inverter for water pump
Wire Connecting
Solar Water Pump Inverter Wires Connecting Diagram
LORENTZ WEIKONG solar pump inverter for water pump

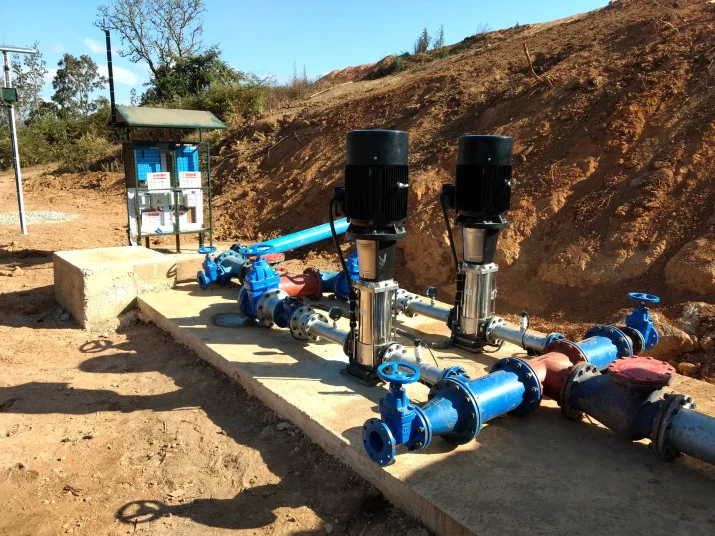

Solar Water Pump
Solar Water Pump for System
LORENTZ WEIKONG solar pump inverter for water pump
The solar water pumps used in the solar pump system is mainly deep well pump, submersible pump, horizontal or vertical multi-stage centrifugal pump, etc., which pump water from deep well, river and lake, etc., into a reservoir or tank, or directly used for domestic water supply, agricultural irrigation and other systems. No matter to build new solar pump systems or transform the old utility (or diesel generator) into solar, the SINCREA solar pump inverter can be applied to drive those water pump with solar.
Complete System Part

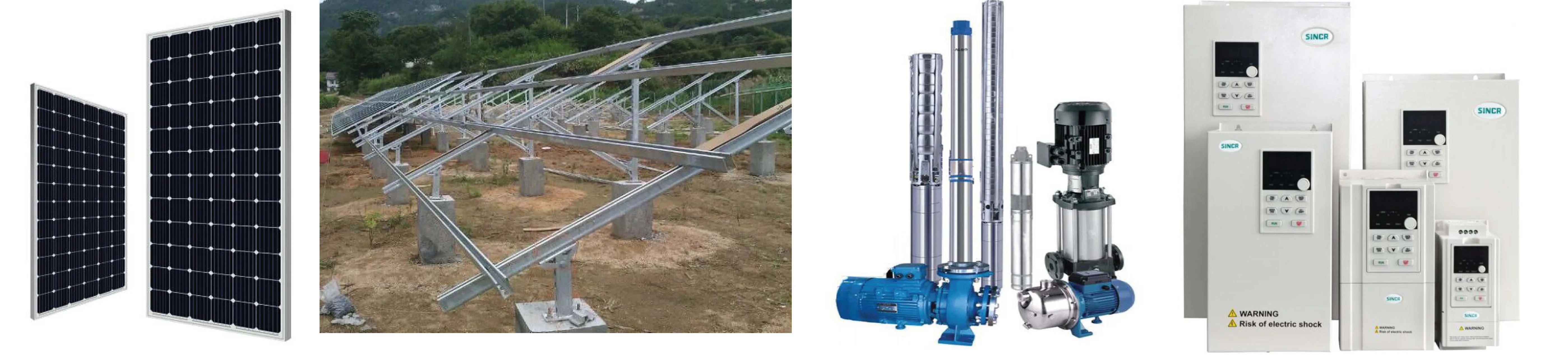

Complete Solar pump system parts
Solar panel Mounting bracket Solar water pump Solar pump inverter

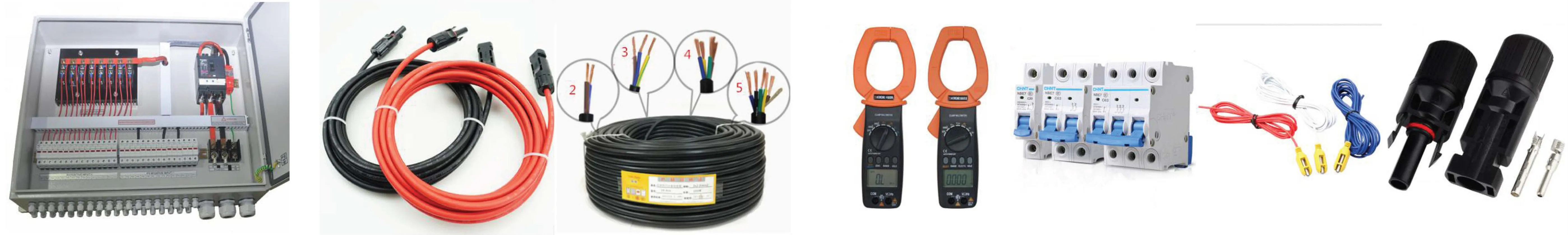

PV combiner box DC/AC cables Accessories
