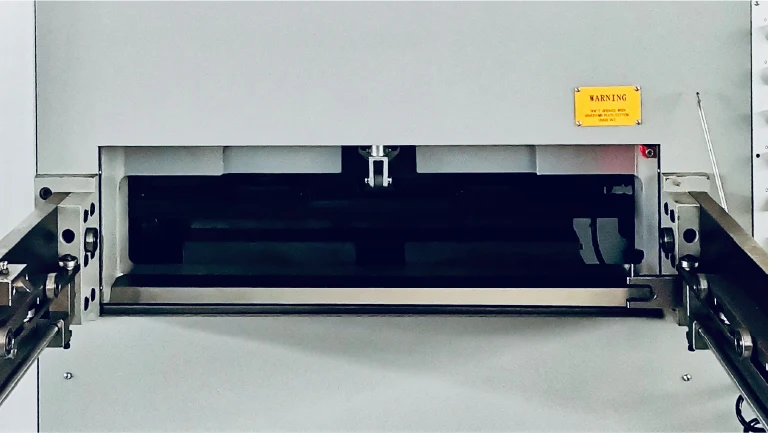

LK106MF platen press die cutting machine stripping
- Category: Paper Processing Machinery >>>
- Supplier: Wenzhou Guangya Machinery Co. Ltd.
Share on (62118372033):
Product Overview
Description
TECHNICAL PARAMETER
Model | LK106MF |
Max. sheet size(mm) | 1060×770mm |
Min. sheet size(mm) | 450×370mm |
Max. die cutting size(mm) | 1050×750mm |
Max. stamping size(mm) | 1050×750mm |
Gripper Margin(mm) | 8-17mm |
Cutting accuracy | ±0.1mm |
Paper range | 90-2000g/㎡(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated) |
Max. working pressure(T) | 300T |
Max. working speed(s/h) | 6500s/h |
Max. stripping speed(s/h) | 6000s/h |
Max. delivery pile height | 1200mm |
Max. feeding pile height | 1350mm |
Main motor power(KW) | 15kw |
Power rating(KW) | 17.6kw |
Machine weight(kg) | 16000kg |
Overall machine dimensions(mm) | 6050×4200×2260mm |
Air requirements | 0.6Mpa, >0.37m³/min |
MAIN FEATURES

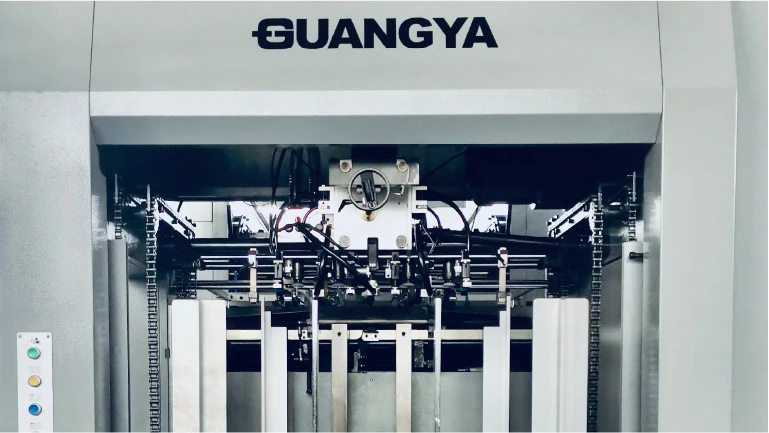

Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function

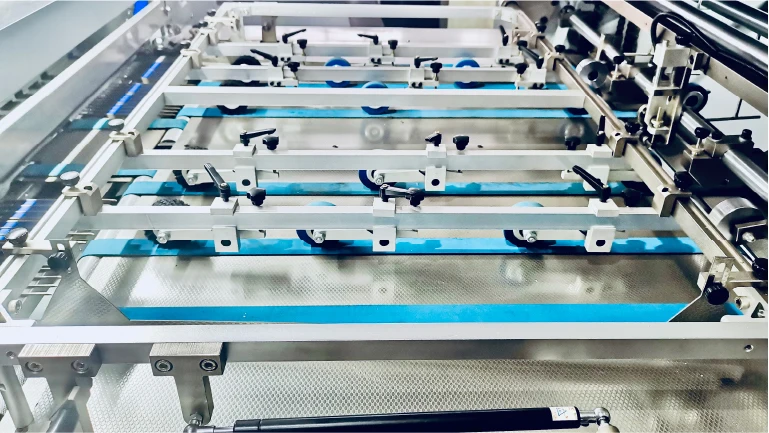

Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported antistatic pattern stainless steel
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported antistatic pattern stainless steel
Host station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Imported intermittent mechanism to ensure running accuracy

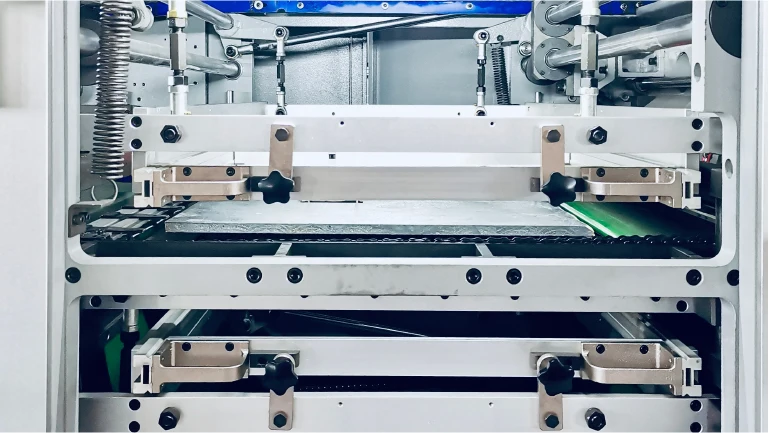

Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
Stripping Station
• Classic efficient stripping structure
• Upper stripping frame lift-up device
• Upper stripping frame lift-up device

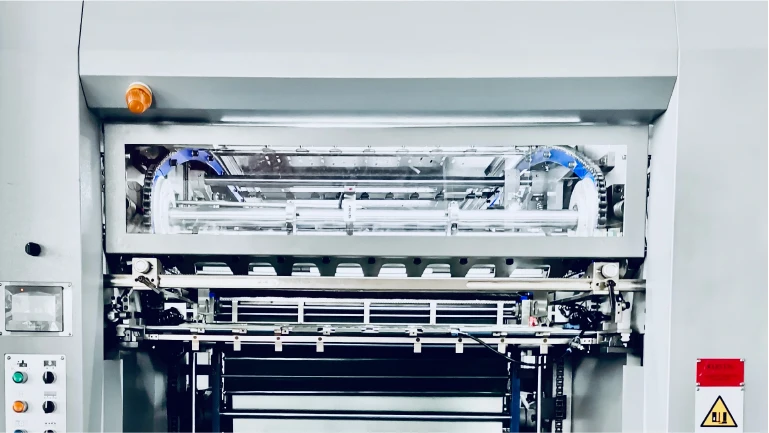

Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inserter (optional)
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inserter (optional)
Control System

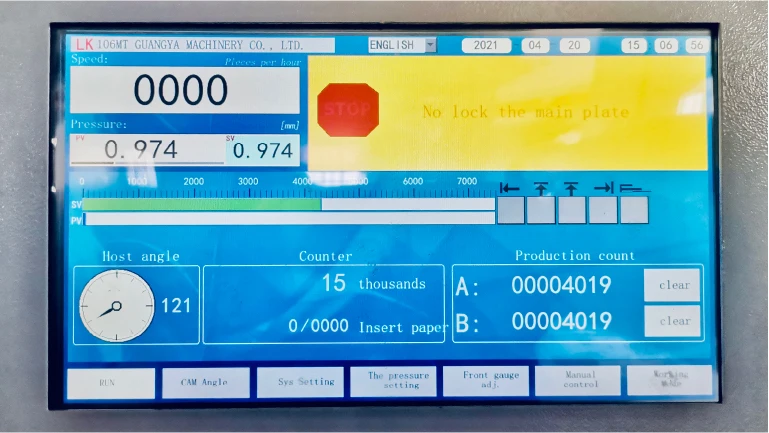

Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
