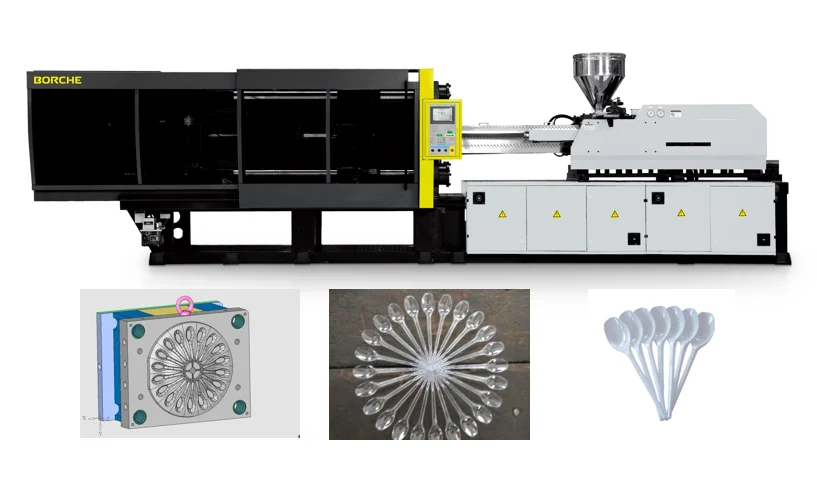

Candas automatic plastic spoon making machines BS120 III 120T
Candas automatic plastic spoon making machines BS120-III 120T
Candas automatic plastic spoon making machines BS120-III 120T
Candas automatic plastic spoon making machines BS120-III 120T
Candas automatic plastic spoon making machines BS120-III 120T
Candas automatic plastic spoon making machines BS120-III 120T
Candas automatic plastic spoon making machines BS120-III 120T

Candas automatic plastic spoon making machines BS120 III 120T

Share on (62118523586):


Price:$10,000.00 - $17,200.00

Quantity:


Product Overview

Description


Product Description
DESCRIPTION OF BS120-III  388/120
Model International Class NO.
Unit
BS120-III 380/120
Injection Unit
Screw Diameter
mm
35 40 45
Shot Volume
cm³
182 238 302
Shot Weight(PS)
g
171 225 283
Shot Weight(PS)
OZ
6 8 10
 Injection Pressure
MPa
212 162 128
Screw L/D Ratio
L/d
23.5 20.5 18
 Injection Stroke
mm
190
Screw Rotary Speed Max.
rpm/min
222
Nozzle Contact Force
KN
30
 Nozzle Stroke
mm
250
Clamping Unit
Clamping Force
KN
1200
Opening Stroke
mm
340
Platen Size
mm×mm
610×610
Space Btw. Tie Bars
mm×mm
410×410
Daylight Max.
mm
790
Mold Thickness (min~max)
mm
145-450
Ejection Stroke
mm
100
Ejector Force
KN
34.4
Ejector Pin
unit
4+1
Power Unit
System Pressure
MPa
17.5
Pump Motor
KW
11
Heating Capacity
KW
8.8
NO. of Heater Zones
unit
4
General Unit
Oil Tank Capacity
L
180
Machine Dimensions
m×m×m
4.5×1.38×1.73
Machine Weight
KG
3500





BS-III machine features
Injection Unit
Double-injection cylinder
Double-carriage cylinder
Nozzle purge cover
Linear guide rail
Three kinds screw as option for every machine
Nozzle contact force adjustment function
Nozzle central device
Barrel cover
Low-speed high-torque Hydraulic motor
RPM sensor (4 times / 1 round)
Removable hopper rail
Clamping Unit
Mould fixing designation referring Euromap 2
Robot mechanical interface referring Euromap 18
Ejection distribution referring Euromap 2
Big operation room for ejection
Anti-pitch slider (above BT150)
Clamp transducer connect directly to cross head of toggle
Central oil lubrication
Hydraulic Unit
Variable displacement pump
One set sets core puller
Oil temperature alarm
Oil level meter and oil temperature indicator
Low pressure clamping function
Quick-clamping
Mould height adjustment by gear mechanism
Back-pressure control function
Suckback
Pressure relief valve for carriage moving (below BT650)
Oil cooler
High-precision bypass filter (above BT480)
Fiter block alarm (above BT800)
Self-sealing filter (above BT800)
Nozzle moving function √
Electric and control part
KEBA controller
Language (Chinese and English)
Data lock and operation password
SPC quality management
Alarm and parameter resetting record
PID temperature control
Screw protection function
Support current/voltage analogue output
Clamping force auto-adjust
CAN interface
Injection 6 stage/pressure holding 5 stage/charge 5 stage
Mold clamp/open 5 stage /ejection 2 stage

Detailed Images

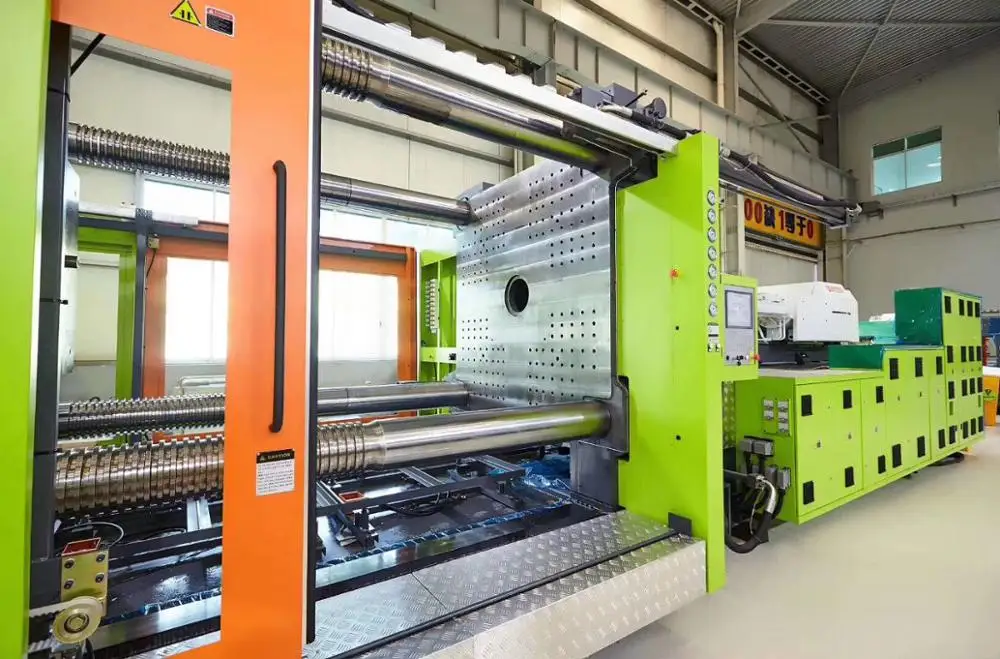

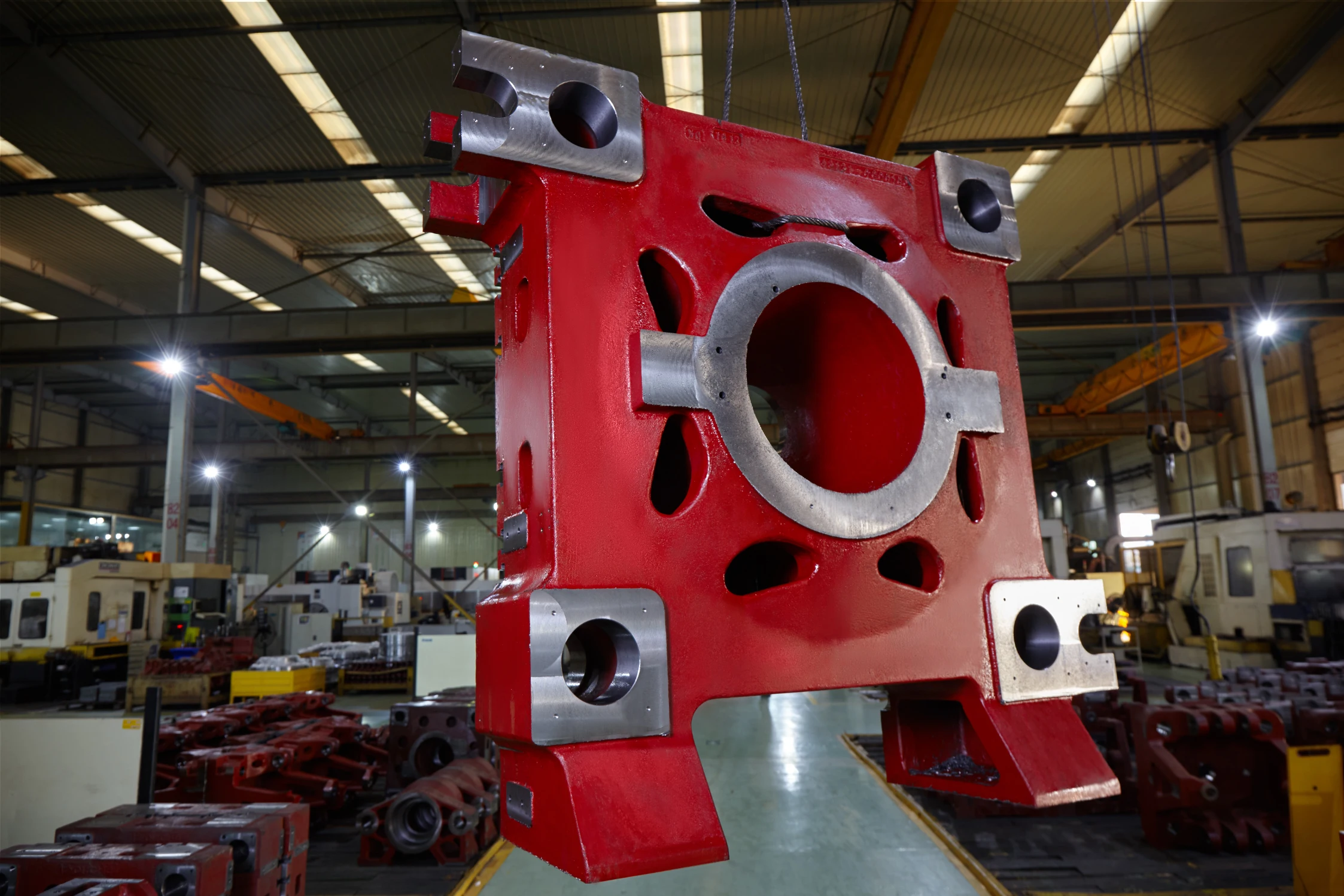

Moving Platen Clamping
1-Tie bars move across clamping cylinder, no touch with seals, lessen pressing leakage; Module type clamping cylinder, can be assembled and disassembled together, easy for maintenance.
2-Pistons of four cylinders are controlled separately, which can adjust the locking position precisely, and assure fast and precise locking.
3-Clamping cylinder assembled in the moving platen can balance the load of mold, avoiding mold forward, improve stability of moud open and clamping movement.
Super Long Lastic Tie Bar


During high pressure locking, four tie bars under equal force, no unbalance loading occured, avoiding tie bar broken theoretically.

Innovated Injection Structure

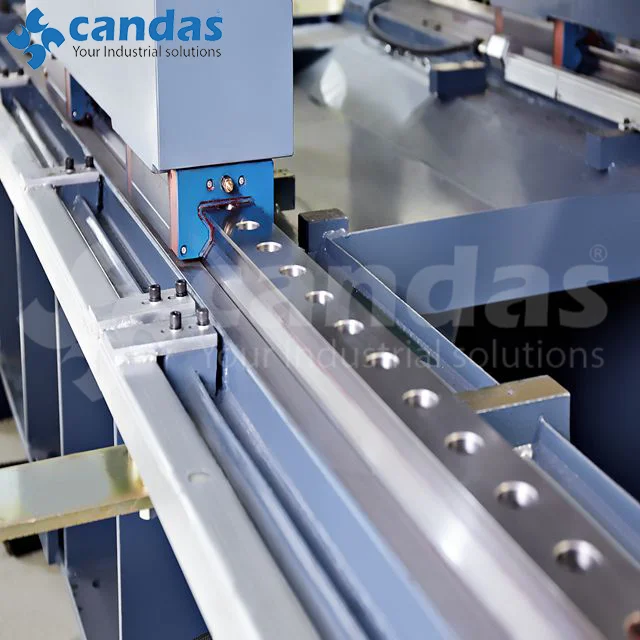

1.Both carriage cylinder and injection adopt linear guider, which guarantee stable and fast movement, injection supporting made by one piece casting, is rigid and compact.
2-Double carriage cylinder insures injection unit better centering, and movement stable.

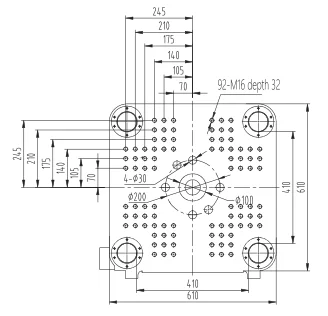

Drawn Mold Platen Drawing





Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Certifications
Our Service
Packing & Delivery
Packaging
Size
710×240×210
Weight
1.9T
Packaging Details
The normal package is wooden box
( Size: L*W*H). If export to european      countries,the wooden box will be              fumigated. If container is too tigher,we will use pe film for packing or pack it     according to customers special request.
Packaging
Size
710×240×210
Weight
1.9T
Packaging Details
The normal package is wooden box        (Size: L*W*H). If export to european       countries,the wooden box will be             fumigated.If container is too tigher,we  will use pe film for packing or pack it     according to customers special request.
