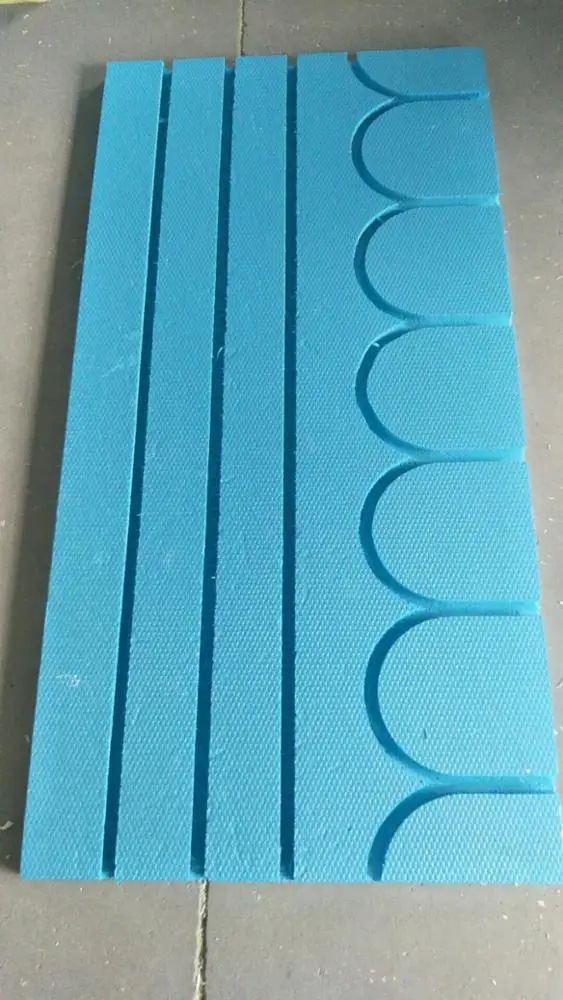

Grooved XPS with aluminum board, Floor Heating System, Floor Heat Panel

Heat plates utilise high compressive strength extruded polystyrene insulation, with highly efficient aluminium heat plates. this acts as a heat conducting surface to transfer the heat from the pipes to the finished floor above. Floating heat plate system is available in 30mm,and it is suitable for wood floor coverings fitted directly above and carpets with a 22mm chipboard.

Size: 1200*600*30mm (L*W*H)or customized
Grooving line Size: 16mm&20mm
Material:XPS Foam Board with grooving line
Temperature limited: -50.C,+75.C
Water absorption: ≤1%
Compressive strength:≥ 300Kpa
Thermal conductivity: ≤ 0.027W/M.K
Color: Blue/Yellow
Fireproof grade: B2
CFC HCFC Free; HBCD Free; ECO Friendly

1.The ground must be flat and clear

2. Tape the boundary strip

3.Laying the Grooved XPS with aluminum board

4.Intall the pipes on the Grooved XPS with aluminum board

5. Pouring and laying the concrete to make the floor surface to be flat then install the wood floor or tile;Or Install the wood floor directly after the pipe
