All kinds of TCT saw blade sandwich panel cutting factory supplier

Product Overview

Description

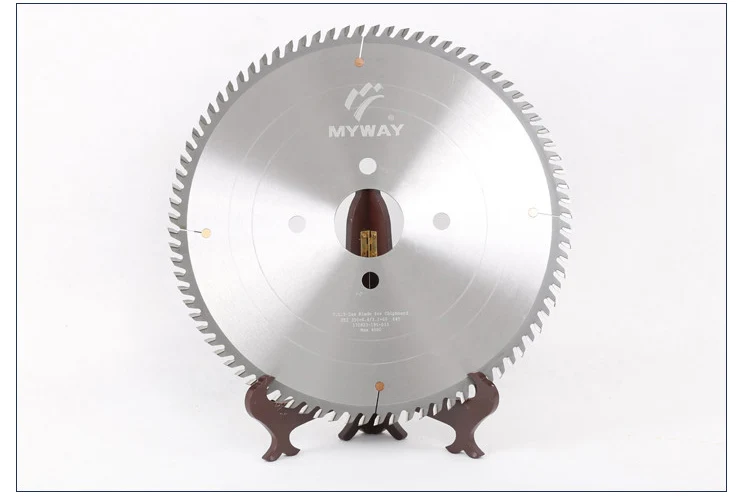

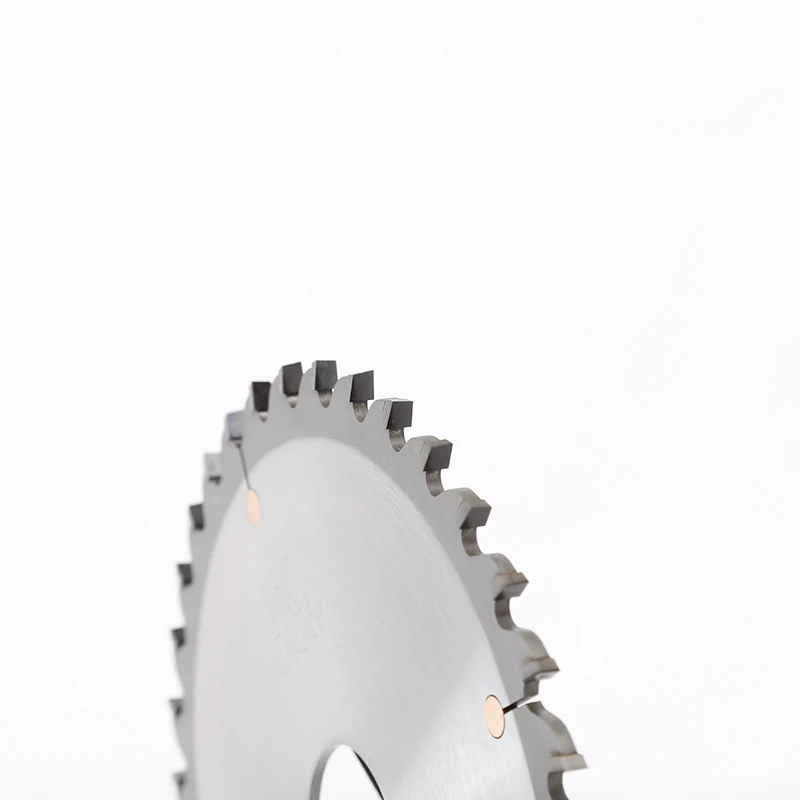

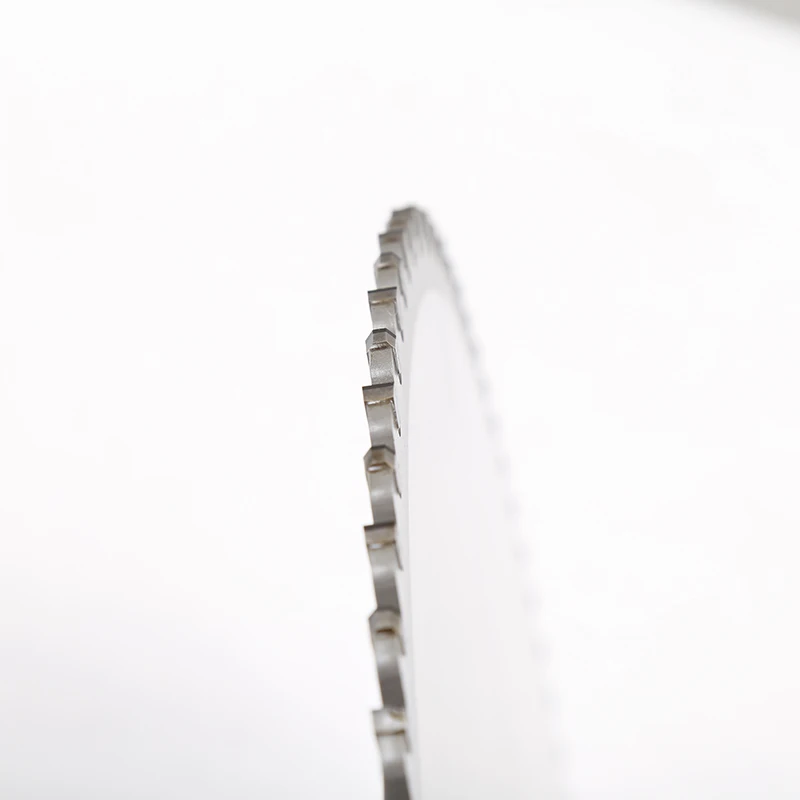

 TCT Saw Blade For Cutting Wood

The TCT saw blade full name is Tungsten Carbide Tipped blades are suitable for cutting hardwood, softwood, chipboard ashaving board, wood fiber board, joinery panel, composition board, parallel cutting veneer, plank, laminates and plywoodnd other composite materials. Hardened and strengthened to ensure a long life.



Features:

1. Material of Teeth: Micro Grained Tungsten Carbide Tips supplied from the worlds most advanced tungsten manufacturers ;



2. Material of Saw Body: 65Mn or 75Cr1, Ultra-thin, perfectly tensioned steel plates for true run;



3. Expansion Slot: Laser Cut Expansion Slots allow blade to expand and  contact during heated operation;



4. Noise Reduction Slots: Laser Cut Resin filled noise reduction slots on low noise blades;



5.  Precision Tensioned Saw Bodies  ensure distorsion free cutting throughout the life of the blades.



6 Tooth Model: Left & Right side bevel teeth, alternate top bevel teeth, trapeziform-flat teeth, flat teeth



Product	Outer diameter	Kerf	Plate thickness	Inner diameter	Number of teeth
ID	D(mm)	B(mm)	b(mm)	d(mm)	Z
001	250	3.2	2.2	25.4/30	80
002	300	3.2	2.2	25.4/30	72
003	300	3.2	2.2	25.4/30	80
004	300	3.2	2.2	25.4/30	96
005	350	3.5	2.5	25.4/30	72
006	350	3.5	2.5	25.4/30	84
007	350	3.5	2.5	25.4/30	96
008	350	3.5	2.5	25.4/30	108
