This equipment can be used to coil rolled aluminium foil, copper foil, paper and film after cutting to the required width. The equipment characteristics are operation convenient, high-quality slitting, high-using rate or material, and step-less adjustment of slitting speed.

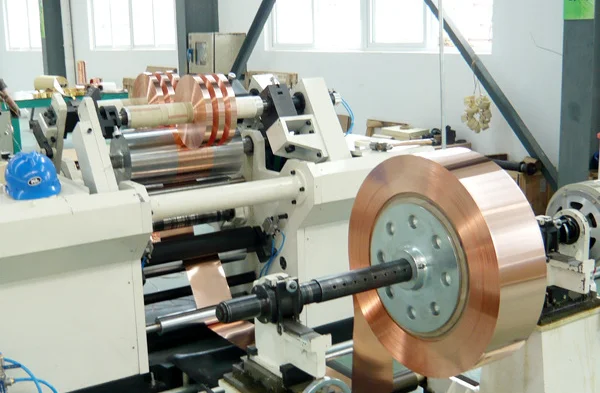

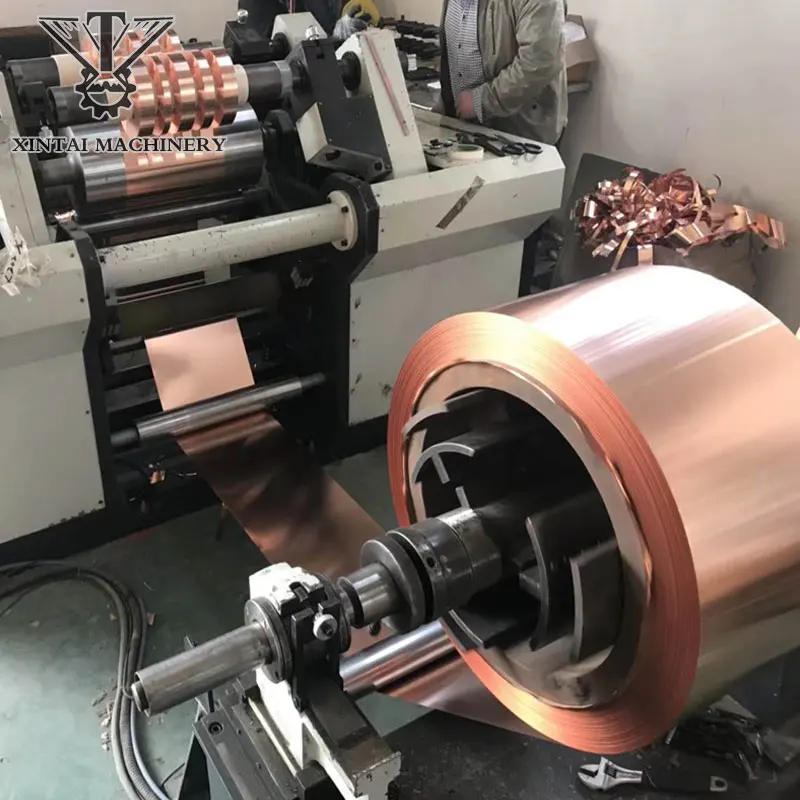

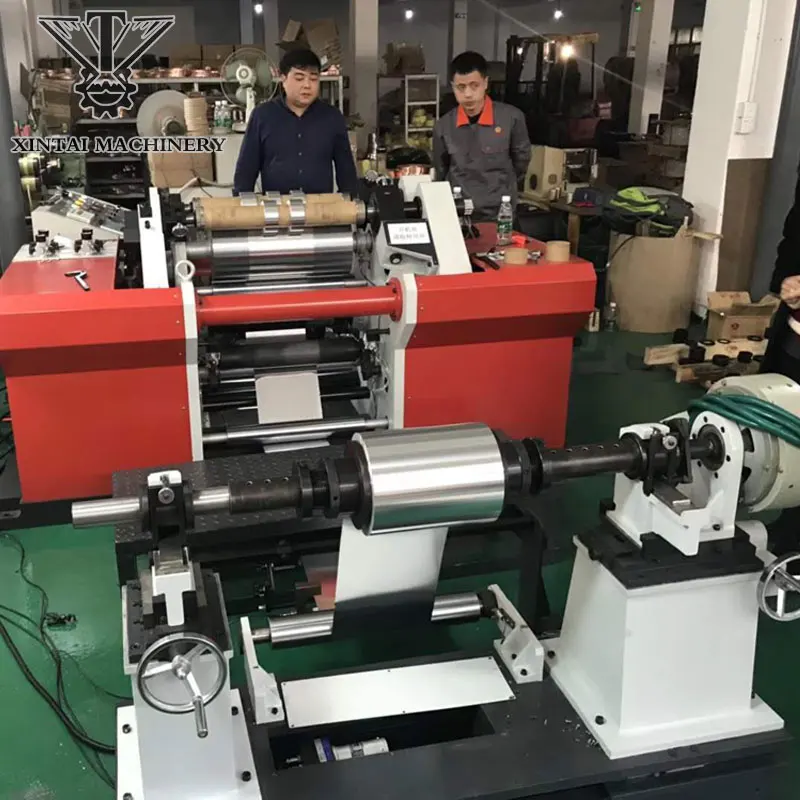

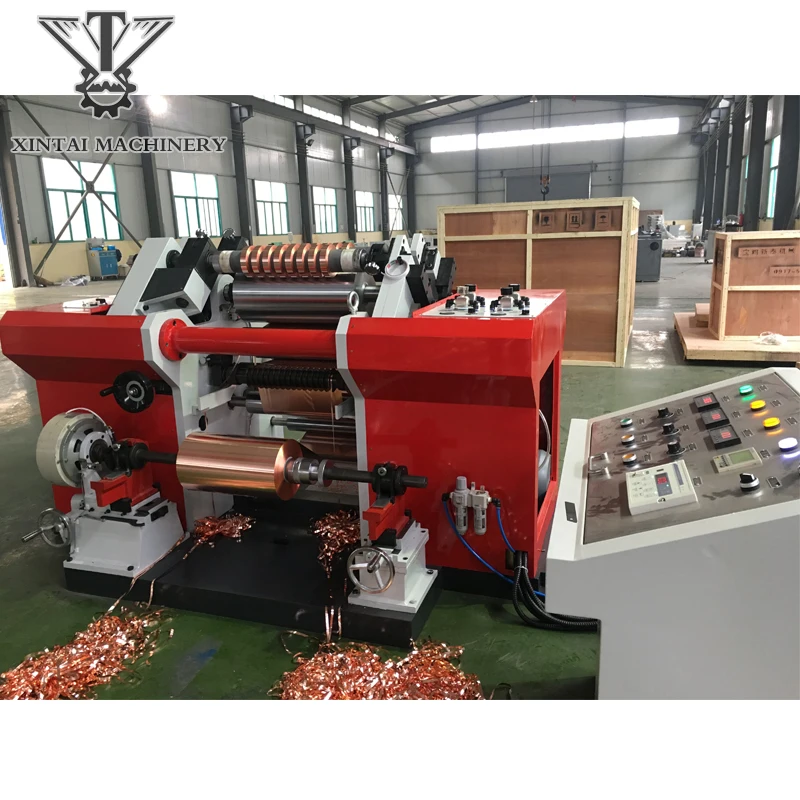

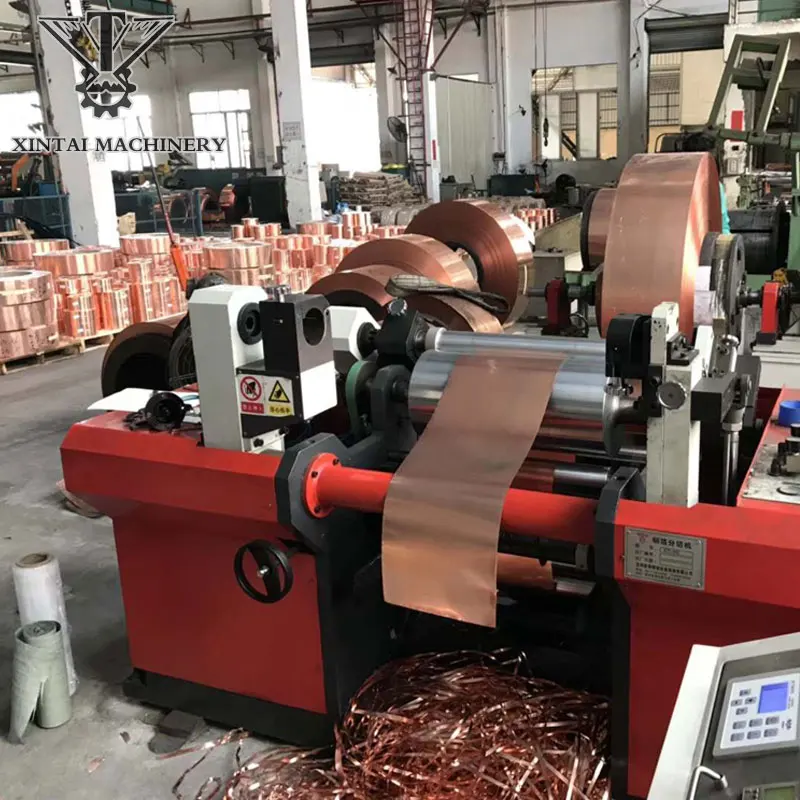

Slitting Machine For XT-F500
Type
XT-F500
Raw materials thickness
0.01mm-0.15mm
Width of raw materials less than
500mm
Outer diameter of raw material
Φ900mm
Raw material inner diameter
Φ50mm-Φ90mm (customizable)
Finished product width
10mm
Outer diameter of finished coil
Φ600mm
Inner diameter of finished coil
Φ75mm (customizable)
Number of sliced strips
30 (depending on the thickness of the cut)
Width tolerance of finished product
±0.02mm
Equipment speed
0-200m/min
Main engine (L*W*H)
2170mm*1080mm*980mm

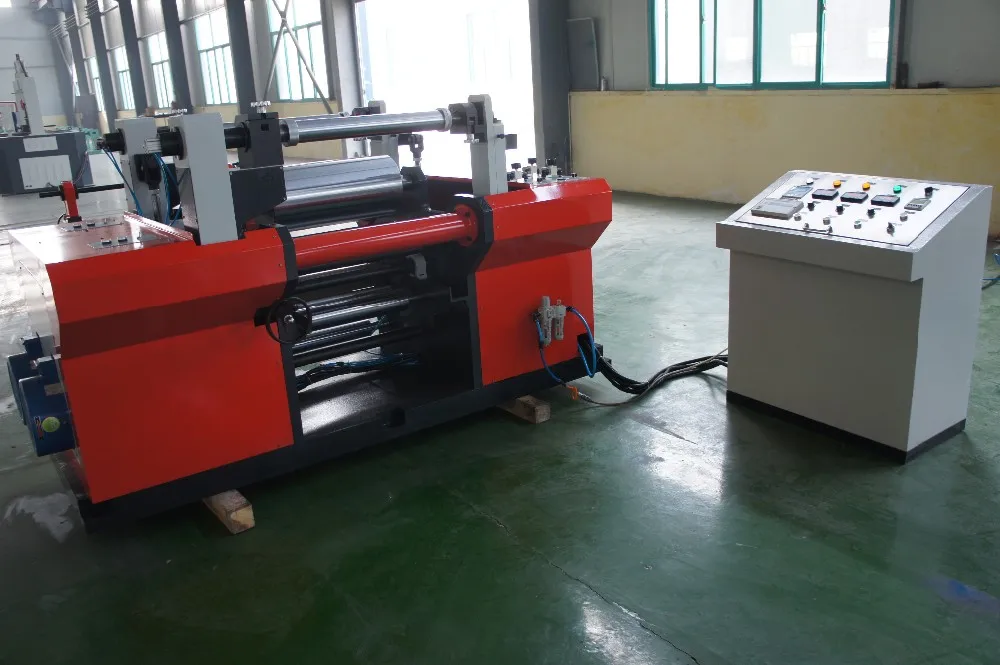

Control box (L*W*H)
800mm*500mm*490mm
Equipment weight
3100KG
Main Features
1. This machine is suitable for longitudinal shearing of rolling metal strips. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed. 2. Product warranty period is one year, non-human problems, free spare parts are provided during the warranty period, and the supplier is responsible for the lifelong maintenance of equipment. 3. Equipment color: black and white (customizable) 4. Date of production: 15 days 5. Support overseas after-sales service.
Detailed Images
Raw material parameter
1. Cutting material thickness: 0.01mm-0.15mm 2. Maximum diameter of raw material roll: Φ900mm; (can be customized according to user's requirements) 3. Inner diameter of raw material roll: Φ50mm~Φ90mm; (can be customized according to user's requirements) 4. Maximum width of raw material roll: 500mm.(can be customized according to user's requirements)

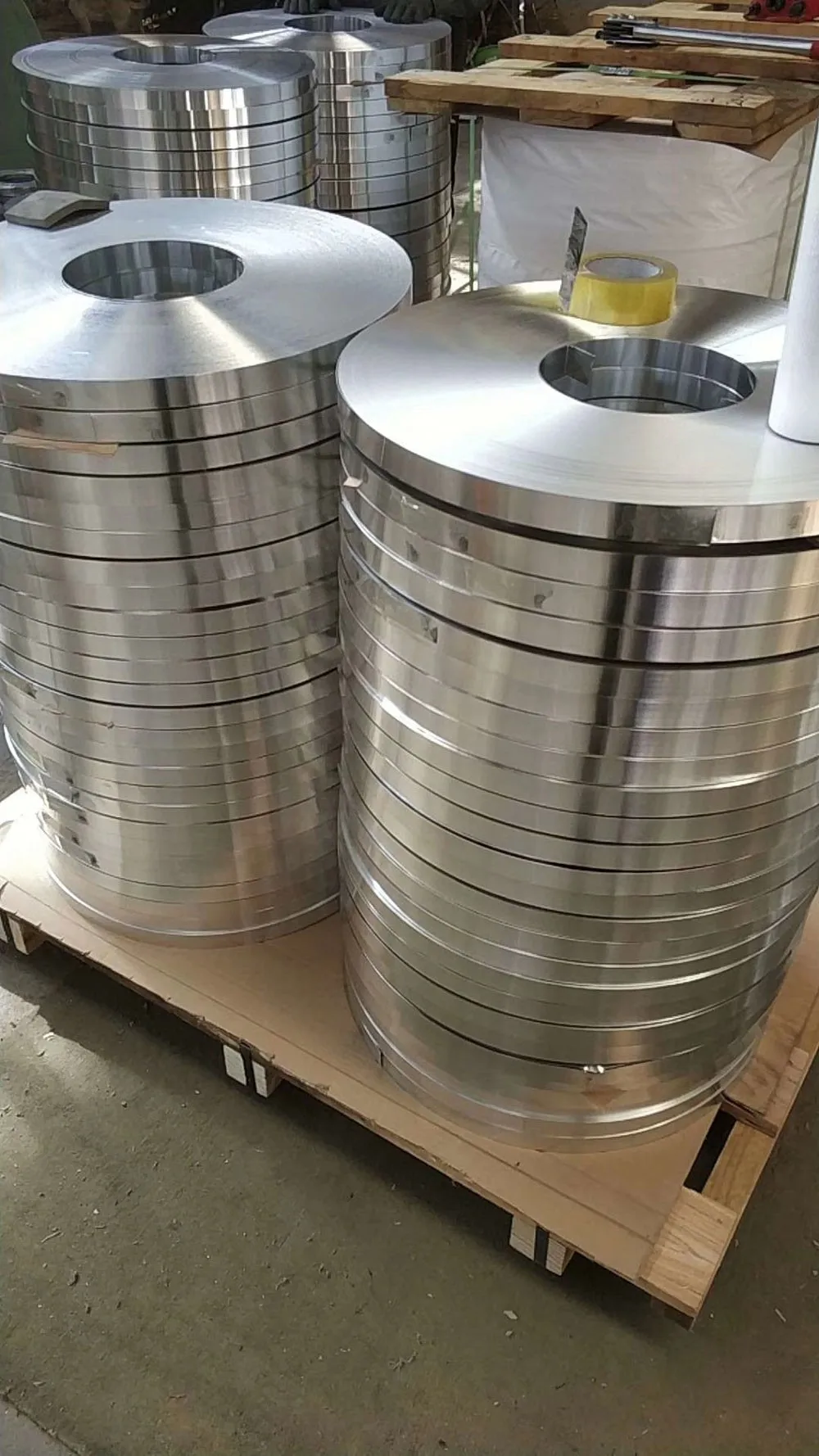

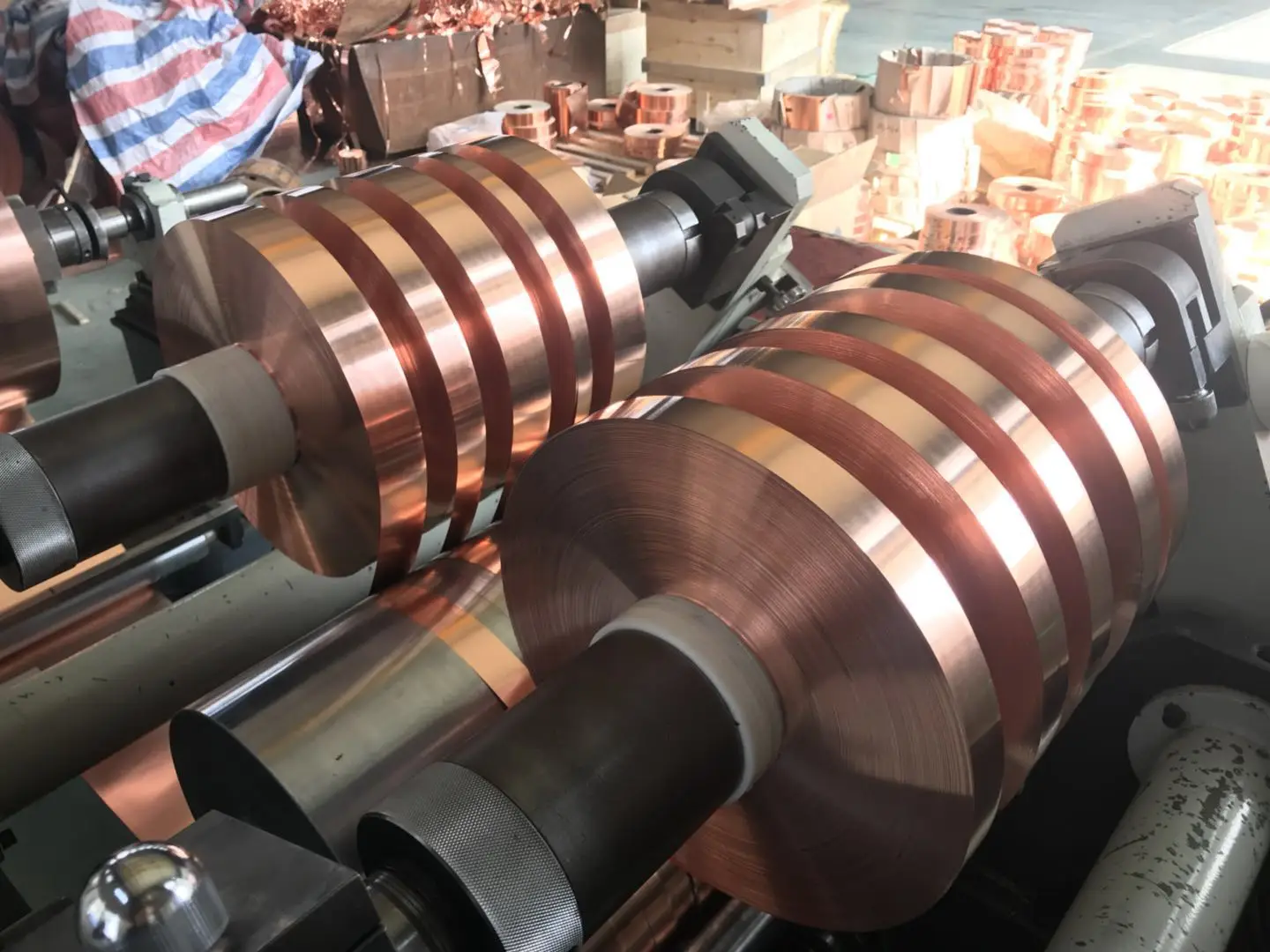

Finished product parameters
1. Minimum width of finished product: 10mm; 2. Maximum outer diameter of winding: Φ600mm; 3. Maximum number of cutting strips: 30; 4. Diameter of reel: Φ75mm; (can be customized according to user's requirements) 5. Number of simultaneous winding shafts: 2.
Device parameters
1. Cutting speed: 0-200 m/min; 2. Main drive motor: 7.5 kw, 1400r/min 3. Outward dimension : Main engine (L*W*H): 2170mm*1080mm*980mm Control box (L*W*H): 800mm*500mm*490mm; 4. Weight: Main engine: 3000kg; Control box: 100kg.
Electrical parameters
Configuration table: This machine adopts independent console, Siemens touch screen, PLC control frequency conversion speed regulation automatic constant tension control, automatic photoelectric rectification device, rectification accuracy (±0.5mm). Pneumatic adopts Korean YSC brand, single reeling bearing weighs 500 kg, brakes and clutches adopt
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* video support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
3m (L) * 1.5m (W) *1.5m (D)
Weight
3.5T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Company

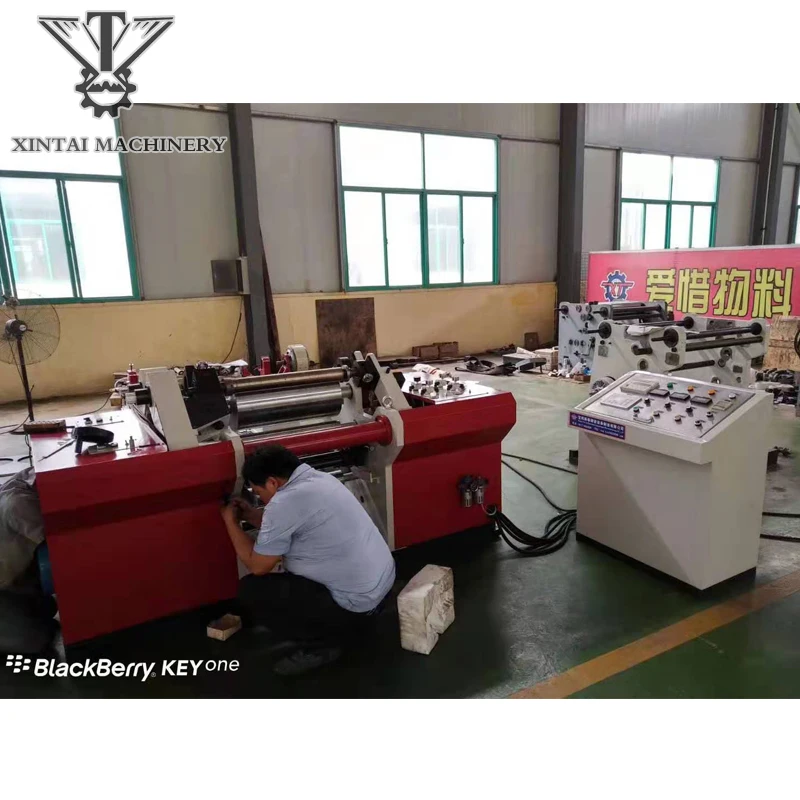

Production workshop
In our company, skilled men are more, all kinds of methods of production process are complete, product quality guarantee system and test system are complete. As per user requirements, we produce special equipment of different types. Abundant technology and advanced management idea constitute serious quality guarantee system and strong researching and devolvement ability.
Customer satisfaction is eternal target of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, high qualified, warm and thoughtful service are eternal commitment of Baoji Xin Tai Precision Equipment Manufacturing CO., LTD for you.
Service commitment To ensure that the maintenance service and fault fixing are carried out in time, fast and effective, we are equipped with full time staff, spare parts and special savings.
We are equipped with full time maintenance engineers talking about business.
