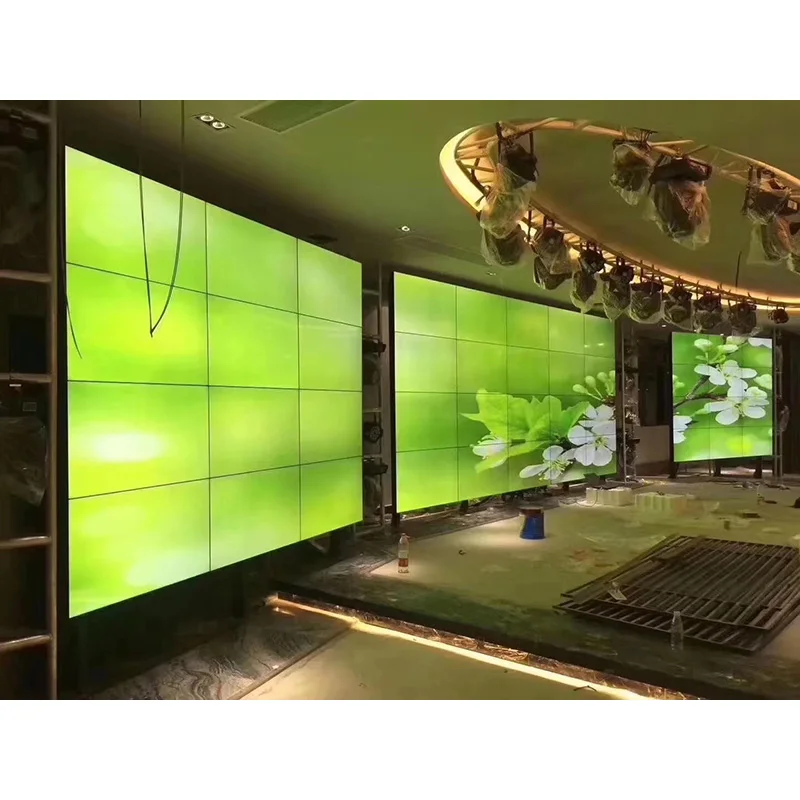

Multi screen 55inch 3.5mm tv 2*2 3*3 DID panel floor standing lcd video wall
- Category: Advertising Screens >>>
- Supplier: Shenzhen Kosintec Co. Ltd.
Share on (62118773265):
Product Overview
Description
Multi-screen 55inch 3.5mm tv 2*2 3*3 DID panel floor standing lcd video wall
Product Description
| LCD Panel | Model | Custom DID LCD Panel |
| Resolution | 1920×1080(H×V) | |
| Brightness | 500(cd/ m ) | |
| Contrast Ratio | 4000:1 | |
| Response Time | 8ms | |
| Display Color | 16.7M | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Image | Aspect Ratio | 16:09 |
| Compensation Technology | LTI,CTI | |
| Motion Compensation Technology | AUTO MOVE | |
| Filter | 3D combing filter, Digital noise reduction | |
| Video Formats | PAL,NTSC | |
| Signal Source | Composite Video Input | CVBS(BNC) ×1; |
| Composite Video Output | CVBS(BNC) ×1 ; | |
| Digital Signal Input | HD×1; 1920x1080@ 60Hz Backwards compatible | |
| Computer Signal Input | VGA(DB-15) ×1;1920x1080@ 60Hz Backwards compatible | |
| Digital Signal Input | DVI(DVI-I)×1;1080P(1920×1080) Backwards compatible | |
| Built-in Controller | Computer Centralized Control Interface | RS232 |
| Function | Signals combine and display arbitrarily | |
| Automatic Temperature Control | Work automatically according to the set temperature and actual temperature of the machine to control fan operation | |
| System | Image Signal Gain | A more stable and correct image control |
| Operation Mode | Computer centralized control | |
| Bus Control | I C | |
| MTBF | 50000 hs | |
| Power Supply | Voltage | 100~240V |
| Power Consumption | 230W | |
| Sructure | Frame Size | Upper side:3.5mm; lower side:1.7mm; left side:3.5mm; right:1.7mm |

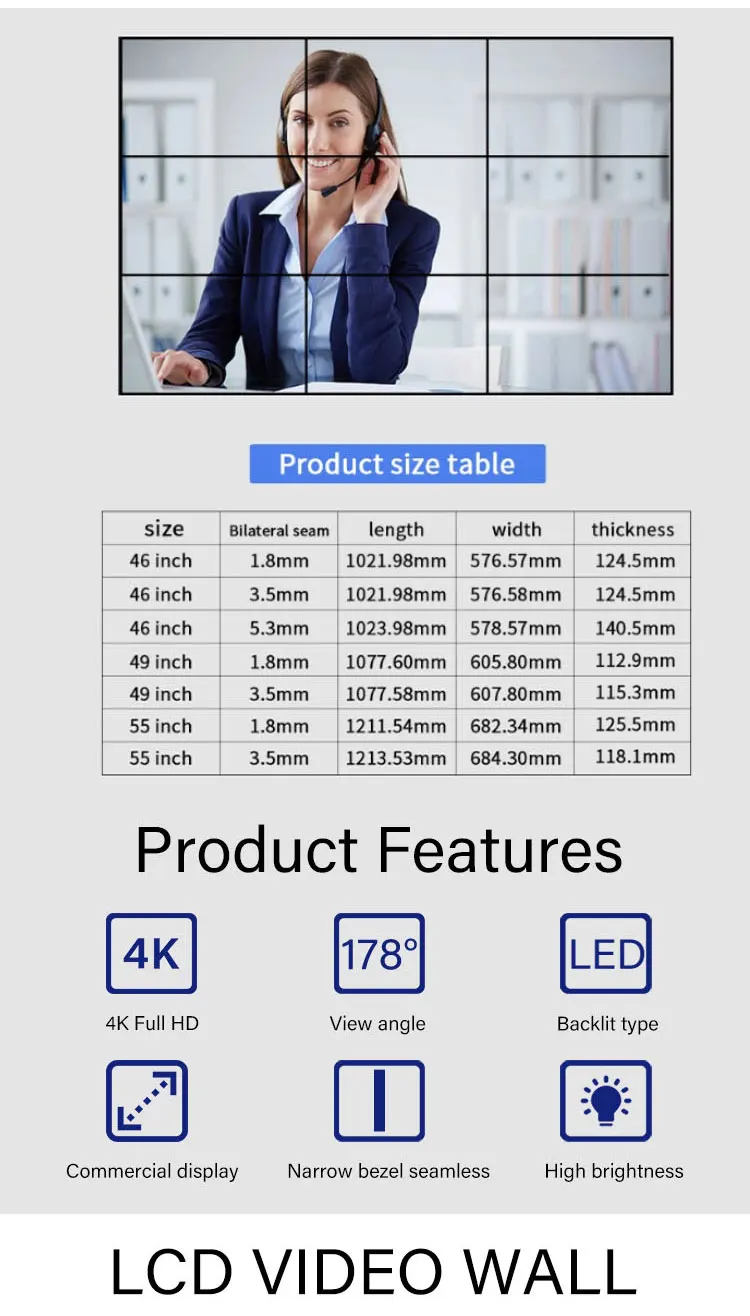

| Installation Dimensions | 1213.5(H)×684.3(V) ×67.7(D) mm | |
| Display Area | 1209.6(H)×680.4(V) mm | |
| Material of Shell | Metal | |
| Installation | Standard cabinets, custom cabinets | |
| Weight | G.W. | About 31Kg |
| N.W. | About 22Kg | |
| Environment | Storage Temperature | -20°C~60°C |
| Working Temperature | 0°C~50°C | |
| Working Humidity | 10%~90% | |
| Quality | Quality Assurance | CCC, FCC, UL, CE, RoHS |
| Environmental Protection Standard | All components and packaging materials are in line with international environmental standards |
With software, you can implement many kinds of high-end features.
Video Loop / DP Loop is available for your solutions.
Welcome to tell us more about your project, we will suggest a best solution for you.
product description
- Fully customizable for 3x1, 2x2, 3x2, 2x3, 4x2, 2x4 or 1x3 Video walls!
- SUPER NARROW BEZEL With a bezel-to-bezel measurement of just 4.9mm (47") and 3.5mm (55") our video walls create a stunning visual canvas that is easily installed.
- Higher brightness uniformity 90% ensures high quality image delivered across displays.
- WIDE VIEWING ANGLE accurately displays an image is quality and color at a 178° ultra wide viewing angle.
- Premium Displays present crystal clear images in both landscape and portrait orientations without hot spots until screen surface temperature rises above 230°F.
- Ultra HD resolution, panel brand: Sumsung//AU.
- Provides a perfectly flat viewing surface for graphic and data video projection.

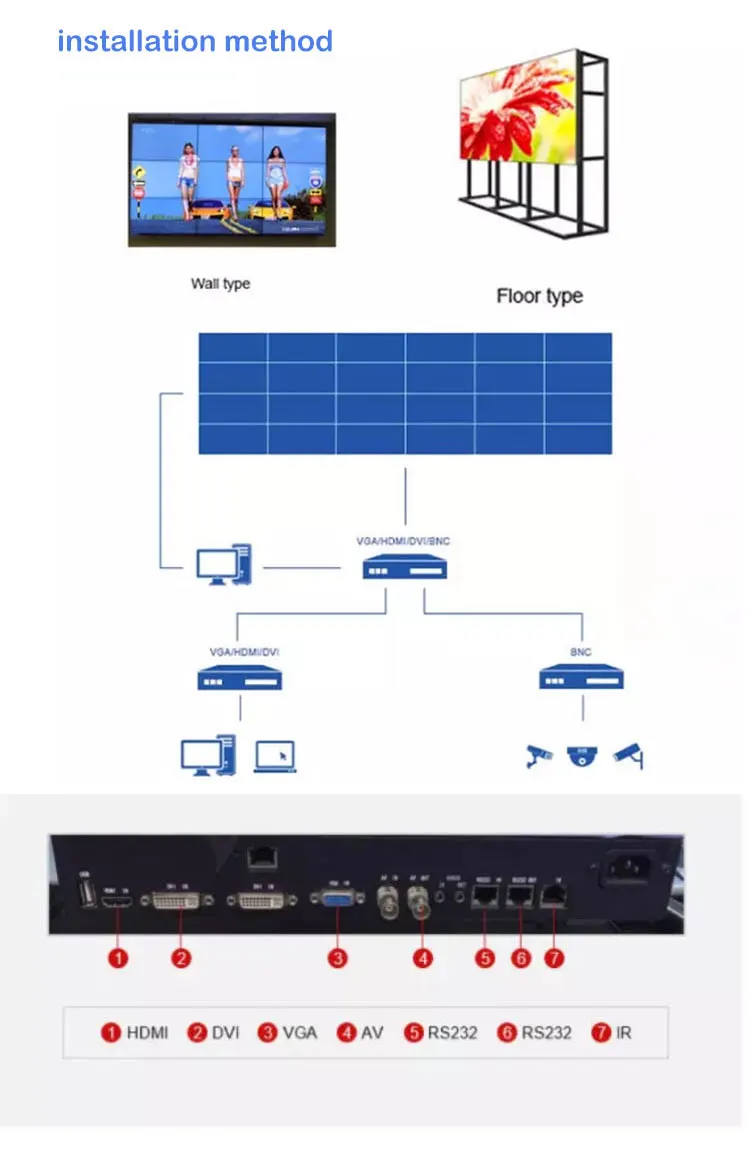

- Designed for permanent mounting to the wall or in a wall opening.
Mass comment
More types of produc
Company Information
Transport Packaging
FAQ
Q1: Are you a factory or a trading company?
A : We are a OEM/ODM factory.
Q2: What payment methods your company accept?
A : We accept most of the payment methods, Flexible Payment term: support T/T, L/C, Westunion, Paypal.
Q3: How long is the warranty time for your products?
A:1-year warranty, lifetime maintenance.
Q4: What will you do if the product be nature damange within warranty time and how about out that time?
A : Well, we will give some quite simple questions to help us confirm the damaged part. Once it confirmed, the free replacement will be send. Also, we will just request a very low price for replacement part, if the product out of warranty time.
Q5: Can I customize the product I ordered?
A : Abusolutely yes, customizatiion offer from customers are most welcome in our company.
Q6:Can I order a sample?
A:We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
Q7:What are your advantages?
A : We have our own ERP systems : Shorten lead times at low cost with responsive production planning.
Q8:What kind of design and development capabilities do you have?
A:artwork/ Instruction manual/ product design according to customer's requirement.
Q9:What's the shipment terms and delivery time of your company?
A : Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
