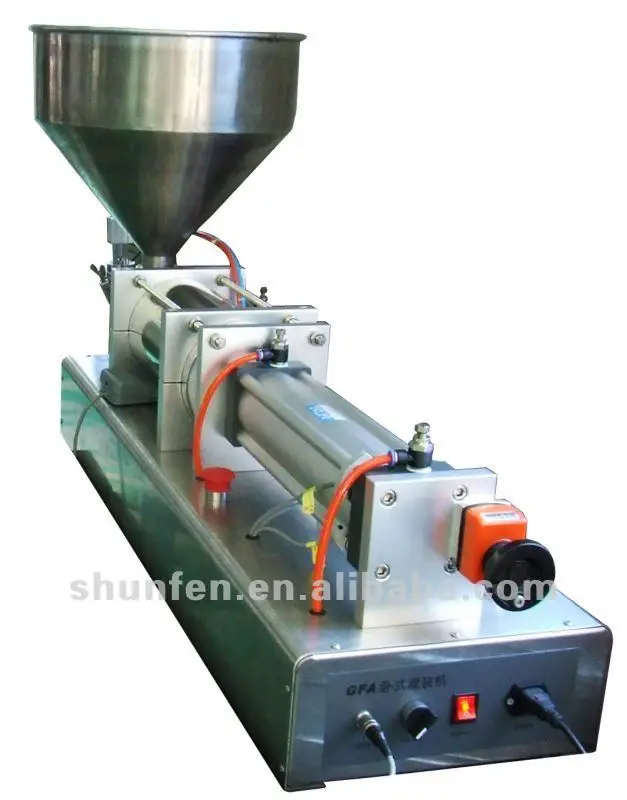

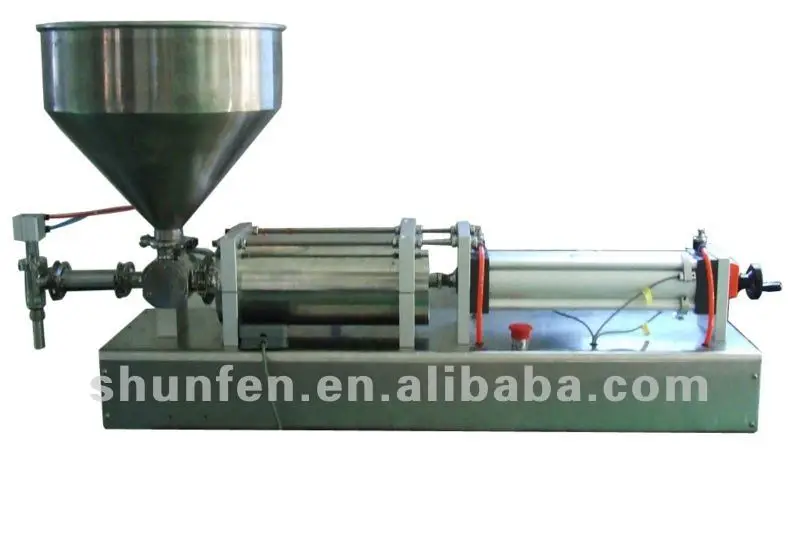

5000ml semi automatic Cream Dosing Machine

Product Overview

Description

5000ml Cream Dosing Machine (gel filling machine, cream filling machine, ointment filler, paste filling machine)



One-head Cream filling machine is on the basis of our cream filling machine series. Transform and create the product on the reference of foreign advanced filling machine technology.

Application Range:

Applied in medical, chemistry, foodstuff, pesticides and special industries. It is an ideal equipment for filling the high viscosity fluid. As the machine is working without the electricity, it is very safe and the personal design better meets the demands of morden enterprises.
This machine is semiautomatic piston paste filling machine,

Advantages:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO and Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 316L stainless steel, meet the GMPs requirements.
3. Filling capacity, filling speed can be adjusted, filling accuracy is high.
4. Adopt the device like leak-proof, Anti-drawing and lifting of filling.



Technical Parameter:


Air Pressure	0.4-0.6MPa
Filling Speed	10-20 Bottles/ Min
Filling Accuracy	±1
Chosen model	5-50ml 10-100ml 20-300ml 30-500ml 100-1000ml 200-2500ml 500-5000ml





Filling Nozzle

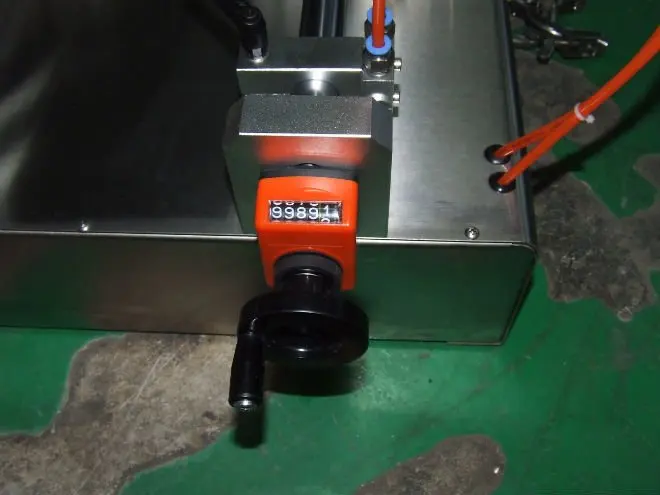

Volume adjuster



Our Main Products About Paste Filling machine

Cream Filling Machine with Stirrer and Heater

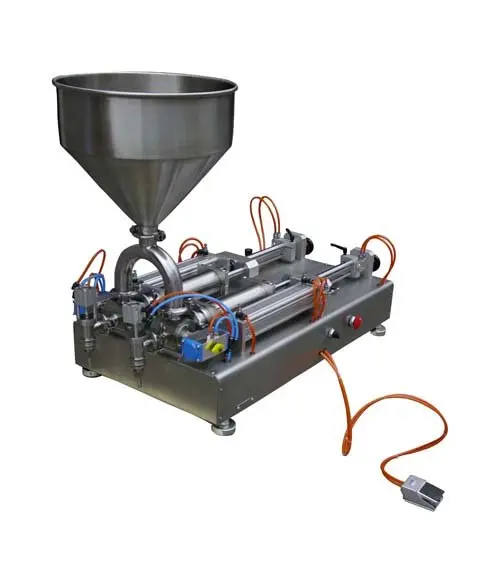

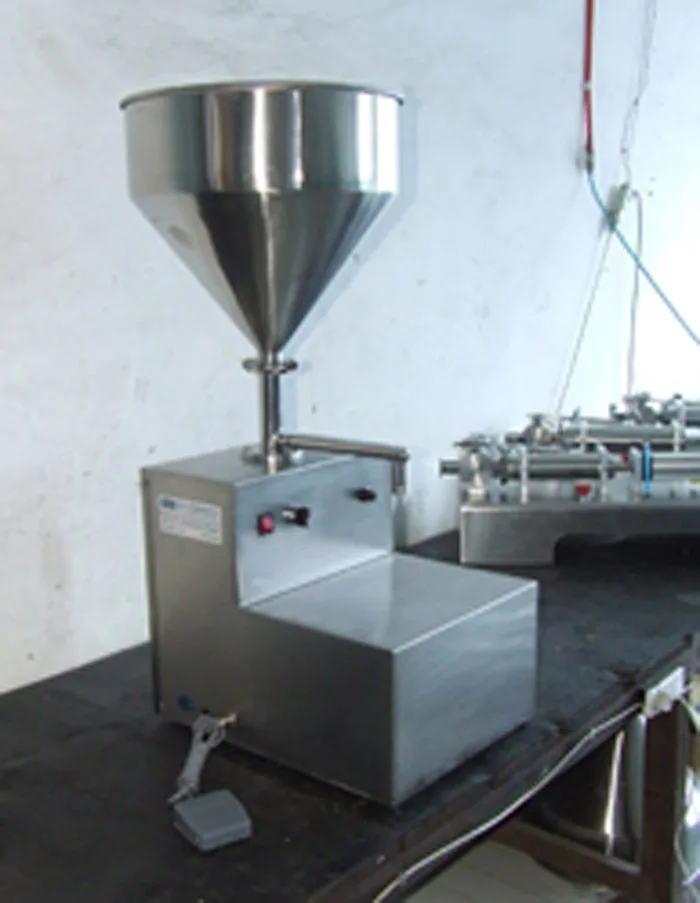

Vertical Pneumatic Paste Filling Machine           Electric Paste Filling Machine
