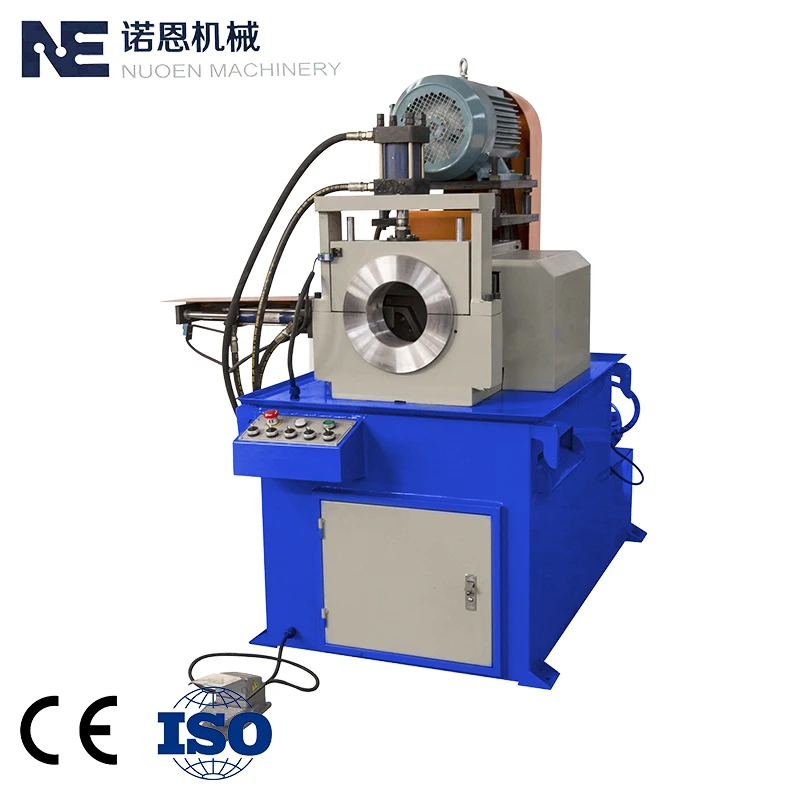

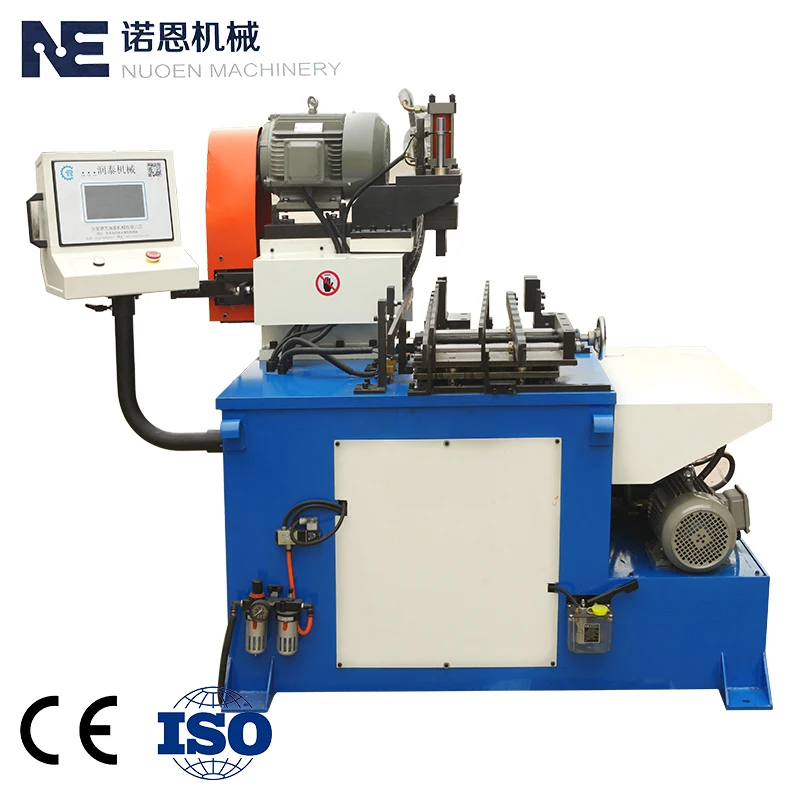

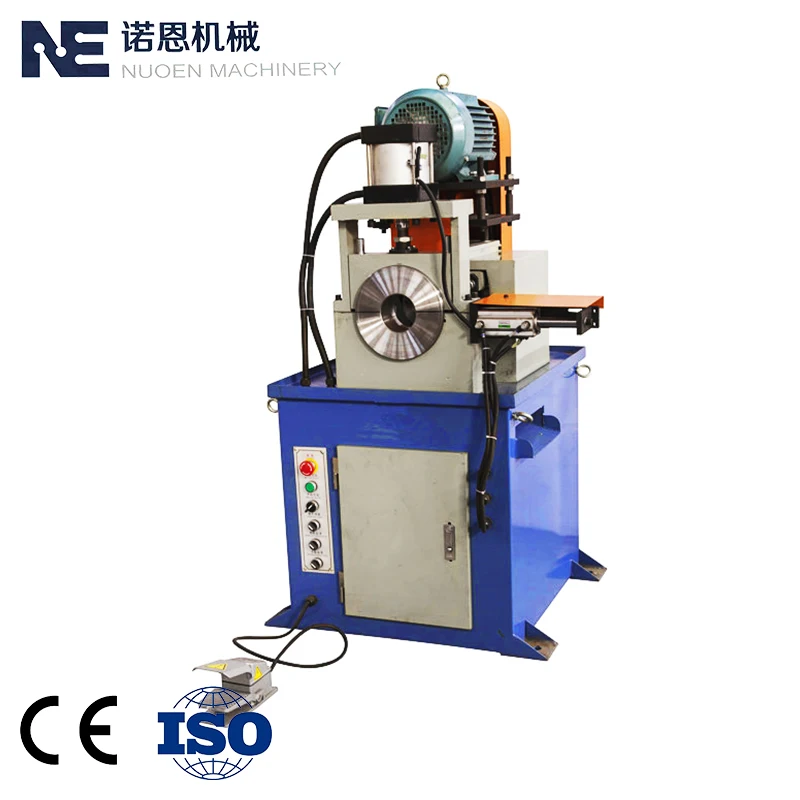

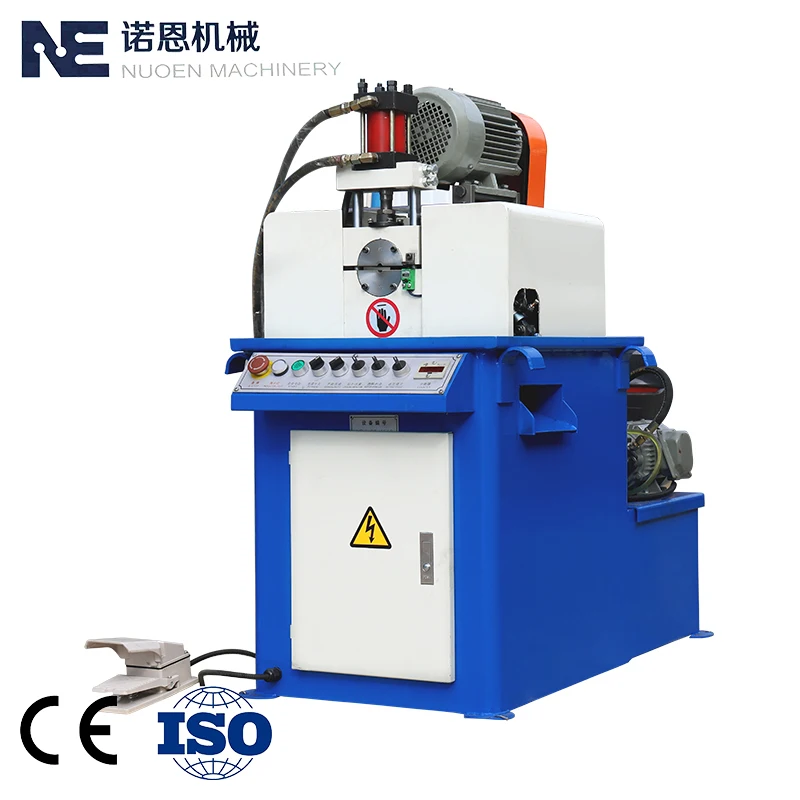

RT 230SA Automatic Hydraulic single end pipe bevel machines Tube Metal Rod Chamfering Machine
- Category: >>>
- Supplier: Zhangjiagang Nuoen Machinery Co. Ltd.
Share on (62118905467):
Product Overview
Description
RT-230SA Single head pneumatic pipe chamfering machine
Tube End Finishing Machines
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Technical Parameters
Model | RT-230SA Pneumatic Single-head Chamfering Machine |
Main Motor Power | 5.5KW |
Working Pressure | Cutting Feed Pressure MPA6-8KG |
Applicable Pipe Diameter | Φ50-Φ230mm |
Processing Length | >60mnm |
Processing Speed | 4-6 sec/piece |
Processing Precision | ±0.1mm |
Applicable Material | Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe and round rod |
