Product Description
Type:SI Series:Outer ring is not supported by drawing clock,divided into six rectangles(SLH)and radio(SLR). These specifications for the various types of drawing-drawing application,apply to the consumption of larger drawing die.
TSL Series:Alloy ring is supported by the drawing,characterized by polycrystalline diamond core and hard-alloy support for the central sintering closely integrated ,supported by the central module to improve the anti-cracking intensity,such products can bear higher strength and speed for the pull.
Details:
Product Code
ADDMA² Code
Total Blank Diameter(mm)
Diamond Diameter (mm)
Diamond Thickness(mm)
Max.Die Recommended(mm)
TSL4015
D12
8.12
4.0
1.5
1.0
TSL4023
D15
8.12
4.0
23
1.8
TSL4029
D18
8.12
4.0
29
23
TSL7040
D21
13.65
7.0
4.0
3.5
TSL7053
D24
13.65
7.0
5.3
4.6
TSL13086
D27
24.13
13.0
5.6
5.8
TSL130116
D30
24.13
13.0
11.6
7.6
Attention:1.Maximum recom recommended die size for soft nonferrous wire,Hard wire diameter mormally should exceed 65% of this diameter
2.Die blanks must be cased below 650℃

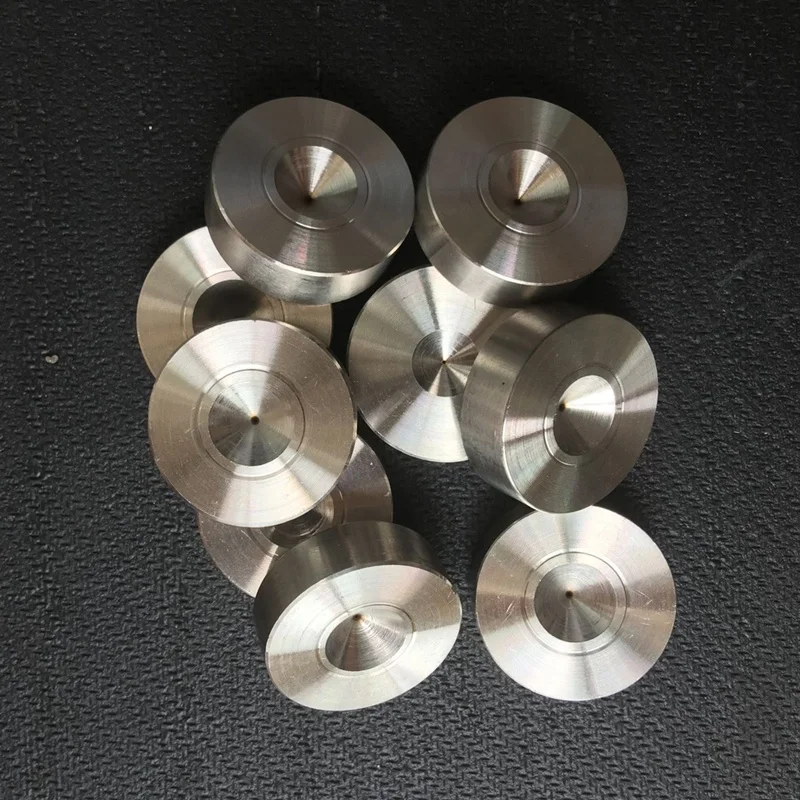

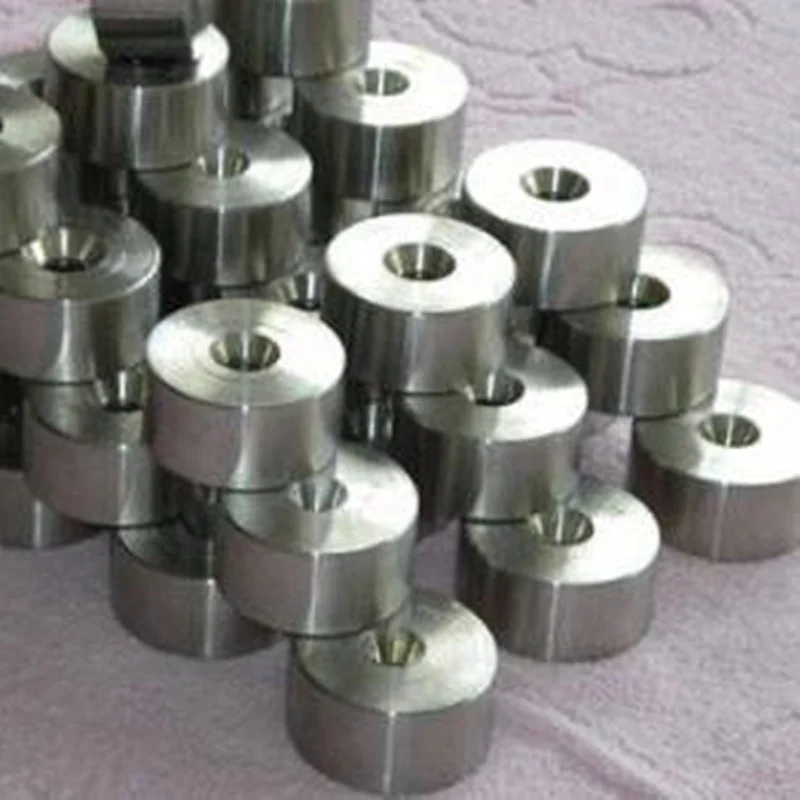

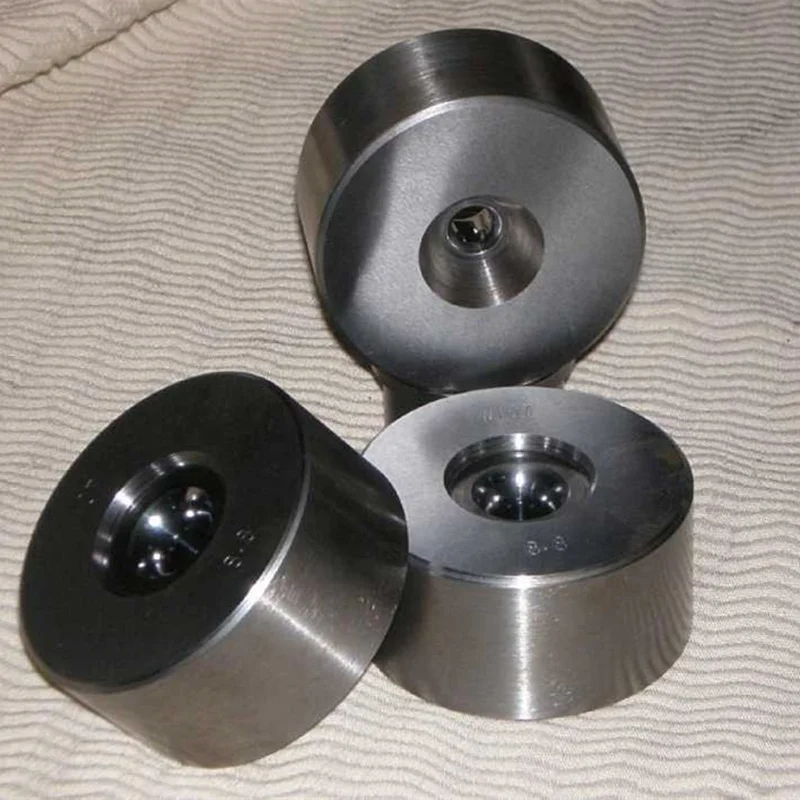

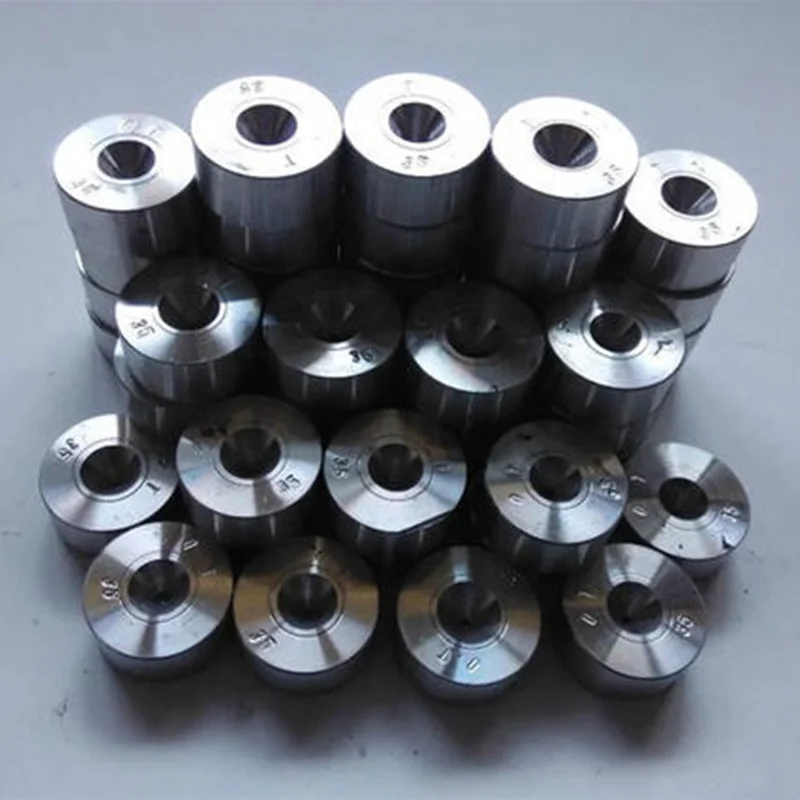

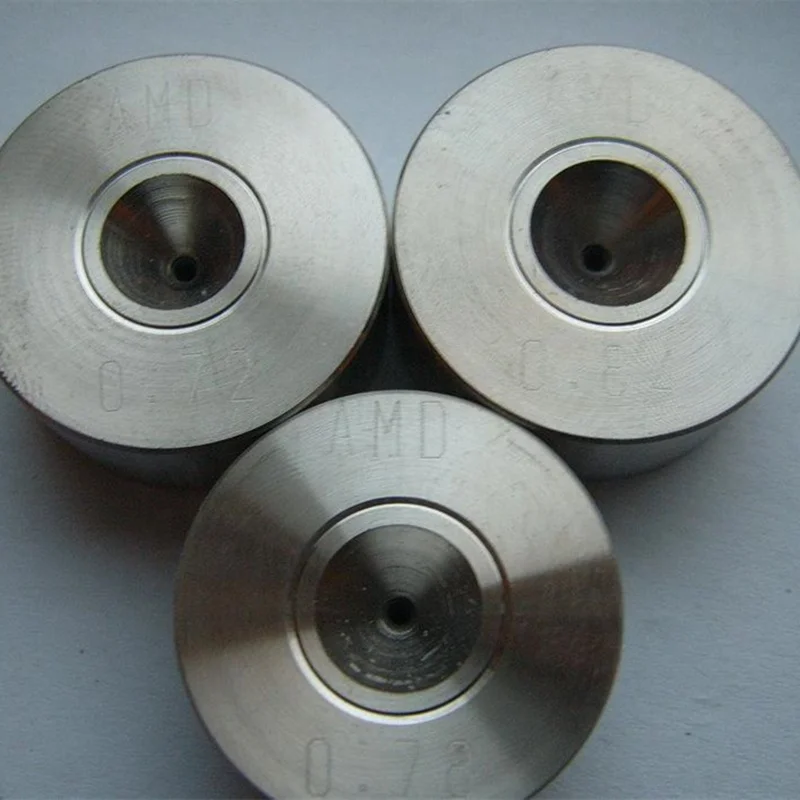

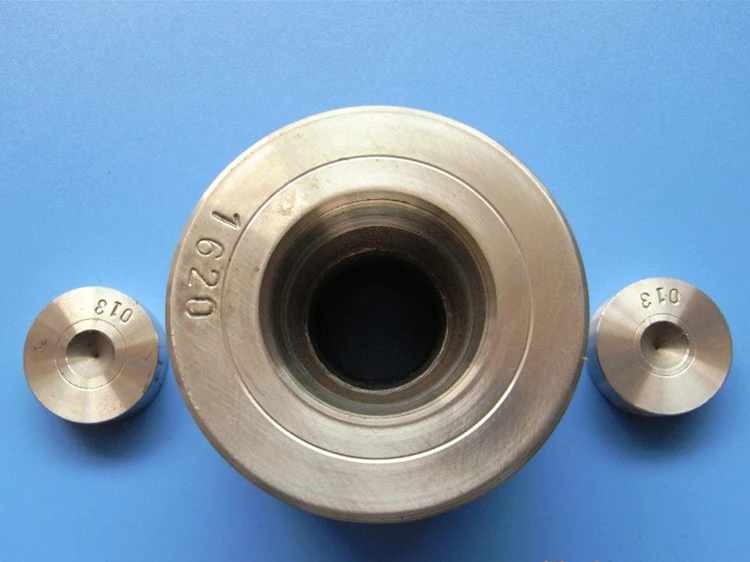

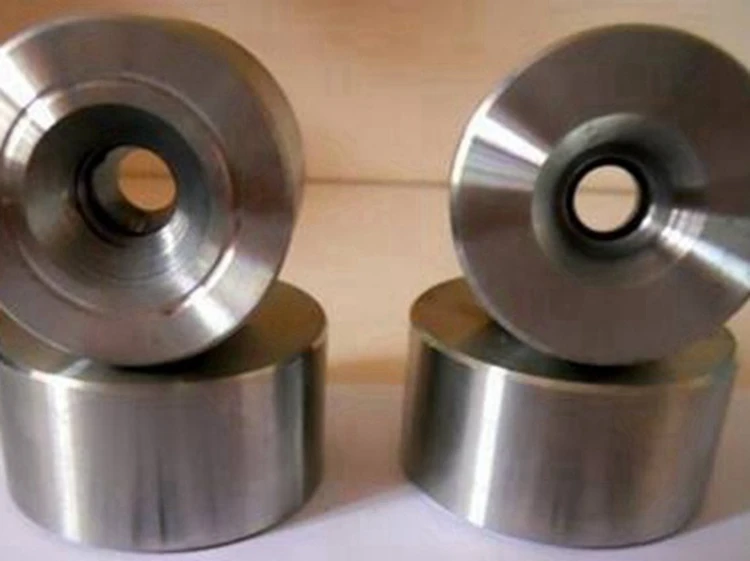

Pictures:
Application:
Widely used in aluminum, copper,stainless steel,nickel,super alloys,tungsten,molybdenum,such as drawing operations.
Advantage:Super wear-resistant,high hardness,high mechanical strength and high thermal conductivity, in drawing applications to be capable of high-impact and long-life.
Packaging & Shipping
Packaging Details:
Plastic bags with bubble sheet covered in paper cartons or as per your requirement
Delivery Time:
3-6 working days after receiving the payment
Our Services
1.In time response on email and telephone calls. 2.Try our best to solve all the customers' questions 3.Implement quality control in all aspects of the producing process. 4.Providing qualified products in strict accordance with the contract 5.Best price at the same quality. 6.Provide a large amount of production to meet customer needs any time
Why us:
1. cost -effective way and fast service to meet yor satisfaction
2. Adequate stock for you
3. reasonable price and high quality to provid for you
4. real people to answer your questions what you really want to know
Company Information

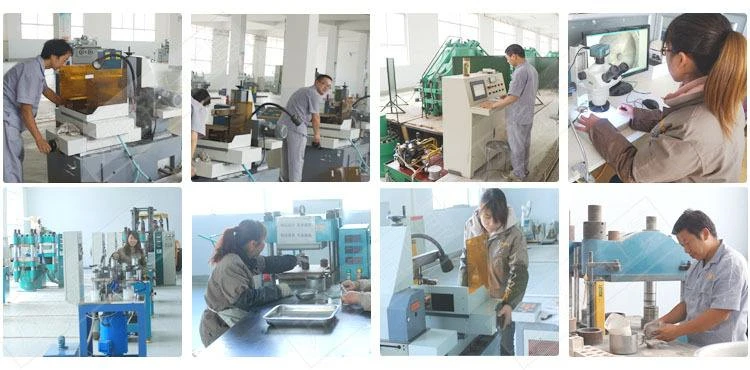

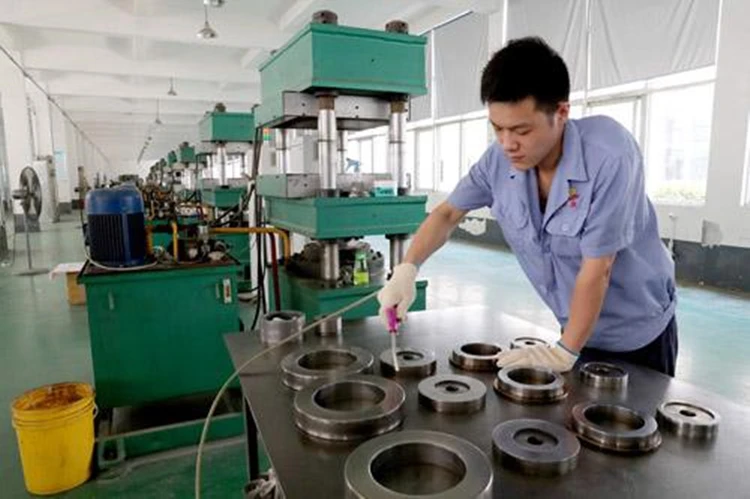

Worker show:

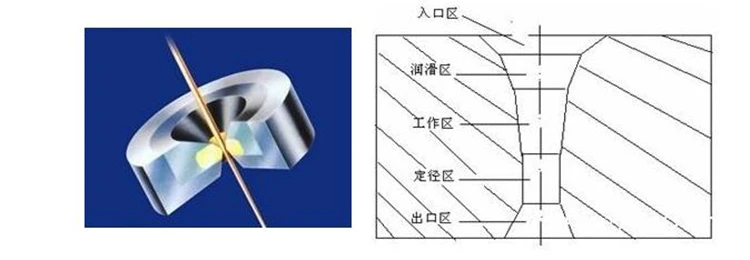

Structure:

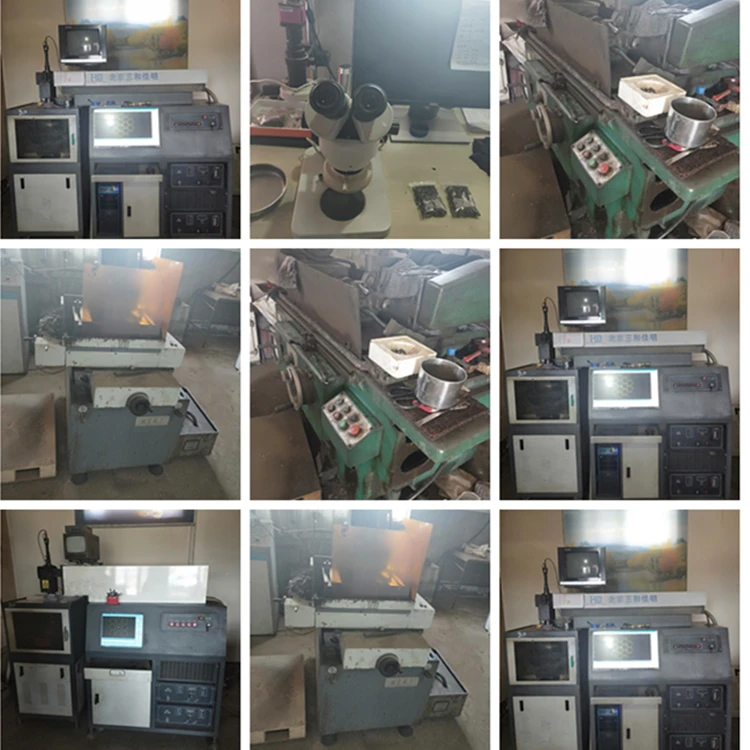

Our Equipment :
Certifications
FAQ
Q. Where is Sparkle Diamond Location ? Is it possible to visit your factory?
A: Sparkle Diamond is located in Zhengzhou China .It is very convenient to visit us,nearing to the xinzheng airport.we are warmly to hoping you visit us.
Q: Is it safe to deal with Sparkle Diamond Company ?
A: Of course, Sparklle Diamond Company have the superior quality and more than 8 years exporting experience.
Q. What are Sparke Diamond Company main products? Can Sparkle Diamond supply custom products?
A: Sparkle Diamond Company main products are PCD and PDC products,all kinds of diamond , such as white or yellow synthetic diamond rough, diamond grinding wheels, cvd /hthp diamond and other related products .we are direct manufactucrer, can easily control the quality and production lead time.
Q. How do Sparkle Diamond Compoany control the product quality?
A: Do not woory aboutt it ,We have a well trained professional QC team, each product have a very strict quality control system
