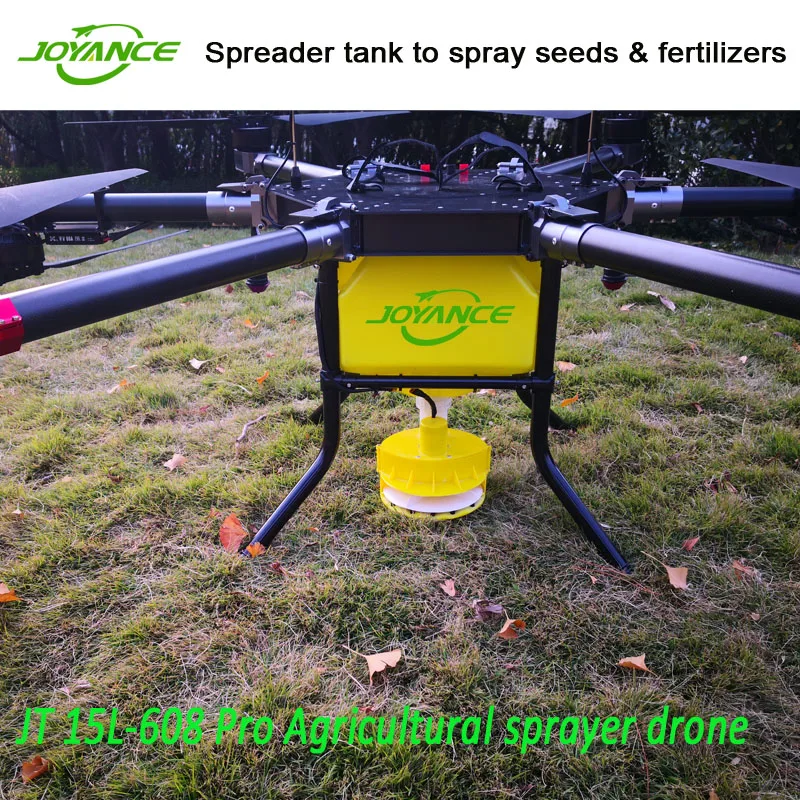

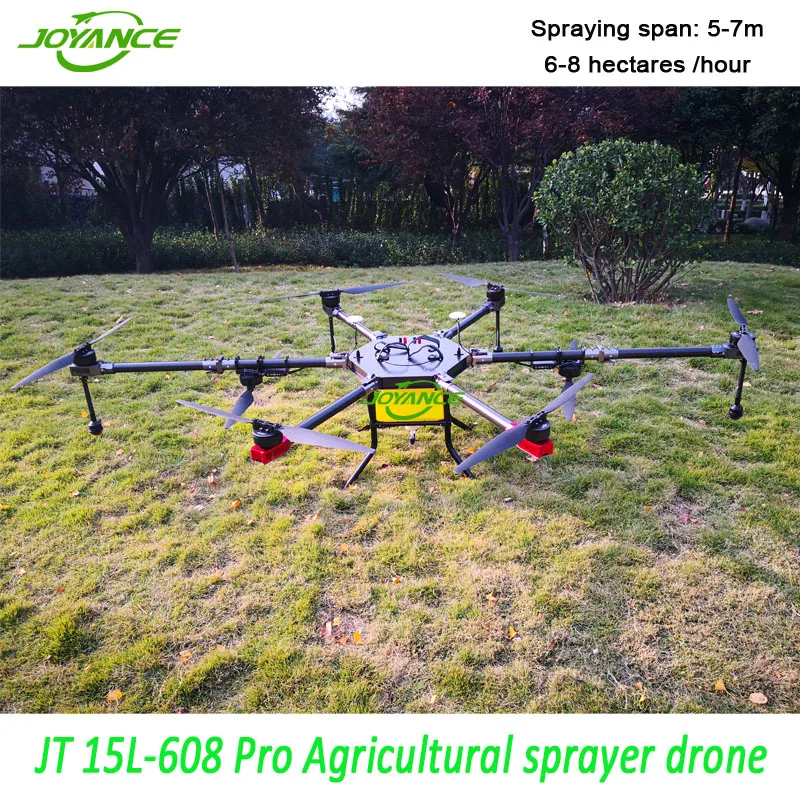

15L 608 pro 15L agricultural spraying drone/aircraft/uav sprayer

Share on (62118928948):


Price:$6,500.00 - $7,100.00

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tProduct description \t\t\t\t\t\t\t

Joyance 5KG,10KG,15KG high payload drone agricultural sprayer easy to be operate



Features of Joyance Sprayer Drone :

1) Efficient Drone width 2.8m; Spraying width 5-7m.

2) Effective. Spraying 2000~3500sq.m/min, 5-7 heactares per hour
With high pressure ceremic vorn nozzles under each propeller, has high penetration.

3) Easy to operate.
A single finger can operate the drones forward and reverse movement at an assigned speed, while maintaining the same altitude and trajectory.

4) Works continuously.
As there are six axles, the drones can work continuously and the even distribution of the workload, allows the motors to easily bear the workload. There's considerable time saving due to the avoidance of a cooling down period for the motors.

5) Quality control.
Before despatch, every drone is 100% tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.


\t
Model
\t
JT15L-608 PRO
\t
Pesticide Tank
\t
15L
\t
Net Weight
\t
15kg
\t
Take-off Weight
\t
32.5kg
\t
Max Take-off Capacity
\t
40kg
\t
Flying Time
\t
10~15min
\t
Flying Radius
\t
0~1000m
\t
Flying Height
\t
0~200m
\t
Flying Speed
\t
0~12m/s
\t
Work Temperature
\t
-10~70°C
\t
Work Humidity
\t
0~90%
\t
Spray Speed
\t
0~8m/s
\t
Spray Width/Nozzle No.
\t
>5~7m / 4Nozzles
\t
Spray Flow
\t
0.2~2L/min
\t
Spray Efficiency
\t
6-8 hectares per hour
\t
Flying Downward Airflow
\t
4~15m/s
\t
Wind Resistance
\t
10m/s
\t
Spread Size
\t
W2.4m x L1.55m x H0.45m
\t

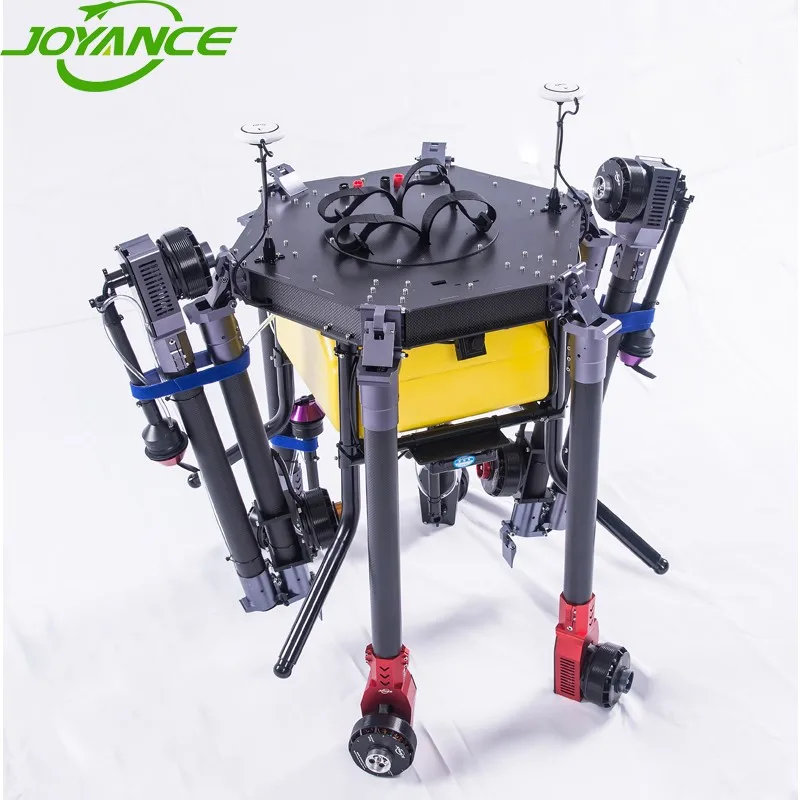

Folded Size
\t
W0.95m x L0.7m x H0.65m
\t

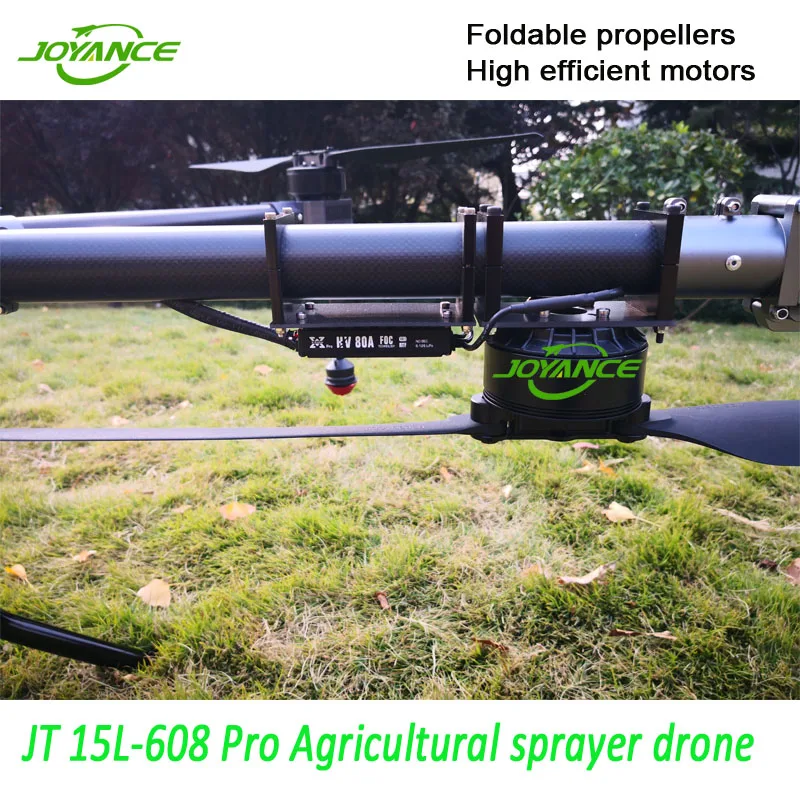

Motor
\t
Brushless
\t
Propeller
\t
Carbon Fiber
\t
ESC
\t
Rapid Throttle Response
\t
Flight Control
\t
V7.1
\t
Remote Controller
\t
datalink 32
\t
Battery / Quantity
\t
6S 16000mAh / 2pcs
\t
Adapter + Charger
\t
8-way Charger
\t
Packing Case
\t
Aluminum Case
\t
Toolkit
\t
Maintenance/Repair Tools

Optional parts

\t
FPV
\t
Fixed Camera + Image Transmission+ 7" Screen + Tripod + Battery + Sunshade
\t
OSD
\t
show flight data
\t
DCU
\t
automatically control spray flow
\t
Terrain following radar
\t
automatically adjust height above crops
\t
Ground Station Software + Radio Telemetry
\t
autonomously flying
\t
Continuous Spraying
\t
extra betteries+extra cahrgers+extra adapters
JT drone features

Ready to fly

Every drone is tested well before delivery, make sure you can fly the drone directly when you receive it.

Efficient

With a joyance sprayer drone, you can spray 40-80 hectares per day with one one person.


Effective
Nozzles under the propellers, big air pressure to spray the fog, more effective.

Electrostatic centrifugal nozzles

Perfect atomization effect, chemical fog droplet is 50-100um. The fog has electrostatic absorption capacity so that it can be evenly absorbed on the surface of crops and achieve better spraying effect. It can be used spray fruit trees.

High pressure nozzles


Droplet is 100-200 um . Italy famous brand ARAG ceramic nozzles with conical spraying way. It is suitable for spraying rice, corns, wheats etc.


Safe protection technology

Failsafe protection

Low voltage alarming, no liquid hover, no signal automatically return to take off place. The voltage number will be shown on the APP all the time.

Break point continue to spray

The drone can return back to the break point to continue the plan after refilling liquid.

Terrain following

With MMA radar, the drone can keep the constant height above crops autonomously.

Spraying mode

A-B line mode spraying

You can mark the A point, B point, and carry out AB line mode, the drone will fly like in the photo, very easy to operate and make the spraying work not boring any more.

Autonomous flight

With Joyance autopilot APP, you can map the field in the app, the drone will finish spraying plan autonomously. Also take off, land, return home, flying data setting, all these will be set up in the app, you can control a drone totally convinient.

GPS and ATT mode

With Remote controller, you can control the drone manually by GPS mode or ATT mode. ATT mode is only for very professional pilots use. GPS mode is stable , taking off and land must be in the GPS mode for normal users.
