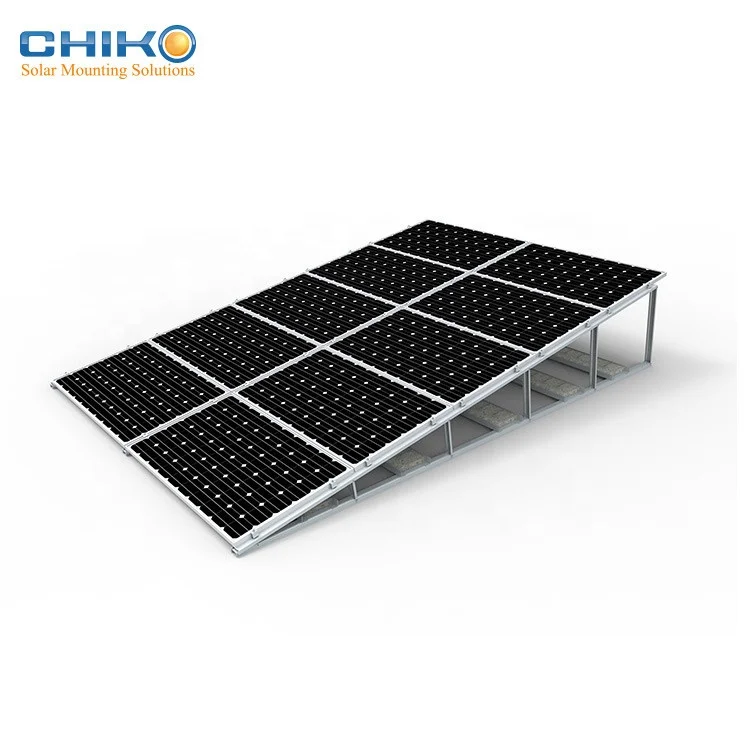

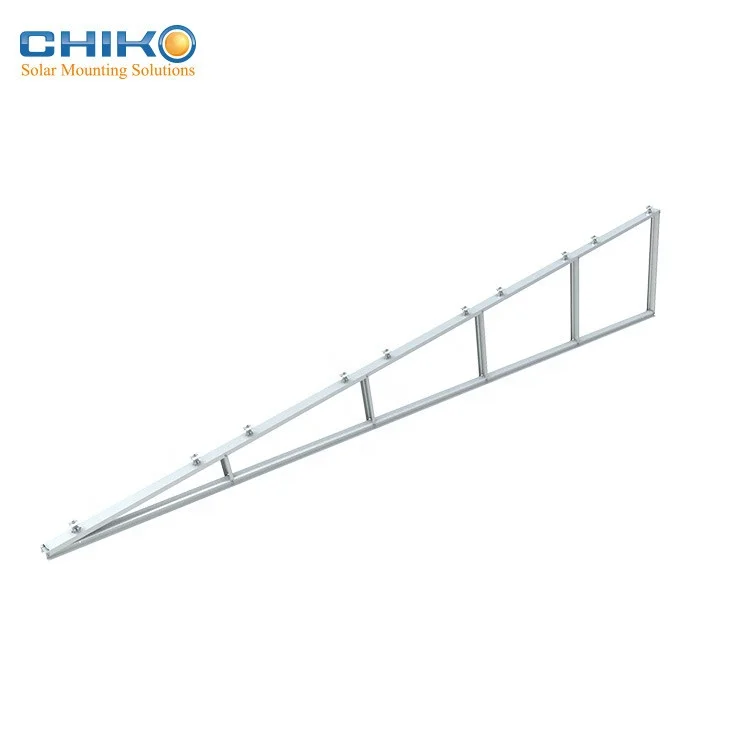

Ballast Racking Flat Roof Solar System 5 Panels Landscape Solar Panel Bracket Mounting Kit
- Category: >>>
- Supplier: Shanghai Chiko Solar Technology Co. Ltd.
Share on (62118955858):
Product Overview
Description
Products Description

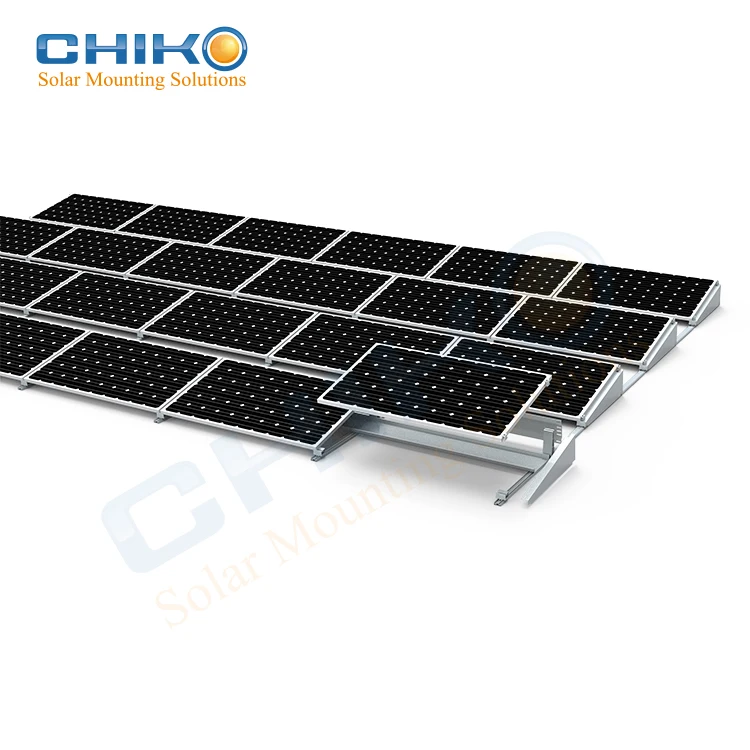

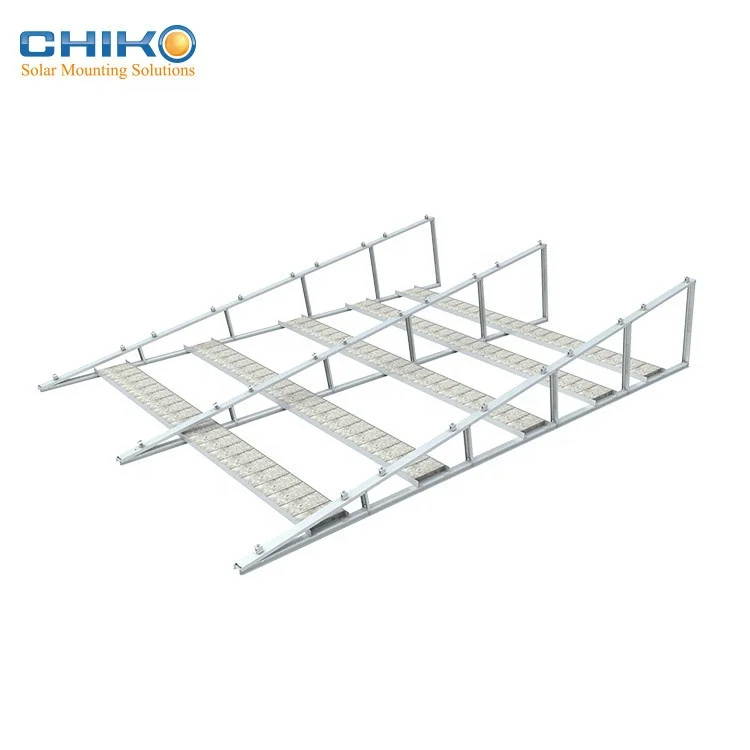

CHIKO Ballast VI Flat Roof Mount
Made from extruded anodized aluminum profile, the Chiko ballast VI system, provide a lightweight solution for almost
all flat roofs solar power plant with a small number of components. The system is designed for easy and quick installation & assembled with only one tool. Variety configuration of solar panel can be built for optimal solution for South-faced roofs, and East-west roofs. Landscape installation.
all flat roofs solar power plant with a small number of components. The system is designed for easy and quick installation & assembled with only one tool. Variety configuration of solar panel can be built for optimal solution for South-faced roofs, and East-west roofs. Landscape installation.
No. | Item No. | Descriptions | Quantity (1x8x4=32 Panels) | |||
1 | CK-BT21-10A-75 | CHIKO Ballast Console I-21 (1xL) 10DEG W/T BOLT | 36 | |||
2 | CK-BT-BSK600 | CHIKO Ballast I Base Row Connector 600mm | 27 | |||
3 | CK-154R4F--(33-45)-40 | CHIKO 154 Mid Clamp 35-45mm | 56 | |||
4 | CK-146R4F-40-40 | Chiko 146 End Clamp 40mm | 16 | |||
5 | CK-BT-BSP | CHIKO Ballast I Base Ballast Carrier | 45 | |||
Quantity will be adjusted upon the spacing and arrays | ||||||
Variability
• Suited for framed Modules.
• Module inclination angle 12°.
• Set on all standard types flat roof, concrete, membranes, bituminous sheeting roofs etc., and up to a max slope of 5° of the
roof.
• Module inclination angle 12°.
• Set on all standard types flat roof, concrete, membranes, bituminous sheeting roofs etc., and up to a max slope of 5° of the
roof.
Optimal Ballast Setup
• Using the same parts to build South setup and East-West setup in landscape.
• Low point loads due to evenly spread load distribution on the roofs and aerodynamic design.
• The wind deflectors are optional to reduce ballast.
• Low point loads due to evenly spread load distribution on the roofs and aerodynamic design.
• The wind deflectors are optional to reduce ballast.
Installation
• Rapid installation thanks to pre-assembed console and low number of parts.
• Only one assembly tool necessary.
• No roof penetration.
• Simply maintenance as the PV modules are quickly and easily accessible at all times.
• Only one assembly tool necessary.
• No roof penetration.
• Simply maintenance as the PV modules are quickly and easily accessible at all times.

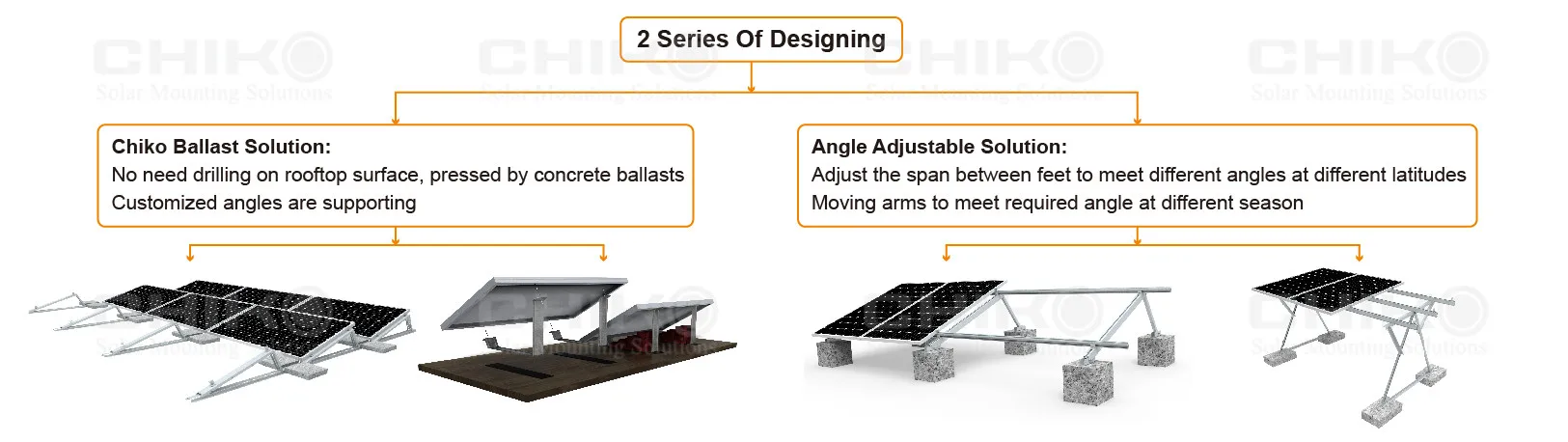

Different ballast method options

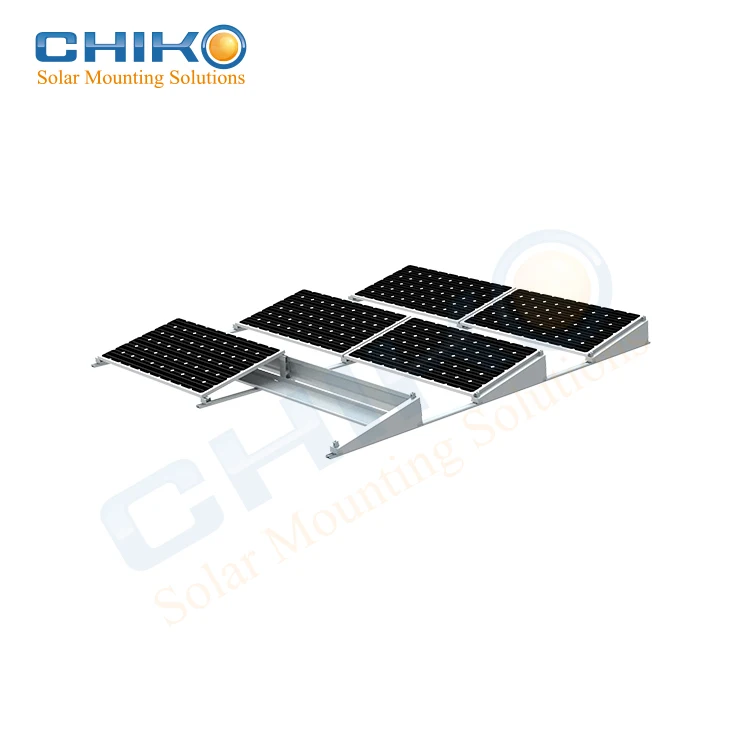

The configuration can be South & East-West
Ballast tray
Ballast plate
Sloted ballast block

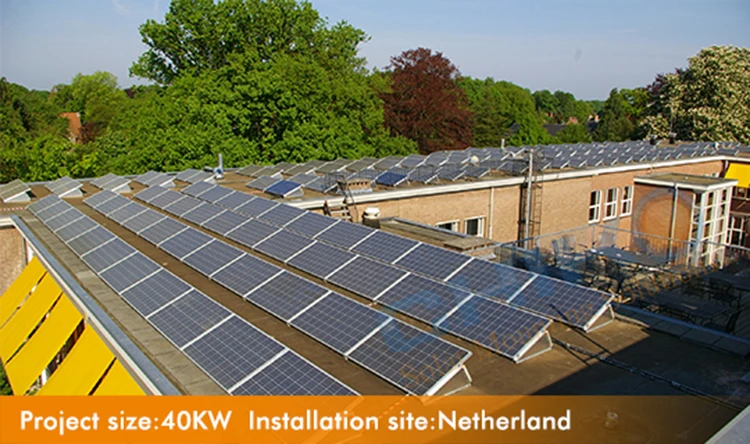

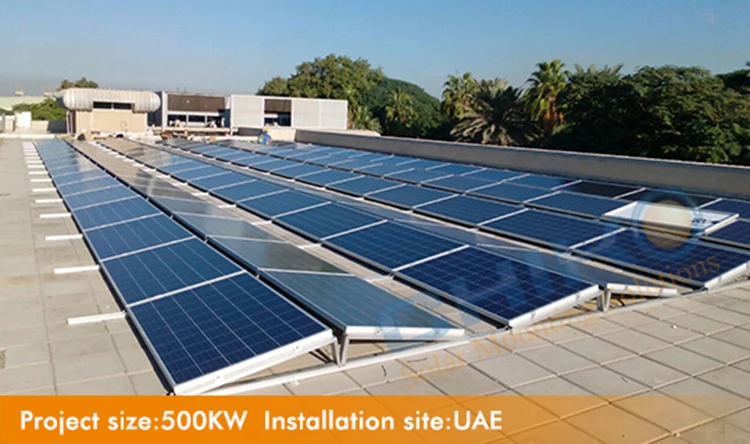

CHIKO PROJECTS
CHIKO focus on manufacturing and design Solar Mounting System for more than 9 years, CHIKO products was installed in more than 60 countries.The customer design is available.
Anything further question and more solution, Contact us !
Anything further question and more solution, Contact us !
Related Products
Our Service
Please provide Project informations as below when inquiry:
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
1. The dimension of your common solar panel? ________(L*W*T)
2. The PV array? _________
3. Max Wind speed in your area? _________
4. Tilt angle require for your area? _________
If you have any special require, Click here to contact us. Our design team will help you make the most suitable solution.
WHY CHOOSE CHIKO ?
• Cost-effective - Factory manufacturing • Installation - Special design is available
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
• Guarantee - Warranty 10 years and service life up to 30 years
• Delivery - Globally warehouse
Packing&Shipping
CHIKO Packaging: Put Warranty Chiko solar mounting products into CHIKO standard carton/ wooden pallet/ other customized packages
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
CHIKO Shipping Lead-time: 1-2 weeks after the order payment confirm
Company Introduction
CHIKO Solar designs and manufactures high quality solar mounting systems for pitched roof, flat roof and groundopen areas. Whether for small or large-scale projects, standard models or tailor-made systems, we deliver what your need.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
CHIKO Solar is a leading manufacturer in solar industry. We provide design & manufacture & sales & service customers support from our head quarters in Shanghai.
We are working with companies from USA, Mexico, Germany, UK, Brazil, Korea, Thailand, Australia, South Africa,Japan etc to provide best services.We are proud of the fact that more than 4GW solar project from worldwide used CHIKO mounting systems.
Exhibition
Quality Control
With CHIKO, you will meet leading highest standard quality. All of our Aluminum profiles are made 6005 T5 with surface protection anodic oxidation 12-15 micron (µ), hooks and bolts are made of Stain- less steel 304.Ground mounting systems that made of Q235 steel will be hot dip galvanized with a averagethickness 80 micron (µ).
Production Certification
CHIKO Solar have obtained product certifications, and management system endorsement granted and approved by leading testing agencies including UL SGS Gamcorp MCS Intertek, SPAD etc. Our product designs are based on the following Australian Standards and sections of Building Code of Australia relevant to structural issues.
