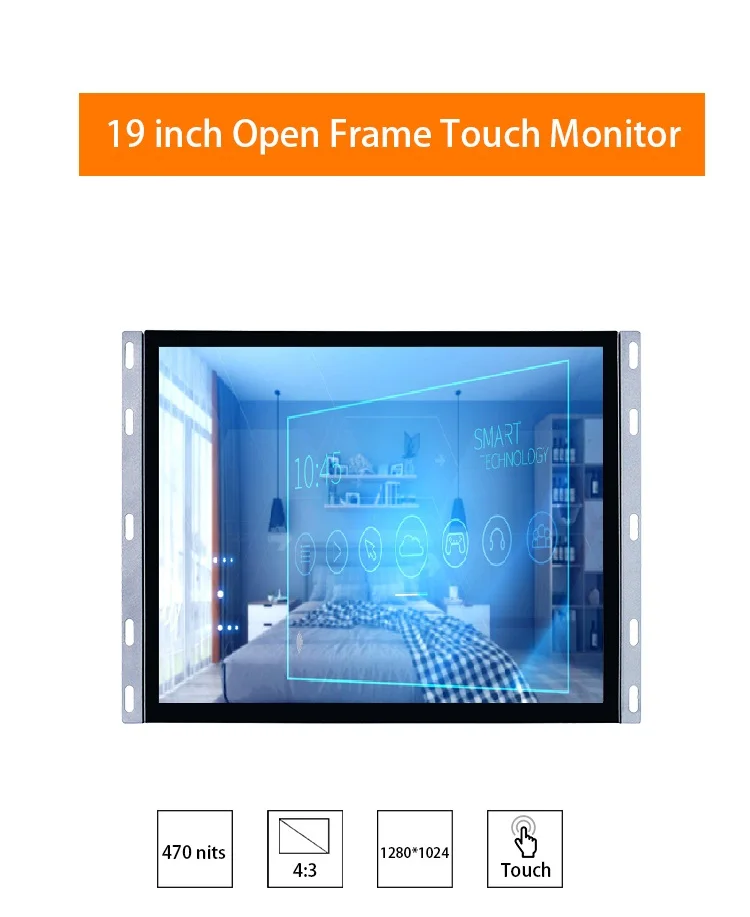

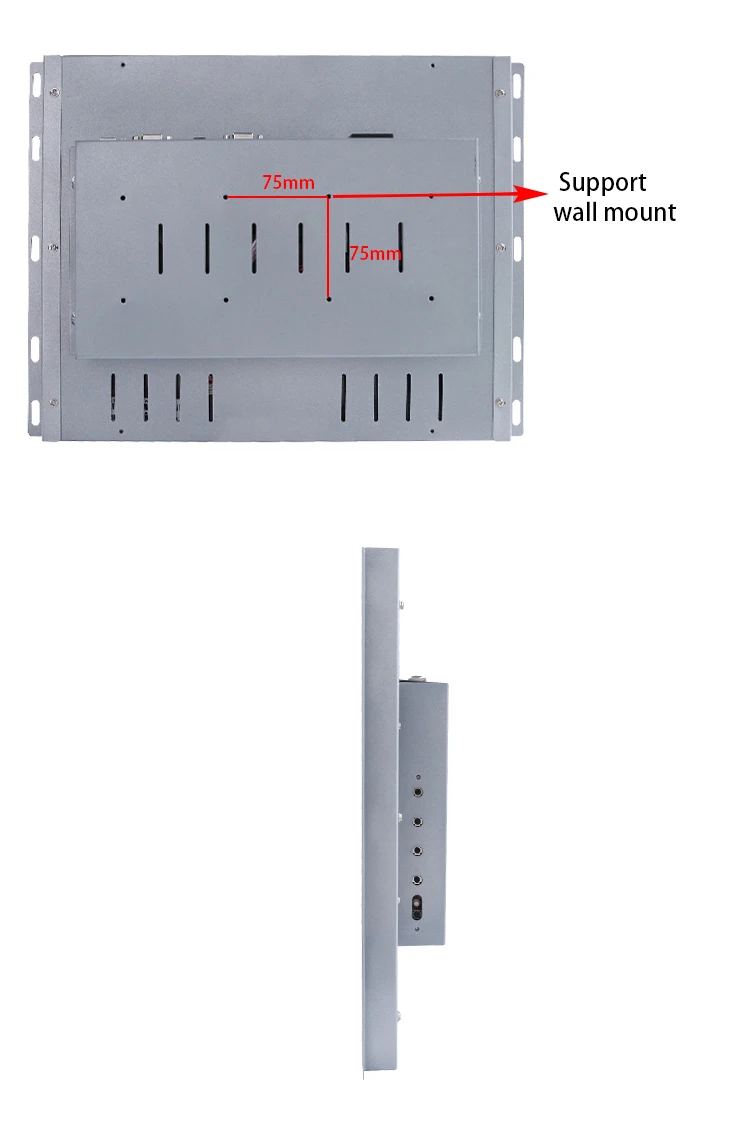

Manufacturer wall mount monitor 19 inch touch display monitor with wifi
- Category: >>>
- Supplier: Shenzhen Bvsion Technology Co. Ltd.
Share on (62119320488):
Product Overview
Description
OEM Service
Product Description
Parameter List
| Size | 19 Inch |
| Brand | BVS |
| Panel | Sharp |
| Resolution | 1280(RGB)*1024(SXGA) |
| Display Size | 376.32×301.56 mm (H×V) |
| Opening size | - |
| Brightness(cd/m2) | 470cd/m2(Typ.) |
| The Best Angle | IPS |
| Visible Angle | 85/85/85/85(Typ.)(CR≥10) |
| Color Threshold | 16.7m,90%[CIE1931] |
| Weight of Panel | 1.30Kgs(Max.) |
| Refresh Rate | 60Hz |

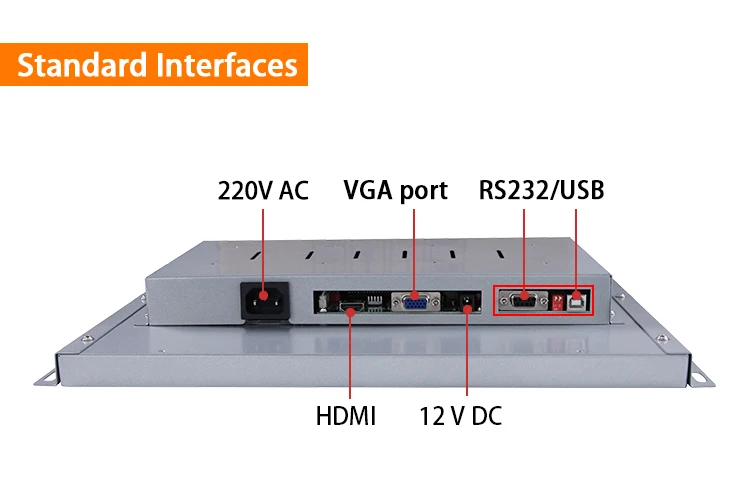

| Signal | LVDS(2 ch,8-bits), Terminals,30 Pins |
| Supply voltage | 5.0V(Typ.) |
| Maximum Rated Temperature | Storage:-25 ~ 60°C; Working:0 ~ 60°C |
| Screen | LCD module,a-Si TFT-LCD |
| Pixel Arrangement | RGB Vertical Strip |

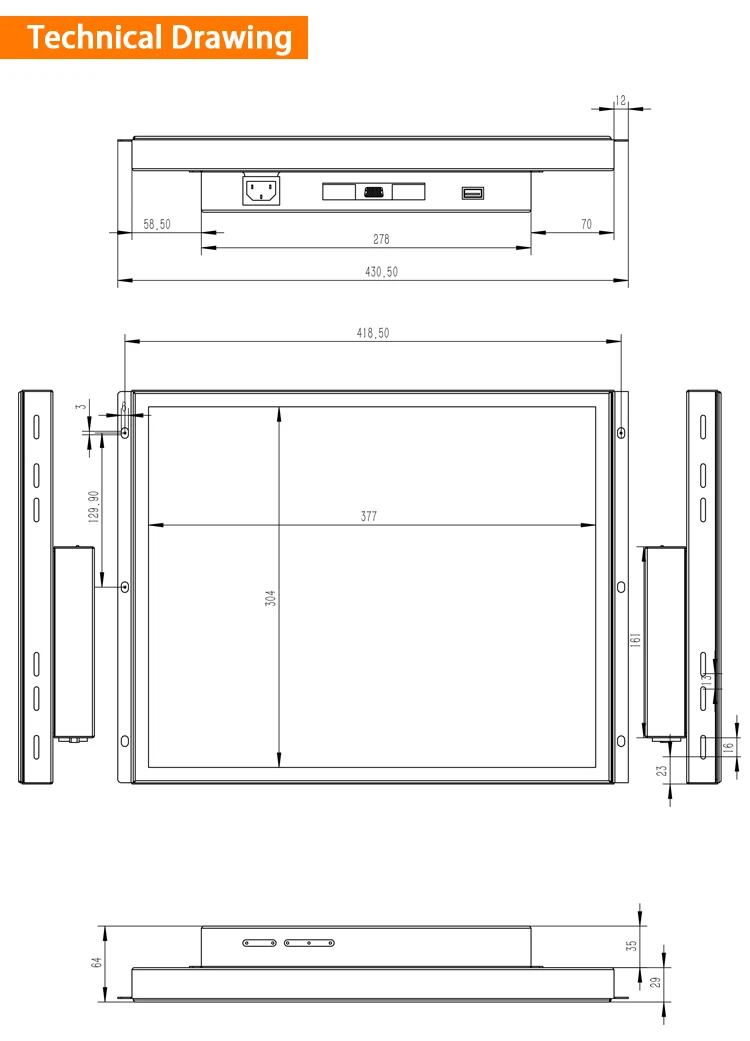

| Overall Size | 396×323.5×12 mm(H×V×D) |
| Surface | Fog face(Haze 3%),Hard-coating(2H) |
| Contrast | 1500:1(Typ.)[Transmission] |
| Display Mode | ASV,Normally Black,Transmission-type |
| Response Time | 35(Typ.)(Tr+Td) ms |
| Backlight Type | WLED, 50K Hours, LED Driver |
| Application | Advertising display/Medical/Self-service terminal/kiosk/digital signage |

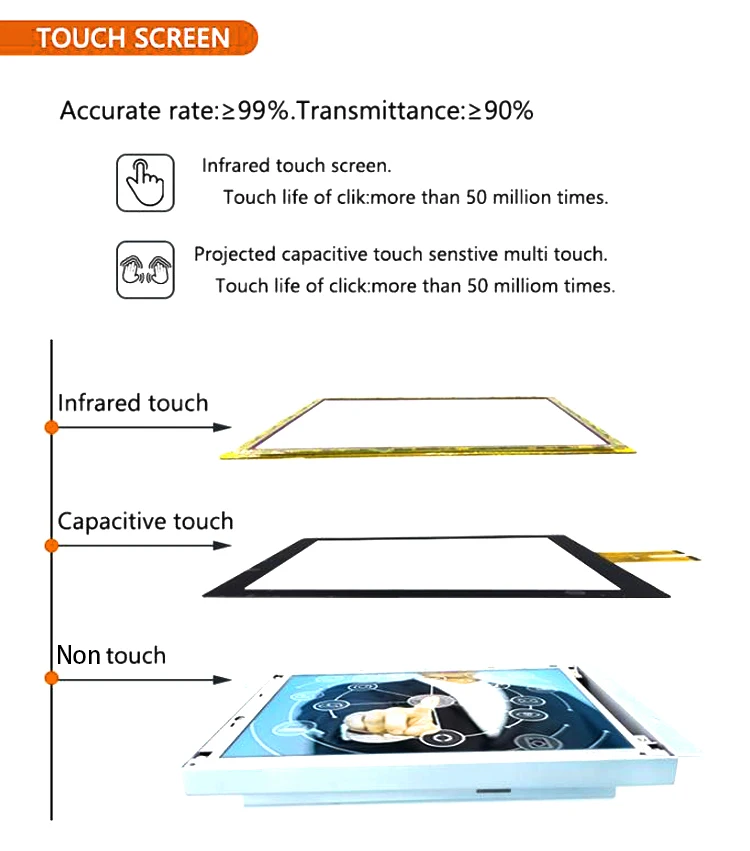

| Touch | 3M RS232(Standard),USB/RS232(Optional) |
Company Information
FAQ
FAQ:
1. Q: Do you accept Alibaba Trade Assurance?
A: Yes, we accept.
2. Q: Are you a factory?
A: Yes, we are a factory. we produce tablet pc since 2011.
3. Q: How much extra cost for your OEM order?
A: No extra cost for our OEM service if the order qty over 50pcs.
4. Q: How long is the leading time?
A: 3-5days for sample orders. 5-7days for mass production orders
5. Q: How will you ship the goods for me?
A: Ship by air by sea and express. We cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
