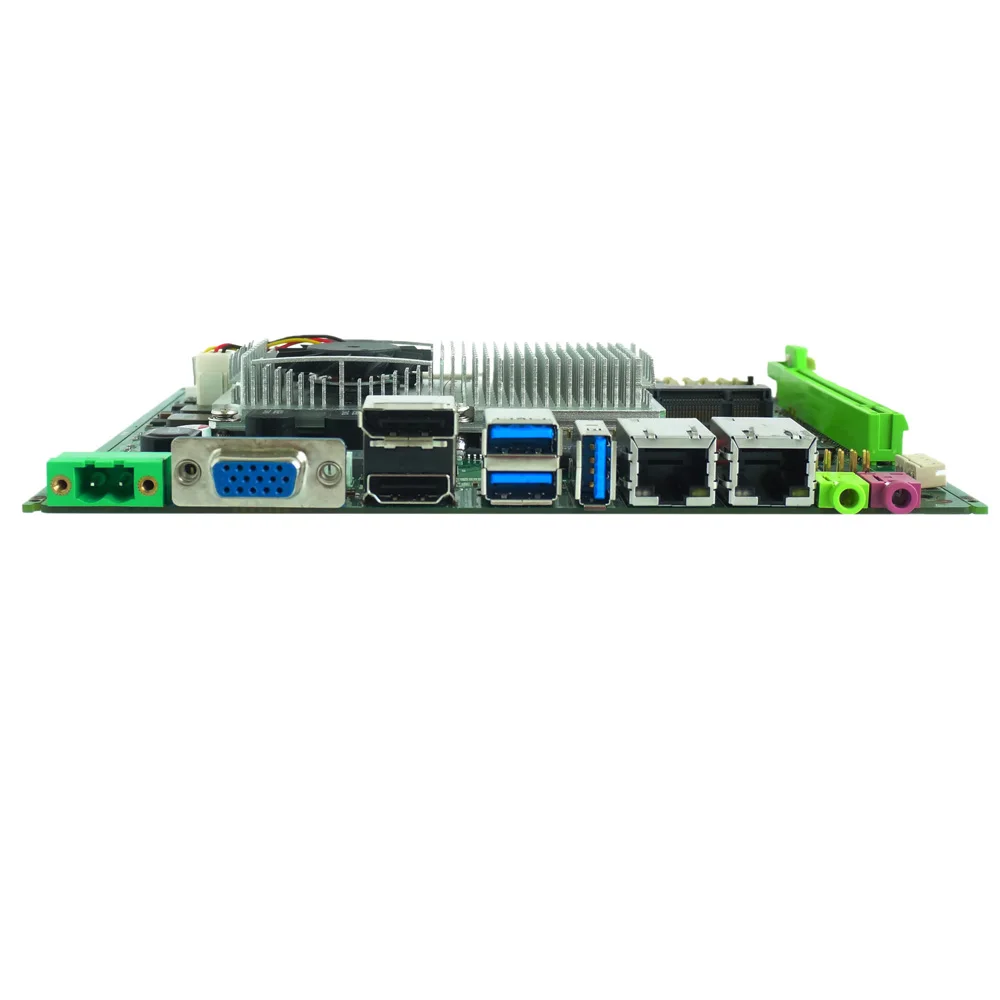

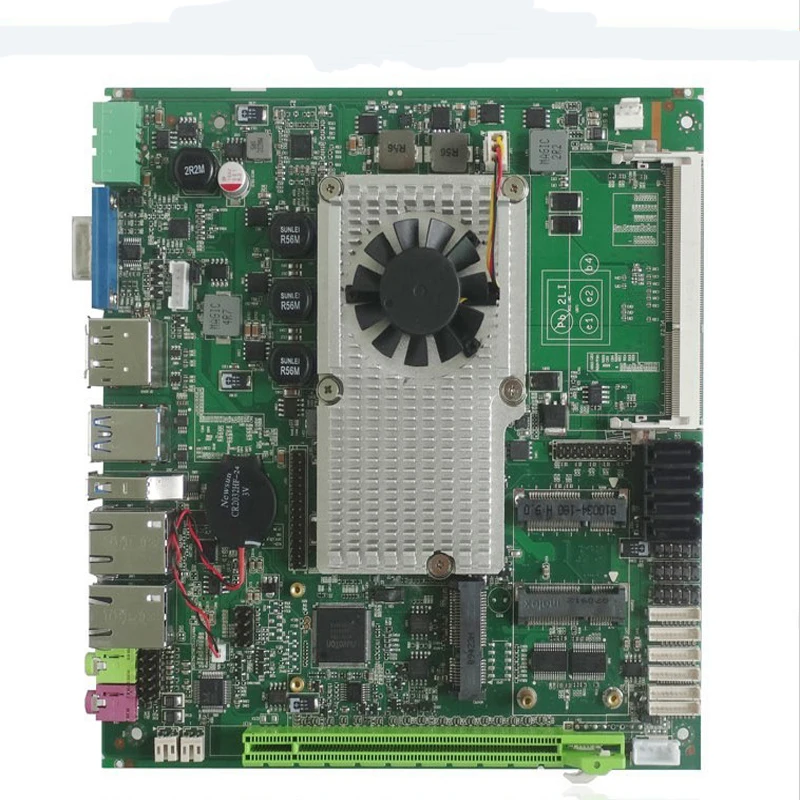

Industrial Motherboard support 4GB/8GB/16GB RAM Maximum RAM intel core i3 i5 i7 CPU Desktop Motherboard
- Category: >>>
- Supplier: Shenzhen Lingjiang Computer Technology Co. Ltd.
Share on (62119644483):
Product Overview
Description
Motherboard support 16GB Maximum RAM Capacity and support intel core i3 i5 i7 processor Desktop Motherboard
Product Description
u Windows7 mini car PC with dual display
u Ultra fan design and no cable design, good at shockproof
u Support RS-485 & WIFI & 3G & HDMI, it's a multi-function industrial embedded computer.
u Supports Intel Core I3/I5/I7 CPU , and Intel SATA SSD Compatible
Features:
u Wide Operating Temperature(-20-60 Celsius degree), storage temperature (-40-60 Celsius degree)
u Ultra Low Power and Fan Design
u Support One VGA/HDMI /EDP Outputs
u Support Optional WIFI Connection
u Wide Range DC Power Input
u Rugged Design for Shock/Vibration Protection
u Easy Installation/Maintenance
u Intel SATA SSD Compatible
| Features | |

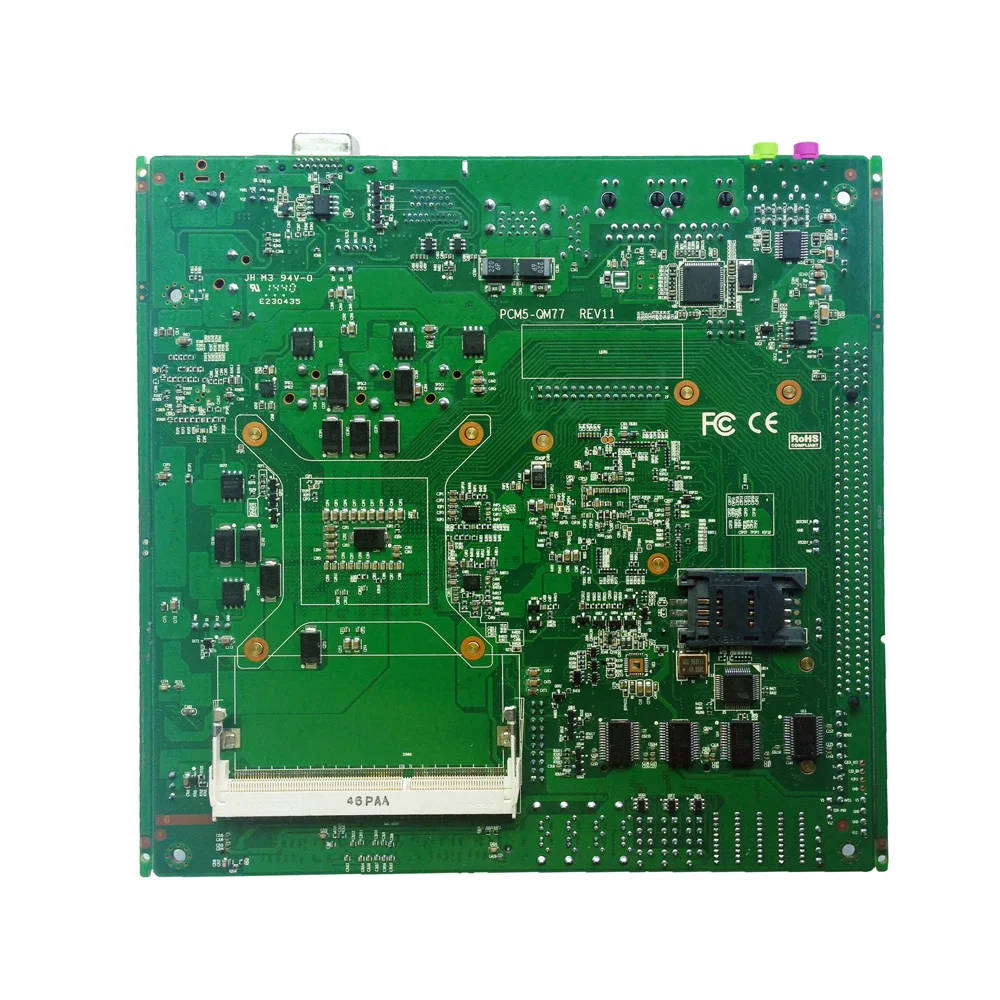

| Model Name | PCM5-QM77 |
| Mechanical | |

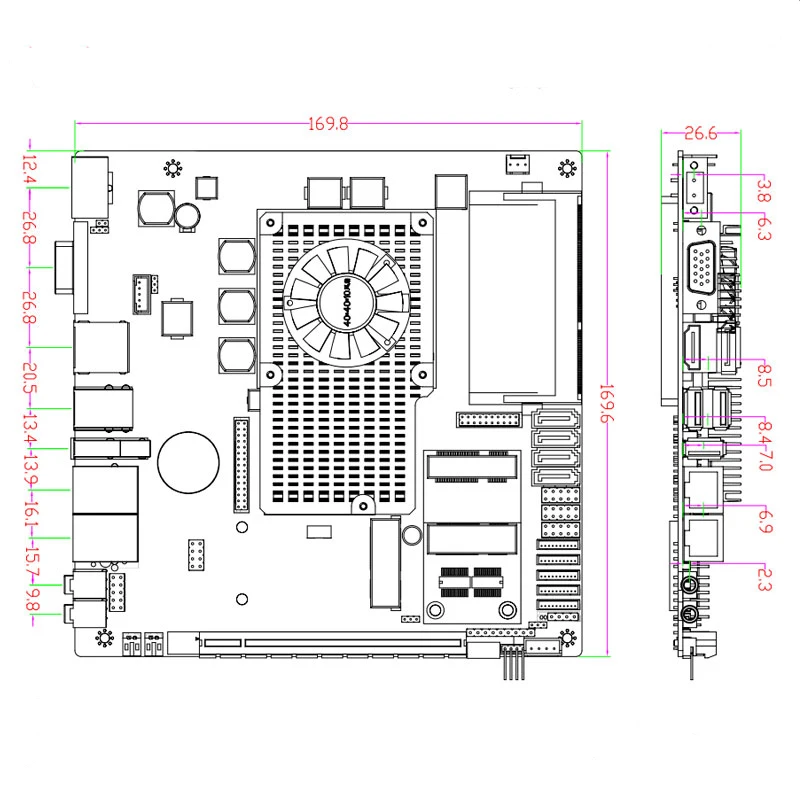

| Dimensions | 170 ×170(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.35kg(Including Heatsink) |
| Thermal methods | Fan |
| Working Temp | Working Temperature:-20℃-60℃,Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃-60℃,Storage Humidity:5% - 95% |

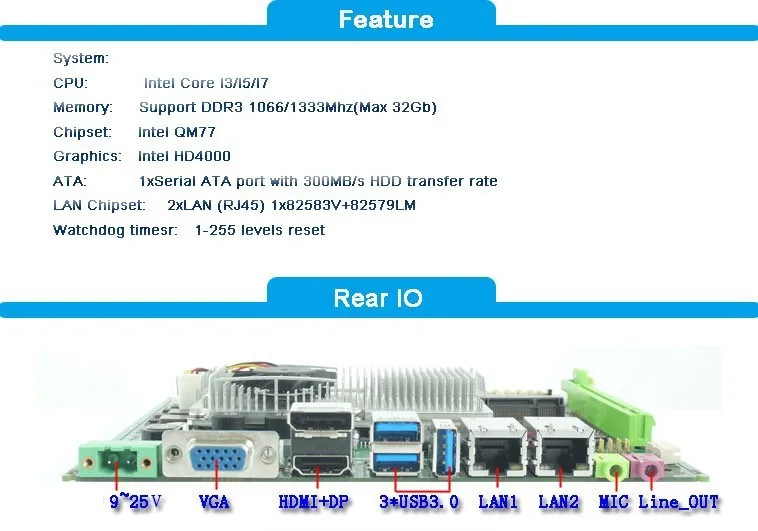

| System | |
| CPU | Without CPU (Default) Supports:Intel Core I3-3110M,2.4GHZ, 35W Intel Core I5-3210M,2.5GHZ-3.1GHZ,35W Intel Core I7-3610QM,2.3GHZ-3.3GHZ, 45W |
| Chipset | Intel QM77 |
| Memory/RAM | 2xDDR3,Optional 2G/4G/8G/16G/32G/ |
| SATA | 4×SATA3.0,1×M-SATA |
| System | XP/Win7/Win8/Win10/Linux |
| I/O | |
| Lan | 2×10/100/1000Mbps RJ45, Integrate intel 82583V/82579LM Chip |
| Serial ports | 6*COM(1×RS485/422 PIN,5×RS232 Inner) |
| USB | Onbaord 3×USB 3.0,6×USB 2.0 Pin |
| GPIO | 1×GPIO 8Bits(4in/4out) |
| Display | Onboard 1×VGA/1×HDMI/1×DP,18/24 LVDS/1×EDP PIN, Integrate Intel HD4000 Video Chipset |
| Audio | Onboard1×MIC-in Connector,1×Line-ou Connector, Interate ALC892 2×2W AMP(Inner) |
| Touch function | 1(4/5/8 wire) |
| Others | Fan Connector, 2×min-PCIE(Wifi/3G/4G,1×SIM Slot) |
| Warranty 12 Months | |
| Order information | |
| Model Name | PCM5-QM77 |

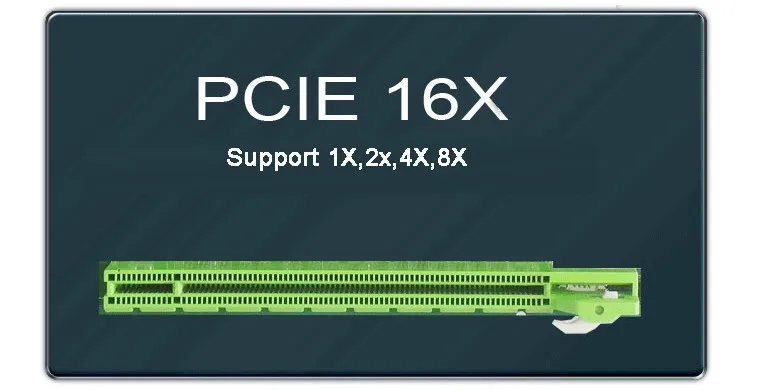

| Standard Configuration | 2×LAN/1×VGA/1×HDMI/1×DP/1× EDP/6×COM 1×18/24 Bit LVDS/1×GPIO/4×SATA3.0/1×MSATA 2×MPCIe/1×PCIE 16X/1×SIM Slot/1×AUD Power Touch Screen Control(4/5/8 Wire) |
| Standard Accessories | 5×COM Cable/1×SATA Cable/1×SATA/Power Connector Cable/Fan Heatsink. |
| Optional | Intel Core I3-3110M/I5-3210M/I7-3610QM CPU RAM 2G/4G/8G/16G/32G/SSD 16G/32G/64G/128G/256G/Wifi/3G/4G |
Product Description
Embedded Mini Itx Motherboard With Intel Core I5 Processor PGA988 Scoket
Features:
Wide Operating Temperature(-25-70 Celsius degree), storge temperature (-40-80 Celsius degree)
Ultra Low Power and Fanless Design
Support One VGA/HDMI /EDP Outputs
Support Optional WIFI Connection
Wide Range DC Power Input
Rugged Design for Shock/Vibration Protection
Easy Installation/Maintenance
Intel SATA SSD Compatible
Packaging & Shipping
Normal Packing:23*21*7 Cm/ carton
Packing List: CD Drivers;Sata cables
Shipping:We accept Fedex;DHL,UPS,TNT
FAQ
Payment:
We accept T/T, WESTERN UNION, MONEY GRAM,
Shipping
We always use DHL, Fedex or EMS.
OEM
We Accept customerized OEM if quantity is not small.
WARRANTY TERMS
We provide 1 year waranty
Warranty:
l 18 months warranty,
l If the product is defective ,please notice us within 3 days,After received.please don’t open dispute without communication.
l If you are not satisfied our products,please return it within 7 days for a replacement or request refund, please contact with us before return.BTW, when the product return to us, Please charge the shipping fees by yourself.
l All the products are tested 100% original new and tested well before shipment.
l Your satisfaction and positive feedback is very important to us.
l If you have any questions with our products and service,please feel free contact with us.We will do our best to solve any problems and provide our best service.
l If the product is defective ,you can ship it back to us,we will ship a replacement to you when the returned one arrival to us.
