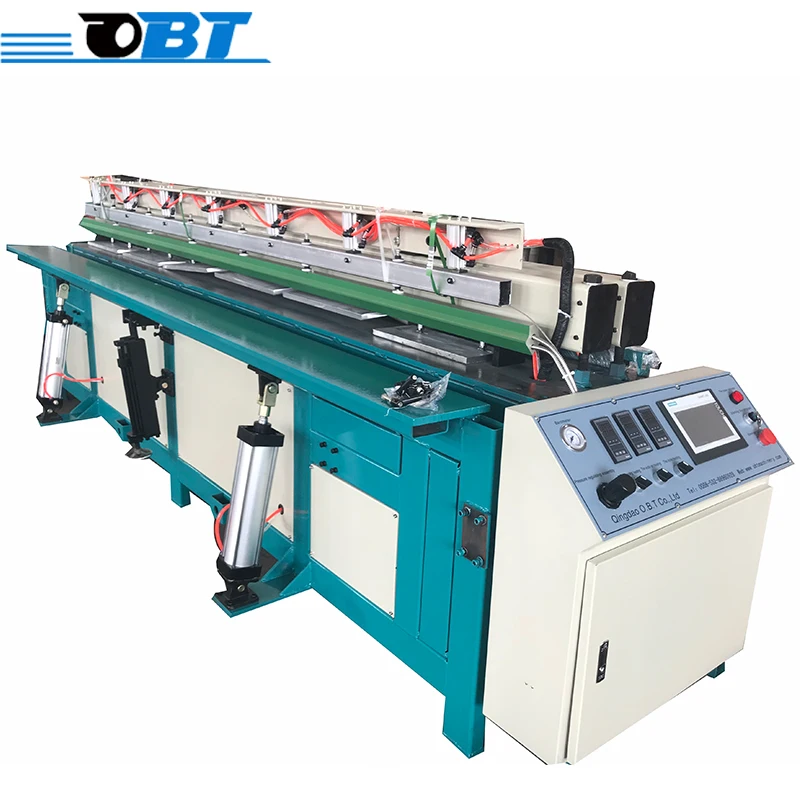

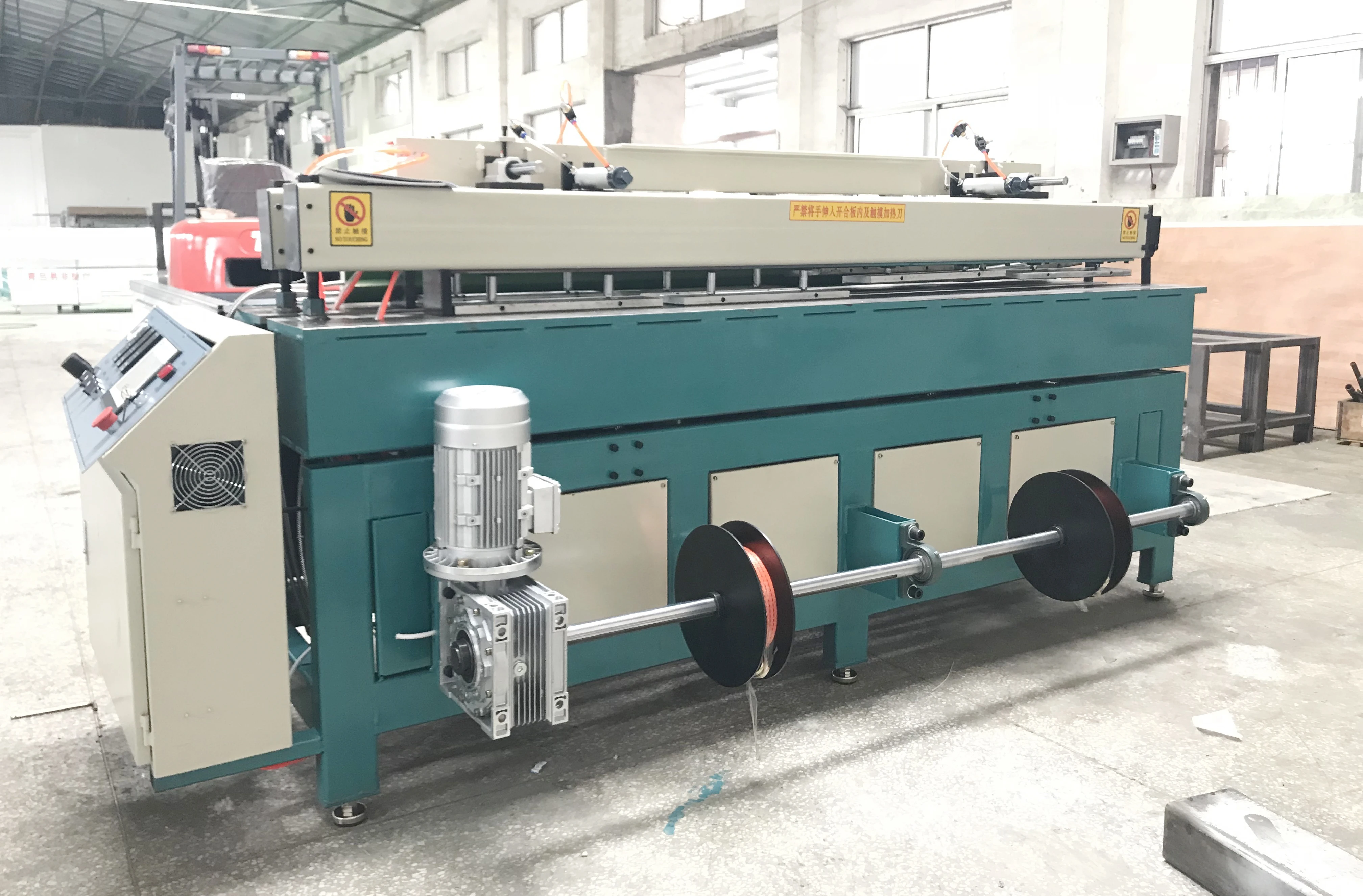

Automatic hot press high frequency pvc HDPE plastic sheet welding machine

Product Overview

Description

 Welcome to OBT, I hope you can pick the right product, you can see a working video of our product first. follow us to visit our product and company~

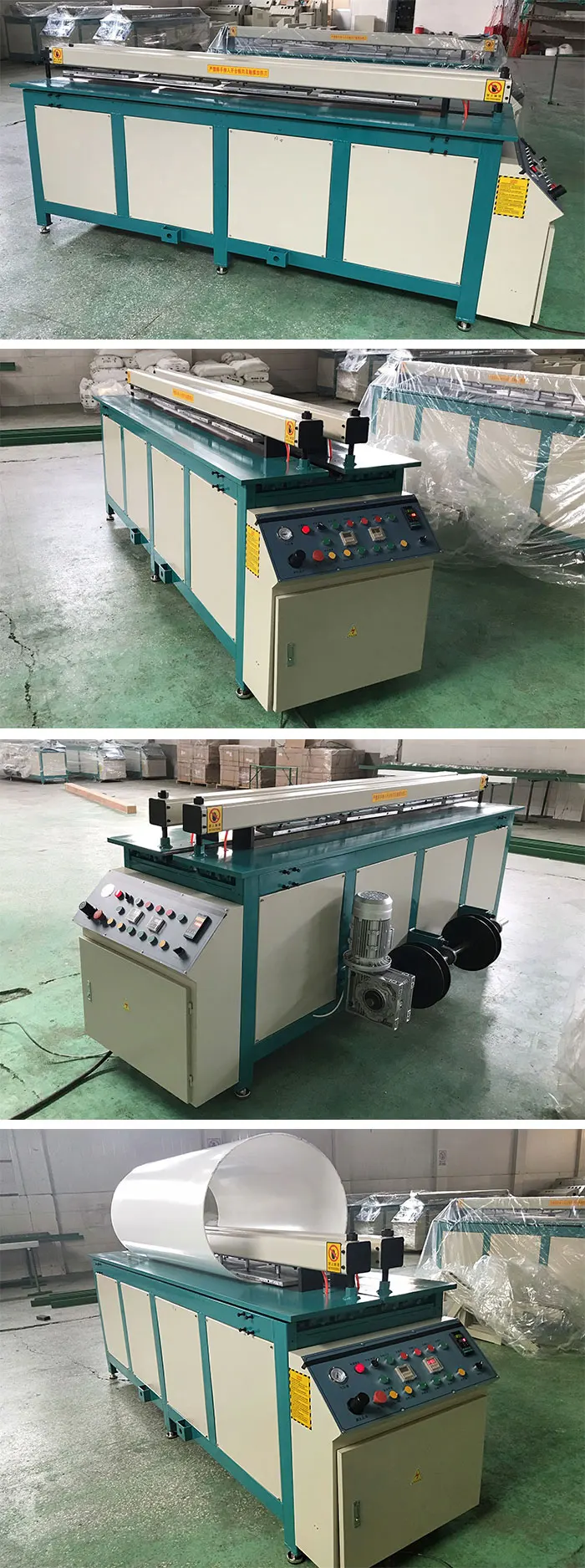

Our plastic sheet welding machine picture and specifications

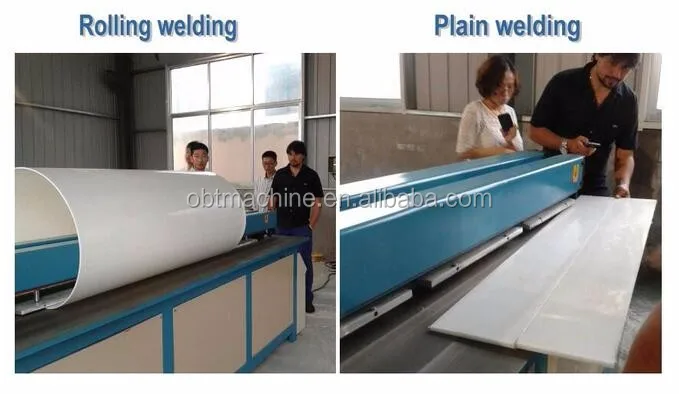

The plastic sheet welding machine is of our own design, with Germany technology applied. This model is accurate, efficient & easy-to-use, and can be used to weld in horizontal and circular position and perform joints as well.

Model	OBTPH2000		OBTPH3000		OBTPH4000		OBTPH5000		OBTPH6000
plate thickness(mm)	3-30		3-30		3-30		3-30		3-30
welding effective length(mm)	2000		3000		4000		5000		6000
Minimum diameter(mm)	380		400		450		550		550
Gas source pressure(kg.f/cm2)	4to8		4to8		6to8		6to8		6to8
Energy source(M fand/min)	0.0032		0.0052		0.0062		0.0068		0.0075
Rated voltage(V)	380		380		380		380		380
Heating method	whole heating		whole heating		whole heating		whole heating		whole heating
Heating power	4KW		6KW		8KW		10KW		12KW
Winding motor power	1.5KW		1.5KW		1.5KW		1.5KW		1.5KW
Tensile strength of welding	≥95%		≥95%		≥95%		≥95%		≥95%
Dimensions(mm)	2850*1200*1200		3800*1200*1200		4850*1200*1200		5850*1200*1200		6850*1200*1200
Suitable material	PP  PVC  PVDF  PPN  PE etc

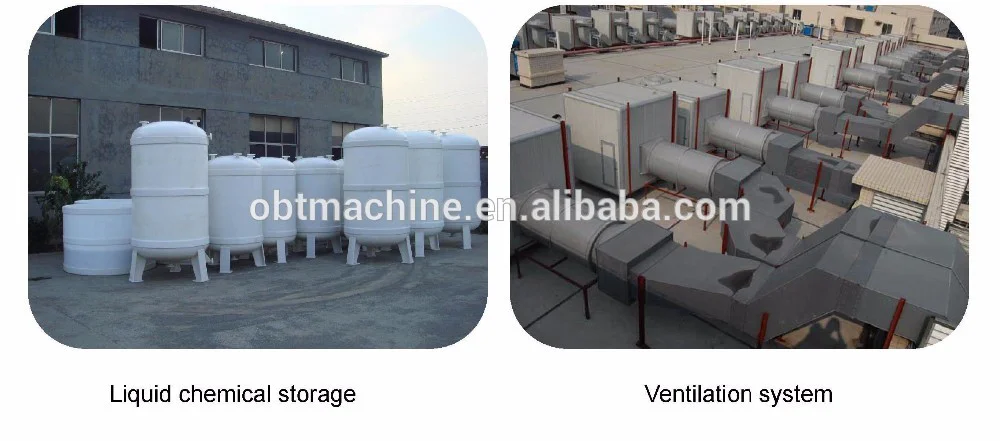

Scope of application	Electroplating, environmental protection, chemical containers, sewage treatment, pipelines, ventilation systems, etc.



What are the characteristics of our products compared to other products?

1)The electric system is placed in electric cabinet concentratedly, so it's convenient for maintenance and check.

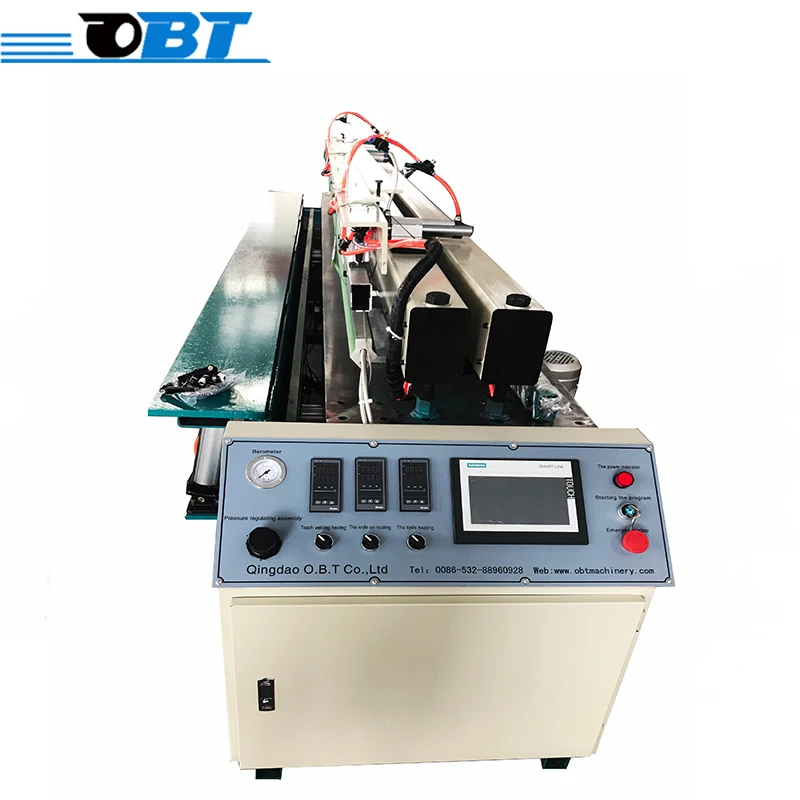

2)Press button control makes the operation easy and convenient.

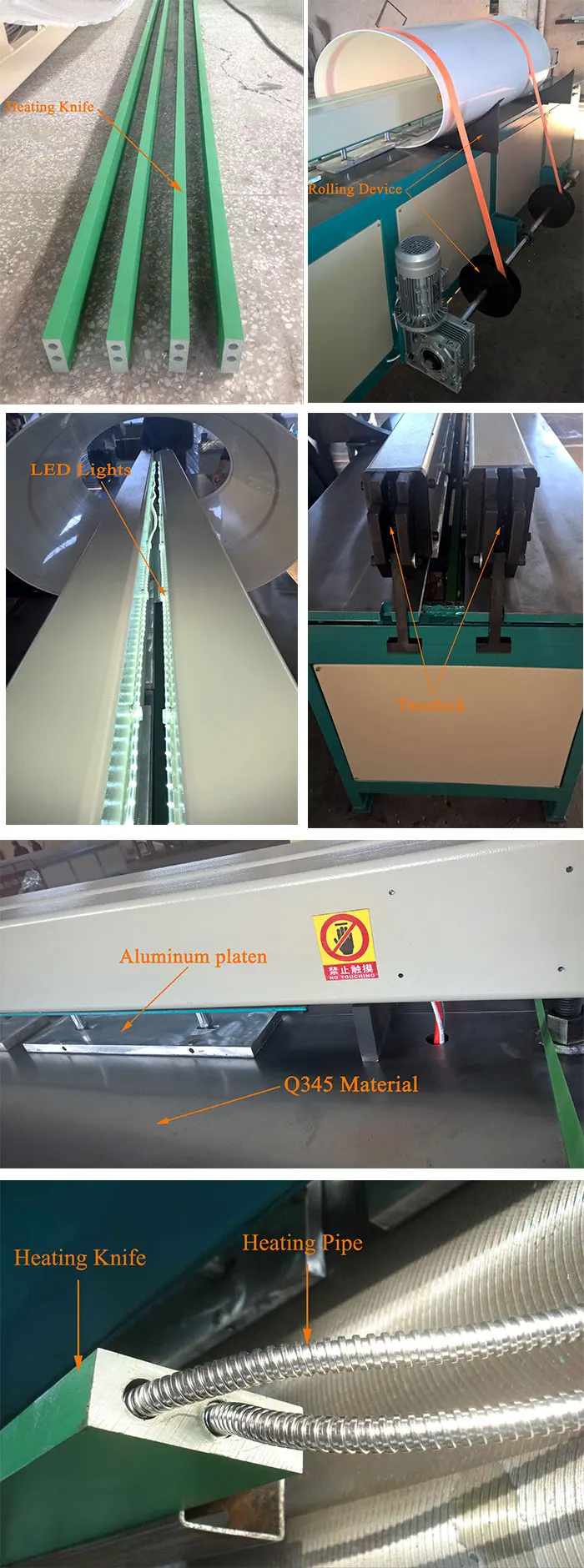

3)The working panel's material is Q345 manganese, which's featured as non-being heated distortion; The platen's material is aluminum, and for each platen there're two air cylinders providing the power, ensuring the compressive stress is very strong.
4)The heating pipe is inserted through the heating knife, so it's easy and convenient to replace the heating elements. The material of heating knife is imported grade aluminum, with teflon coated. It has the advantage of non-being heated distortion and non-stick.

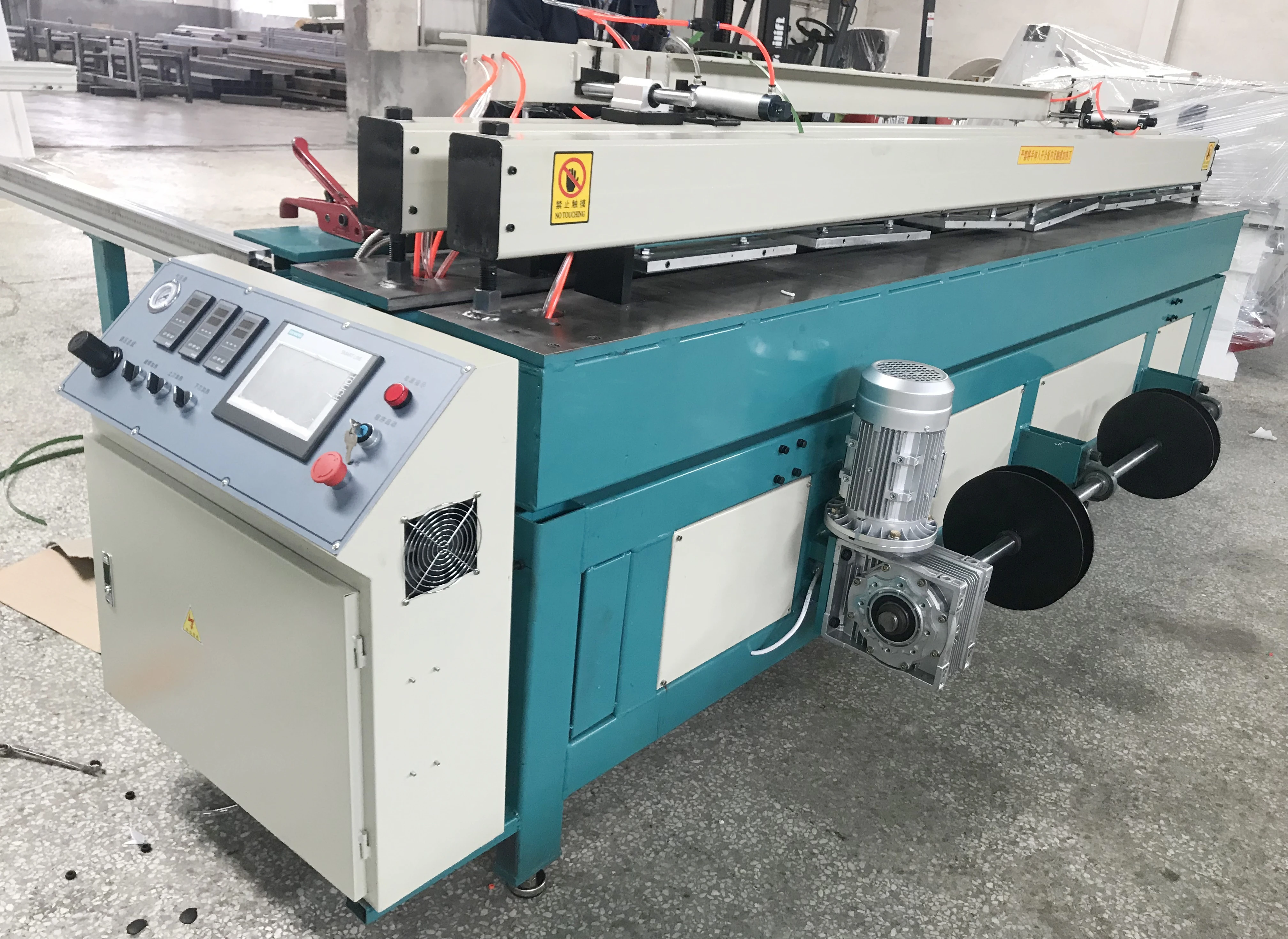

5)Specially designed rolling device makes the rolling work easy and labor saving.
6)Specially designed LED lights can make you observe the process of welding clearly.

Learn more detail

Function of plastic welding machine



Where can the plastic bending machine be applied?

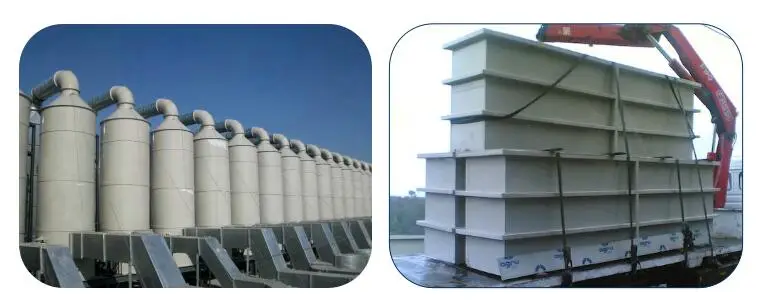

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.
