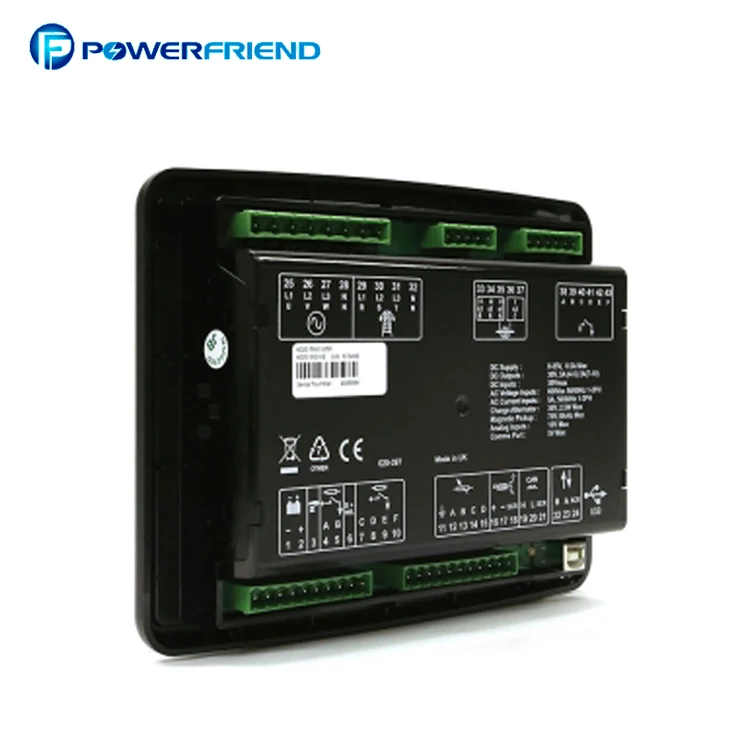

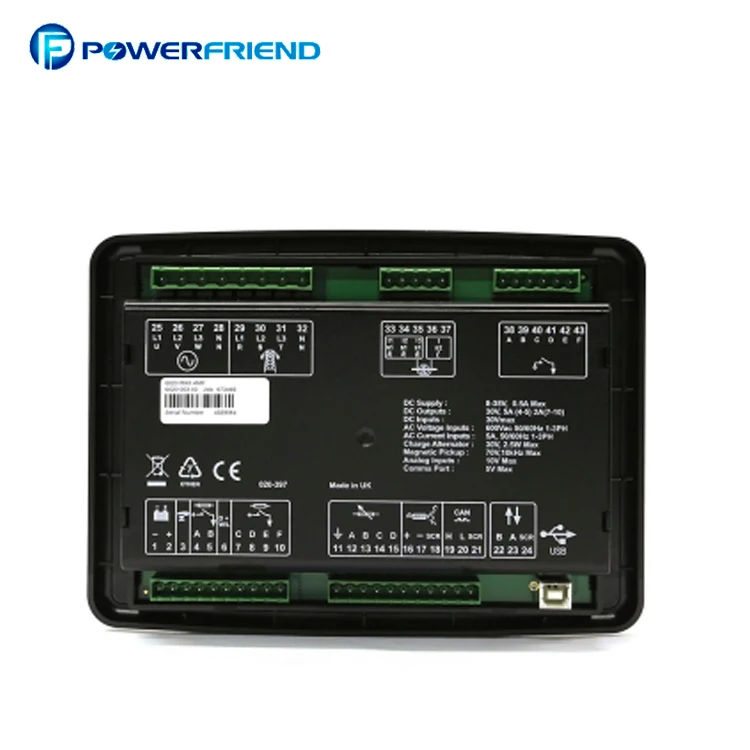

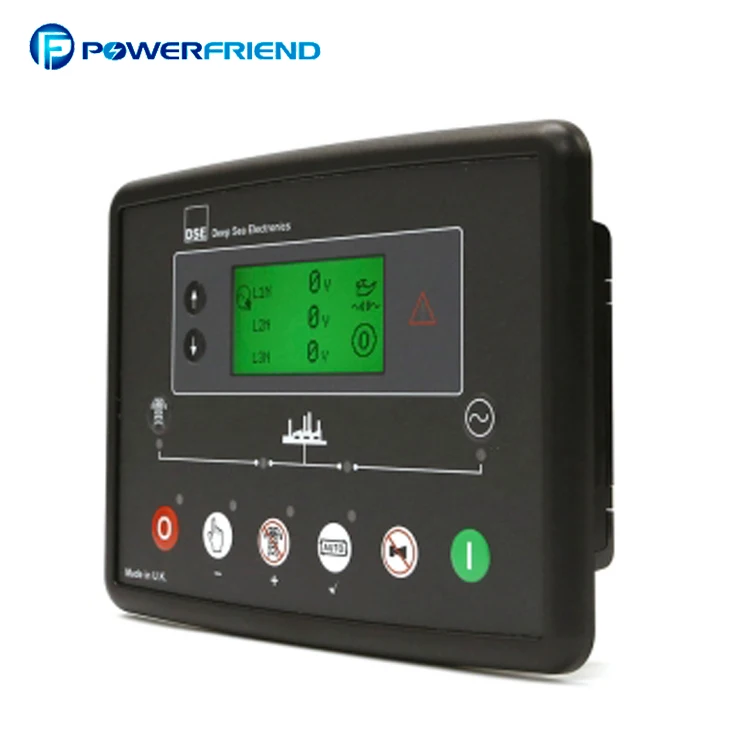

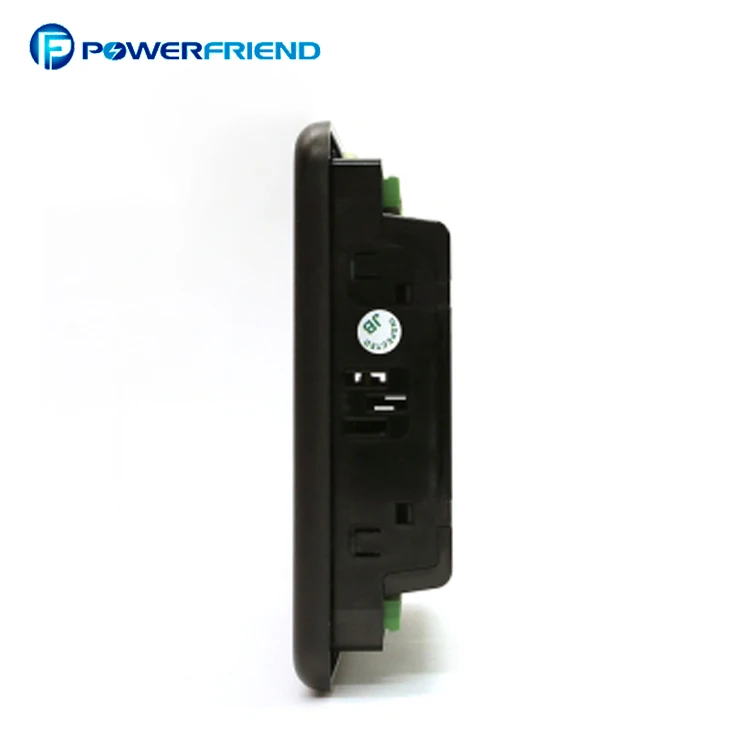

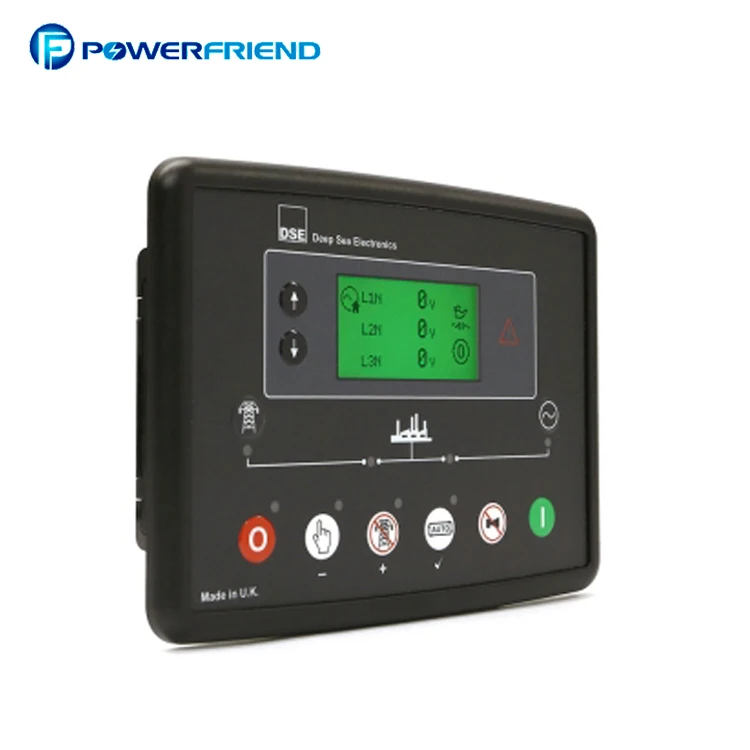

Auto start and Auto Mains Failure Generator Controller Module Panels Deepsea DSE6020

Share on (62120385669):


Price:$200.00 - $350.00

Quantity:


Product Overview

Description


Auto start and Auto Mains Failure Generator Controller Module Panels Deepsea DSE6020


1



Product Description

PowerFriend not only supply your gensets/Engines, but also provide you full series of Spare Parts


About 1-AVR


           2-Diesel filter


           3-Air filter


           4-Rectifier


           5-Battery charger


           6-Oil sensor


           7-Control panels


           8-others


PowerFriend control panels are compact, versatile and easy to use. They are satisfied with key start /Auto start /AMF /SMS/ Remote control RS485 OR RS232 and gen-gen synchronizing and load sharing.


DSE6020-9















































































DSE6020
OUTPUTS
OUTPUT A (FUEL)10 A short term, 5 A continuous,
at supply voltage
OUTPUT B (START)10 A short term, 5 A continuous,
at supply voltage
AUXILIARY OUTPUTS C, D, E & F2 A DC at supply voltage ­­
INPUTS
DIGITAL INPUTS A to FNegative switching
ANALOGUE INPUTS A to CConfigurable as:
Negative switching digital input
0 Ω to 480 Ω
ANALOGUE INPUT DConfigurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 480 Ω
GENERATOR & MAINS (UTILITY)
VOLTAGE RANGE15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE3.5 Hz to 75 Hz
DC SUPPLY
CONTINUOUS VOLTAGE RATING8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT100 mA at 12 V, 105 mA at 24 V
MAXIMUM STANDBY CURRENT60 mA at 12 V, 55 mA at 24 V
MAXIMUM SLEEP CURRENT40 mA at 12 V, 35 mA at 24 V
CRANKING DROPOUTSAble to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
Please Click Here to Contact Us for More Info.



  • The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.








Control Panel


























Protection


  • Over Voltage

  • Under Frequency

  • Over Load




  • Under Voltage

  • Over Current

  • Phase Rotation




  • Over Frequency

  • Current Unbalance

  • Fuel Level


Optional Function


  • AMF




  • Remote Control




  • Synchronizing







Our Services








Our services


  • After-sales:


Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.



  • Guarantee:


Warraty period is one year or 1000 hours (depends on which occurs first ).  If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.



  • Free training:


We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.











Company advantages


  • We are a powerful and unity sales team:


          we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.


         90% of our sales team members are with more than 5 years of experience in the generator field.



  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.



  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.



  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


 2





Company Information





JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.


Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.


We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.


We supply Generator Sets from 2kva to 3000kva.





Portable Series: 2-12kva, air cooled, 1 or 2 Cylinders, 3000rpm/ 3600rpm


Water Cooled Series: 6-3000kva, water cooled, 3-16 Cylinders, 1500rpm/ 1800rpm





-


PowerFriend Projects----




          500kva for Guatemaia                Genset for Property                      Genset for Government




 IVECO gensets for Sinopec     40 sets of silent genset for Ukraine Army     14 sets of Paralleling Gensets





Certificate----


2019





Trade shows----


Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.








FAQ


Q1: What is your warranty period?


A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).





Q2: Does your generator have global warranty?


A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.





Q3: What is your payment terms?


A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.


L/C Irrevocable L/C at sight.





Q4: What is your delivery time?


A4: Our standard delivery time is 20 to 30 days.


If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.





Q5: Can the generators be customized?


A5: Yes. Our generators can be customized depending on customer's detailed requirements.


We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc.


The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.





Q6: Can you use our logo?


A6: Yes. For mass orders, we can use customer's logo instead of ours.
