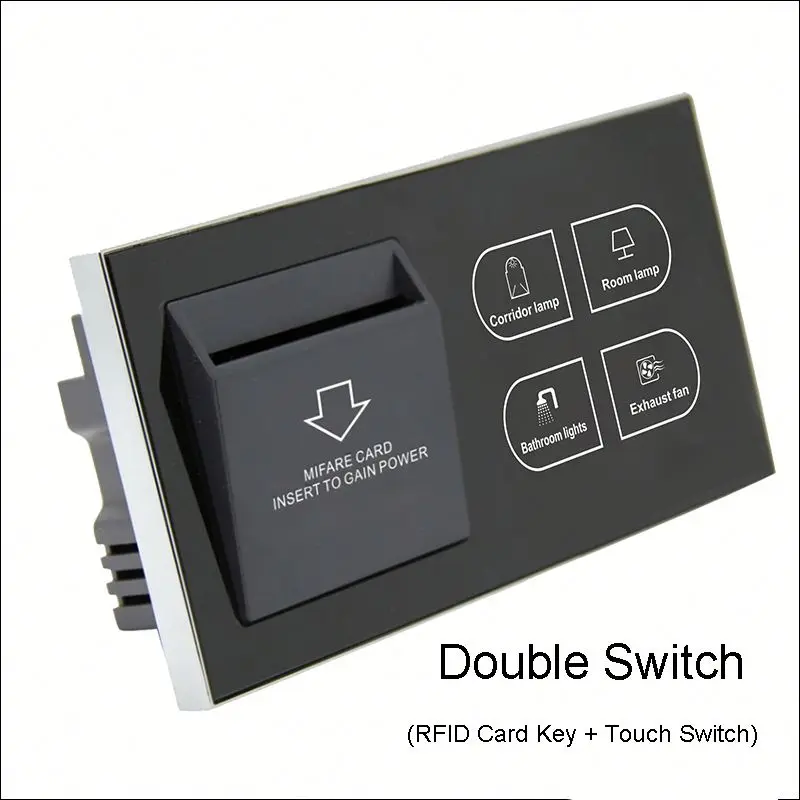

40A RF Card Energy Saving Switch With Touch Switch
- Category: >>>
- Supplier: Shenzhen Eternal Technology Co. Ltd.
Share on (62120397763):
Product Overview
Description
AC 120-240V, 30A RF Card Sensor Switch Hotel Energy Saving Switch RF Card Hotel Switch
Product Description
Functions & how to work:
1 .With the special card, you can open the door, and just insert the same card, you can gain power of the room. Also there is option of our swiches which suitable for any kinds of the same size cards.
2. LED indicator design
LED indicator light-emitting design, more convenient to use at night.
3. Delay power off design
When leaving the room, the guest draw the key card, and then the general power supply can be automatically shut off within 15 seconds, convenience to guests, and also protect the electric device safety.

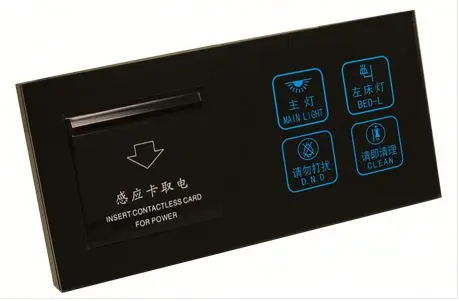

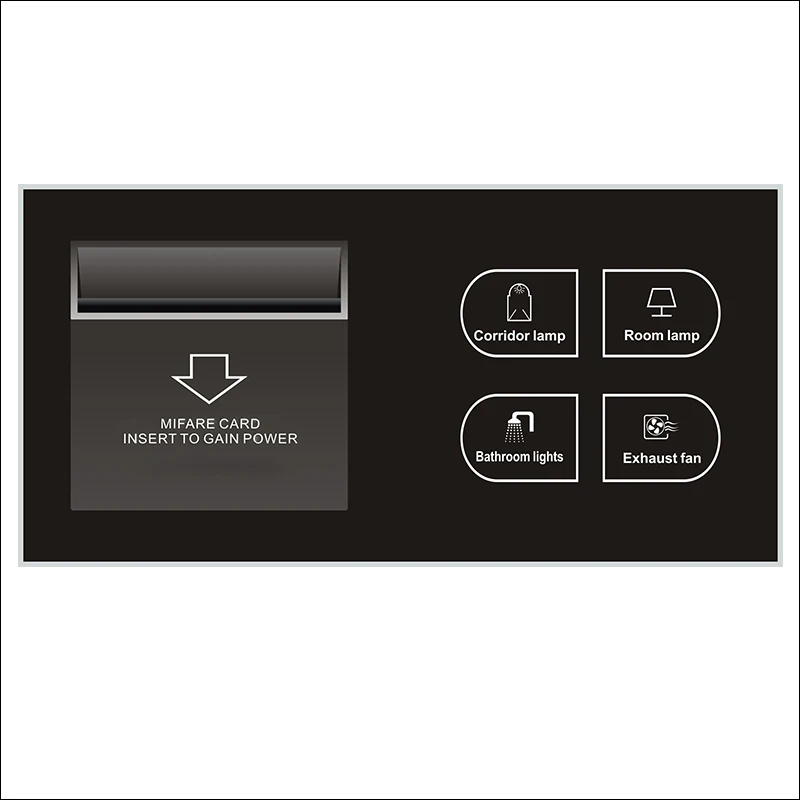

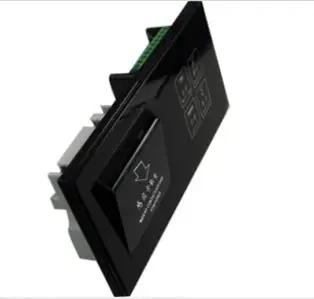

Picture of key switch
Switch Details
| Operating voltage: | 50/60Hz ; 180v-240VAC | Current: | 30A 40A |
| Maximum load power: | 6000W | Quiescent operating power: | 1W |
Delay power-off time : | 10- 15 seconds | Non-working condition: | light blue |
| Service life: | When relay contacts 220V in full load, lifeexpectancy greater than 10 million | Operating temperature: | -10 - 60 Degree |
| Working humidity: | 50 10-95% RH | Overall dimensions: | W86mm * H86mm * D35mm |
| Case Material: | Imported fire retardant PC plastic | Shell Color: | Gold, Silver, White, (other can be customized, your logo, your language |
Switch Type:
Any cad switch : Can accept any card, like bank card, credic card. paper...
IC chip card energy saving switch: Only accept IC chip outside card to gain the power.
125KHZ card (Such as Temic or EM card) energy saving switch: Only accept 125KHZ card to gain the power.
Software control 125KHZ card RF energy saving switch: only accept programed Temic cards with room number to gain the power
13.56MHZ card energy saving switch: Only accept all13.56MHZ card to gain the power.
13.56MHZ card ( MF 1K card) energy saving switch: only accept programed M1 cards only.

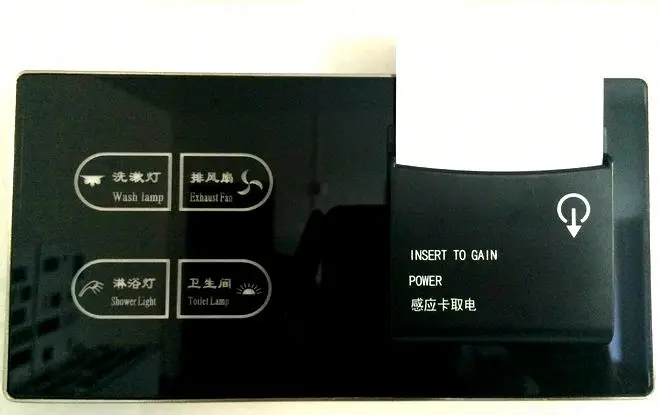

White switch details:
Tips: All the Language will be in English or your language!
certificate show
Our Services
1). Low price: very competitive price range.
2). Best quality: manufactory supply, stable with fast after-sale service
3).Quick shipping: For 100 hotel switches delivery time 1-2-days.
4). Safe&secure transaction: Payment by TT; Western Union,Escrow
5) .Experienced technical service: Any tech demands or special requirement we can supply for you.
6) . After-sale service:2 yearsant warry.
FAQ
1.How to use Hotel card key switch
When guest get in the room, insert card for power of the room appliance, when he/she leaves the room and withdraw the card, power cut delay to protect the circuit.
2.Used in different areas:
Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.
3.Customzie Service:
1. The language on the panel
2. Logo Printing
3. Color printing
4. How to purchase?
If you have cards already, please tell us which chip it is, RFID? IC ? Magnetic?
If you don't have cards yet, we can recommand one model to you!
5. How to connect the wires , folloing is our diagram!
For more details and document, please contact with our sales now!
Production Flow
Diagram
