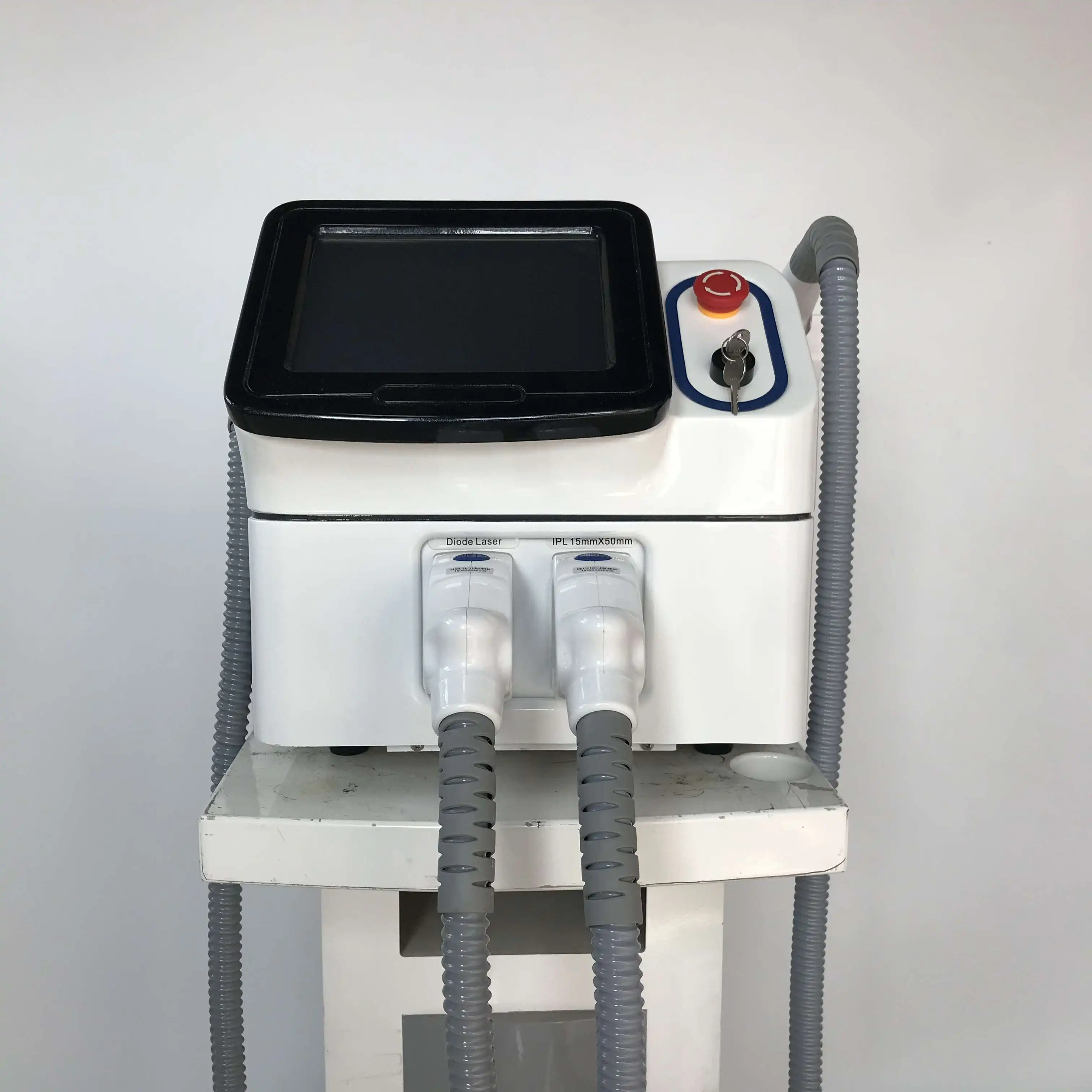

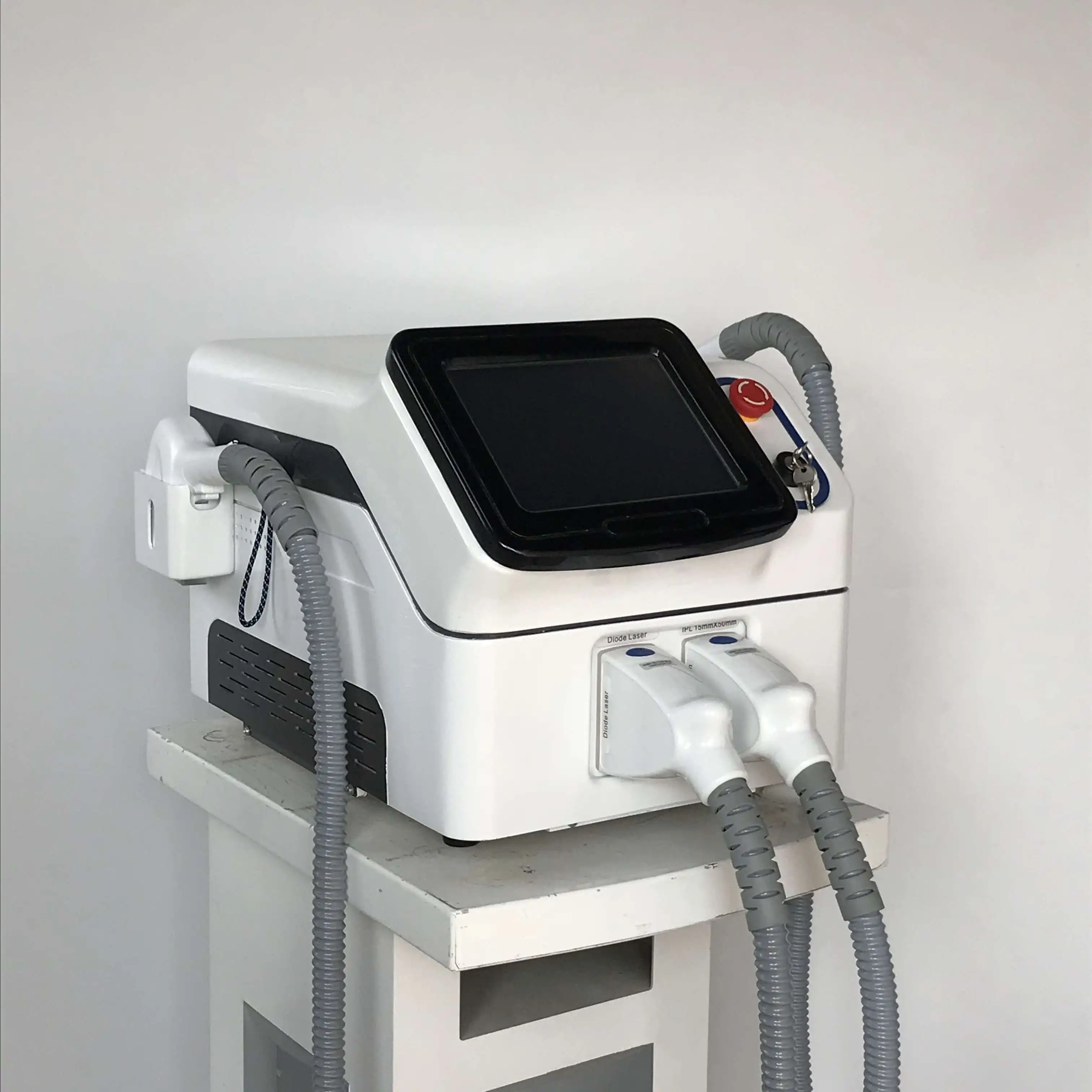

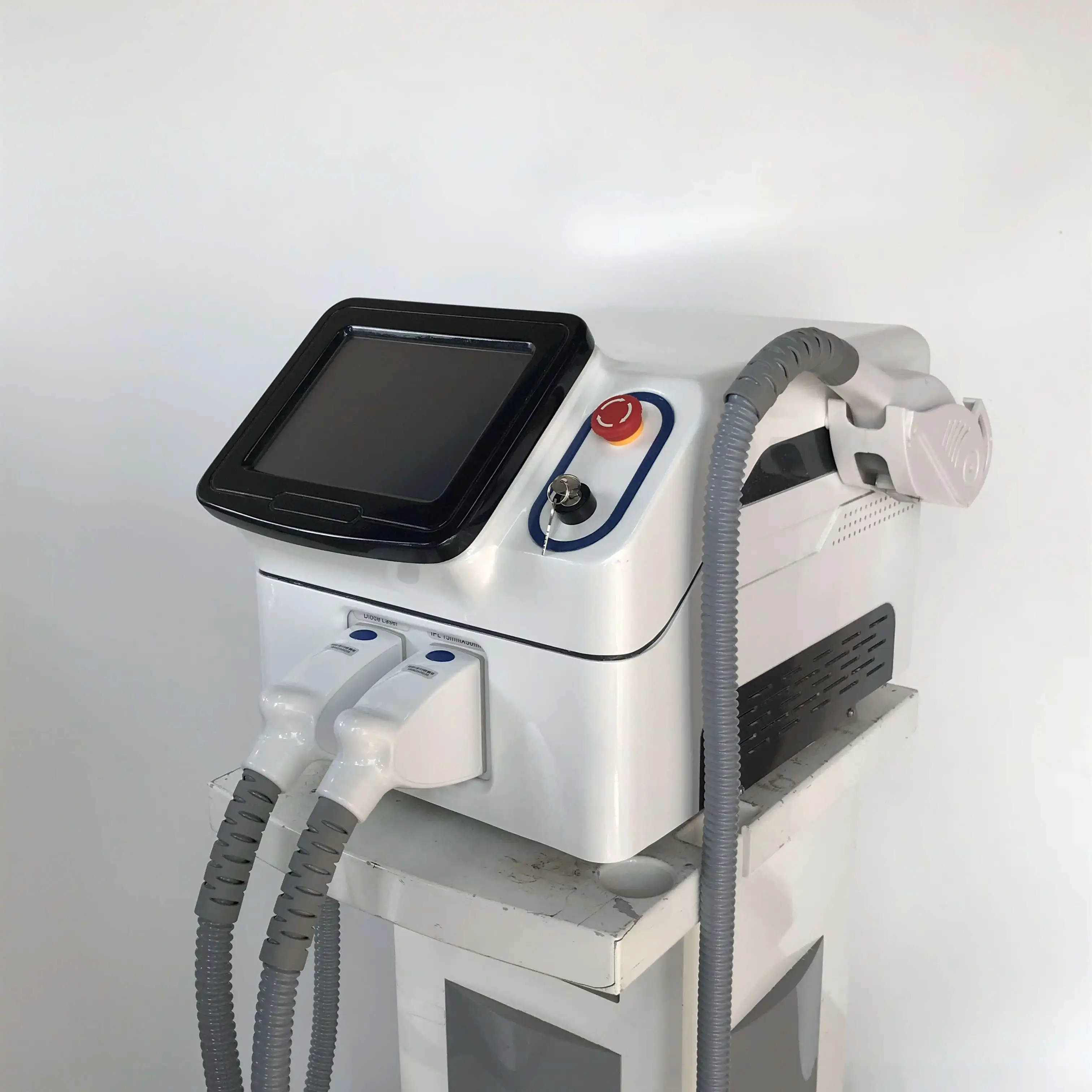

2019 High power laser diode 808nm / diode laser hair removal / IPL OPT 2 in 1 depilation laser

Product Overview

Description

 Portable 2019 High power laser diode 808nm / diode laser hair removal / IPL OPT 2 in 1 depilation laser

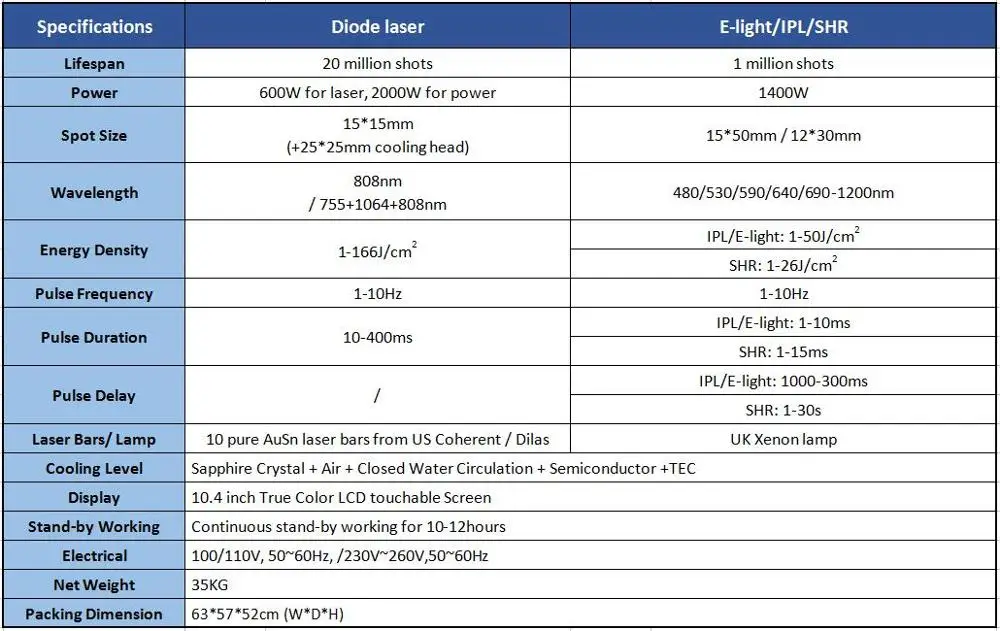

Specification

Specifications	Diode laser	E-light IPL OPT
Lifespan	20 million shots	1 million shots
Power	808 - 800W for laser; Triple - 960W for laser 2000W for power	2000W
Spot Size	15*15mm	15*50mm (or 12*30mm)
Wavelength	808nm Triple (755+808+1064)	480-1200nm 530-1200nm 590-1200nm 640-1200nm 690-1200nm
Energy Density	808 - 1-166J/cm2 Triple - 1-125J/cm2	E-light: 1-50J/cm2 OPT: 1-26J/cm2
Pulse Frequency	1-10Hz	1-10Hz
Pulse Duration	808 - 10-400ms Triple - 10-300ms	E-light: 1-10ms OPT: 1-15ms
Laser Bars/ Lamp	US Coherent laser bars 808 - 10 Pure AuSn bars Triple - 12 Pure AuSn bars	UK Xenon lamp
Cooling Level	Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Continue Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	36KG	Gross Weight	42KG
Packing	64*58*53 (W*D*H) (W*D*H)	Volume Weight	45KG



Advantages



• Most advantage technology, combining diode laser, E-light IPL OPT OPT two in one.


• Independent power supply for each system, high and stable quality.


• Intelligent interface, with preset treatment parameters, very easy to operate.


• Advanced monitoring and alarming system, protecting machine every second.


• Password lock function makes renting business much easier to control.

Machine details

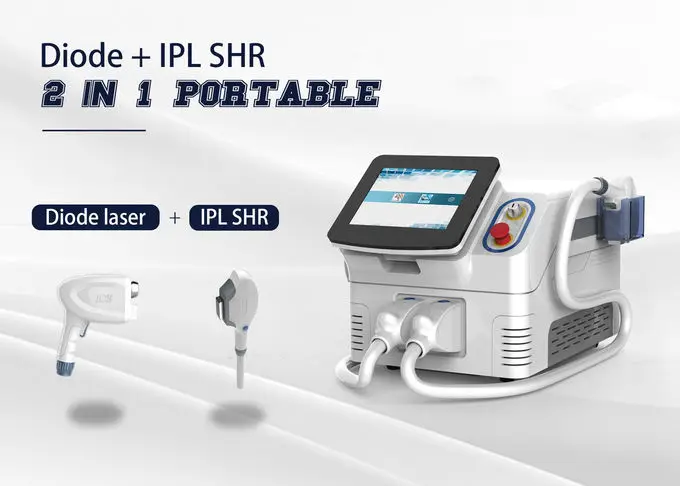

Can do  2 handles (diode+IPL/OPT/E-light/RF/NDYAG) free match for Portable Style.





Independent power supply for each system:

• 2000W power supply for diode laser system


• 2000W power supply for E-light (IPL OPT E-light) system

This well ensures each system has strong and stable energy.

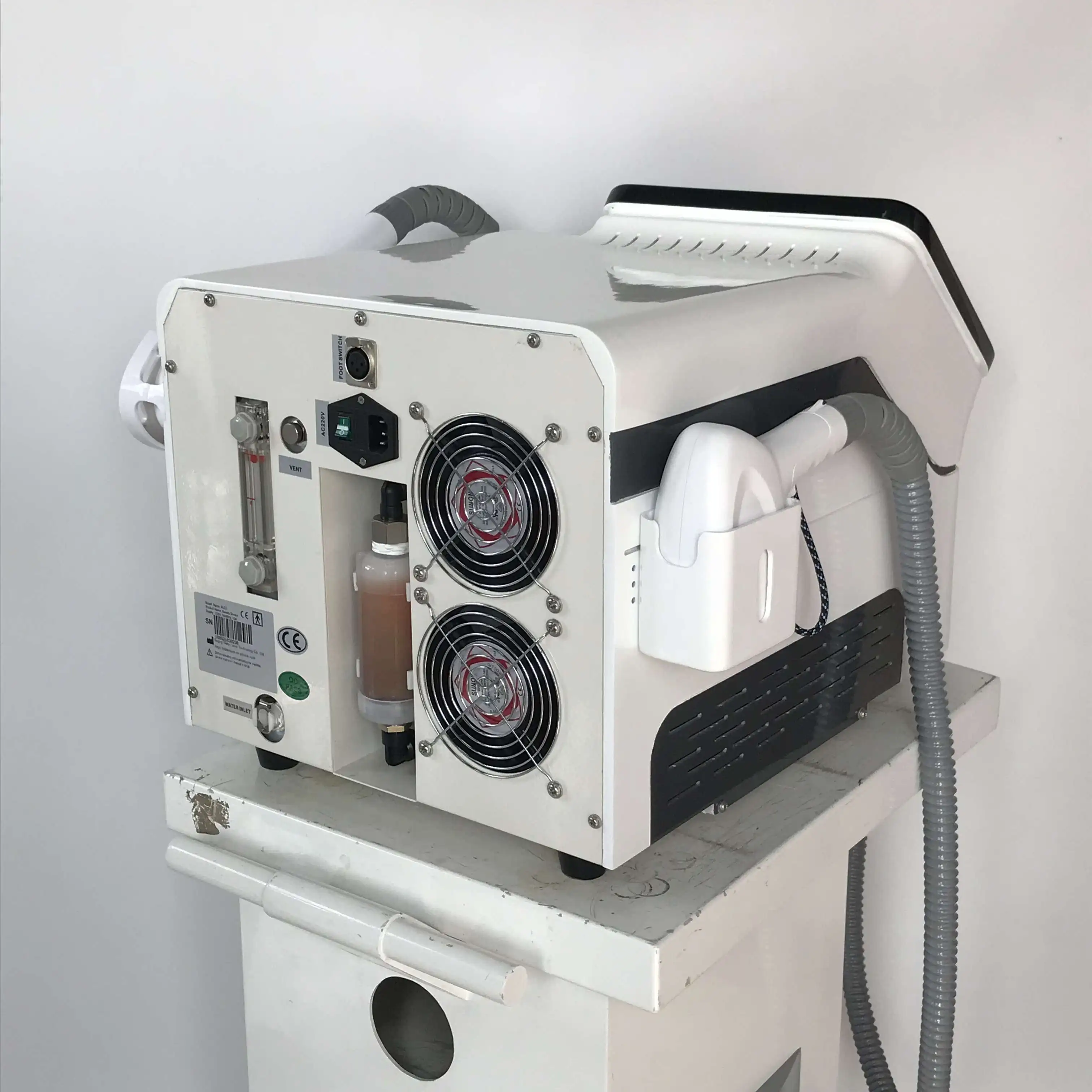

Inside structure is very reasonable and every line is clear.



All the spare parts are fixed to metal shelf, reduce the harm of the collision to least during shipping.



• UK lamp, US laser bars


• 8L big water tank with water level monitor


• 2 Korea imported water filters


• Schneider brand switch


• 2 Japan imported big fans + 1 big radiator


• Latest brushless DC water pump with lift 15m


• Pulse water switch to monitor water flow


• Stainless steel board between connector and internal

Easy to change water filters

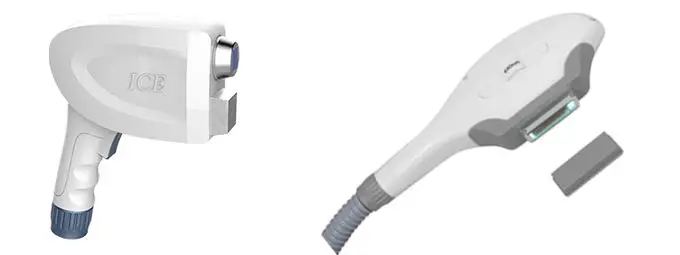

Handle details:



Diode laser

Both 808nm and triple wave 755 808 1064nm available!



• Big spot size 15*15mm


• Extra cooling head 25*25mm


• Cooling system: air + water + TEC + Sapphire


• Super good cooling effect, truly painless



CIA™ Technology- Cooling In Advance

It uses 25mm * 25mm TEC cooling tips to cool the skin before, during and after treatments. It can protect the epidemis from hurt, reduce the pain during hair removal, and increase the comfort for patients.



ICE™ Technology - Simultaneous contact cooling

It is an advanced technology that cools the skin continuously during treatments. It minimizes the risk of burns on the epidermis while maintaining heat to penetrate dermis where hair follicles are.







IPL OPT

• UK imported xenon lamp


• TWO EXTRA Korea imported water filters


• Unbelievable lifespan of 1,000,000 shots, at least 5 times longer than others!



As we all know, the laser bar in diode laser has very high demand for water quality, so in every diode laser machine there will be water filter.

But since xenon lamp doesn't have that high demand for water, so no factory will apply water filter in IPL series machines.

But we applied, we applied TWO EXTRA water filters to protect our UK imported xenon lamp.

PP cotton filter is to filter out the big impurites from water, and Ion filter is to get rid of the ions from water. This can greatly prolong the lifespan the lamp to 1 million shots.





Interface & Software

• 10.4’ true color touch screen.


• Easy operate interface.


• Can save 4000 customer treatment records, very convenient for salon.


• 12 languages available


• Impectable alarming system.


• Free interface OEM service.


• Can add your Logo



Impeccable Alarming System:



Each line stands for a specific part in the machine.

Each of our machine has been stricktly tested before dispatching to you, but in case there is any problem after a period's using, you can check this interface.

If there is any line turns to yellow, it means the part it refers to has problem, so that we can send a new alternate to you immediately to reduce the repairing time for your client.



Password Lock function

Newly added Password Lock function is a great function for renting business. It allows distributor to control the machine from a distance!

For example, Lily has rented this machine for 1 month, you can set a 1 month password for her. After 1 month the password will be invalid and machine will be locked. If Lily wants to continuously use machine, she must pay for you first. If she pay you 10 days, you can offer her a 10 days password, if she pay you 1 month, you can offer her a 1 month password.





Before & after
