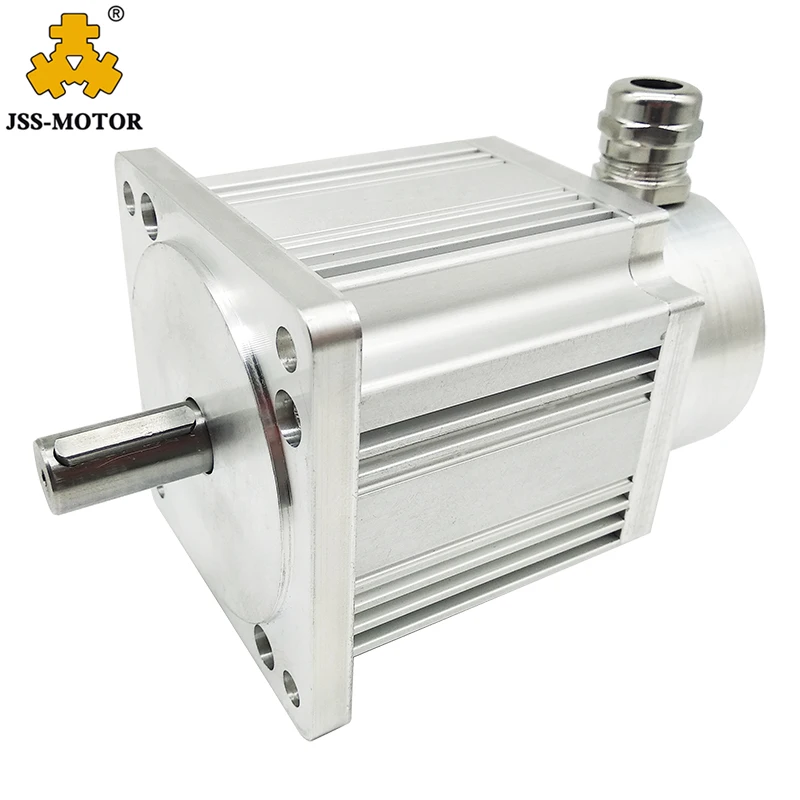

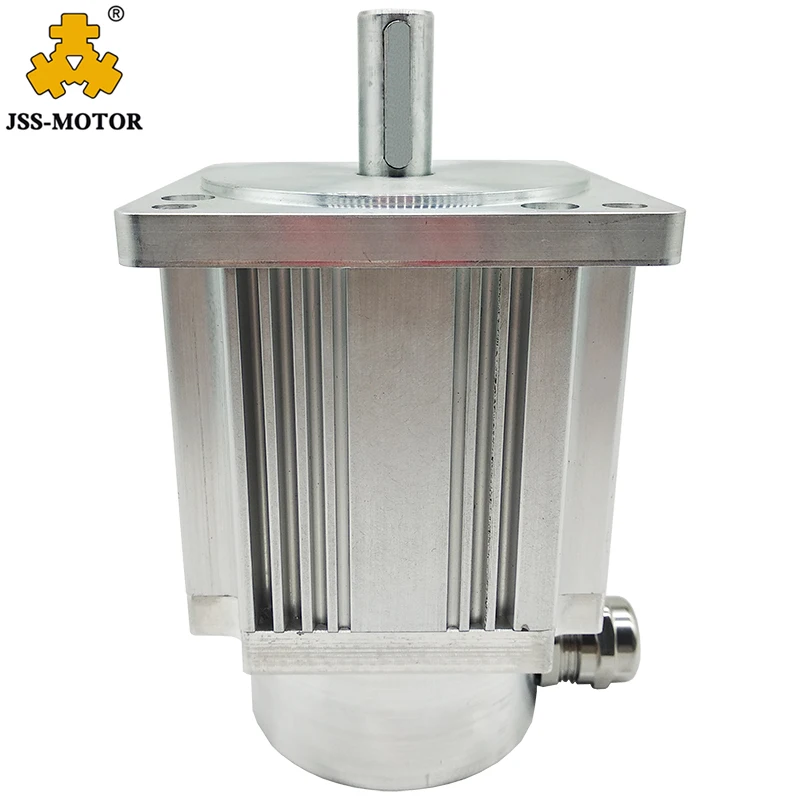

80BL nema32 dc 48V high speed high torque bldc mootor
- Category: >>>
- Supplier: Changzhou Jinsanshi Mechatronics Co. Ltd.
Share on (62120736077):
Product Overview
Description
80mm Brushless DC Motor
Product Description
General Specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.05mm/50g |
| Max radial force | 35N/20mm from the flange |
| Max axial force | 25N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electric Connection:
| Lead No. | Lead color | Lead gauge | Function | Description | ||||
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow | PHASE U | MOTOR PHASE U | |||||
| 2 | Green | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue | PHASE W | MOTOR PHASE W | |||||

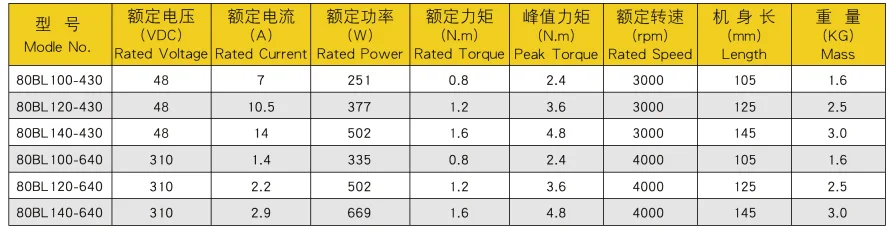

Electric Specification:
Dimensions diagram:
