10/100/1000Base T PoE PCIe Порт Gigabit Ethernet 4 порта медь Сетевая интерфейсная карта с поддержкой PoE
- Category: >>>
- Supplier: Linkreal Co. Ltd.
Share on (62121108717):
Product Overview
Description
10/100/1000Base-T PoE+ PCIe Gigabit Ethernet 4 port Copper Network Interface Card with PoE
Product Description
9724HT-PoE is a kind of high-performance image capture card, independently researched and designed by Shenzhen LR-LINK Electronics Co., Ltd. The cards supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports, With 12 VDC AT/ATX power input, the LREC9722HT-POE/9724HT-POE can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based Gigabit cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the LREC9722HT-PoE/9724HT-PoE is ideally designed for scientific research instrumentations. Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
Specifications:
Ethernet Communications
Compatibility: IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af
Speed: 10/100/1000 Mbps
No. of Ports: 2 or 4 Gigabit Ethernet MAC/PHY ports.
Port Connector: 8-pin RJ45
Protection: Built-in 2.25KV isolation protection on LAN ports and power, ESD 8KV, EFT 2KV
Bus Interface: PCI Express x4 compliant
Ethernet Controller: Intel I350 AM2/AM4
Power Requirements:
Input Voltage: 12 VDC, AT/ATX System power input
Connection: AT/ATX Power Jack
Output PoE Power: 48 VDC PoE Power output
LREC9712HT-PoE: Supports 2 PoE ports up to 15.4 W at 48 VDC
LREC9714HT-PoE: Supports 4 PoE ports up to 15.4 W at 48 VDC
Power Consumption:
LREC9712HT-PoE Typical: 15.4W, Max: 35.4W
LREC9714HT-PoE Typical: 15.4W, Max: 70.8W
Environment:
Operating Temperature: 0 - 50°C (0 - 122°F)
Storage Temperature:-20 - 80°C (-4 - 176°F)
Operating Humidity: 5 - 95% RH
Mechanical:
Dimension (W x D x H):203mm x 121mm x 21mm (8 x 4.8 x 0.8)
Applications:
Machine vision inspection systems
Scientific research instrumentations
Medical research instrumentations
Intelligent transportation systems
Features:
Based Intel I350AM2/AM4 GbE Mac/Phy Controller
PCI Express x4 compliant
Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per PoE port
Powered Device (PD) auto detection and classification
Supports IEEE 802.3u Auto-Negotiation
2.25 KV isolation protection on LAN ports and power
Supports Jumbo frame (9,500 byte) and link aggregation
Supports IEEE-1588 and IEEE-802.1 AS
Software Support:
Windows xp
Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 8.1
Microsoft Windows 10
Microsoft Windows Server 2003
Microsoft Windows Server 2008
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Linux kernel version 2.4.x, 2.6.x, 3.x or later(x86_64)
FreeBSD7.x or later
Vmware 5.0, 5.1, 5.5, 6.0

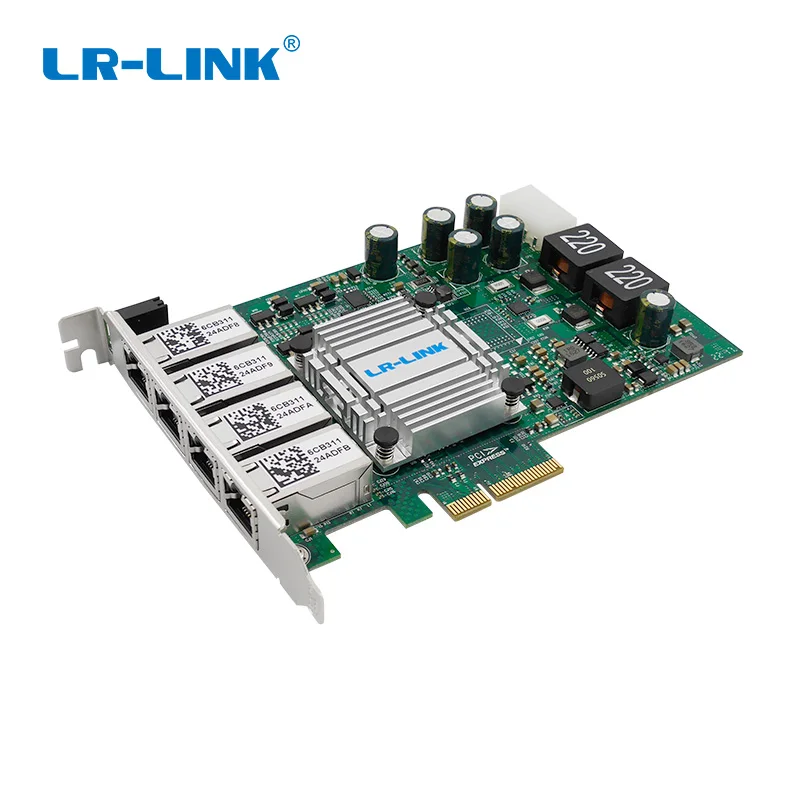

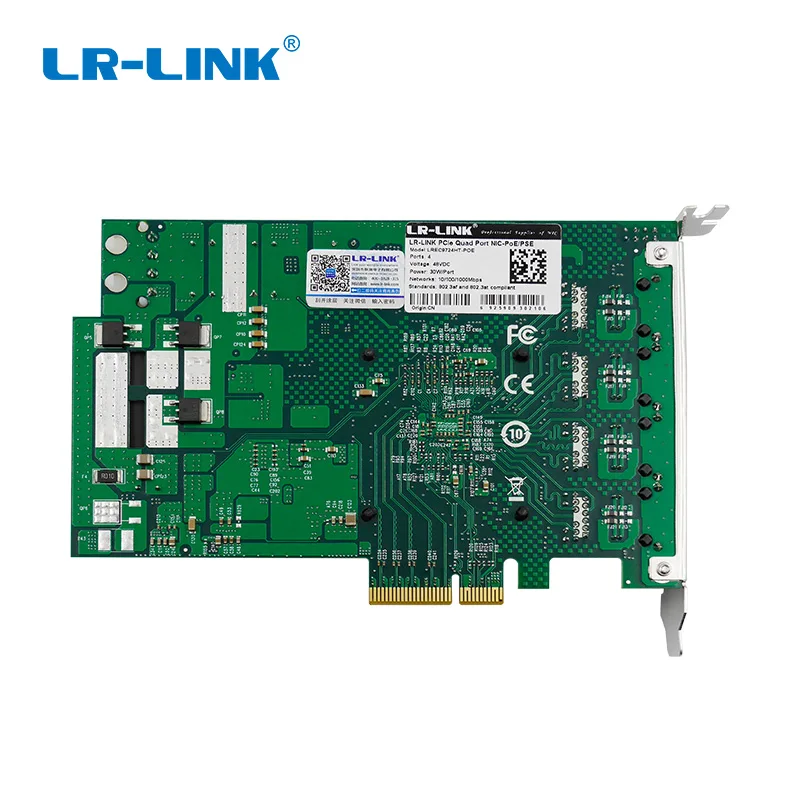

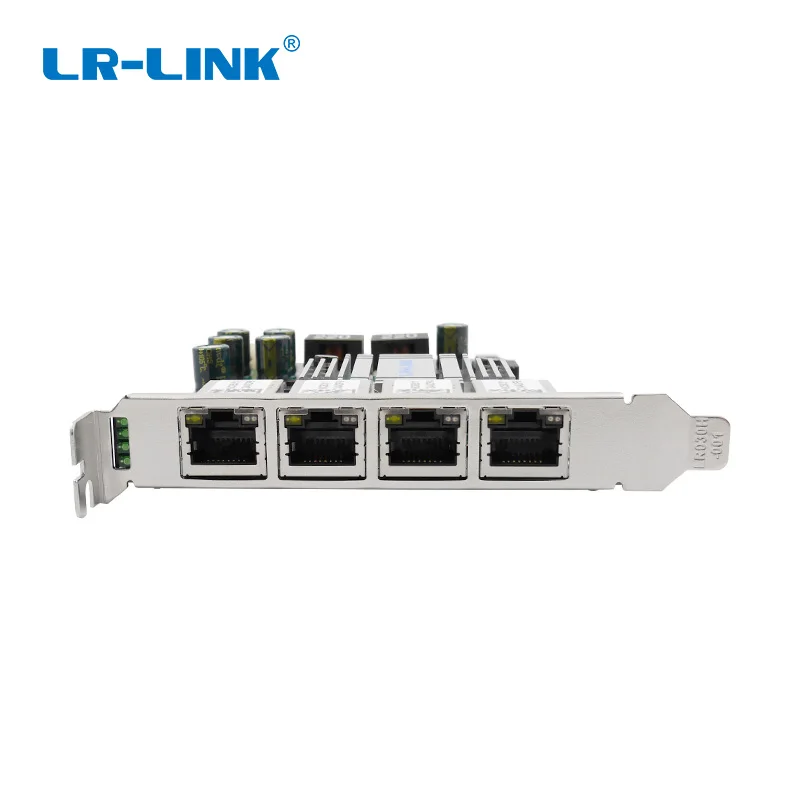

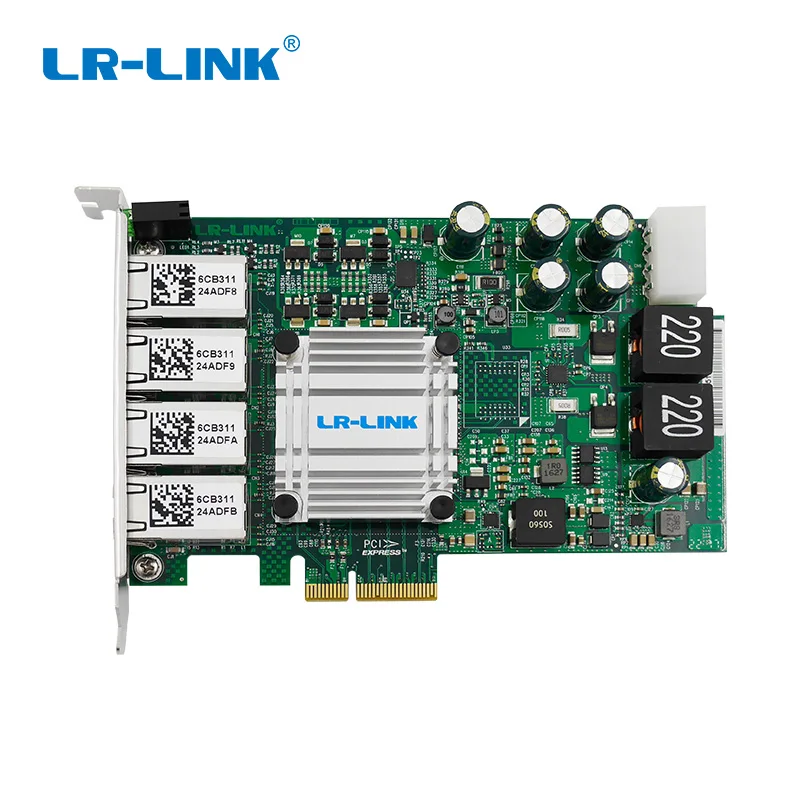

Product Show
Quality Control
Certificates
Our Services

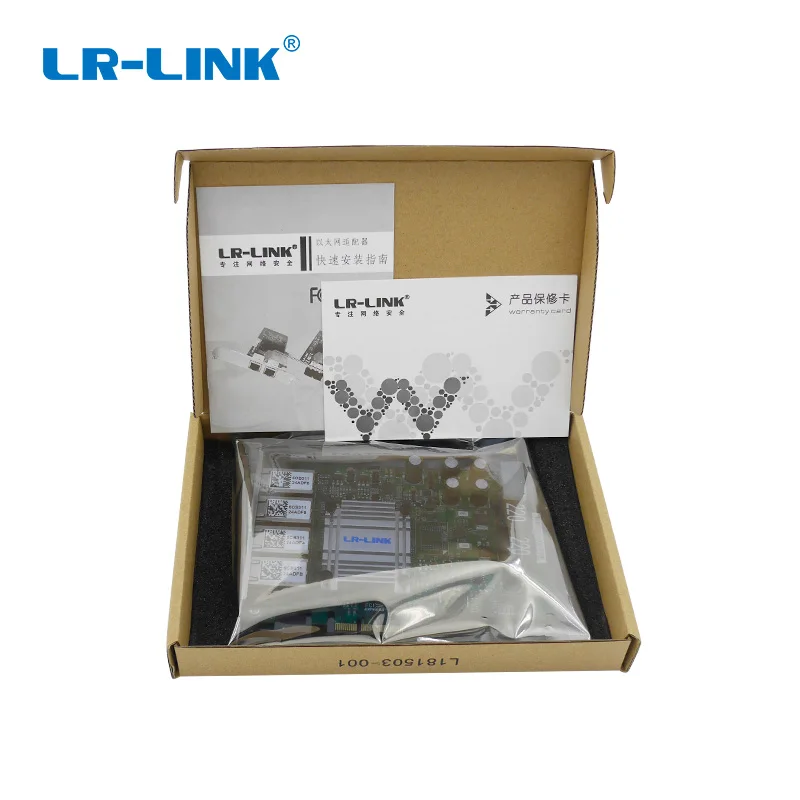

Packaging & Shipping
