3d led dmx 512 rgb метеоритная трубка SMD5050 1 м светодиодный Метеоритный светильник для улицы
- Category: LED Stage Lights >>>
- Supplier: Shenzhen,Shiji,Lighting,Co.,Ltd.
Share on:
Product Overview
Description
Specification
Trade assurance 3D effect led vertical meteror tube pixel dmx light for decorated | ||
Model NO. | SJ-10064-DMX | |
Input voltage | DC12V | |
Power | 15.36W | |
Emitting color | IC RGB | |
Pixel | 16 | |
IC control | Standard DMX512 | |
View angle | 360 degree | |
Shelf life | 2 years | |
Product Description
3d led dmx 512 rgb meteor tube SMD5050 1m led meteor light for outdoor
The special design of this tube:

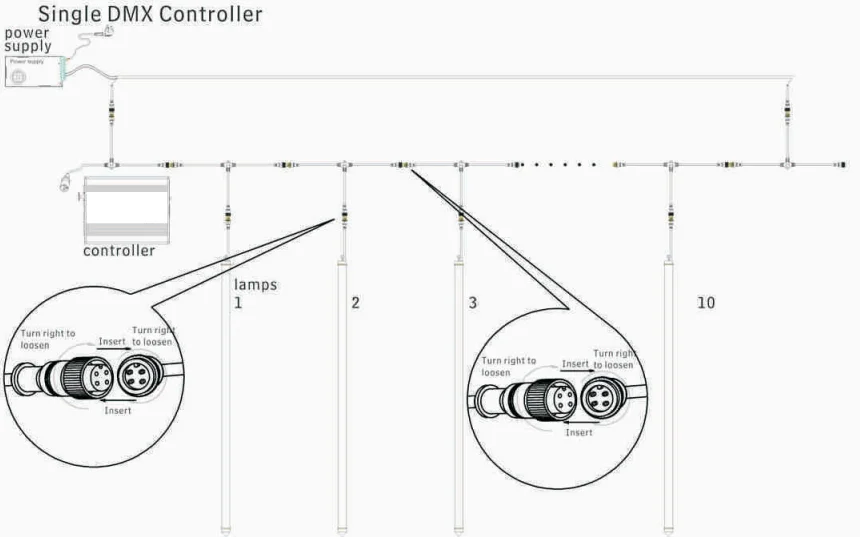

The parallel signal lamps do the above two points, is to increase the signal line used to specifically write addresses, usually we usually have three signal lines: signal positive, signal negative, ground, this design is to increase the two Write the address of the signal line.

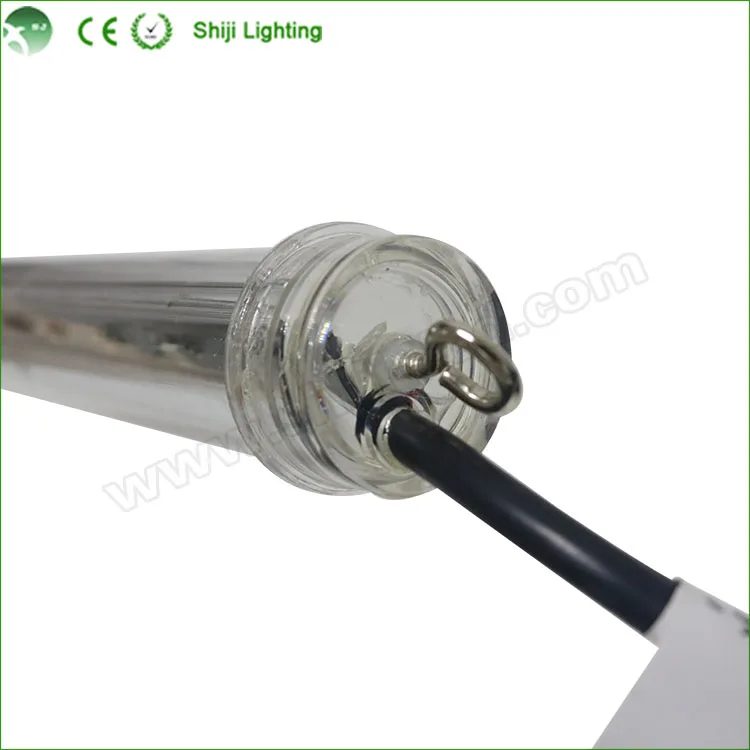

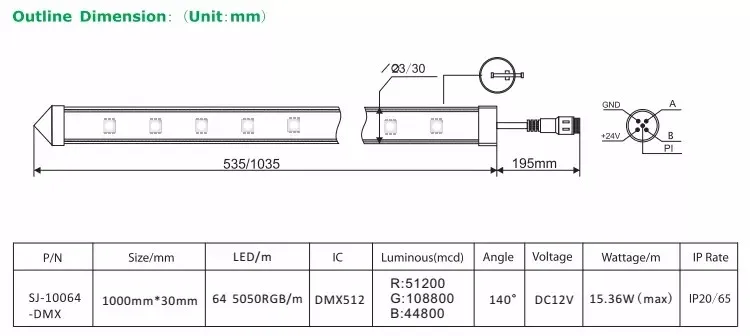

1.This DMX pixel tube casing by clear PC tube, have a pair of 18AWG black rubber wire male and female 5pin connectors .Diameter is 30mm(we also have diameter 23mm).
2.One side is 32leds, 16pcs DMX512 IC, 32pcs DMX address. Manually coding by DMX address writer.
3.One side has 32pcs supper bright Epistar SMD RGB LED ,Both side 64pcs led chip make it 360 viewing.
4. Built-in regulator circuit, can better to protect the IC and extend the using time.
5.Scanning,runnning water and waterdrop effects operated by Madrix software and Artnet controller.
6.Environment friendly, no harsh glare and buzzing noise, no flicker.
7. Waterproof, energy-saving, low-cost of maintenance, and long life span.
8. Length: 0.5M, 1M, 1.5M,2M or customized.

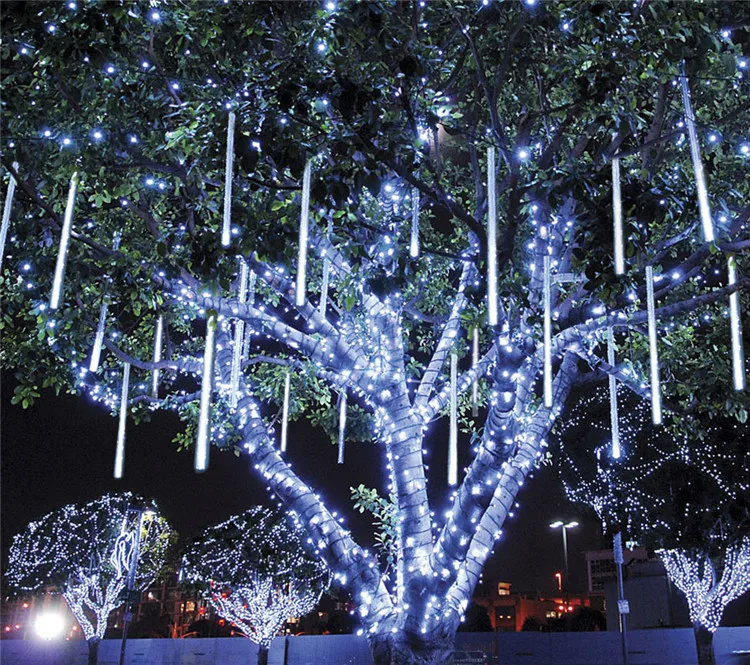

9.Stage,club,Party, and street etc. place used.
10: Brand: Shiji Lighting
2.One side is 32leds, 16pcs DMX512 IC, 32pcs DMX address. Manually coding by DMX address writer.
3.One side has 32pcs supper bright Epistar SMD RGB LED ,Both side 64pcs led chip make it 360 viewing.
4. Built-in regulator circuit, can better to protect the IC and extend the using time.
5.Scanning,runnning water and waterdrop effects operated by Madrix software and Artnet controller.
6.Environment friendly, no harsh glare and buzzing noise, no flicker.
7. Waterproof, energy-saving, low-cost of maintenance, and long life span.
8. Length: 0.5M, 1M, 1.5M,2M or customized.
9.Stage,club,Party, and street etc. place used.
10: Brand: Shiji Lighting
Certifications
Related Products
Product type | DMX Verticle Tube | SPI Verticle Tube | DMX Verticle Tube |
Model NO. | SJ-10064-DMX | SJ-A10060-2903 | SJ-10048-DMX |
Dimension | L1000mm*W30mm | L1000mm*W20mm | L1000mm*W30mm*H35mm |
Beam angle | 360 degree | 360 degree | 160 degree |
Led qty | 64leds | 60leds | 48leds |
IC QTY | 16pcs DMX512 | 10pcs UCS2903 | 8pcs DMX512 |
Led source | Epistar SMD5050 rgb | Epistar SMD5050 rgb | Epistar SMD5050 rgb |
Controller | Artnet controller | SD card controller | Artnet controller |
Working temperature | -20---60 degree | -20---60 degree | -20---60degree |
Certification | CE,RoHS | CE, RoHS | CE,RoHS |
Warranty | 2 years | 2 years | 2 years |
Applications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
