40w/60w/100w/150w/200w PWM Solar Charge Controller
with Built-in LED Driver for solar lamp

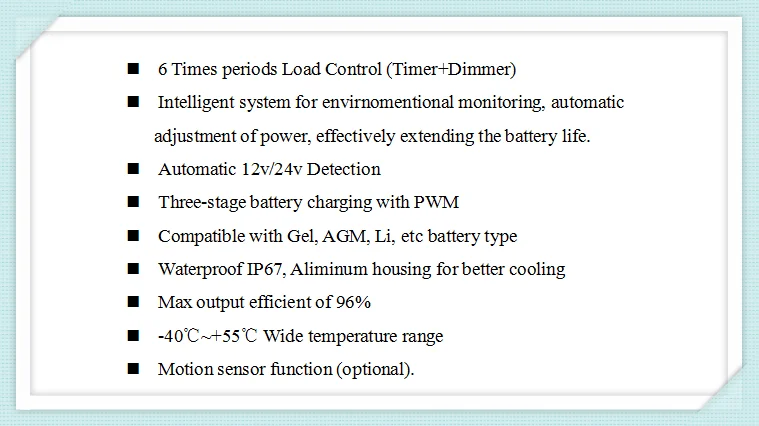

Main Features
Product Parameter

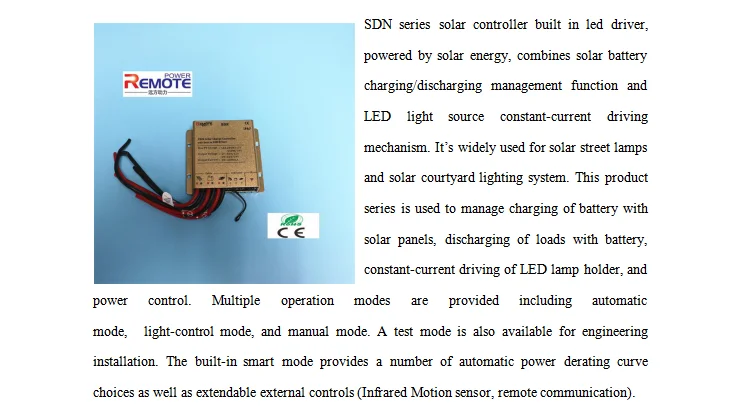

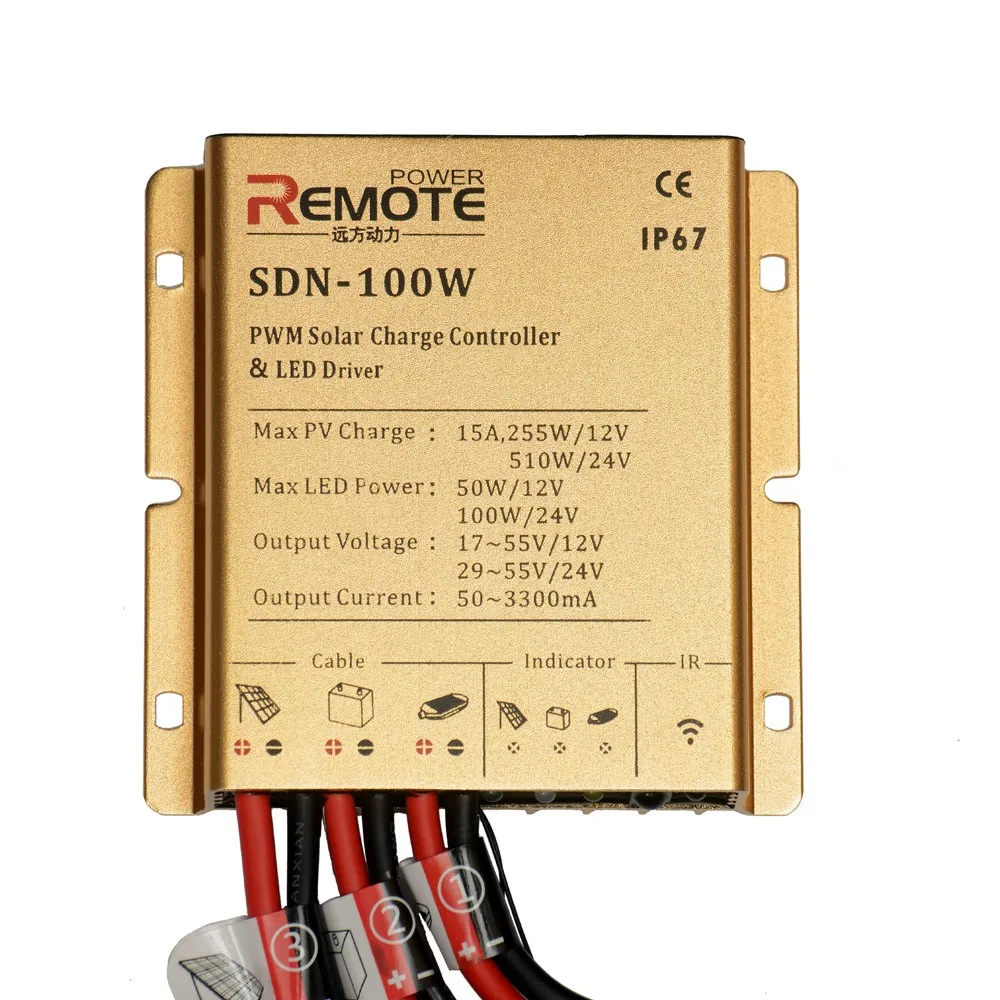

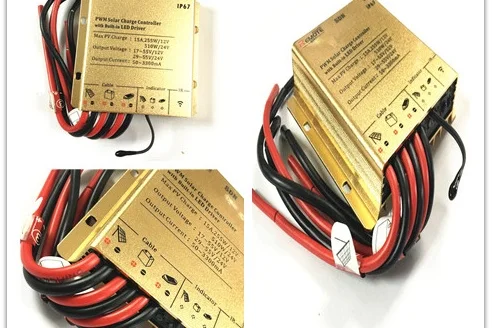

PWM Solar Charge Controller with Built-in LED Driver( Waterproof)
Model
SDN-40W
SDN-60W
SDN-100W
SDN-150W
SDN-200W
System voltage
12/24V Auto
LED Dimmer parameter
Max output power
40w
12v&24v
60w
12v&24v
50w12v
100w24v
75w12v
150w24v
100w12v
200w24v
Max boost output voltage
17~55v/12V(27~55V/24V)
Max output current
2000mA
3300mA
6600mA
LED Driver range
0~100%
Current step
50mA
Accuracy current
3%, when take 80% rated power load can reach 1%
Over Load Capability
105% Output Rater Power
PV parameter
Max PV Output power
170W 2V/340w24V
255Wl2v/5l0W24V
340W2v680W24V
Type of Battery
AGM
Gel
Li
Custom
Max Battery voltage
34V
Main charge voltage
14.2V
14.4V
custom
/
Boost charge voltage*
14.6V
14.8V
custom
10~20V
Float charge voltage
13.6V
custom
10~20V
Equalization charge voltage
14.6v
14.8v
custom
/
Over Discharge voltage
11.1v
11.0v
custom
8~20v
Reconnect voltage
12.6v
13v
custom
10~20v
Others
Self-consumption
<15mA
Dimensions (L*W*H)
88*53*21mm
88*83*2lmm
104*91.5*29mm
Net weight
150g
250g
400g
Enclosure
IP67
Working termperature
-40-+55℃
Company Information
Beijing Remote Power Renewable Energy Technology Company is one of largest suppliers for solar power system components in China(since2005).Our company mainly engages in solar charge controller,inverter,solar panel,LED solar street light,solar home system and so on.
Being innovative,pursing outstanding,tring to be the first in this field,and serving people.Our company has obtained ISO9001 quality certificate,CE certificate.And we have won numerous honors at home and abroad for our good quality,competitive prices and considerate services.
We have customers from all over the world, and we hold exhibitions in different country.
1 Q:Do you have your own factory? Can we visit? 1 A:Absolutely.You are always welcomed to visit our factory.
2 Q:How do you control the quality of the products? 2 A:Our factory has obtained CE and ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.
3Q:What kind of payment do you accept? 3 A:We accept T/T, Paypal, Western Union .
4 Q:How long the delivery time? 4 A:2-7 days for ex-stock orders.
5 Q:What kind of controller you mainly manufacturer? 5 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.
6 Q:Can we print our company logo on product and package? 6 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.
7 Q:How long is the warranty period? 7 A:3 years warranty.
