Customized Anti-wearing Zirconia Piston with High Precision
Either Yttria(Y2O3) or Magnesia(MgO) can be added as the stabilizer
- Either CIP forming or Dry Press forming is available, with secondary CNC fine-machining - High Precision & fine polished surface finishing - Speical designing to replace the previous metal piston with more reliable quality - Strong physical strength with super high hardness - Excellent chemical inertness and no pollution to medium - Similar C.T.E. with steel, easy to assemble with other metal parts directly - Outstanding abrasion & corrosion resistance in harsh working environments - Anti high-temperature creeping and good thermal stability - Self-lubricating and maintenance free under heavey working load with non-stop running
- Complying with ROHS and REACH regulations - Non-toxic, healthy material, eco-friendly - Professional R&D team is available for your requests for various zirconia pistons
Product Name
Customized Anti-wearing Zirconia Piston with High Precision
Compositions
Magnesia/Yttria & Zirconia
Color
Yellow or White
Density
6.05 g/cm3
Grain Size
0.3 um
Hardness(GPA)
12.30
Max. Using Temp.
850 oC
Used Fields
Industrial Pump shaft, Motor shaft, Impellor shaft, Fan shaft, Ventilator shaft, Valves

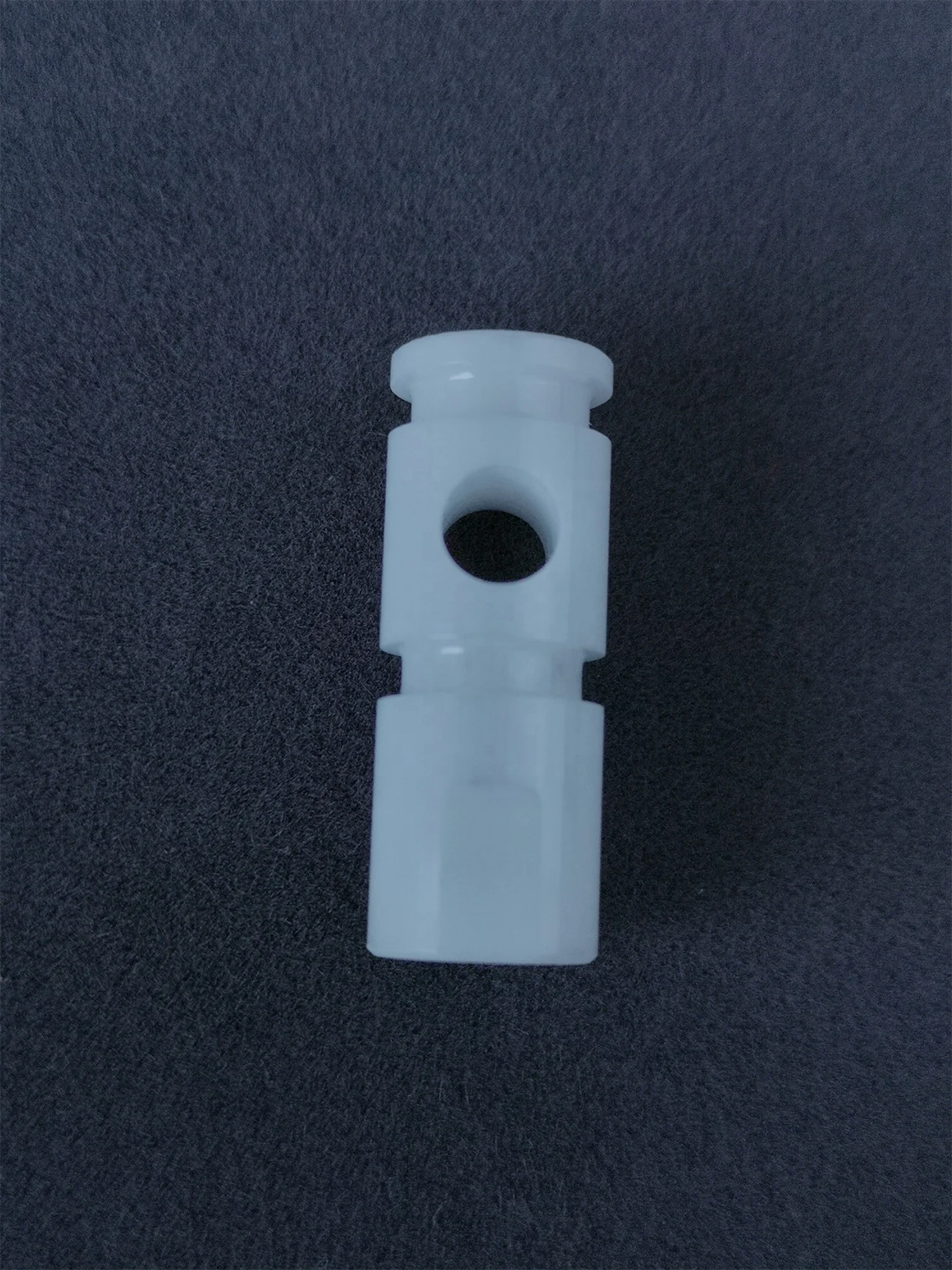

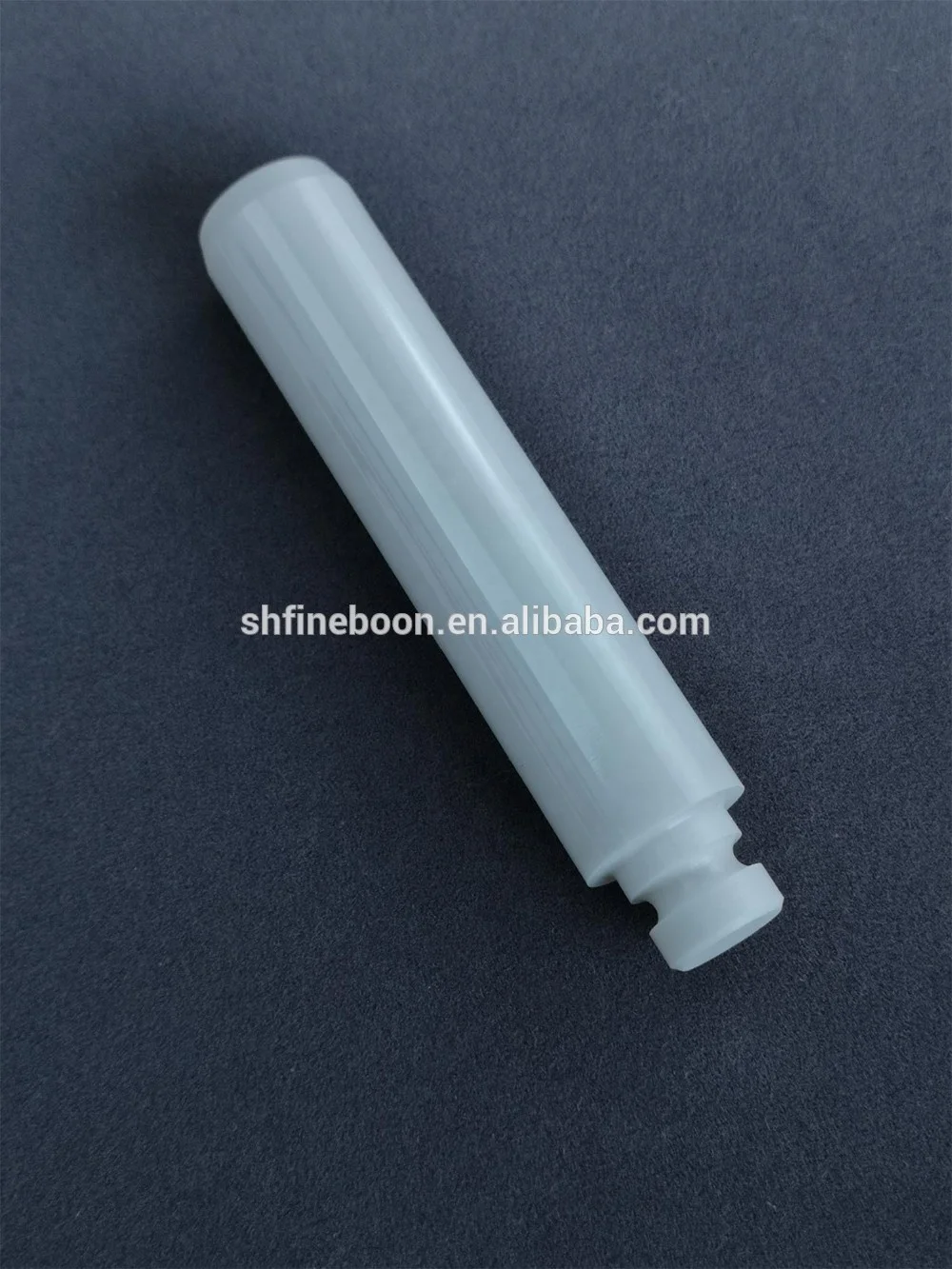

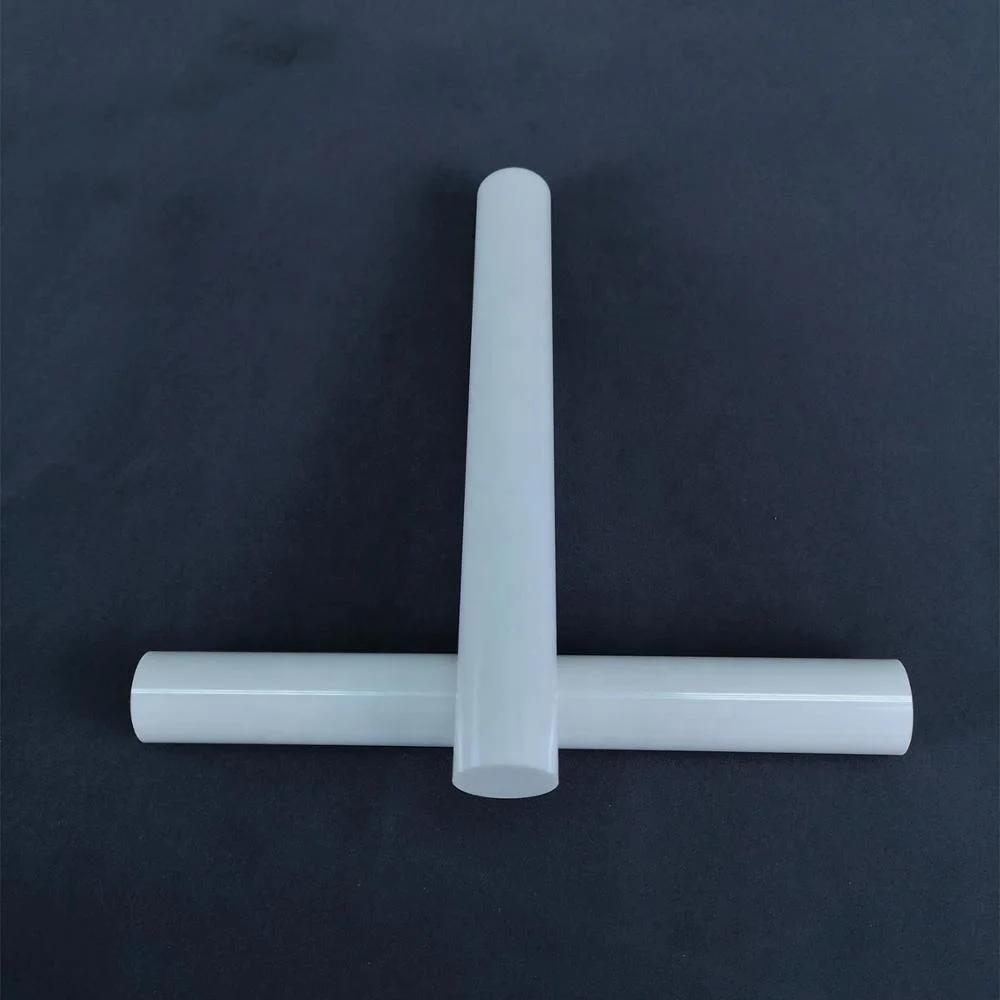

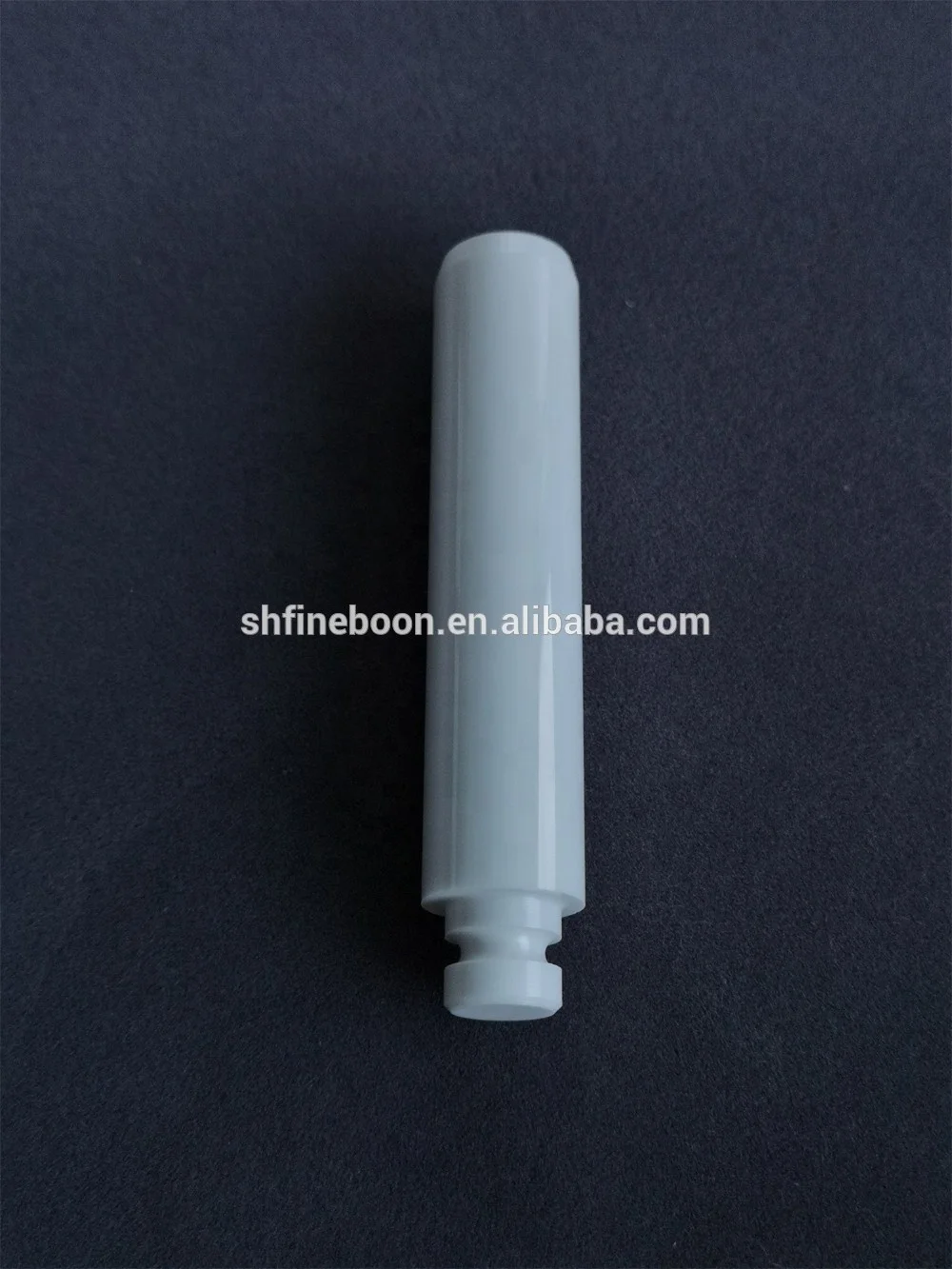

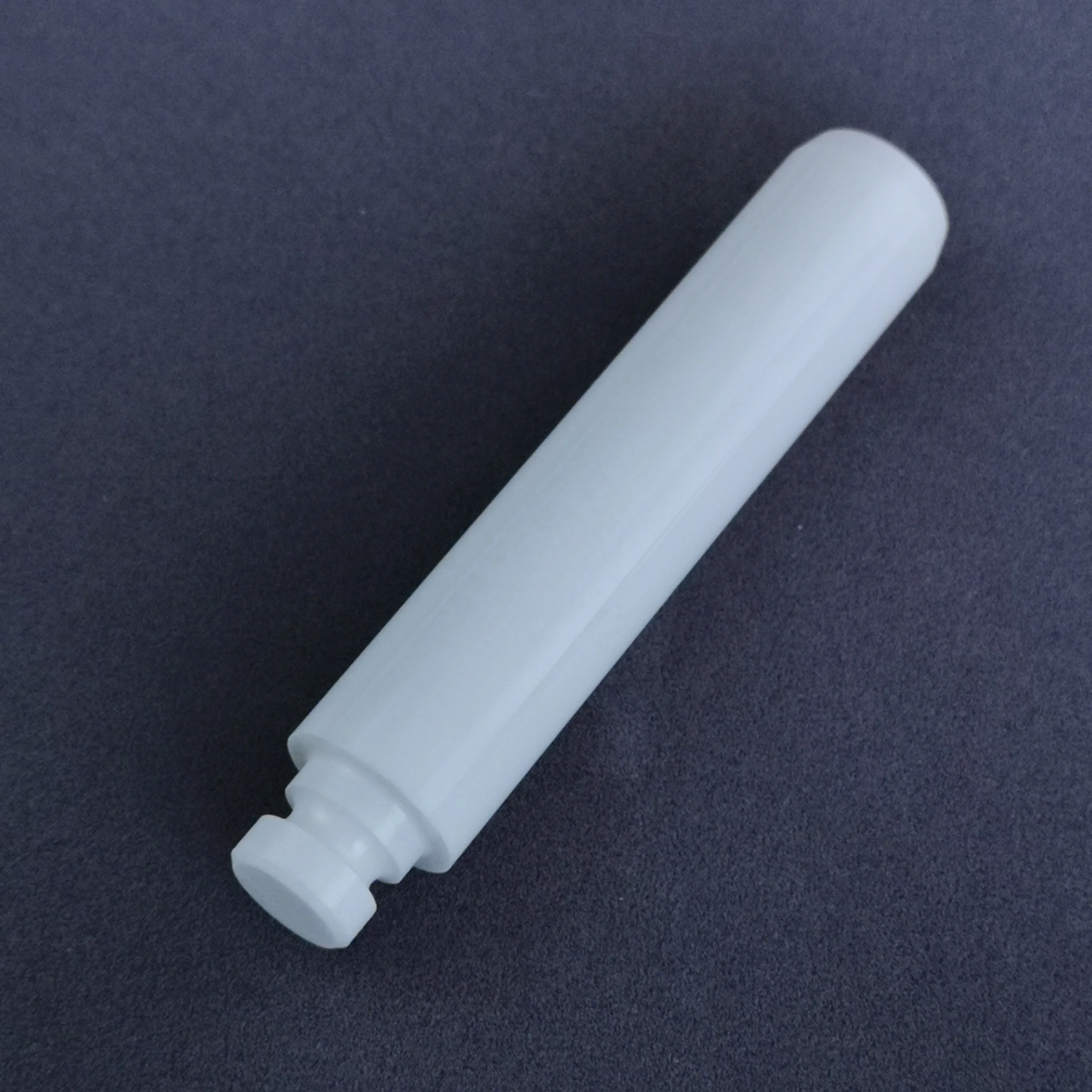

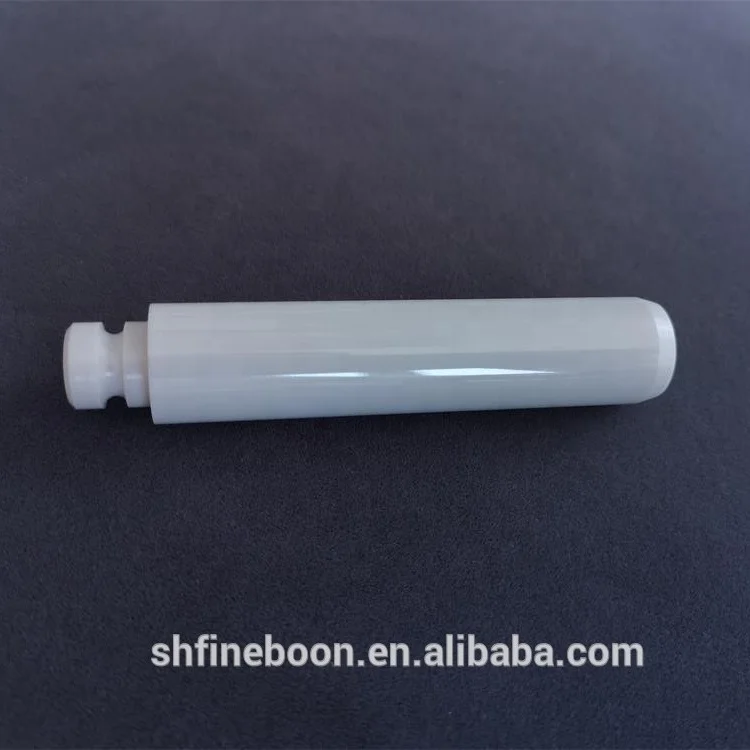

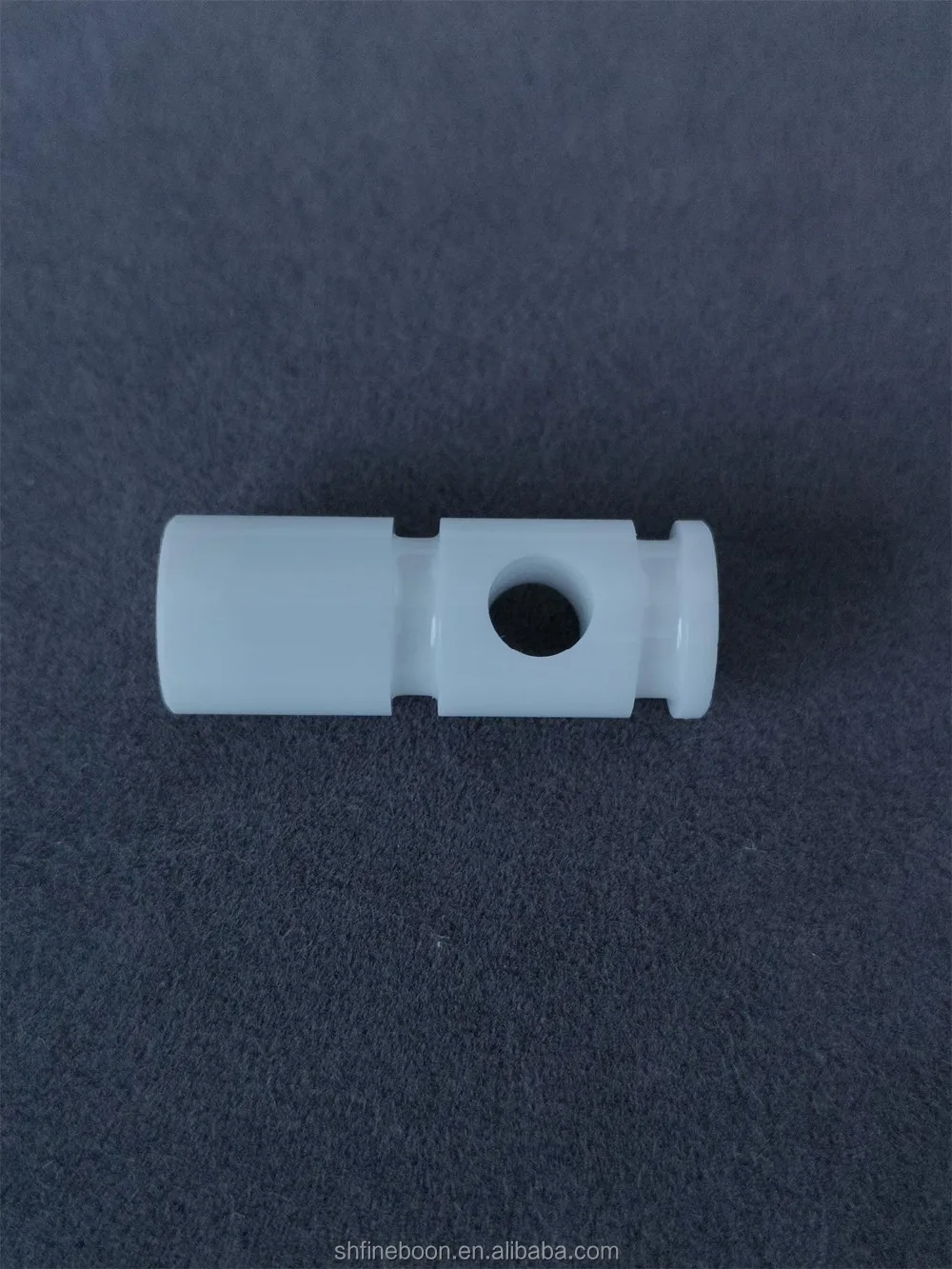

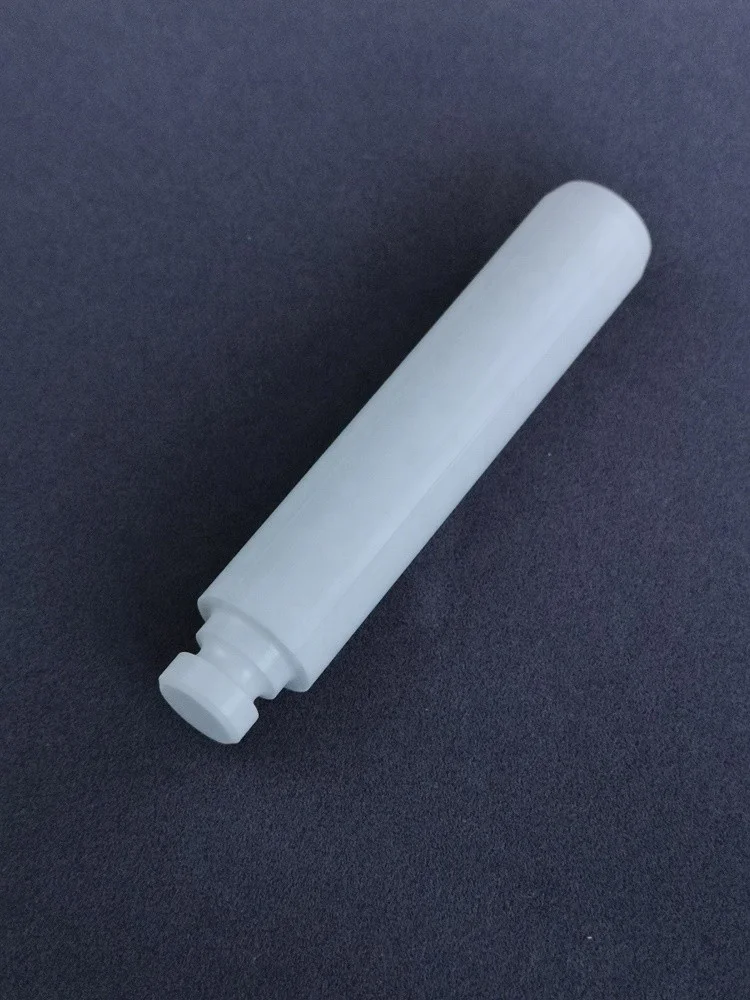

Zirconia Piston Show
Belows are the Various Standard Zirconia Performance Characters Data Sheets and Various Zirconia Performance Comparison sheets with other ceramics materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electrical sintering furances with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for various ceramic pistons and zirconia pistons production
Workshop View
Our workshops for various ceramic pistons and zirconia pistons production
Related Products
Packing & Delivery
Packing Details: Individual shockproof bubble film for each zriconia piston, seaworthy package
Delivery Details: 30 days after purchase order of zriconia pistons was issued
1. Bubble shockproof bag for each zriconia piston separately in paper carton
2. All cartons are loaded in ply-wood standard pallets with films wraped.
3. All shipping methods are available for your choice.
Certifications
FAQ
Q: Are you trading company or manufacturer?
A: We are a professional ceramic factory with our own exporting office in Shanghai.
Q: How long is your delivery time for zriconia pistons?
A: Generally it is 30 days for your customized zirconia pistons after your purchase order was issued to us
Q: Do you provide samples of zriconia pistons? is it free or charged?
A: Yes, we could offer the zirconia pistons sample for free, but do not pay the cost of freight.
Q: What is your terms of payment for zriconia pistons?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other question for various zriconia pistons, pls feel free to contact us as below:
