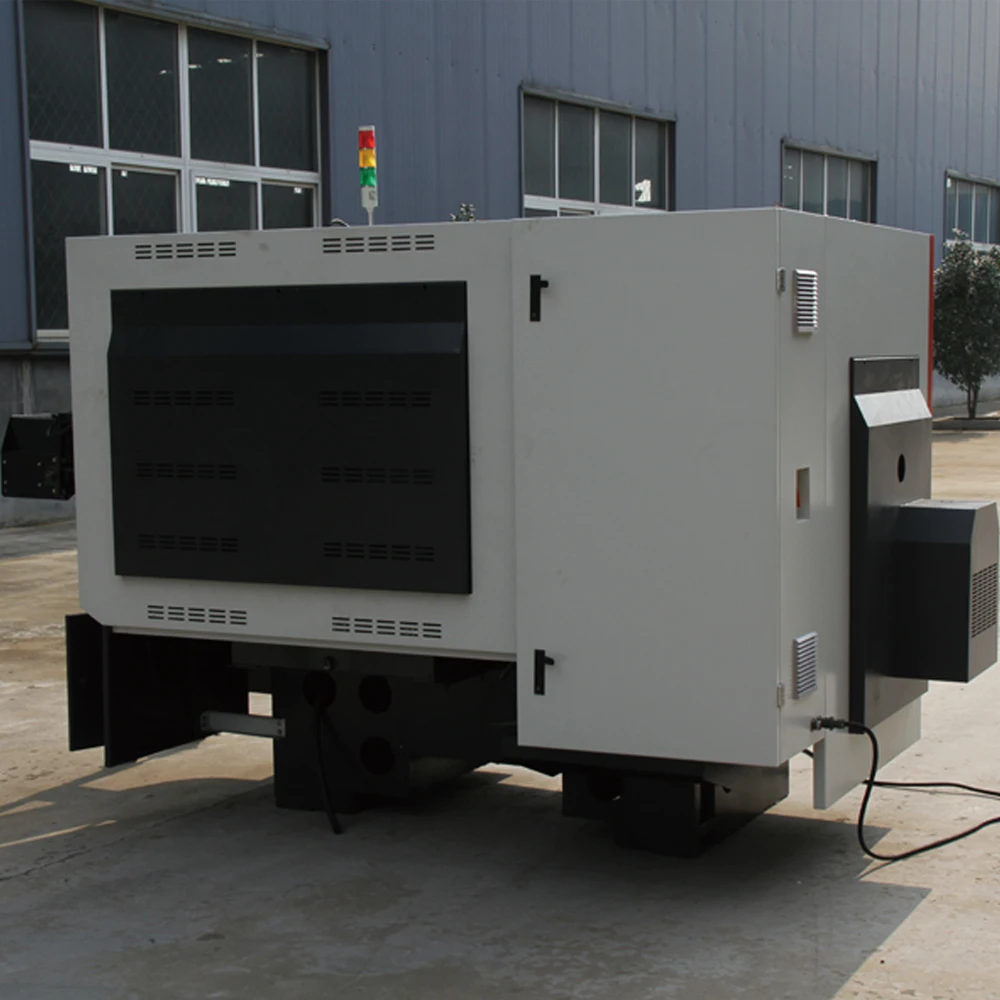

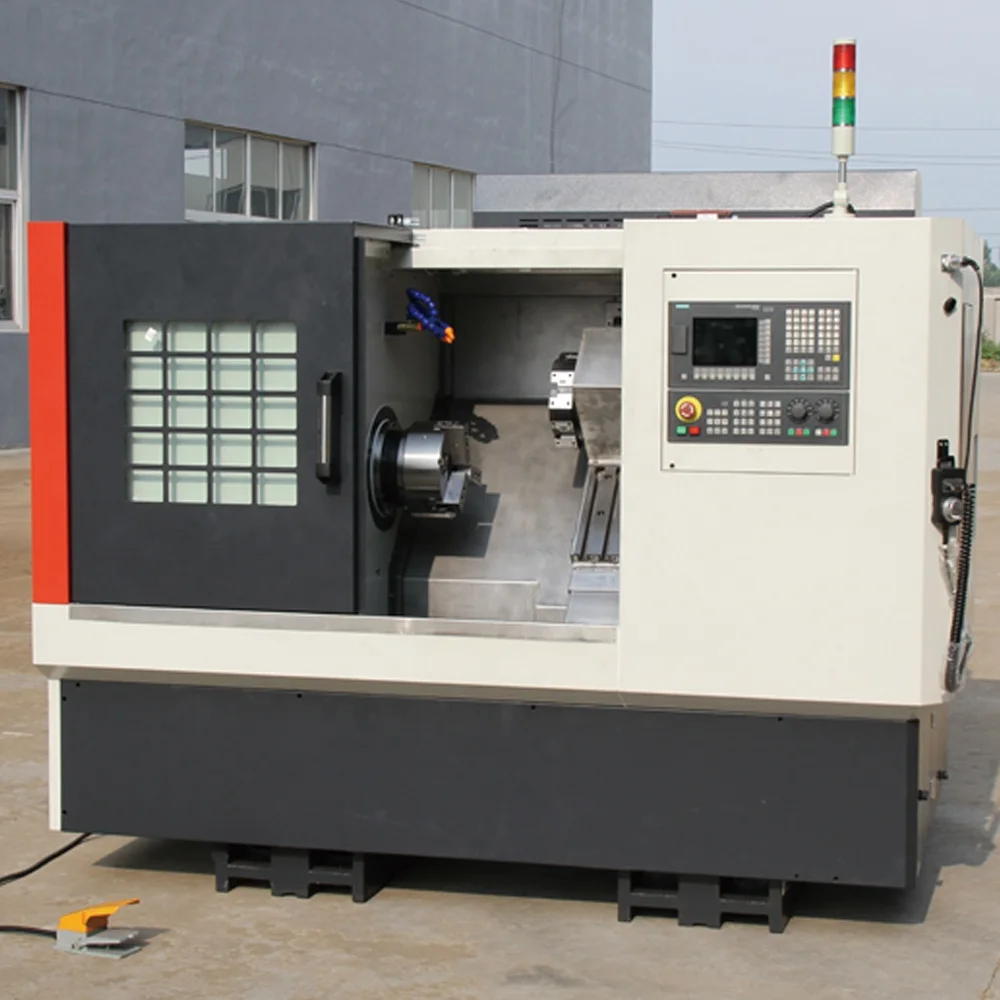

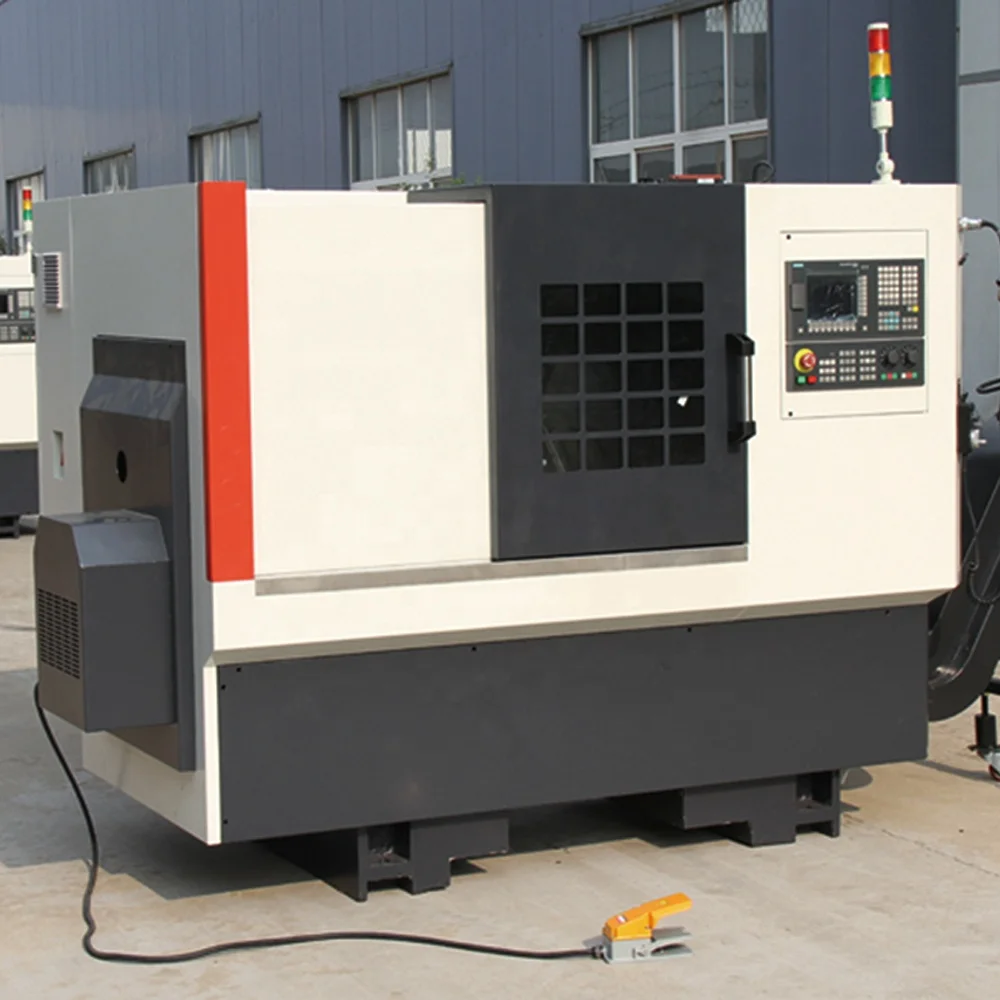

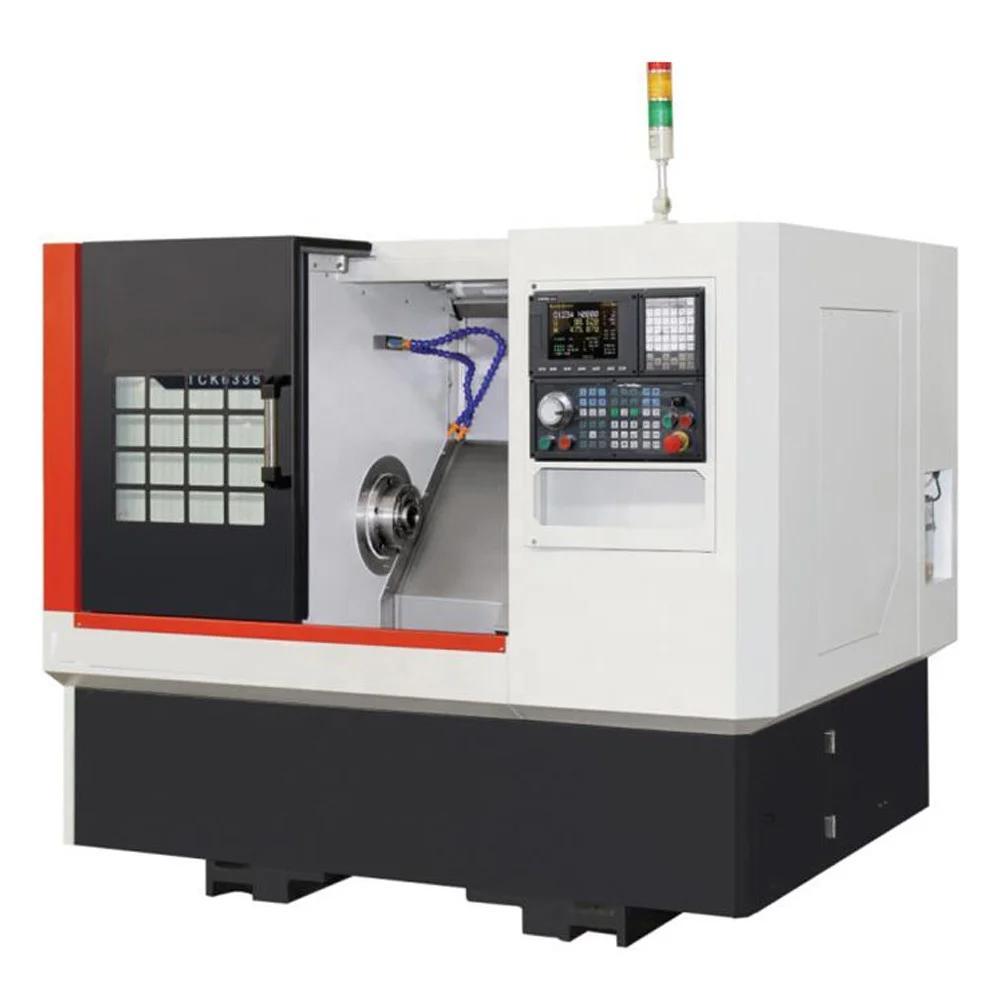

TCK500 China slant bed cnc lathe machine price

Feature:

TCK500 China slant bed cnc lathe machine price is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other  industry.

It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk.

1. 45 degrees slant bed CNC lathe

2. Higher accuracy Taiwan linear guide

3. Chip conveying capacity is large and convenient, customer could choose

4. Chip conveying in the front or in the back

5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure

6. Gang type tool post

7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.

8. Use advanced centralized lubrication system uses

9.  machine with full protection design,waterproof debris reliable, easy maintenance.

Specification:

Standard Accessories:

Taiwan high accuracy HIWIN linear
Famous brand ball screw
GSK980TDC or Siemens 808D
Servo main motor 5.5 kw
lubrication system
coolant system
light system

Optional accessories:

1.CNC System: GSK, SIEMENS, FANUC system
2.Turret:  6 station electric turret
3. Chuck: 6″Non-through hole hydraulic chuck
        8″Non-through hole hydraulic chuck (Taiwan)
        8″through hole hydraulic chuck(Taiwan)

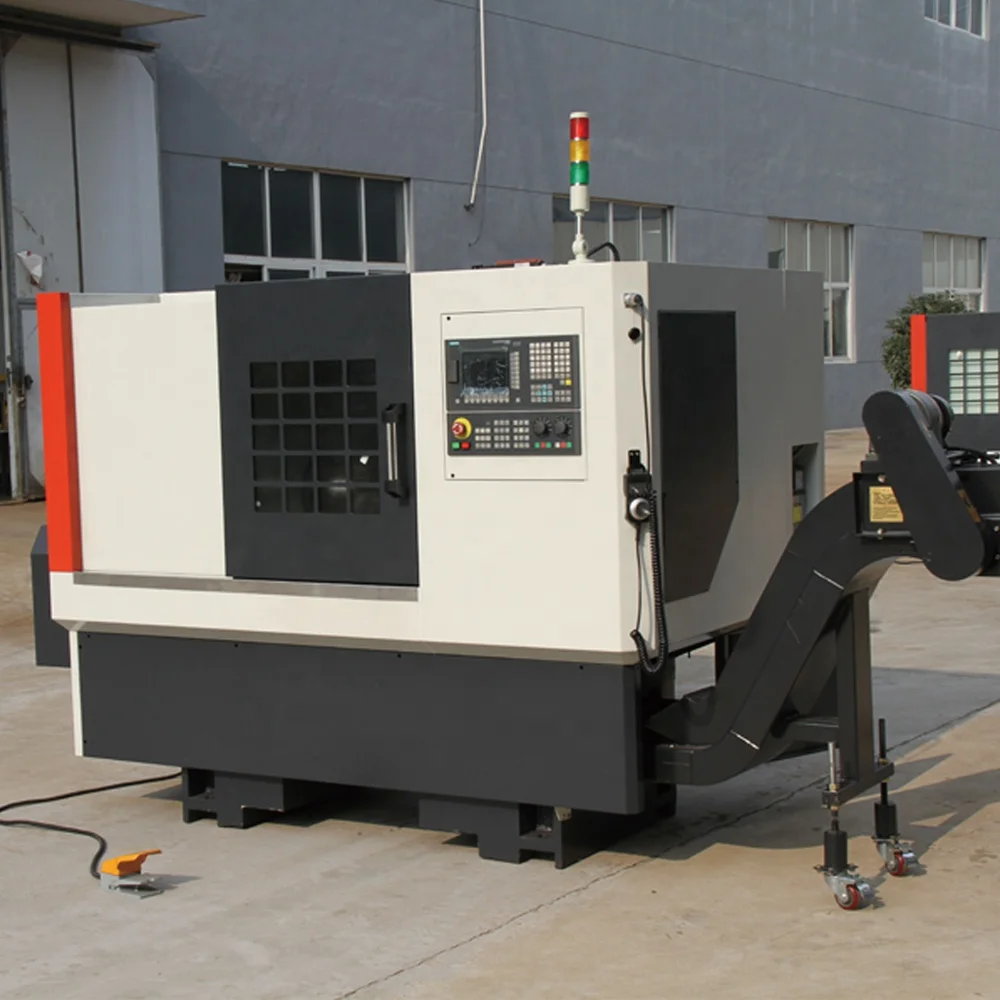

4.Chip conveyor
5.Other optional item: Driving tool turret, automatic feeding device and manipulator.

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.

Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.

Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.

Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
